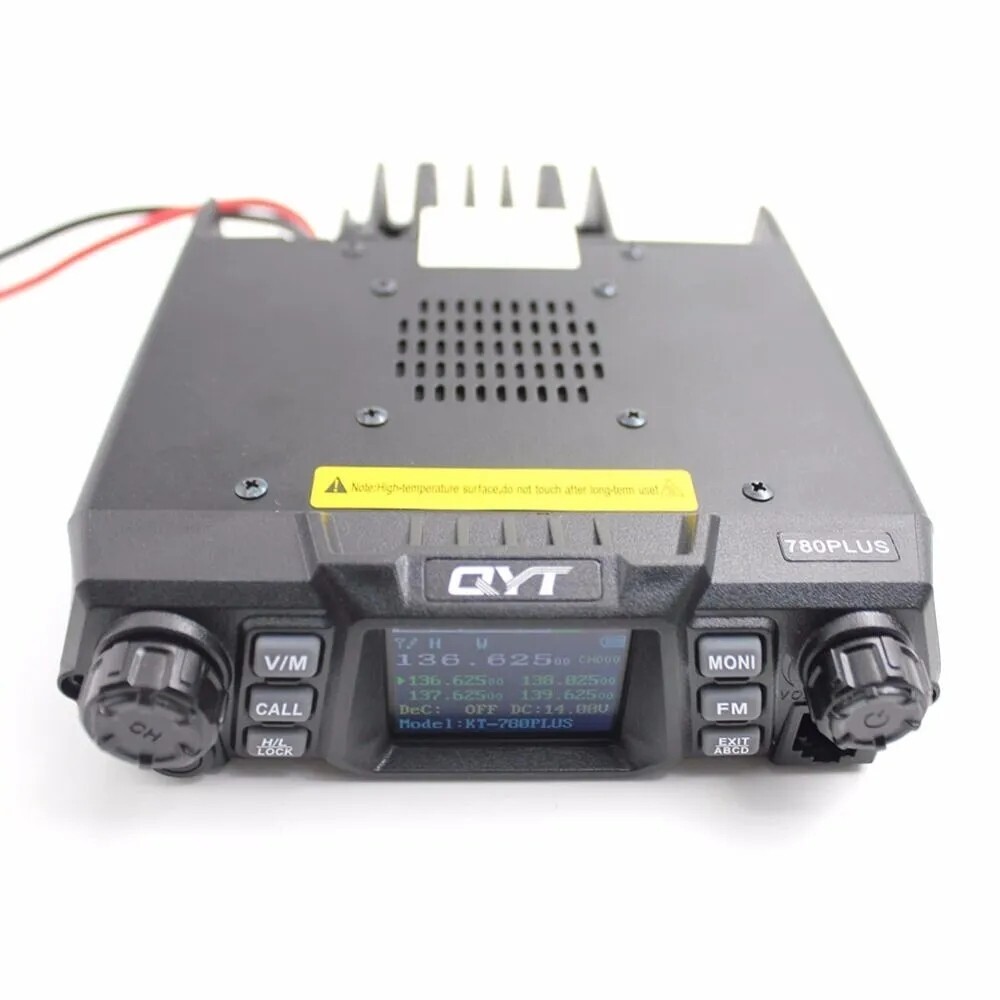

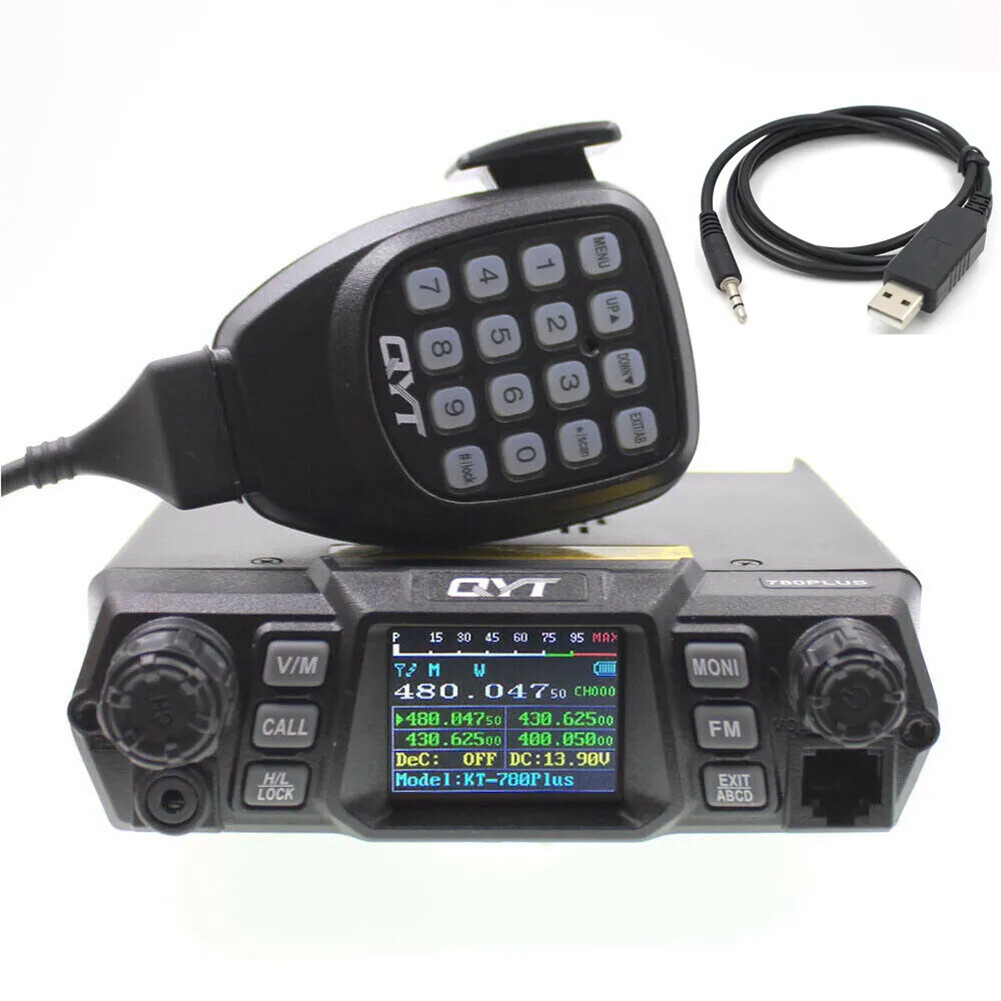

QYT KT-780PLUS UHF 400-480MHz 100W Long Distance Powerful Mobile Radio+USB Cable
Detail
Specifications:
Frequency Range:400-480mhz
Channels:200
Power Output(L/H):H 100W(16A) M 50W(9A) L 20W(6A)
Power Supply:13.8V DC±15%

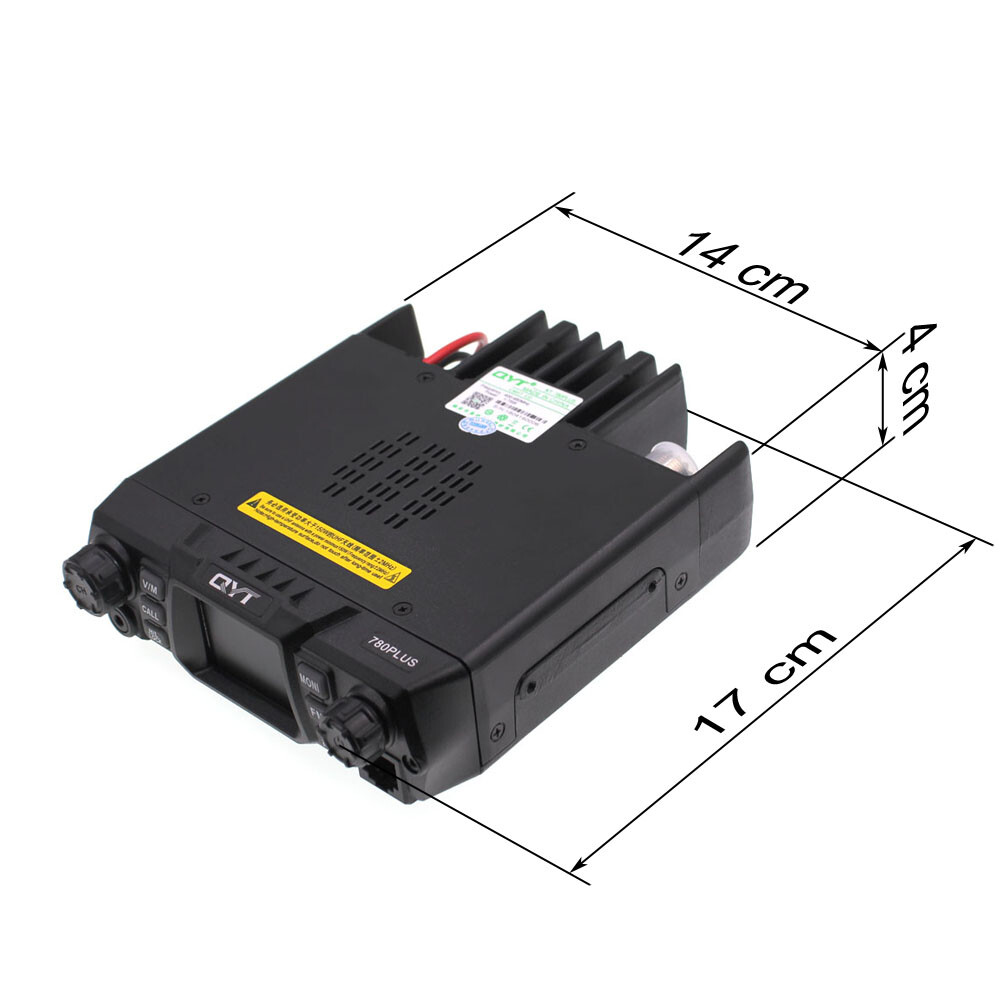

Dimension (H x W x D):140(W)*43(H)*172(D) mm
Frequency Range:400-480mhz
Channels:200
Power Output(L/H):H 100W(16A) M 50W(9A) L 20W(6A)
Power Supply:13.8V DC±15%
Dimension (H x W x D):140(W)*43(H)*172(D) mm
Features:
PC Program
DTMF function, 2 tone, 5tone
ANI (Caller ID)
FM Radio
Single-band/Quad-standby
DTMF function, 2 tone, 5tone
Remote stun, remote activate,remote revive
Long distance communication
100W power output
PC Program
DTMF function, 2 tone, 5tone
ANI (Caller ID)
FM Radio
Single-band/Quad-standby
DTMF function, 2 tone, 5tone
Remote stun, remote activate,remote revive
Long distance communication
100W power output
| Frequency range | UHF: 400-480MHz |
| Number of channels | 200 channels |
| Channel spacing | 25KHz (broadband) 20K (medium band) 12.5 (narrowband) |
| Phase-locked stepping | 2.5KHz, 5KHz, 6.25 KHz, 10 KHz, 12.5 KHz, 25 KHz |
| Operating voltage | 13.8V DC±15% |
| Squelch Mode Carrier | CTCSS, DCS, 5Tone, 2Tone, DTMF |
| Frequency stability | ±2.5ppm |
| Working temperature | -20+60°C |
| Size | 140(W)*43(H)*172(D)mm |
| Weight | 1.03kg |
Receiving
| Narrowband | ||
| Broadband | ||
| Sensitivity (12db SINAD) | ≤0.25μν | ≤0.35μν |
| Adjacent channel selectivity | ≥70db | ≥60db |
| Intermodulation | ≥65db | ≥60db |
| Spurious response | ≥70db | ≥70db |
| Audio response | +1~~3db（0.3~3KHz） | +1~~3db（0.3~2.55KHz） |
| Signal to noise ratio | ≥45db | ≥40db |
| Audio distortion | ≤5% | |
| Audio output power | ≥2W`10% | |
Transmiting
| Narrowband | ||
| Broadband | ||
| Output Power | UHF H100W(16A) | |
| System | 16KΦF3E | 11KΦF3E |
| Adjacent channel power | ≥70db | ≥60db |
| Signal to noise ratio | ≥40db | ≥36db |
| Parasitic and harmonic waves | ≥60db | ≥60db |
| Audio response | +1~~3db（0.3~3KHz） | +1~~3db（0.3~2.55KHz） |
| Audio distortion | ≤5% | |
Notice：

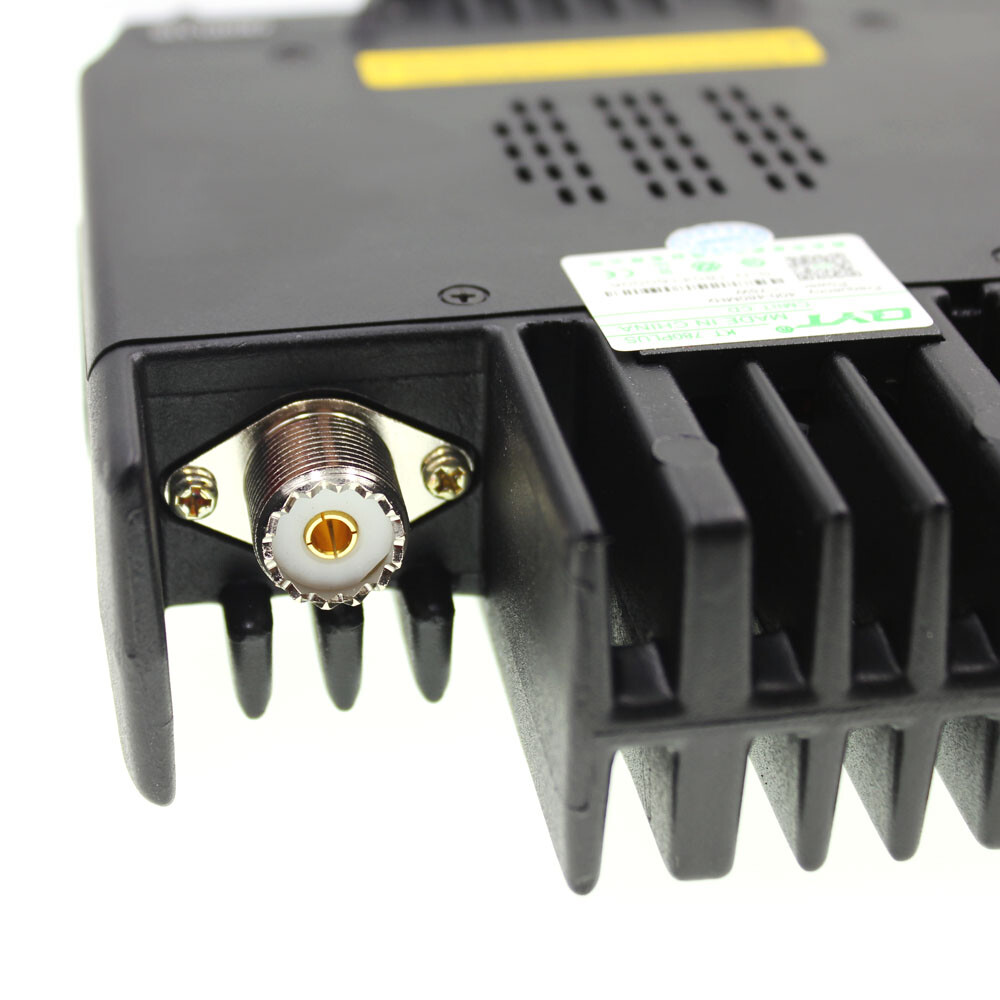

Must use dedicated high power antenna 200W (SUCH AS NL-770R-200W ) to work with it OR YOU MAY CAUSE BURN THE CHIP.
Must use dedicated high power antenna 200W (SUCH AS NL-770R-200W ) to work with it OR YOU MAY CAUSE BURN THE CHIP.

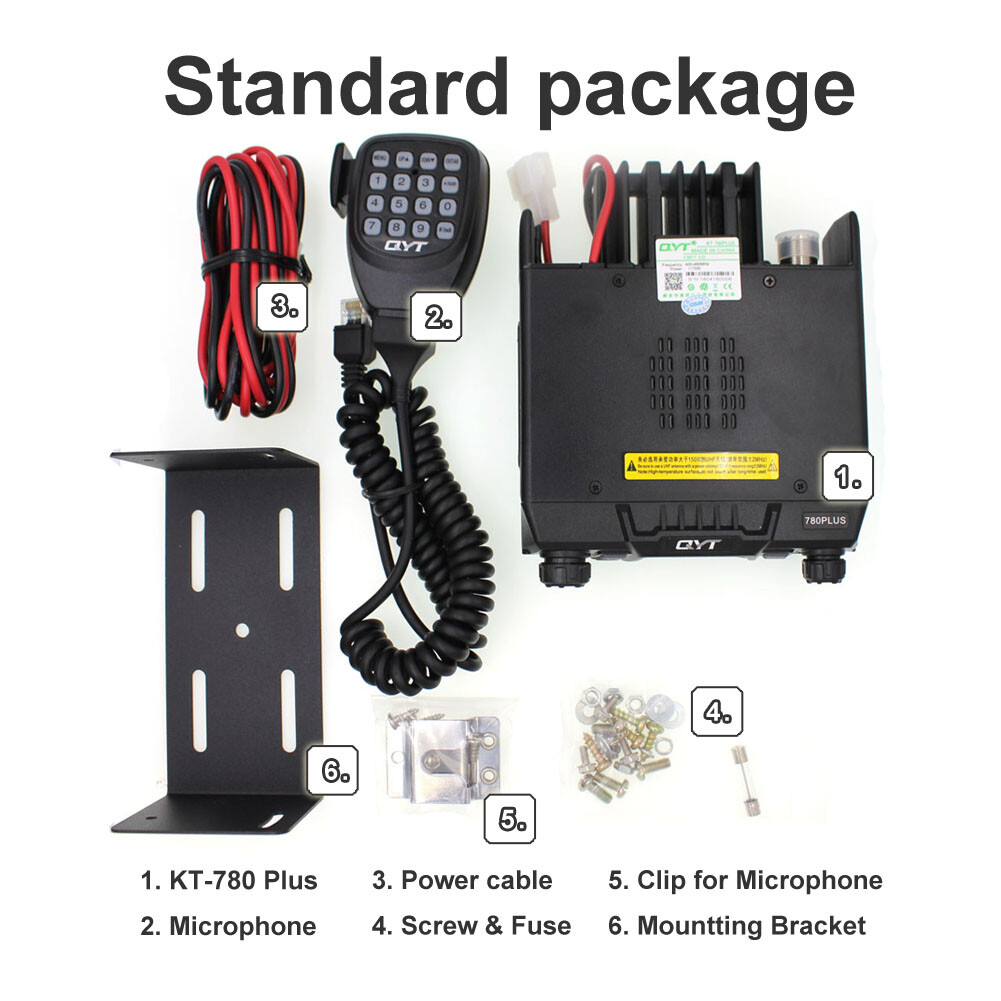

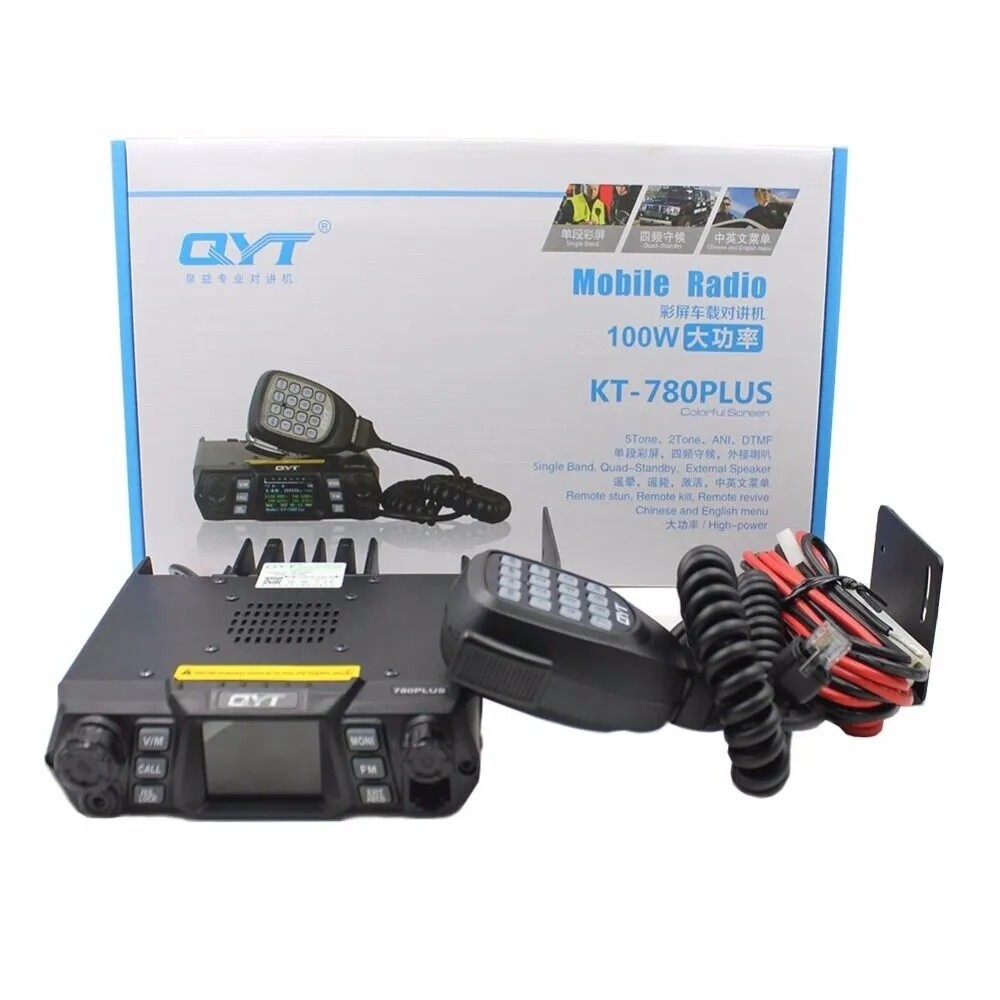

Package Included:
1 x QYT KT-780PLUS UHF 400-480MHz Mobile Radio

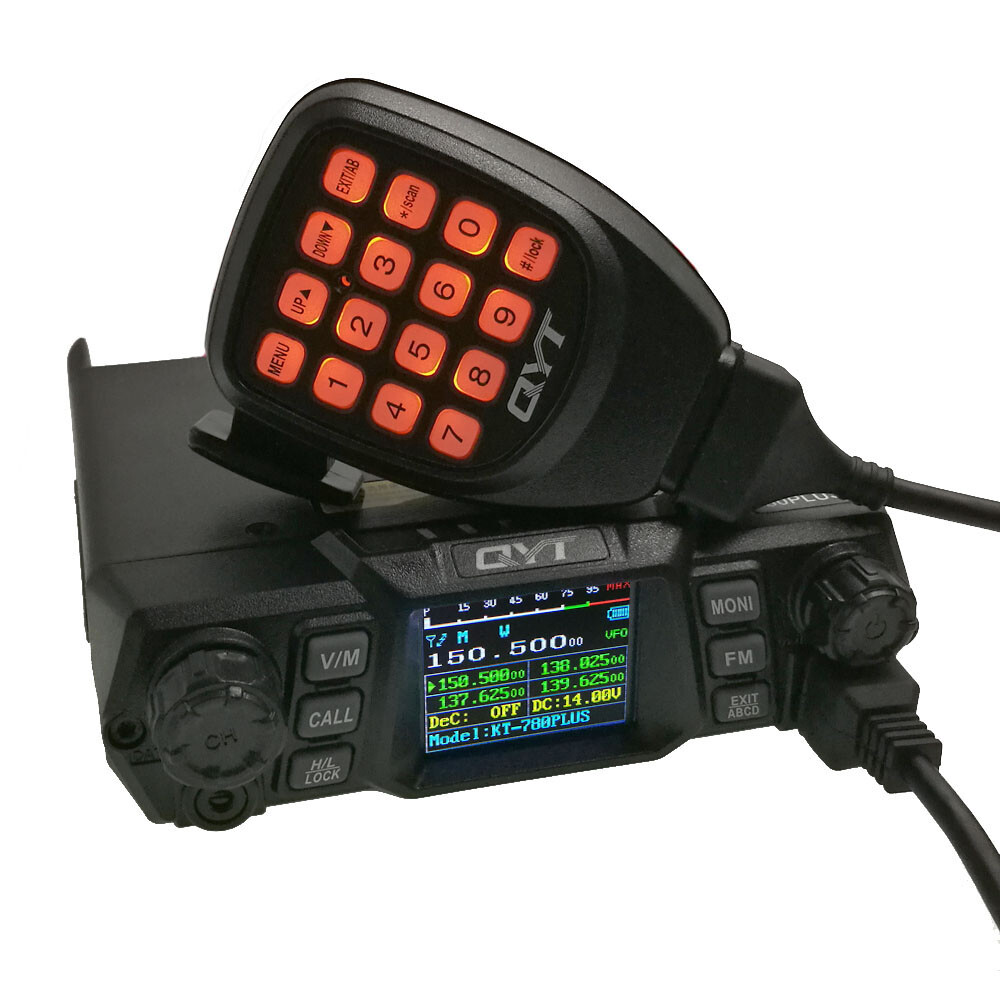

1 x Microphone
1 x Car Power Cable
1 x Mounting Bracket
1 x Screw Sets & backup fuse
1 x User Manual in EN
1 x Programming Cable
1 x QYT KT-780PLUS UHF 400-480MHz Mobile Radio
1 x Microphone
1 x Car Power Cable
1 x Mounting Bracket
1 x Screw Sets & backup fuse
1 x User Manual in EN
1 x Programming Cable
