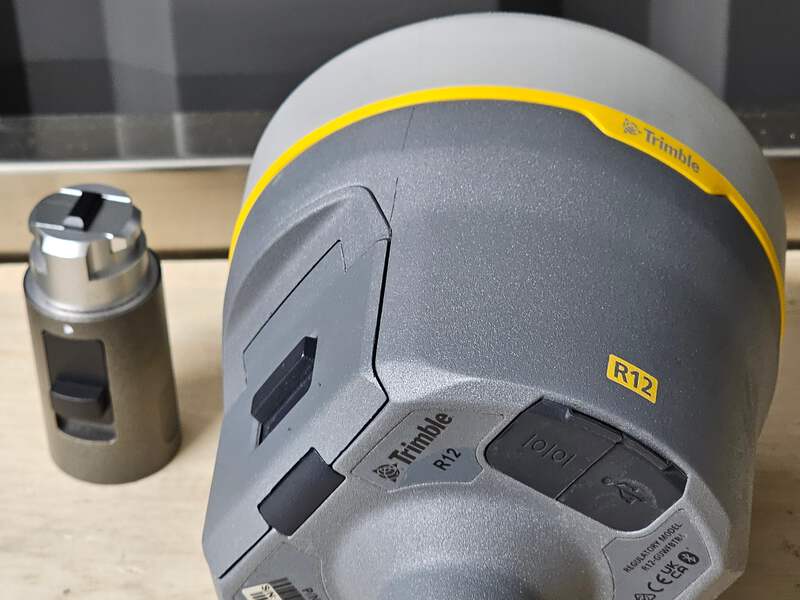

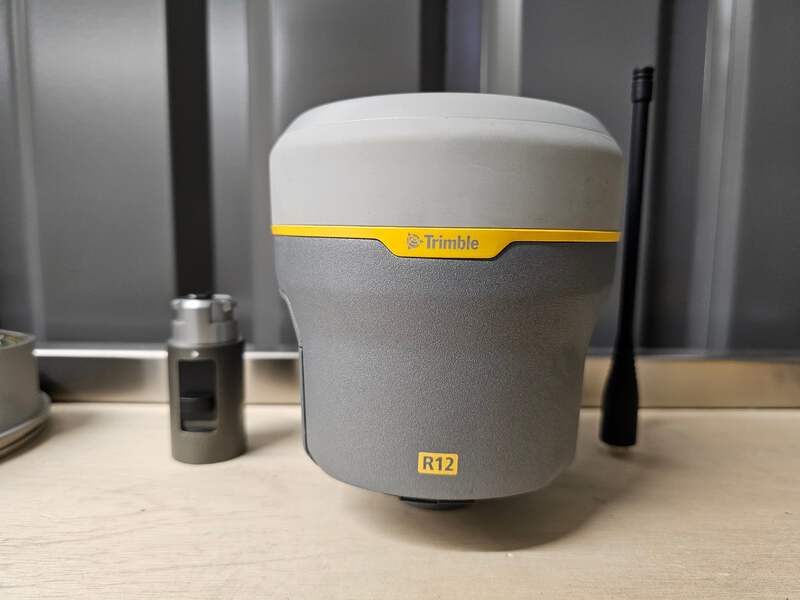

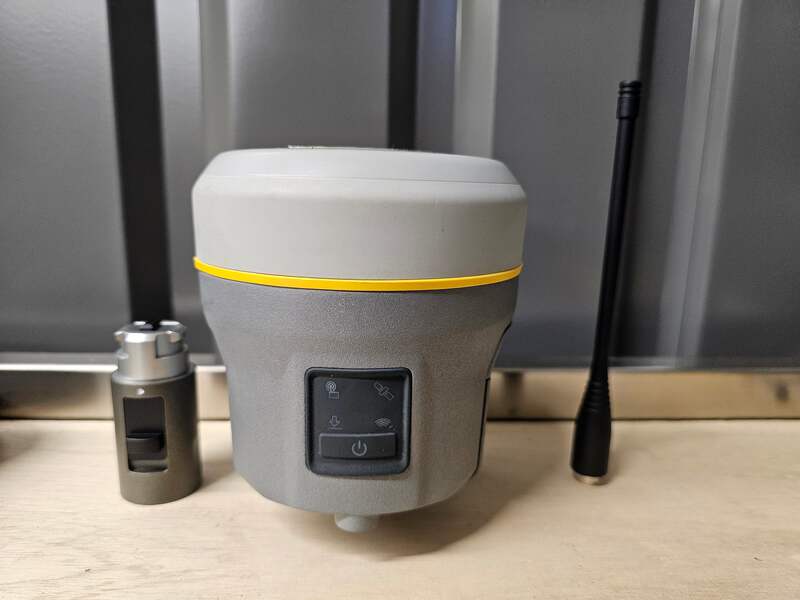

Trimble R12 UHF GNSS Surveying Single Receiver 90913-60 Base/Rover (RMA)

GNSS / RTK Receiver · 9JA Enterprise

Trimble R12 UHF GNSS Surveying Receiver — Restored, Tested, In-House Warranty

Part No: 90913-60

Professional-grade GNSS RTK receiver for land surveying, construction layout, GIS mapping, and precision positioning. Trimble ProPoint™ engine, Maxwell™ 6 chipset with 672 channels, all-constellation tracking, and centimeter-level accuracy in base or rover configuration. Fully restored, tested, and field-verified by our in-house technical team. Ships from Houston, TX.

Restored & Tested ✓ 3-Month In-House Warranty UHF 450–470 MHz ⚠ RMA-Flagged Unit

$ Why Thousands Less Than Dealer Pricing?

Trimble dealers price clean, warranty-eligible R12 receiver kits at $18,000–$19,500. This unit is RMA-flagged, which means it cannot carry a Trimble factory warranty — but the hardware is identical, fully restored, and field-tested. If you don't need Trimble factory warranty support, you save thousands for the same in-field performance.

Dealer Price

$18,995

Your Price

$11,500

You Save

$7,495

Same Maxwell 6 chipset. Same 672 channels. Same ProPoint engine. Same RTK accuracy. Backed by our 3-month in-house warranty and free pre-sale technical support — we know this equipment inside and out.

⚠ Important — RMA-Flagged Receiver Notice

The Trimble R12 receiver in this listing is an RMA / Flagged Replaced Item. Please read carefully before purchase:

• This unit was previously flagged in Trimble's RMA system as a replaced item
• Not eligible for Trimble manufacturer warranty — cannot be registered with Trimble for factory warranty
• Not eligible for Trimble factory service or support
• Not eligible for Trimble firmware option upgrades (e.g. additional bands, RTX subscriptions,)
• The receiver has been fully restored, tested, and verified in working order by our in-house technical team
• Backed by our 3-Month In-House Limited Warranty from 9JA Enterprise
• All hardware functions normally — tracks all GNSS constellations and operates as a standard R12 receiver in the field

If a Trimble factory warranty or factory service eligibility is essential to your purchase decision, this unit is not the right fit. By purchasing, buyer acknowledges the receiver's RMA-flagged status. Contact us with any questions before placing your order.

What's Included

Trimble R12 GNSS Receiver (UHF) — Part No. 90913-60, fully restored.
Quick-Connect Bracket for Receiver
(1) Battery
Whip Antenna (UHF)

Condition, Testing & Warranty

Cosmetic Condition	Good — shows wear consistent with age and use
Operational Condition	Fully functional — restored and tested in-house
Trimble Status	RMA / Flagged Replaced Item — not eligible for Trimble warranty or factory service
Restoration	Fully restored and tested by 9JA Enterprise technical team
9JA Warranty	3-Month In-House Limited Warranty
Return Window	30-day return policy

9JA In-House Warranty — What's Actually Covered

Our 3-Month In-House Limited Warranty is built to give you confidence as a for the parts of operation that actually matter to your job:

GNSS reception and satellite tracking
RTK fix acquisition and positioning accuracy
Internal UHF radio (450–470 MHz Tx/Rx)
Bluetooth, Wi-Fi, and serial communication
Internal power management and charging circuit
Web interface and configuration

Response time: 48-hour response on warranty claims. Most repairs turned around in 5–10 business days. After warranty: Original purchaser receives discounted in-house repair pricing for the life of unit ownership. We fix what we sell.

Key Specifications

Receiver Type	Multi-frequency GNSS RTK receiver — base or rover
Part Number	90913-60 (UHF configuration)
Chipset	Trimble Maxwell™ 6 with 672 channels
Positioning Engine	Trimble ProPoint™ for challenging GNSS environments
RTK Accuracy (Horizontal)	8 mm + 1 ppm RMS
RTK Accuracy (Vertical)	15 mm + 1 ppm RMS
Code Differential Accuracy	H: 0.25 m + 1 ppm \| V: 0.50 m + 1 ppm RMS
GNSS Constellations	GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS
Signal Tracking	L1C/A, L1C, L2C, L2E, L2P, L5 + all corresponding constellation signals
Multipath Rejection	Trimble EVEREST™ Plus
Outage Protection	Trimble xFill® correction outage technology
UHF Radio	Integrated 450–470 MHz transceiver (Tx/Rx)
Connectivity	Bluetooth®, Wi-Fi®, USB, Serial
Web Interface	Browser-based config, status, and data transfer
Internal Memory	6 GB internal storage
Battery	Internal Li-Ion, ~7-hour runtime as rover with internal radio
Environmental Rating	IP67 dust & water resistant
Operating Temperature	−40 °C to +65 °C (−40 °F to +149 °F)
Weight	1.12 kg (2.46 lb) including internal battery and radio
Compatible Software	Trimble Access (TSC5, TSC7, T10, TDC600 controllers)

Ideal Applications

Land surveying & topographic mapping
Construction layout & stakeout
Boundary & cadastral surveying
As-built data collection
GIS mapping & data capture

RTK base station setup
Highway, rail, and corridor projects
Earthwork QA/QC
Network rover via VRS / NTRIP
Pipeline alignment surveys

Full technical specifications
Download the official Trimble R12 data sheet

View Data Sheet (PDF)

📋 Pre-Shipping Acknowledgment

Because of the importance of the RMA-flagged status above, we will send a brief message before shipping asking you to confirm you have read and understand the RMA notice. This protects both you and us — and ensures we deliver exactly what you expect.

Have questions before purchase? Send us a message. Our technical team will answer in plain English — no sales talk. We'd rather you understand exactly what you're buying than have a surprise after the box arrives.

🔒 Disclaimer

We are not an authorized Trimble dealer, distributor, or affiliate. This listing is not sponsored, endorsed, or associated with Trimble Inc. in any way.

The equipment offered is pre-owned and does not include Trimble's official warranty or support services. Buyers will not be able to register or obtain a manufacturer warranty through Trimble for this item. As noted above, this R12 receiver is specifically an RMA-flagged replaced item and is not eligible for any Trimble factory warranty, service, or support.

However, we stand behind our products and provide our own warranty and support to ensure customer satisfaction.
