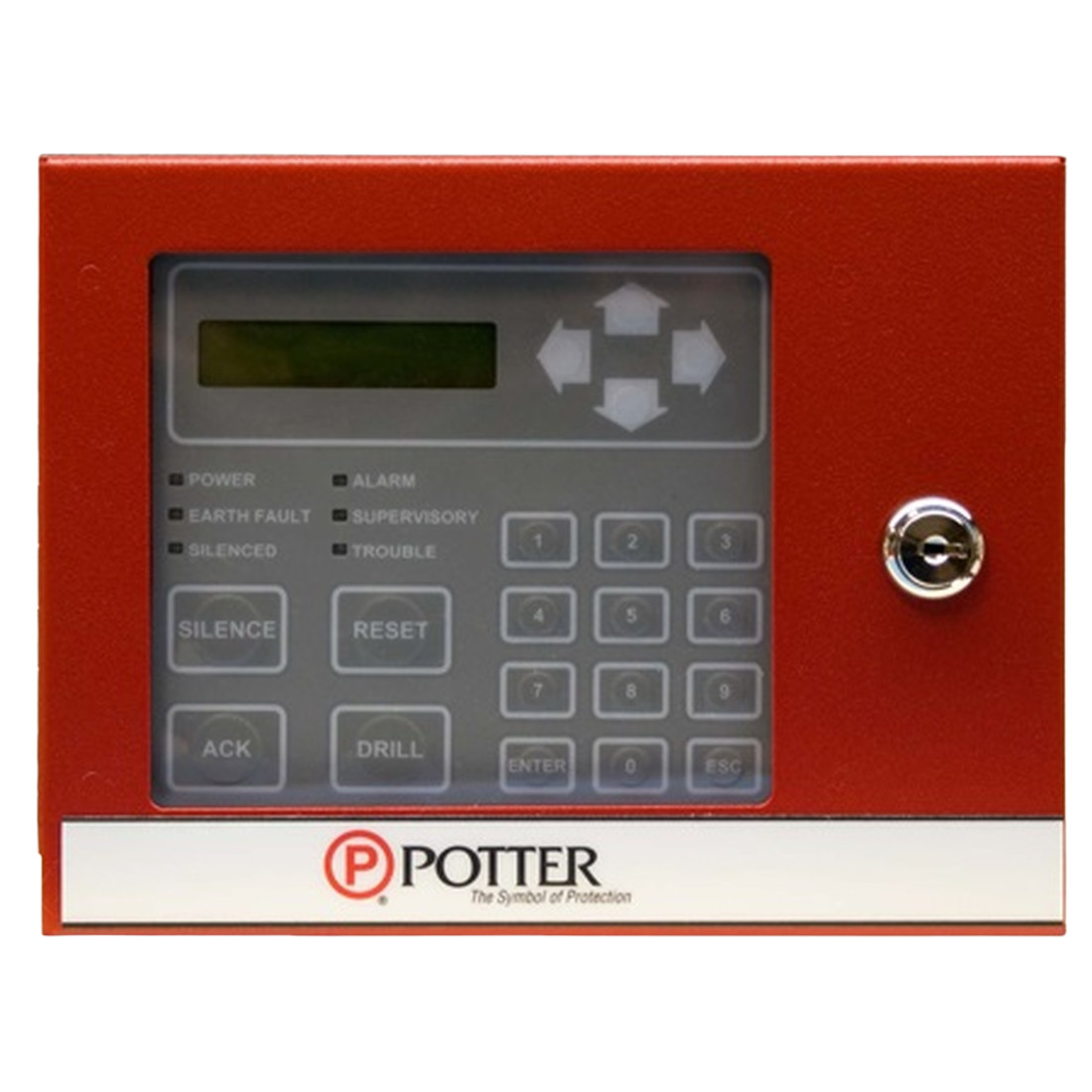

Product OverviewThe RA-6075R LCD Releasing Annunciator is designed for use with the PFC-6075R addressable releasing fire control panel. It communicates with the main panel via an RS-485 connection, providing clear indication of system activity including alarm, supervisory, trouble, silence, and releasing status. Equipped with a 16x2 LCD display and multiple status LEDs, the unit offers straightforward monitoring and control in remote locations. The annunciator can be installed on a single-gang or two-square electrical box and comes housed in a durable sheet-metal enclosure secured with a Potter lock.

Key Features- Model Number: RA-6075R
- Item Number: 3006462
- Remote LCD annunciator for the PFC-6075R releasing panel
- RS-485 communication with the main control unit
- 16x2 LCD display with LEDs for Power, Alarm, Supervisory, Trouble, and Silence
- Additional Release and Pre-Release LEDs for system discharge status
- Sheet-metal enclosure with Potter lock for keypad security
- Mounts to a single-gang or two-square electrical box
Specifications

- Standby Current: 20 mA
- Alarm Current: 25 mA
- Operating Temperature: 32°F–120°F (0°C–49°C)
- Humidity: 10%–93% RH @ 86°F (30°C), non-condensing
- Maximum Wire Length: 6,500 ft
- Maximum Annunciators Supported: 31
- Supported Wire Gauge: 14–22 AWG
- Dimensions (W x H x D): 8” x 6.25” x 1.625”
