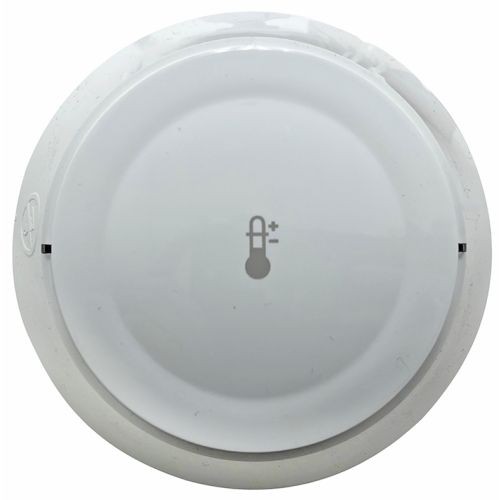

The Silent Knight IDP-HEAT-W is a low-profile intelligent addressable 135°F (57°C) fixed-temperature heat detector for Farenhyt/Silent Knight IDP SLC loops, using rotary decimal addressing for point ID location. It uses advanced thermal (thermistor) technology for fast response and provides 360° visual indication with two bi-color LEDs. This detector supports FlashScan protocol.

Key Specifications:
Type: Intelligent addressable thermal (heat) detector, 135°F fixed
Core Function(s): Addressable fixed-temperature heat detection using advanced thermistor technology for fast response
Loop/Protocol: Silent Knight SLC; FlashScan only.
Power: 15 to 32 VDC from SLC; 200 μA max average standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”)
Indicators/UI: 360° viewing angle (two bi-color LEDs); LEDs blink green in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display
Operating Range: -4°F to 100°F (-20°C to 38°C)
Humidity Range: 10% to 93% RH, non-condensing

Compatible Bases & Accessories:
B300-6 – White, 6” base, standard flanged low-profile mounting base
B501-WH – White, 4” standard European flangeless mounting base
B200S-WH – White, intelligent, programmable sounder base
B224BI-WH – White, isolator detector base
B224RB-WH – White, relay detector base
RA100Z – Remote LED annunciator, 3-32 VDC. For use with B501 and B300-6.
TR300 – White, replacement flange for B210LP or B300-6 bases

System Compatibility: Compatible with Farenhyt Series addressable FACPs (IFP-50/75/100/300/1000/2000/2100 families and equivalents) on the SLC loop.
