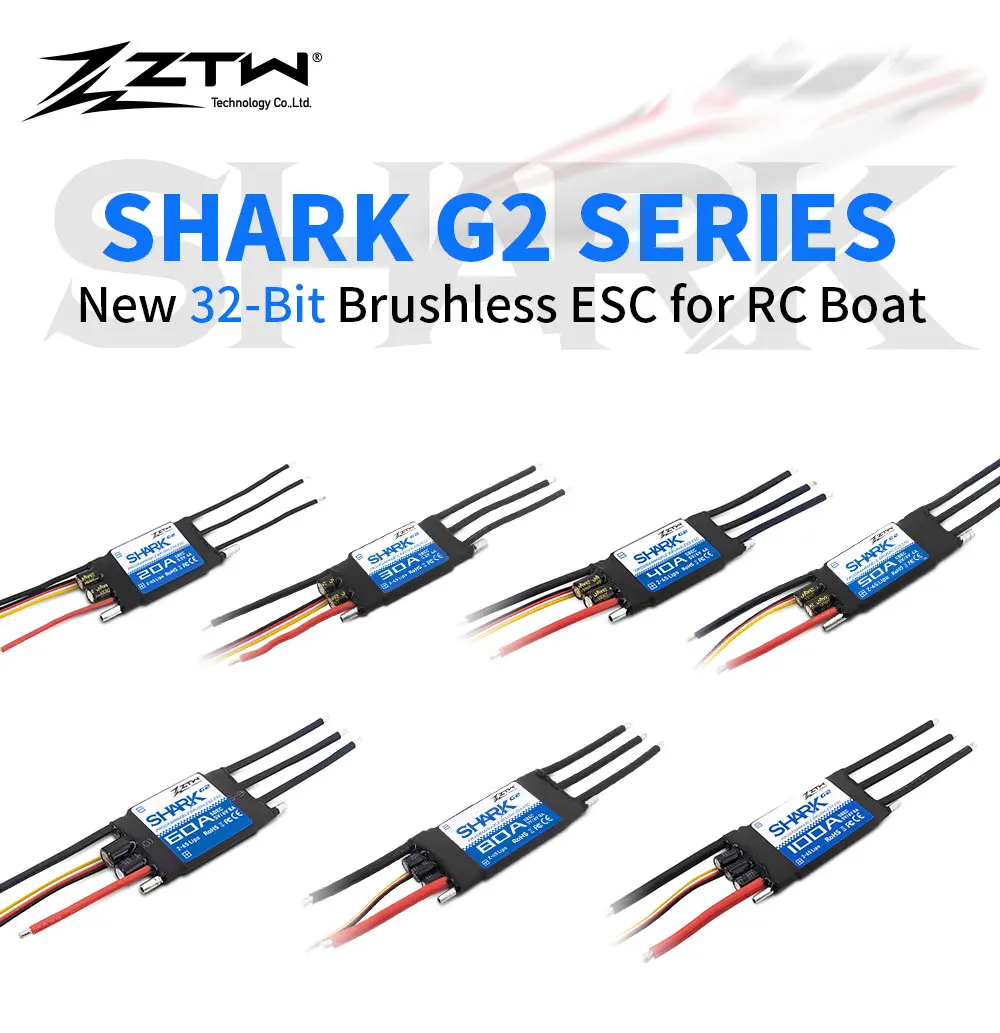

ZTW Shark G2 ESC 20A/30A/40A/50A/60A/80A/100A/120A 2-6S SBEC 5V/6V 8A Water Cooling Two-way For RC Boat Underwater Thruster

Key Features:

1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.

2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.

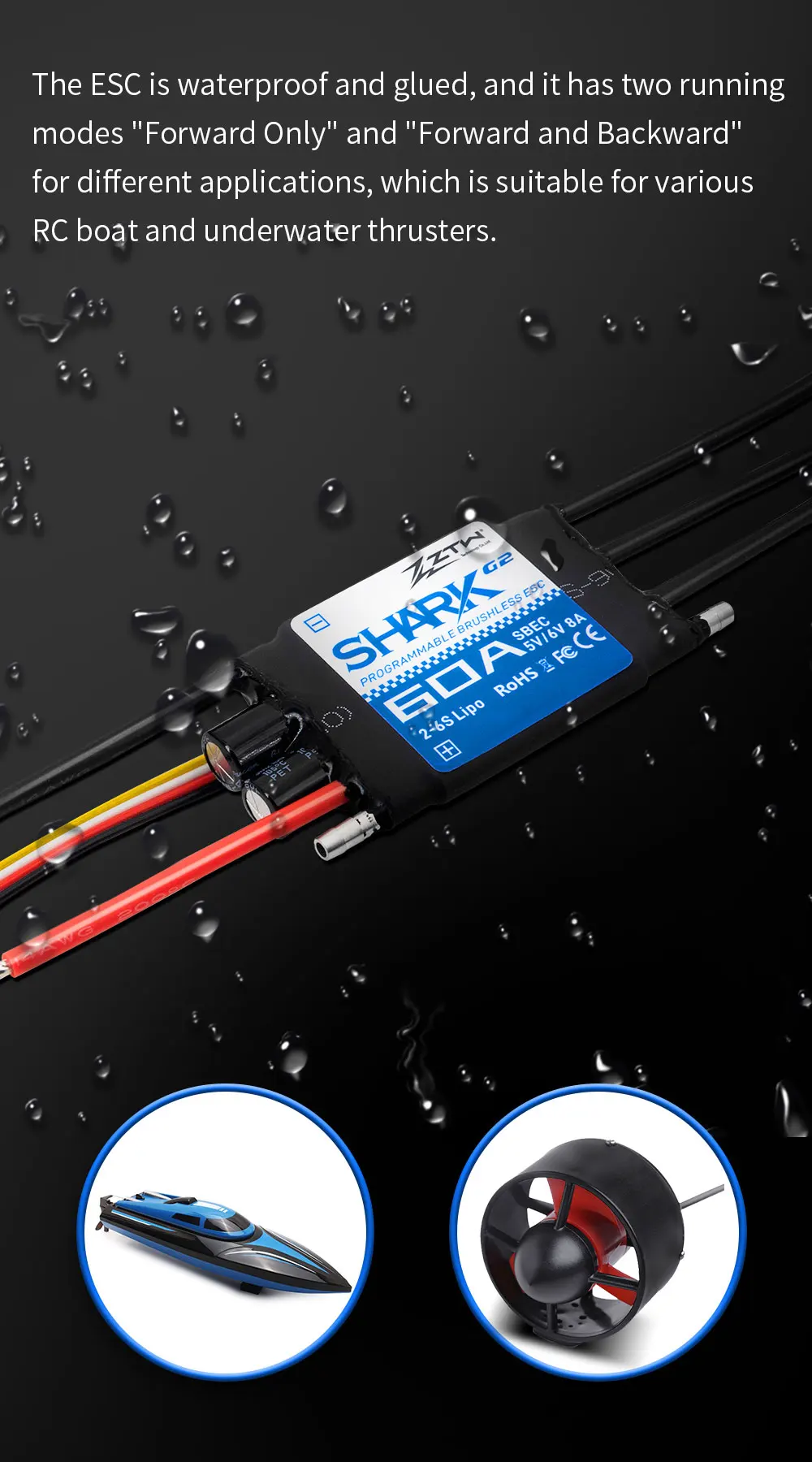

3. The ESC is waterproof and glued, and the flat water-cooling design ensures efficient heat dissipation.

4. Super smooth start-up and accurate throttle linearity make the ESC suitable for all kinds of RC boat models.

5. The ESC has two running modes for different applications:“Forward Only” and “Forward and Backward”.

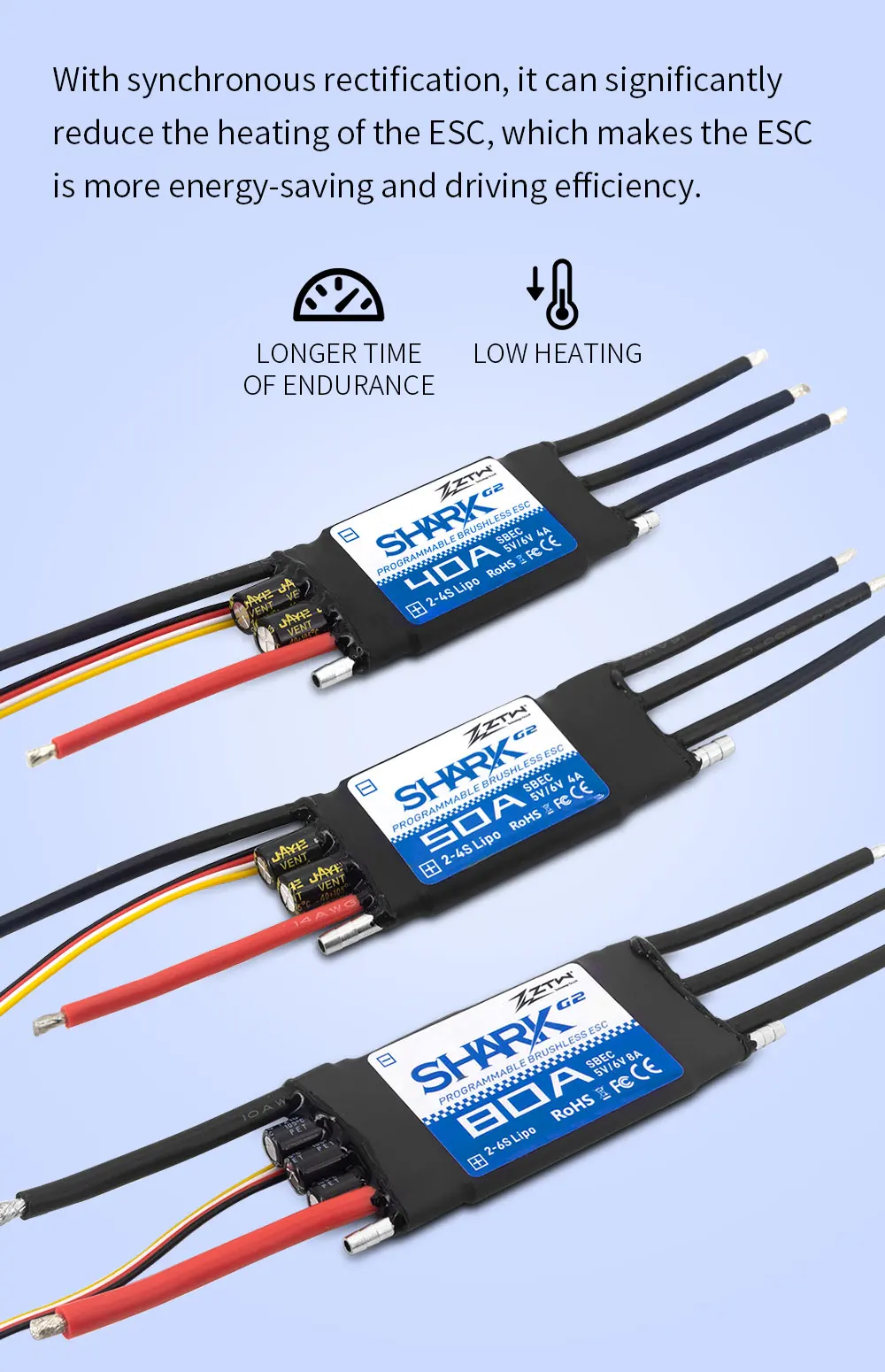

6. Higher driving efficiency and more energy-saving.

7. Adjustable SBEC 5V/6V output voltage provides more powerful power to the servo. (40A/50A/60A/80A/100A have SBEC adjustable)

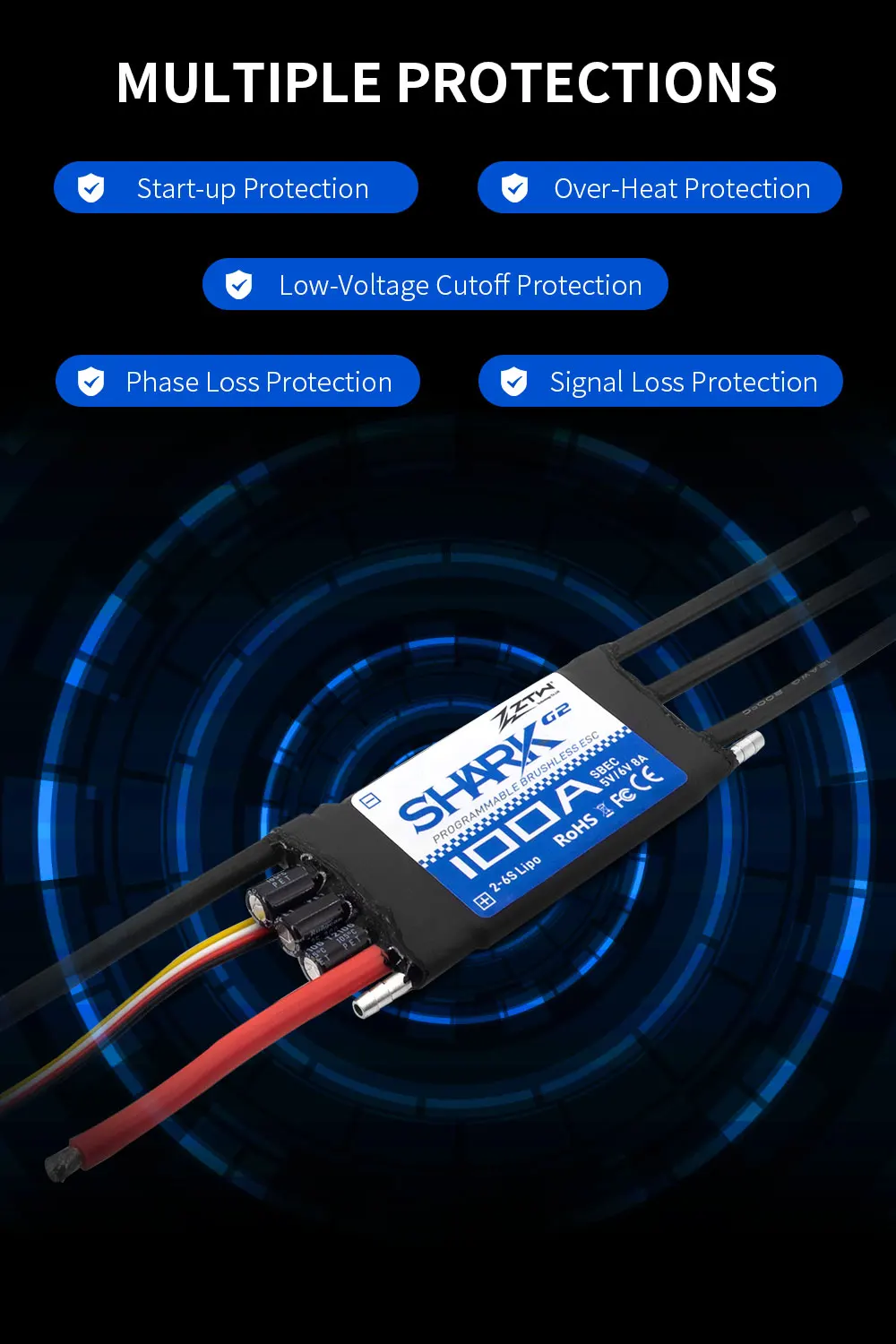

8. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss.

9. Support high RPM motors, and compatible with most motors in the market.

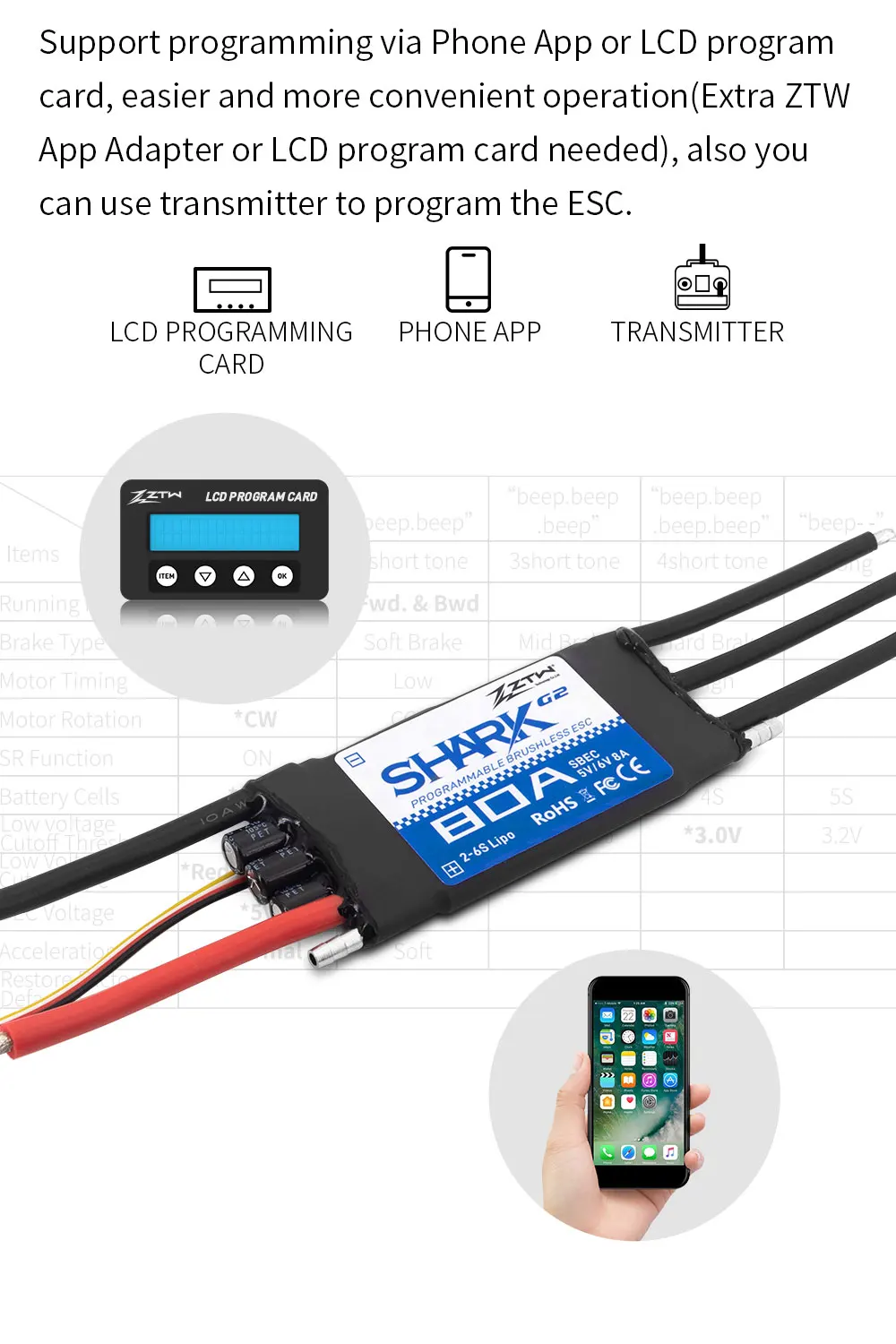

10. Fully programmable via ZTW new programming box G2 or Phone APP.



Specification:

Model: Shark 20A SBEC G2

Cont./Burst Current(A): 20A\30A

Battery cell NiXX\Lipo: 5-12NC\2-4Lipo

BEC Output: 5V/6V 4A

Size(L*W*H): 62*25*10mm

Weight(g): 32



Model: Shark 30A SBEC G2

Cont./Burst Current(A): 30A\40A

Battery cell NiXX\Lipo: 5-12NC\2-4Lipo

BEC Output: 5V/6V 4A

Size(L*W*H): 62*25*10mm

Weight(g): 36



Model: Shark 40A SBEC G2

Cont./Burst Current(A): 40A\55A

Battery cell NiXX\Lipo: 5-12NC\2-4Lipo

BEC Output: 5V/6V 4A

Size(L*W*H): 68*25*10mm

Weight(g): 45



Model: Shark 50A SBEC G2

Cont./Burst Current(A): 50A\65A

Battery cell NiXX\Lipo: 5-12NC\2-4Lipo

BEC Output: 5V/6V 4A

Size(L*W*H): 68*25*10mm

Weight(g): 45



Model: Shark 60A SBEC G2

Cont./Burst Current(A): 60A\80A

Battery cell NiXX\Lipo: 5-18NC\2-6Lipo

BEC Output: 5V/6V 8A

Size(L*W*H): 70*34*10mm

Weight(g): 65



Model: Shark 80A SBEC G2

Cont./Burst Current(A): 80A\100A

Battery cell NiXX\Lipo: 5-18NC\2-6Lipo

BEC Output: 5V/6V 8A

Size(L*W*H): 90*37*10mm

Weight(g): 98



Model: Shark 100A SBEC G2

Cont./Burst Current(A): 100A\120A

Battery cell NiXX\Lipo: 5-18NC\2-6Lipo

BEC Output: 5V/6V 8A

Size(L*W*H): 89*45*03mm

Weight(g): 105



Model: Shark 120A SBEC G2

Cont./Burst Current(A): 120A\140A

Battery cell NiXX\Lipo: 5-18NC\2-6Lipo

BEC Output: 5V/6V 8A

Size(L*W*H): 89*45*03mm

Weight(g): 105
