Characteristics:
High-performance digital standard
Low noise and long service life
Small in size, large in torque
Suitable for RC car, ship and helicopter models
Specification:
Quantity: 2 Set
Operating voltage: 4.8 - 6V DC
Maximum torque: 0.3 kgf·cm
No-load speed: 3.7V ≤ 0.08 seconds / 60°; 4.2V ≤ 0.06 seconds / 60°
Stall current: 3.7V ≤ 320mA; 4.2V ≤ 350mA
Discharge current * (no load): 3.7V ≤ 50mA; 4.2V ≤ 60mA
Maximum working travel angle: 180° ± 10° (500 - 2500 us)
Dead zone width: ≤ 1us
Mechanical limit angle: 360°
Communication interface: PWM
Motor type: Hollow cup motor
Shell material: AB
Gear set material: Plastic gears

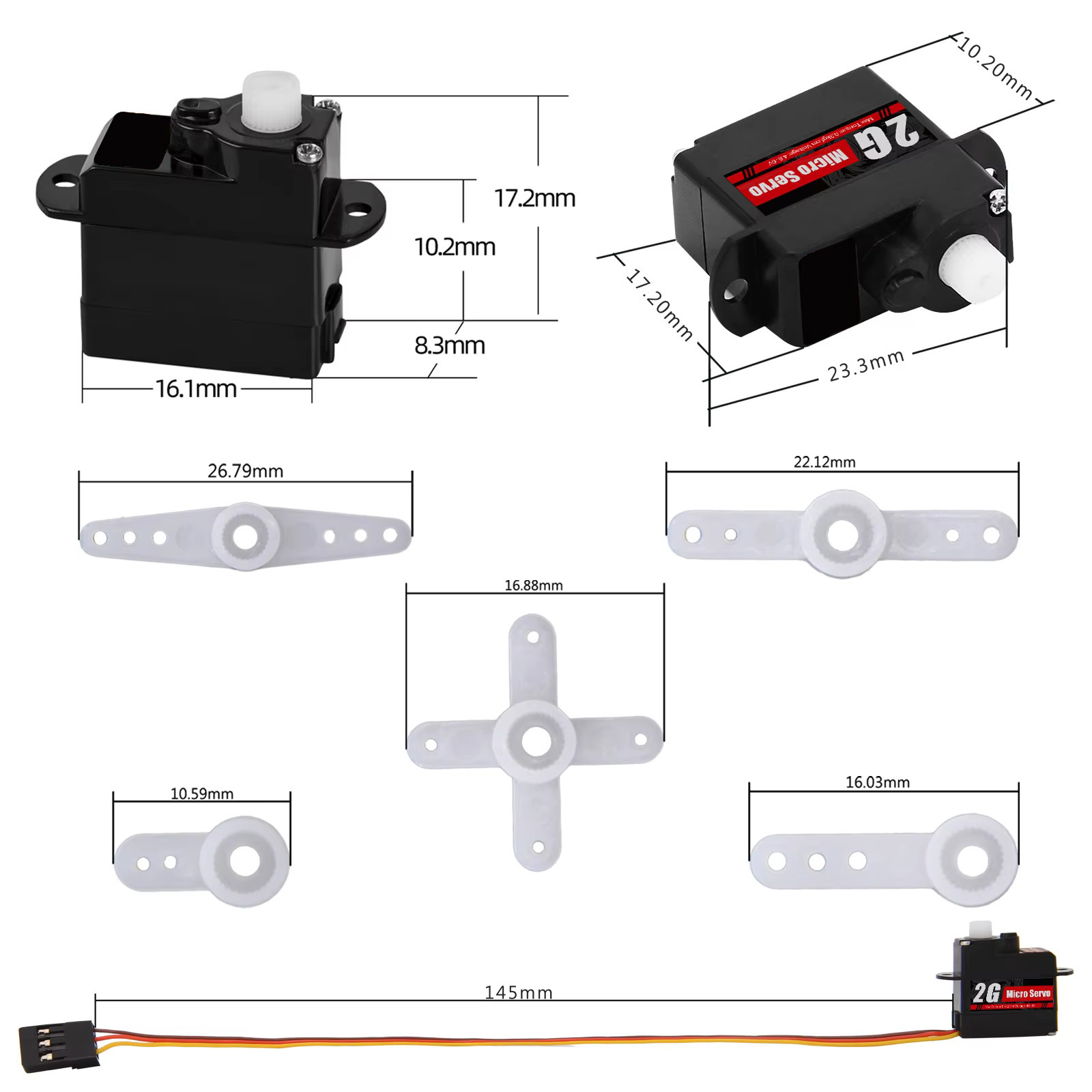

Size: 16.7 × 8.2 × 17 millimeters
Shaft line length: JR 200 ± 5mm (with no exposed plugs)
Low noise and long service life
Small in size, large in torque
Suitable for RC car, ship and helicopter models
Specification:
Quantity: 2 Set
Operating voltage: 4.8 - 6V DC
Maximum torque: 0.3 kgf·cm
No-load speed: 3.7V ≤ 0.08 seconds / 60°; 4.2V ≤ 0.06 seconds / 60°
Stall current: 3.7V ≤ 320mA; 4.2V ≤ 350mA
Discharge current * (no load): 3.7V ≤ 50mA; 4.2V ≤ 60mA
Maximum working travel angle: 180° ± 10° (500 - 2500 us)
Dead zone width: ≤ 1us
Mechanical limit angle: 360°
Communication interface: PWM
Motor type: Hollow cup motor
Shell material: AB
Gear set material: Plastic gears
Size: 16.7 × 8.2 × 17 millimeters
Shaft line length: JR 200 ± 5mm (with no exposed plugs)

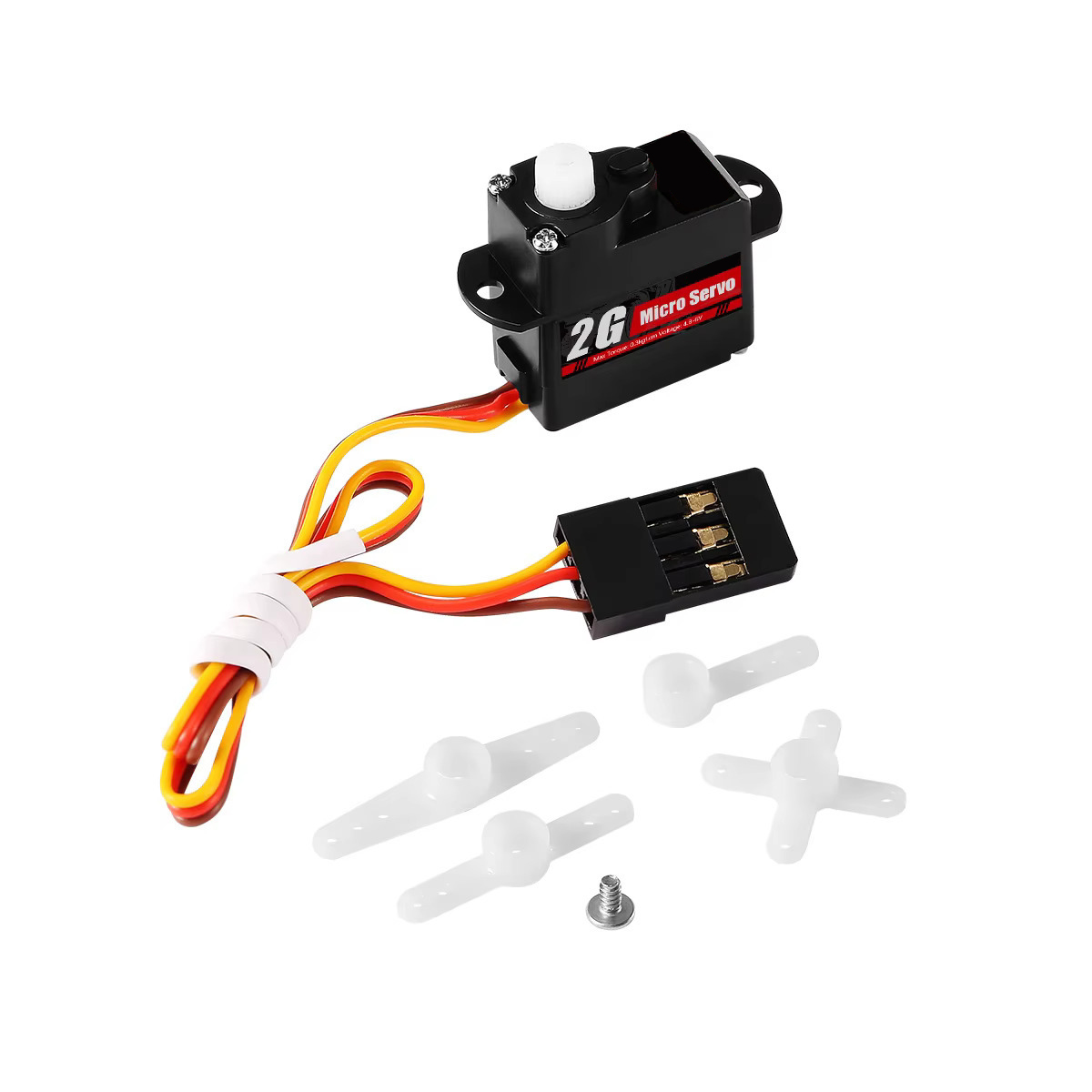

The package includes:

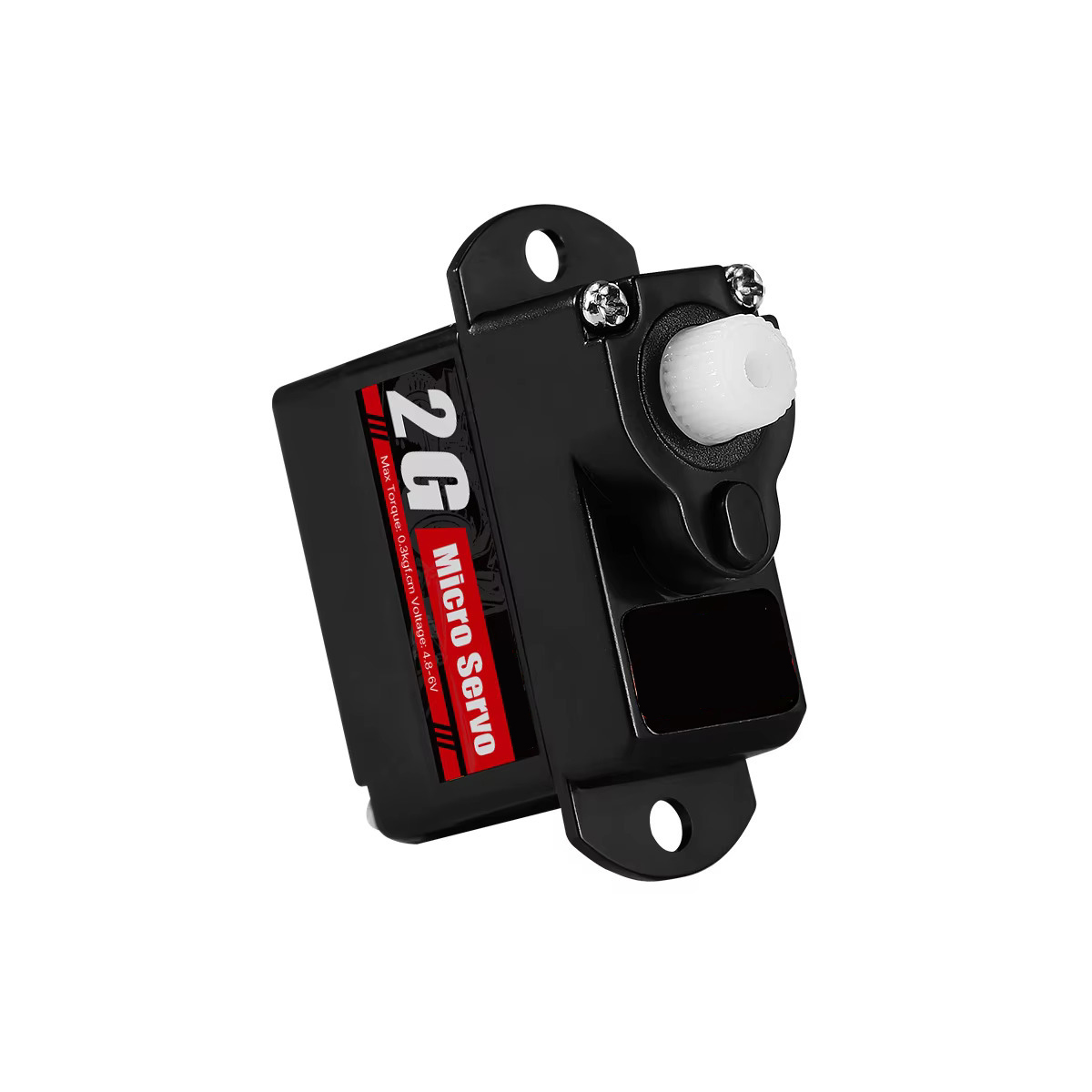

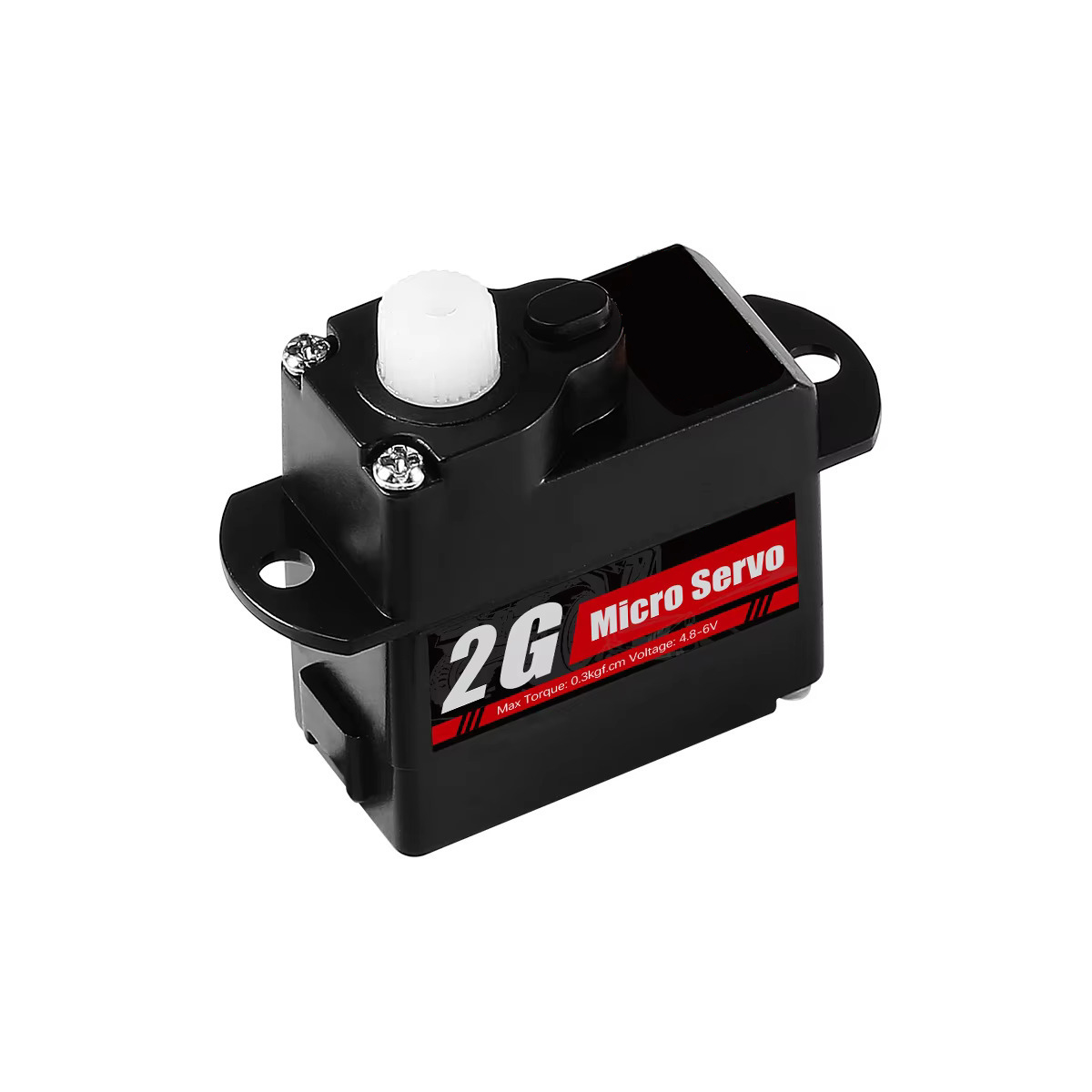

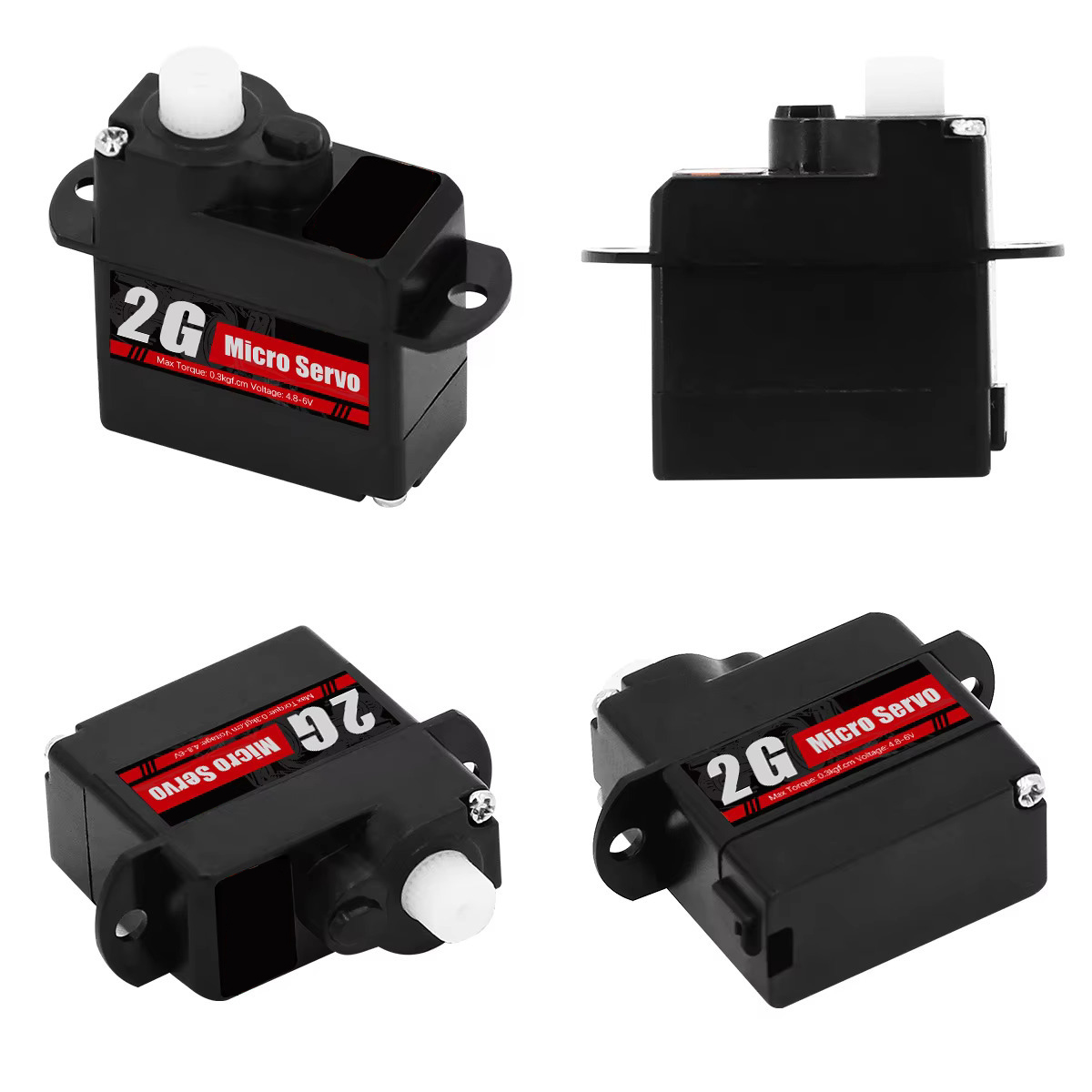

2*2G Mini Digital Servo
2* Steering gear arm accessories（2 set ）
Note: The above only covers the packaging content. Other products are not included.
Due to the differences among various displays, the pictures may not accurately represent the actual color of the items. However, we guarantee that the style will be the same as that shown in the pictures.
2. Due to manual measurement and different measurement methods, a deviation of 1-3mm is acceptable. Please confirm that you are not bothered by this before placing your bid. Thank you!
2*2G Mini Digital Servo
2* Steering gear arm accessories（2 set ）
Note: The above only covers the packaging content. Other products are not included.
Due to the differences among various displays, the pictures may not accurately represent the actual color of the items. However, we guarantee that the style will be the same as that shown in the pictures.
2. Due to manual measurement and different measurement methods, a deviation of 1-3mm is acceptable. Please confirm that you are not bothered by this before placing your bid. Thank you!
