• Fuse rated current: 175A;Maximum rated voltage: 58V; Stud Size: 5/16"(M8);Terminal mounting hole: 3/8"(M10).
• The main material of Terminal Mount Fuse Block Kit is thermoplastic PPS, studs and nuts are made of stainless steel for high temperature resistant and good electrical conductivity.
• Main parts of the battery terminal fuse block kit is ceramic, the shell is thermoplastic, the ring terminal is tin plated, which can be used for a long time and is not easy to break.
• Easy to Use&Carry: The simple construction of terminal fuse block makes it very easy to install the device in the car battery through the safe connection of the fuse holder. The small size fuses can also save installation space.
• Wide Application: This Terminal Mount Fuse Block Kit can be widely used in new energy vehicles, RVs, cruise ships, cranes, batteries, charging piles and other DC main power.

Specifications:
Body Material: PPS UL.94-V0, Thermoplastic, Black
Fuse rated current: 250A
Maximum rated voltage: 58V
Stud Size: 5/16"(M8)
Terminal mounting hole: 3/8"(M10)
Protection class: IP66
Stud Material: Stainless Steel
Insulation Material: Ceramic Fuse Material: Copper Alloy (Nickel Plated)
Ignition Protection:Safe to install on gasoline powered boats
IP66 : Protected against powerful water jets
10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks
Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection

Warning:
1. Do not install fuses directly on battery terminals.Must be used with terminal fuse box
2. The normal working current of MRBF Terminal Fuse Block is 100A.It is normal for metal to heat up and cause discoloration.

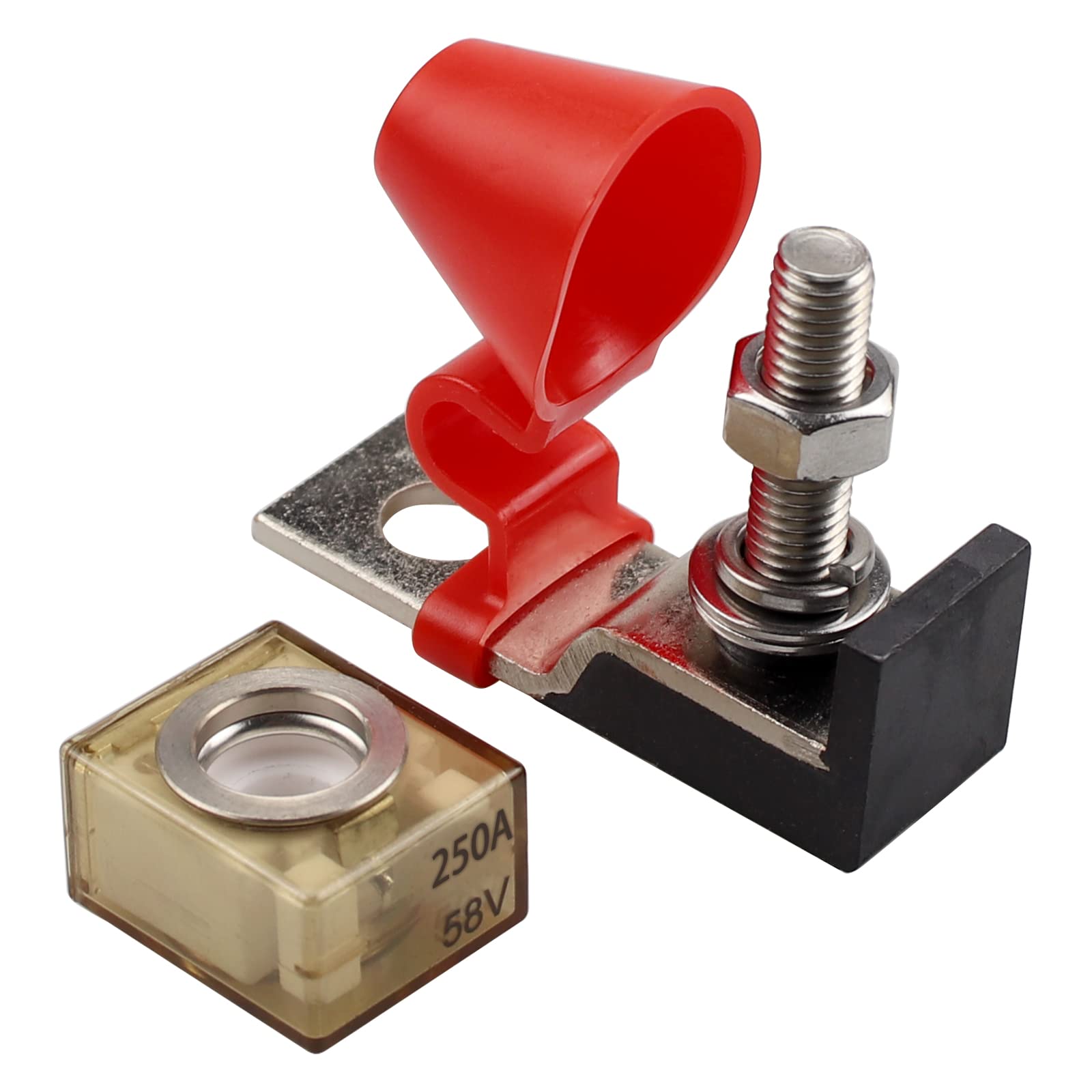

Battery Terminal Fuse Block Kit Includes:
1*fuse base
1*250A fuse
1*red insulating cap
1*washer
1*lock washer
1*M8 hex nut
