Description:

High-speed disperser is also known as high-speed homogenizers of homogeneous structure. It is capable of homogenizing and emulsifying efficiently between two liquids that are incompatible. The homogenizer is mainly used for homogenization, fragmentation and cell dispersion of animal and plant tissues. At low speeds, it also can be used as a laboratory mechanical stirrer. It often used in laboratories, research institutions and chemical laboratories.

Feature:

⊙ The lab homogenizer is made of high-quality to ensure high speed and stable performance. The motor's maximum speed could reach 25000 rpm.

⊙ Equipped with an accurate digital display and advanced electronic circuits, you can see the speed of rotation clearly and directly through the digital display when the machine is running and operating.

⊙ The fuselage is designed with a lifting screw that adjusts the height of the motor body. There is also a black screw next to it, which is used to fix the head of the homogenizer. It's very easy for you to operate and use.

⊙ We will provide you fixed magnets and glasses. The fixed magnet is used to prevent the glass from moving during high speed operation. And We will send you 4 glasses in total, respectively 5ml, 10ml, 15ml, 20ml.

⊙ High-speed homogenizer is widely used for homogenization, fragmentation and cell dispersion of animal and plant tissues. As an ideal laboratory equipment. it is also suitable for pulping and experimental pulping of plasma cells.

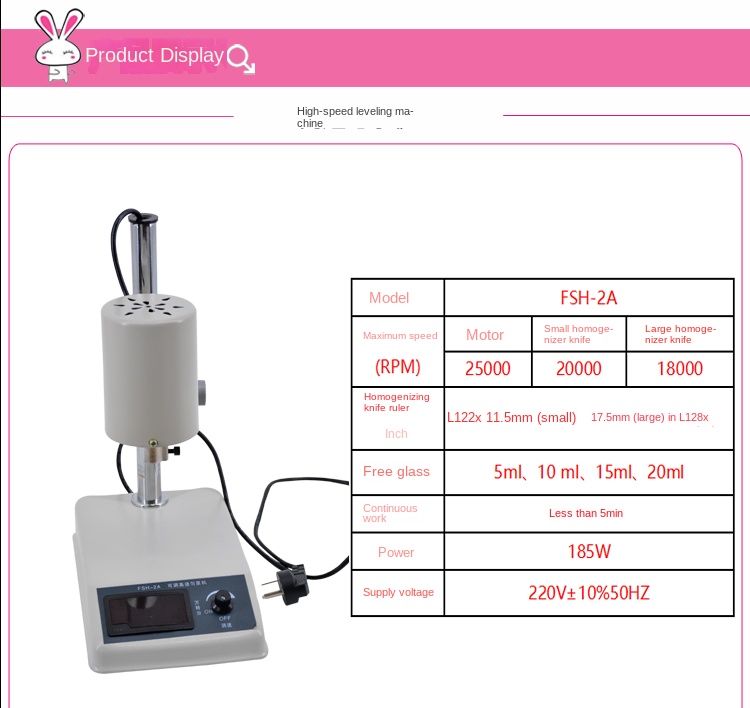

Specification:

Power: 185W

Moter: 25000rpm

Glassware capacity: 5ml,10ml,15ml,20ml

Continuously working: ＜5mins

Ambient temperature: -10 ~ 45℃

Dimensions: 26.5×16×38cm

Gross weight: 5.5Kg

Package size: 46×34×25cm

Attention:

     The instrument should be placed on a horizontal work surface. The homogenizing tool required for installation must be in place. When the power supply test is turned on, use a cup or vessel containing water to flood the plum blossom head in the water and turn on the power switch. To quickly adjust the speed knob, there is no obvious metal friction sound then work.

     Cut the plants or microorganisms to be tested into small pieces or small pieces, place them in a glassware that is randomly placed, and sandwich them in the middle of the magnet holder (seven-shaped shape), loosen the 8M/M fixing screws of the fixed motor base, and slowly align them. Move the vessel mouth down so that the homogenizing head is 2-3mm from the bottom of the vessel, and then tighten the 8M/M screw.

Instrument maintenance

After long-term use, ptfe in the high-speed dispersing tool is a fragile part, please replace it.

Note: after each work, remove the cutter and rinse it with water to dry

Package includes:

1 x High Speed Homogenizer

1 x 5ml Glass

1 x 10ml Glass

1 x 15ml Glass

1 x 20ml Glass
