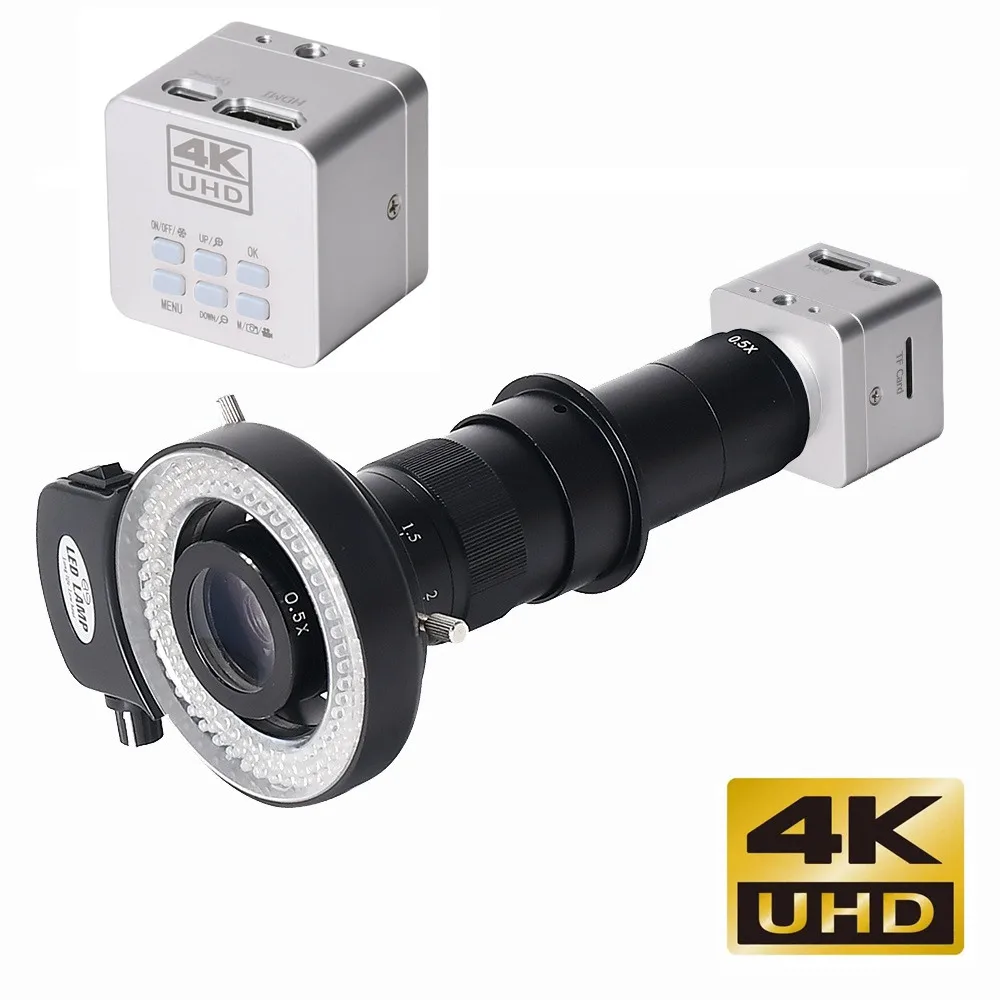

4K UHD Digital Microscope 41MP HDMI USB Type-C Sony IMX678 Industrial Electronic Microscope Camera for Phone Repair Soldering

Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

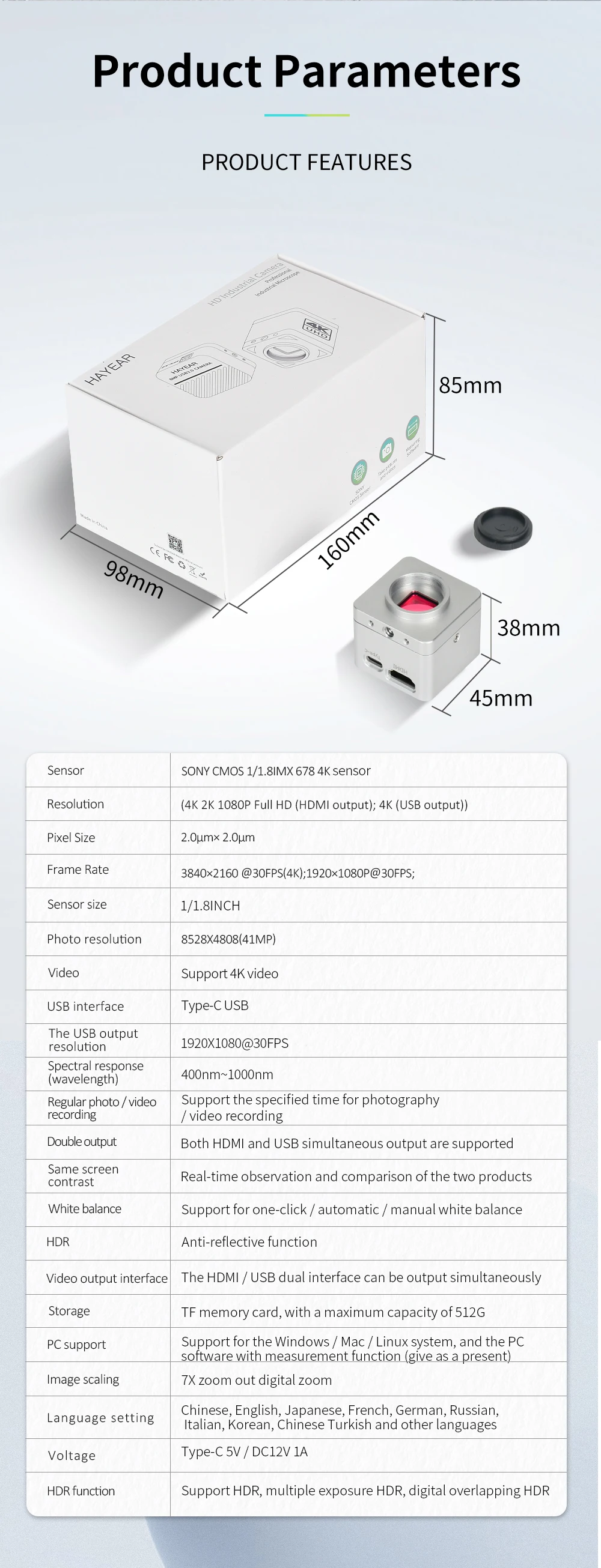

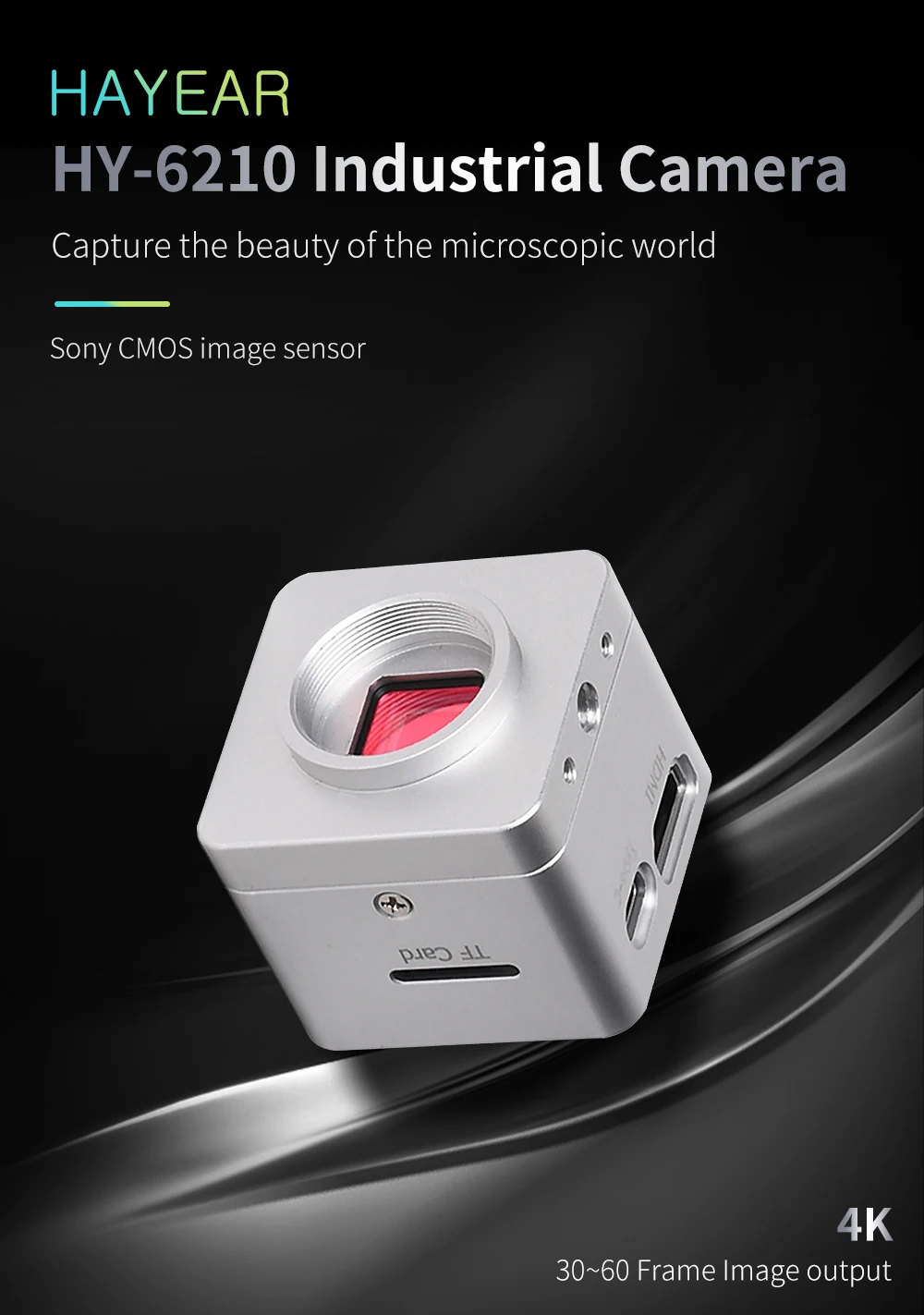

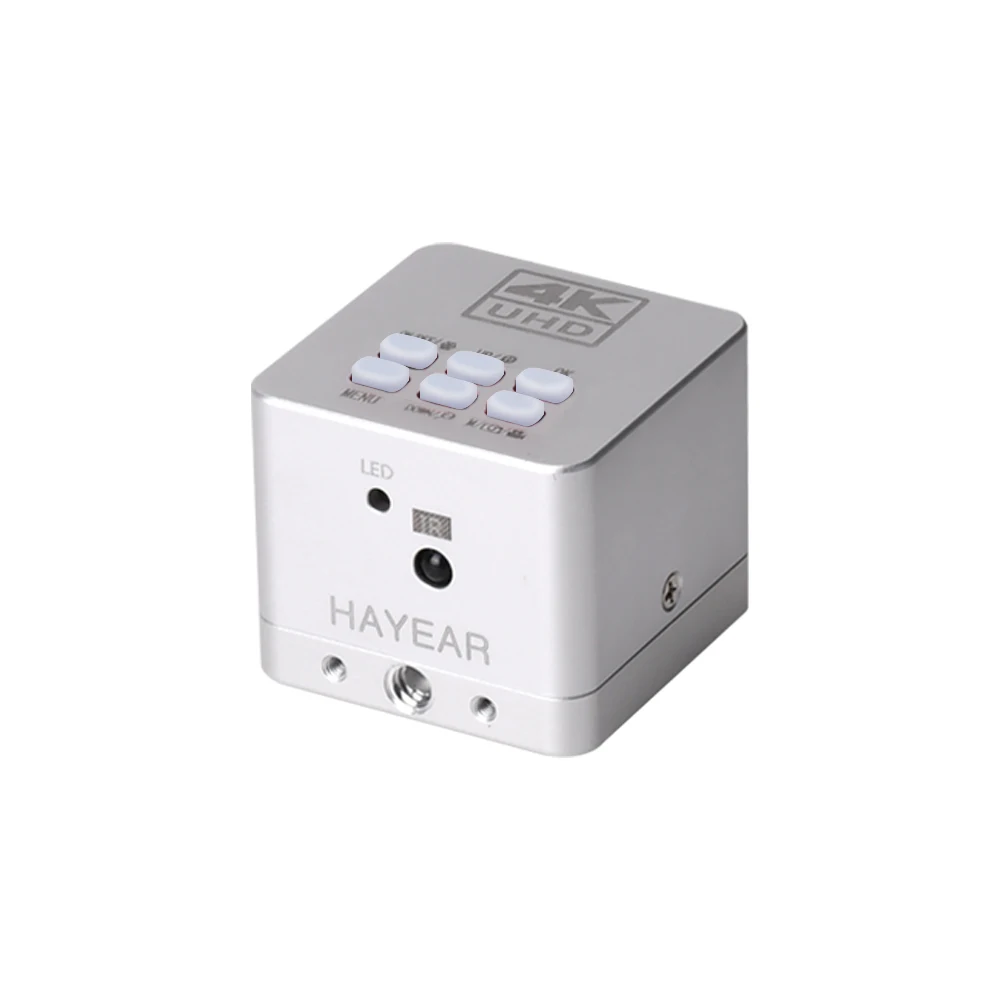

Camera Features:

Sensor: SONY IMX678

Real-time output resolution: 4K/2K/1080P

Sensor Size: 1/1.8 inch

Pixel Size: 2.0 x 2.0 μm

Image Resolution: 8528 x 4808 (41 MegaPixel)

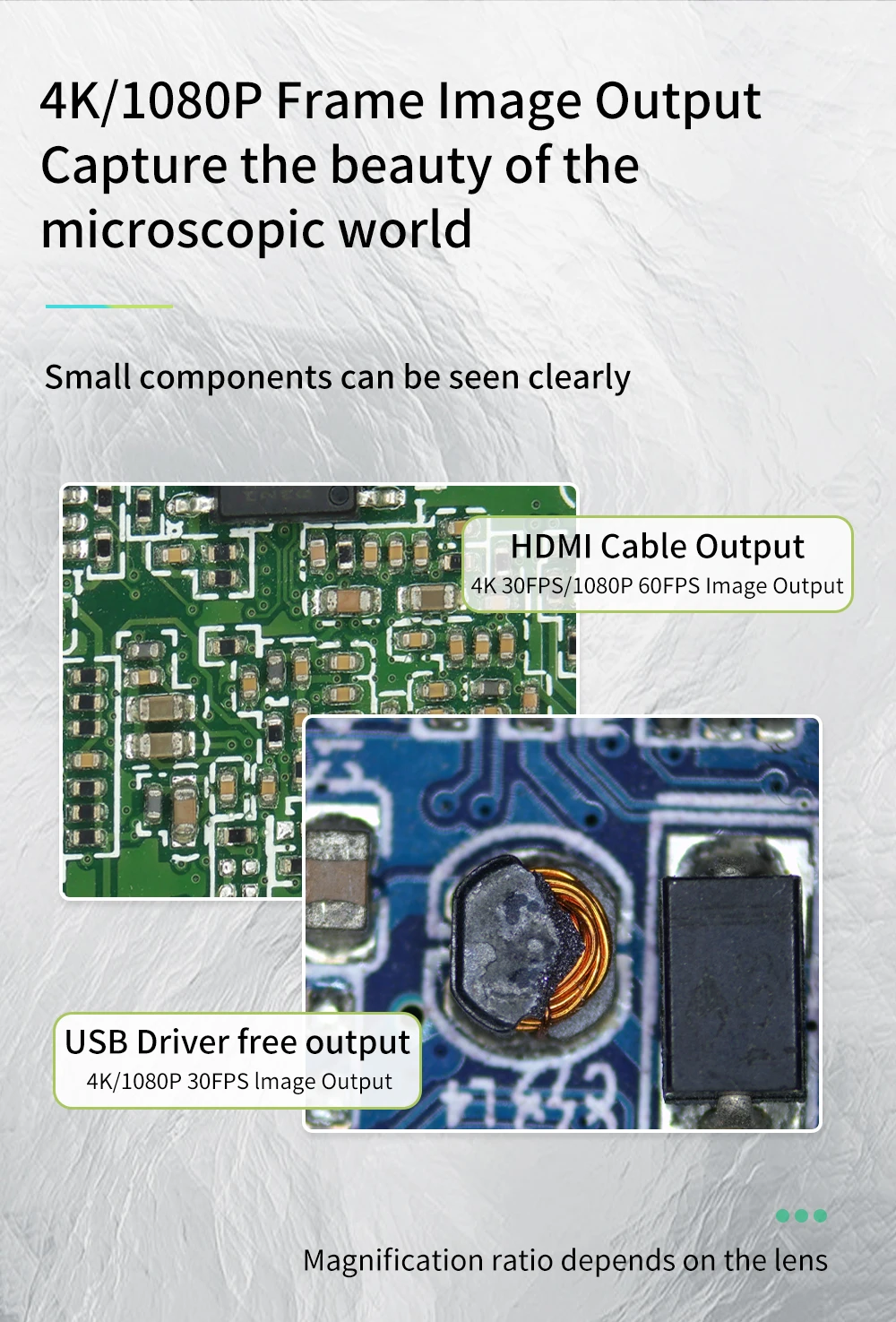

HDMI Resolution: 3840 x 2160 @30FPS(4K); 1080P @60FPS

USB Resolution: 3840x2160@30FPS(4K), 1920 x 1080 @30FPS, 1280 x 720 @30FPS

Image Format: JPEG

Wave Length[nm]: 400nm~1000nm

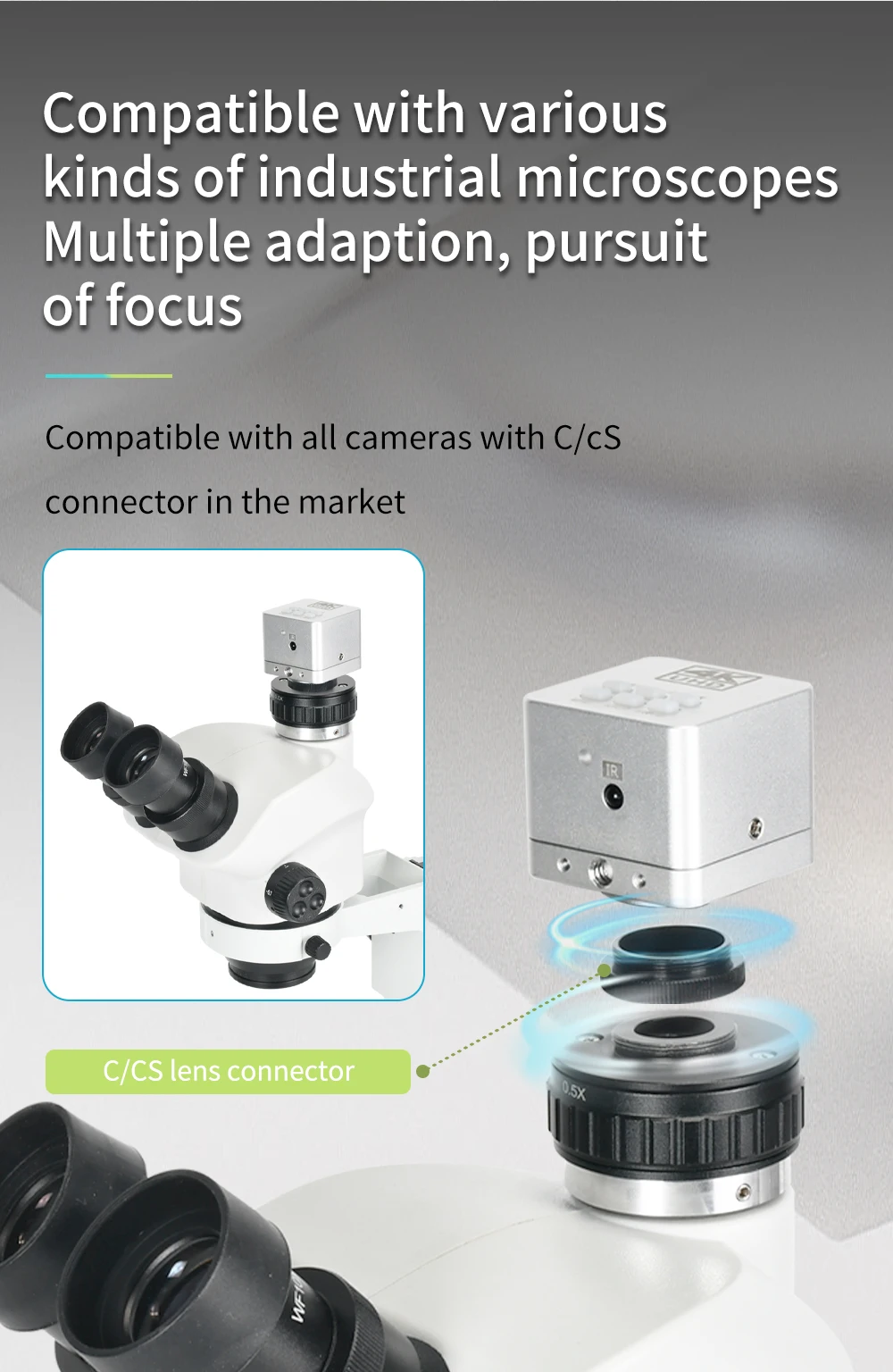

Lens Type: C/CS Mount

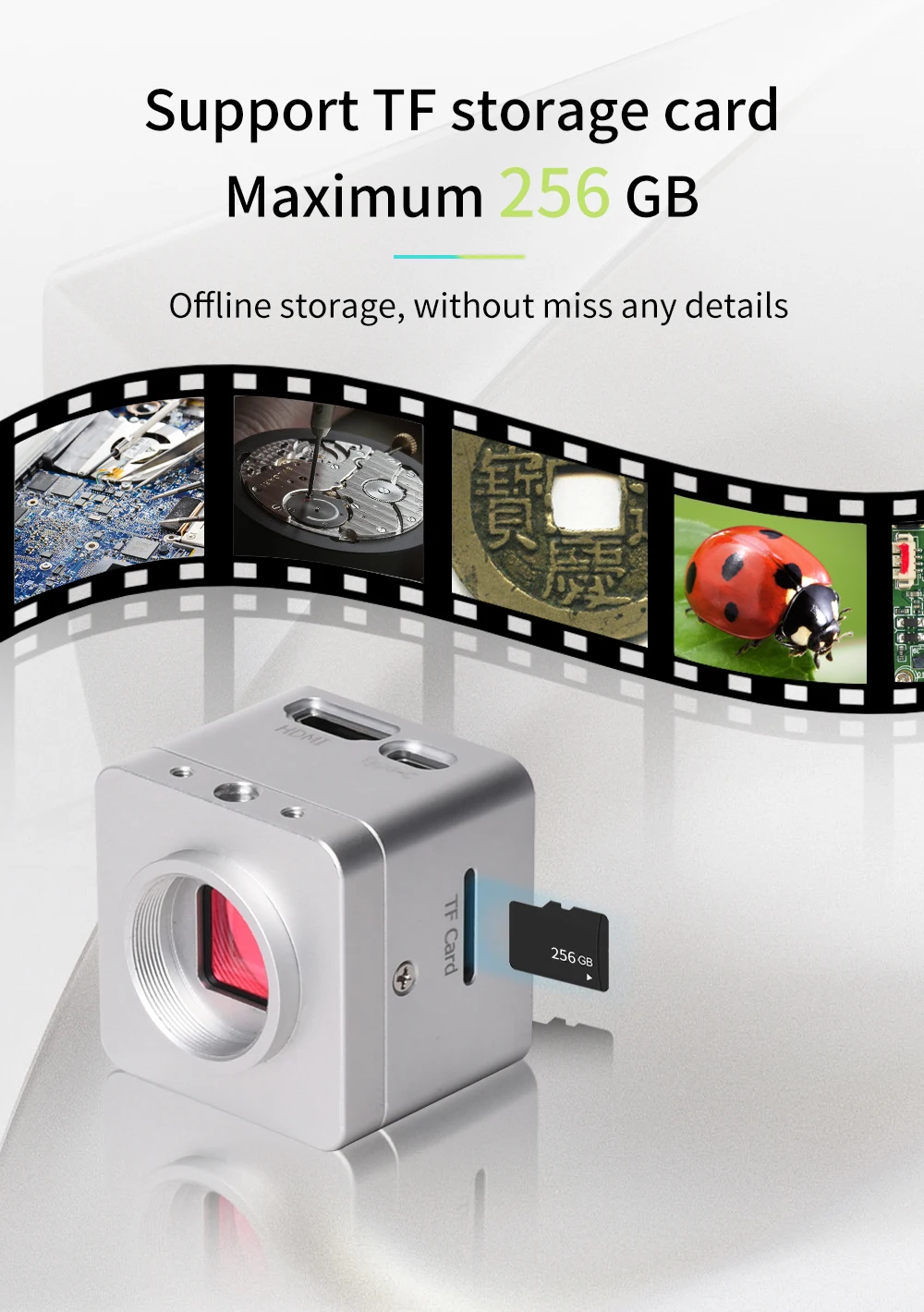

Storage: TF Card, Maximum support 512GB (TF card is not included)

PC Support:Windows / Mac / Linux, PC Software with Measuring Function

Image Measurement: Support HAYEAR Measurement

Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish

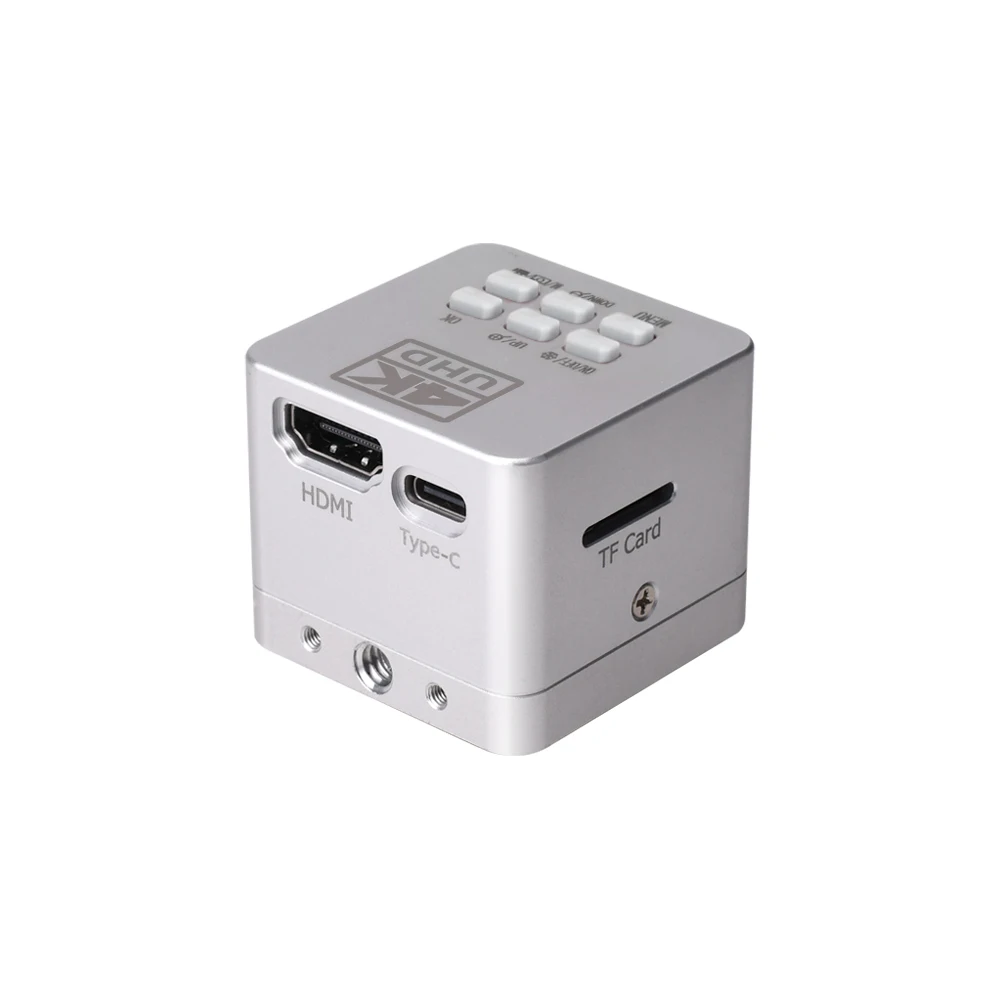

Output Interface: HDMI / USB Type-C 2.0 interface

HDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDR

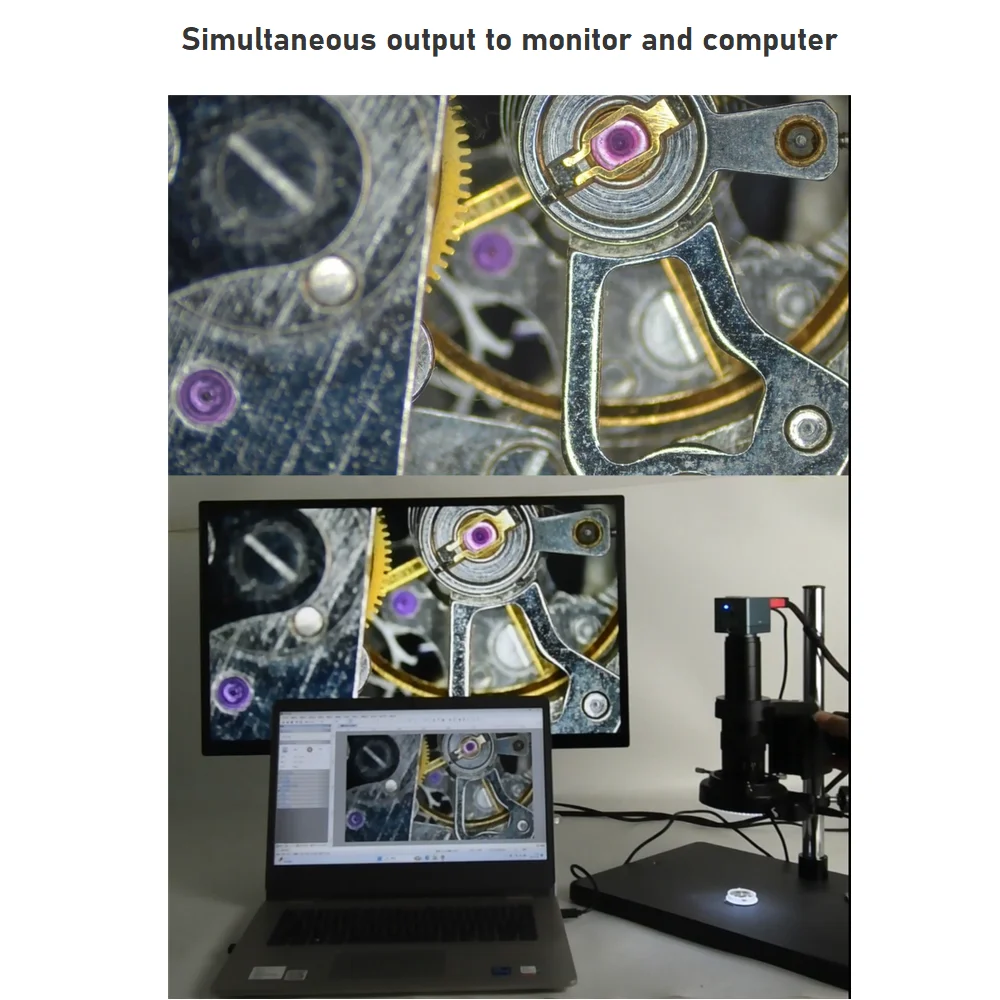

Video output interface: HDMI/USB dual interface can output image simultaneously

Timer function: Support taking pictures/video recording at specified time

Comparison on the same screen: Real-time observation and comparison of two products

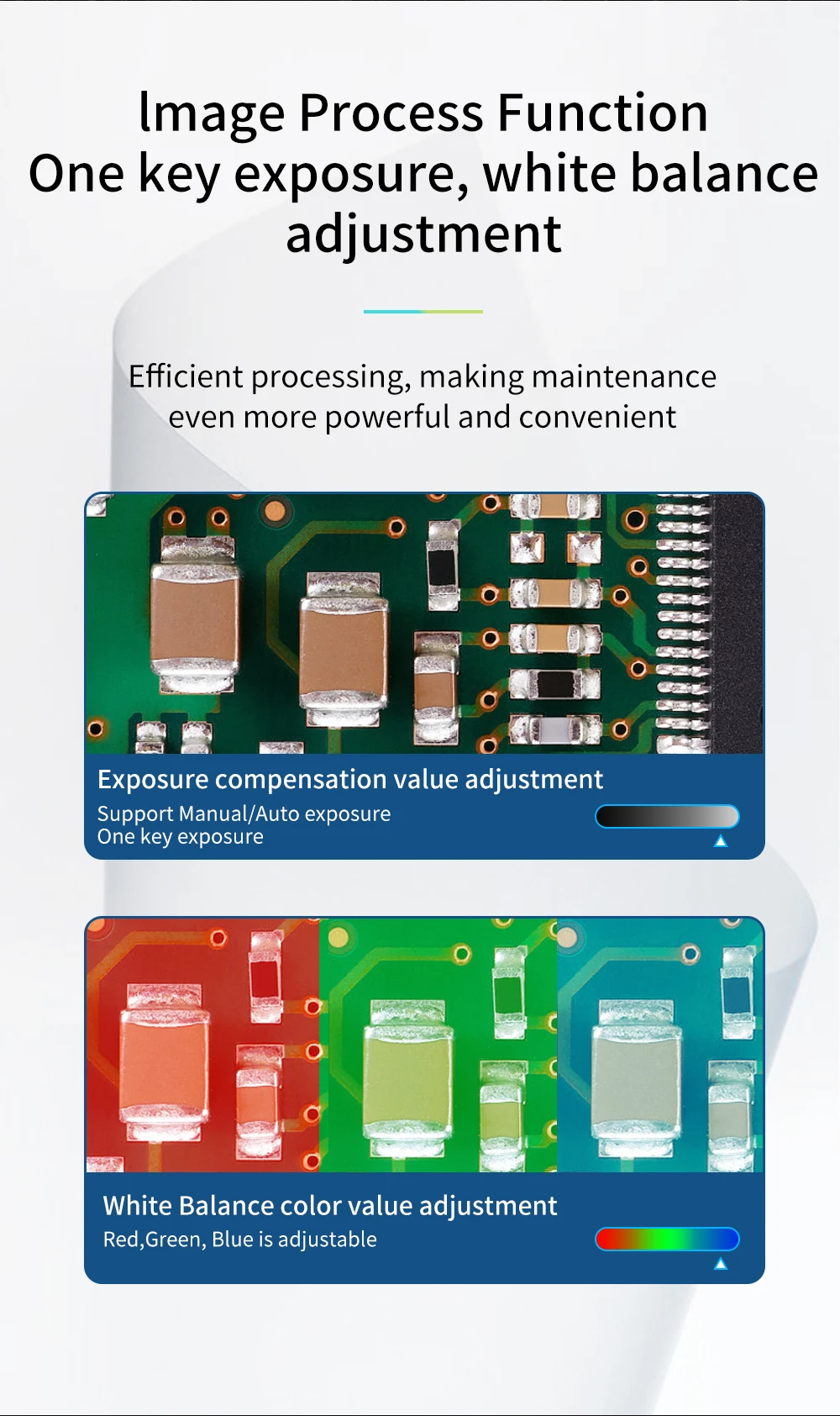

White Balance: Support One-click, Auto and Manual white balance

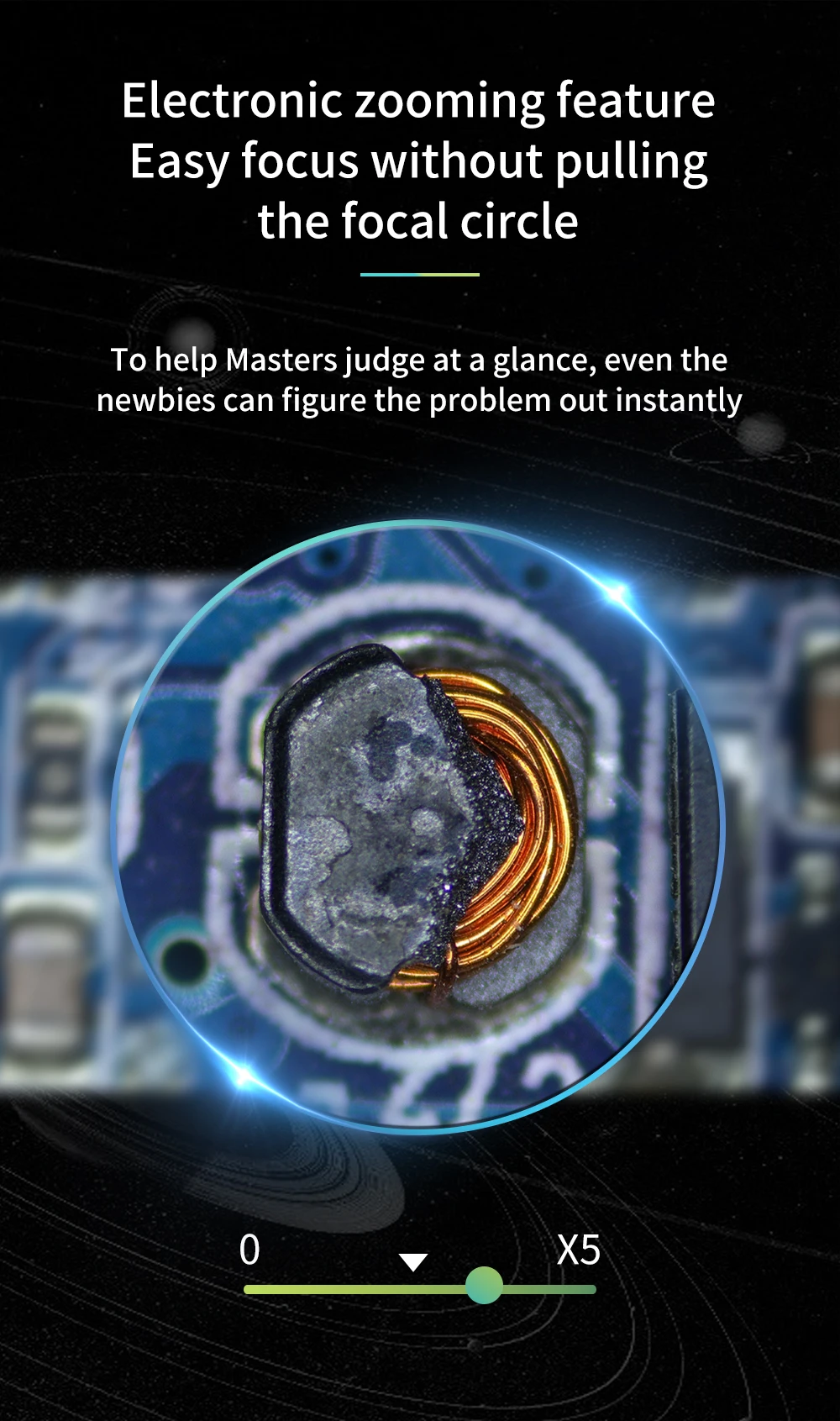

Image Zoom: 7x digital zoom

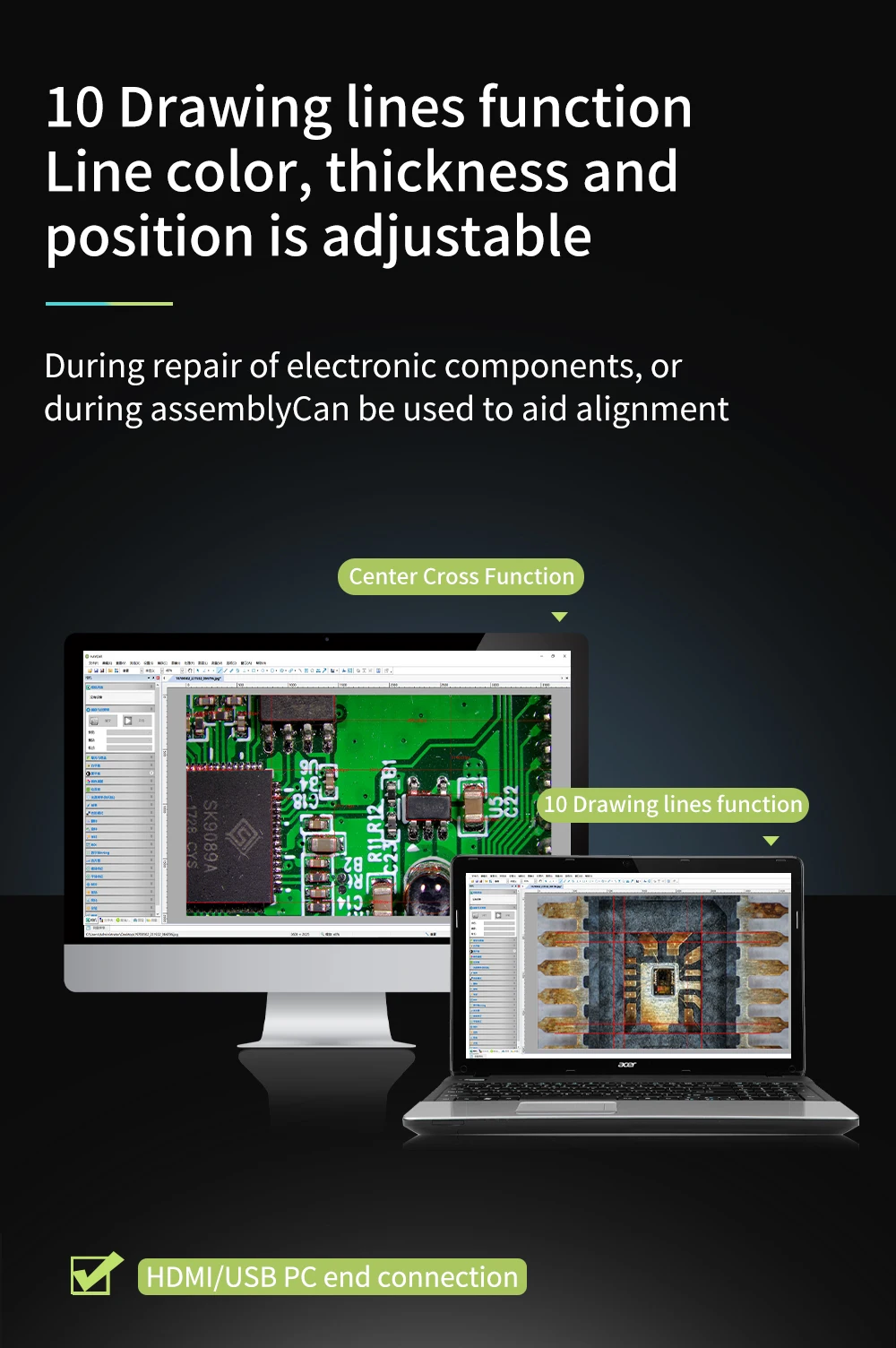

Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positions

Exposure: Auto/Manual, value adjustable

Encode: H.264 /H.265 (High Profile)

Video format: Video format

Input Voltage: Type-C 5V / DC 12V 1A

Size: 45×45×53mm

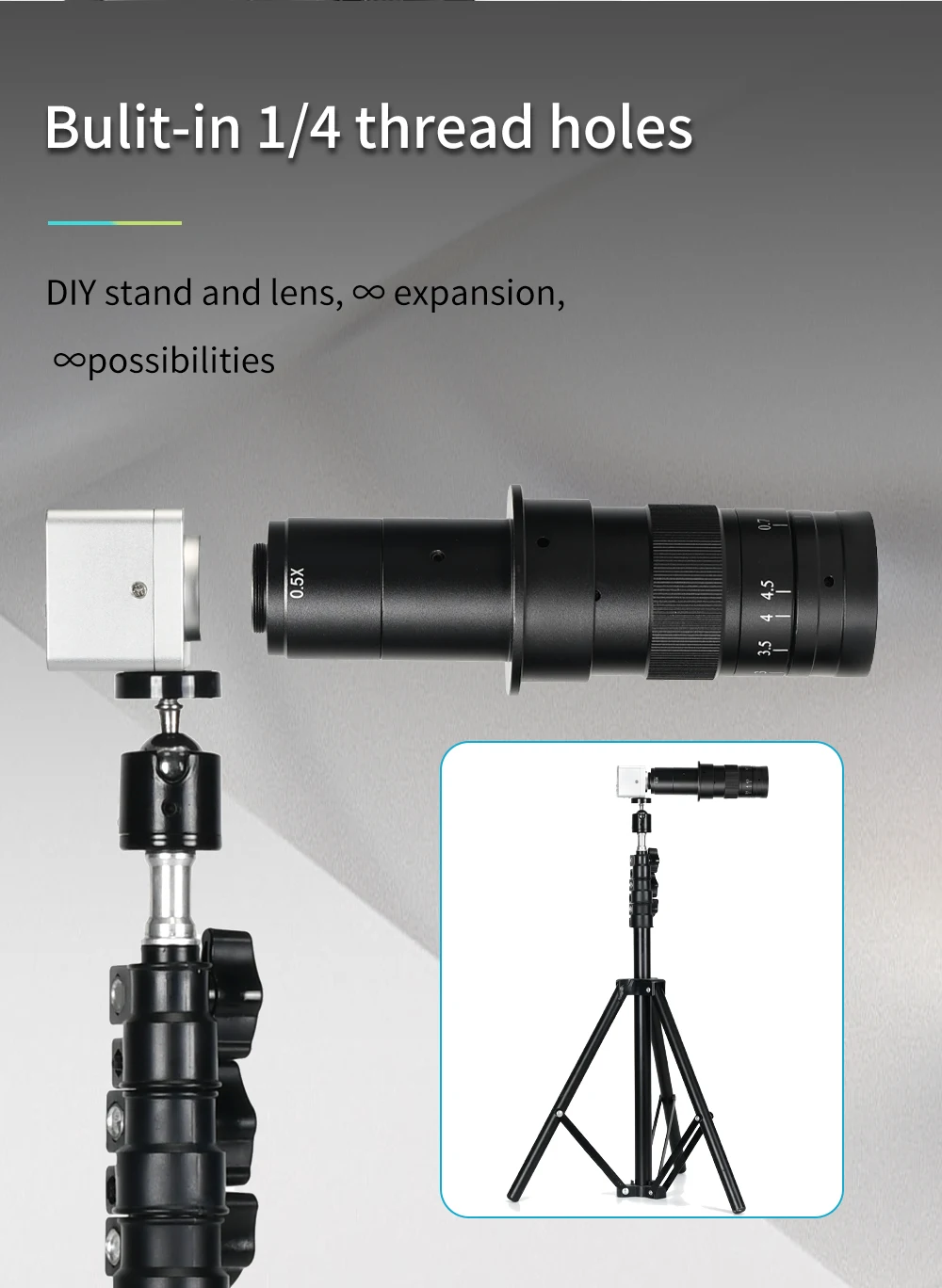

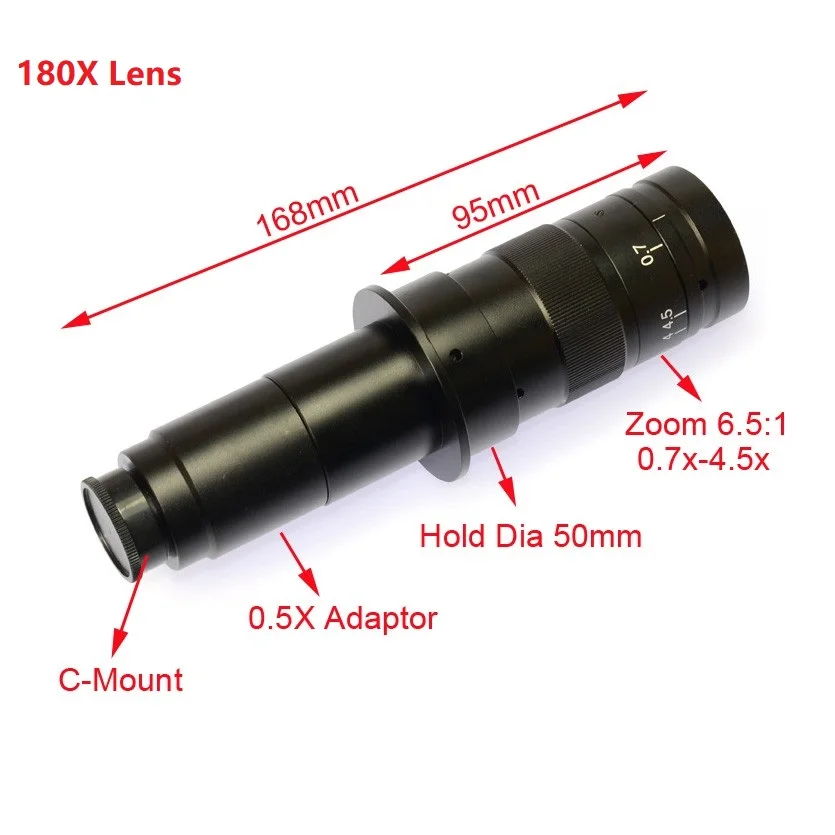

180X C-Mount Objective Lens:

Working distance: 100-150mm (without any barlow)

Working distance: 200-280mm (with 0.5X barlow)

Working distance: 30-50mm (with 2X barlow)

zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 168mm(L) * 50mm(DIA)

Weight: 450g

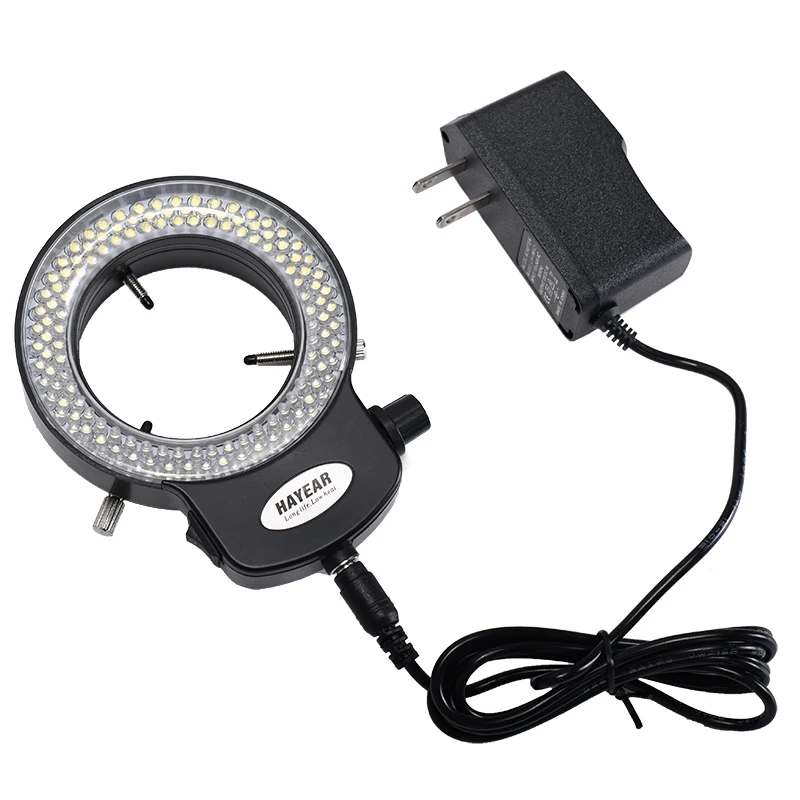

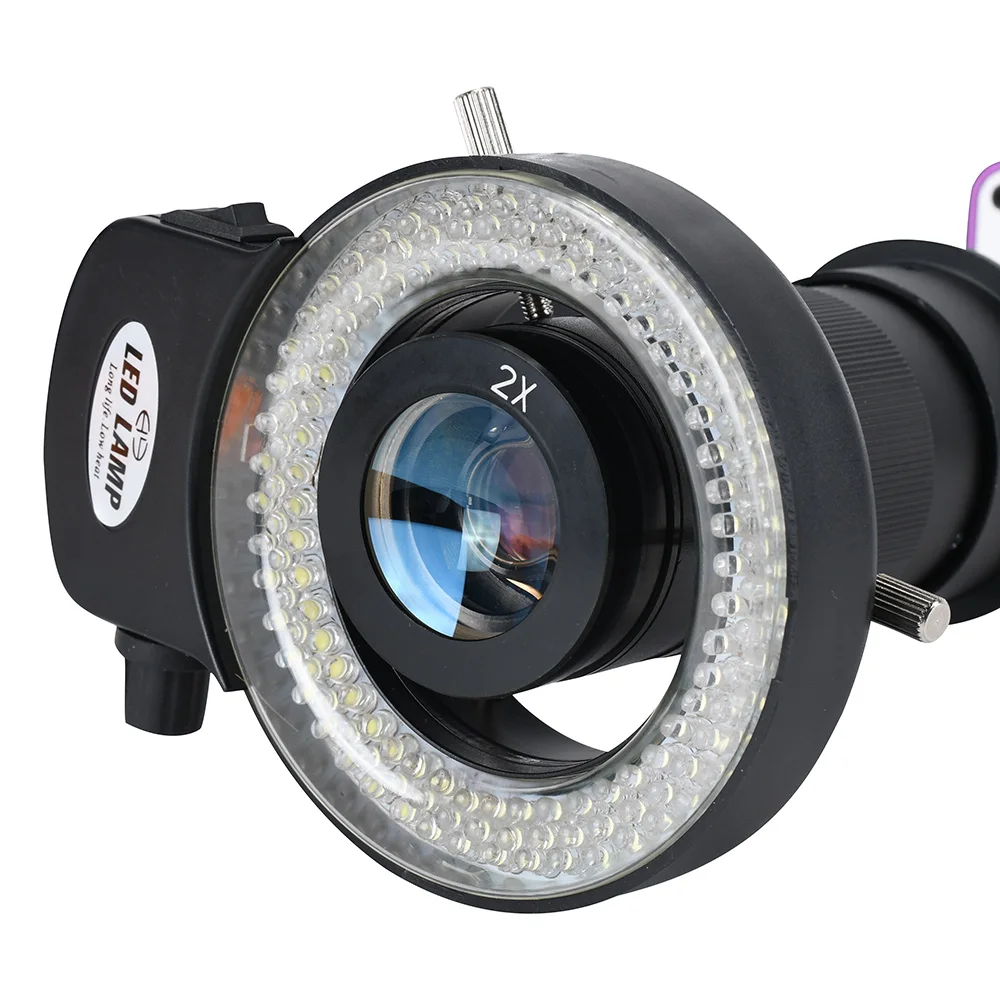

144 LED Ring Light:

144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Wide range of uses:

Scientific research, education (teaching, demonstration and academic exchanges)

Digital laboratory, medical research

Industrial visual (PCB examination, IC quality control)

Medical treatment (pathological observation)

Food (microbial colony observation and counting)

Aerospace

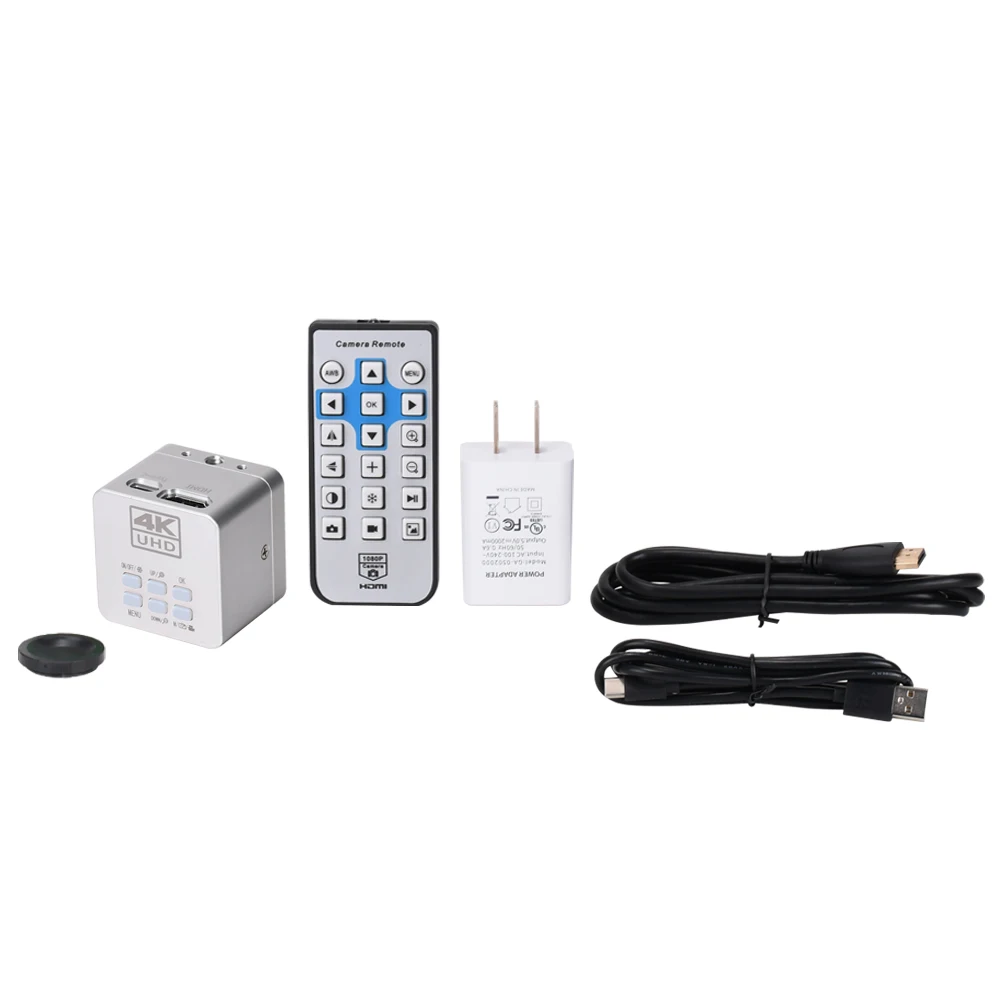

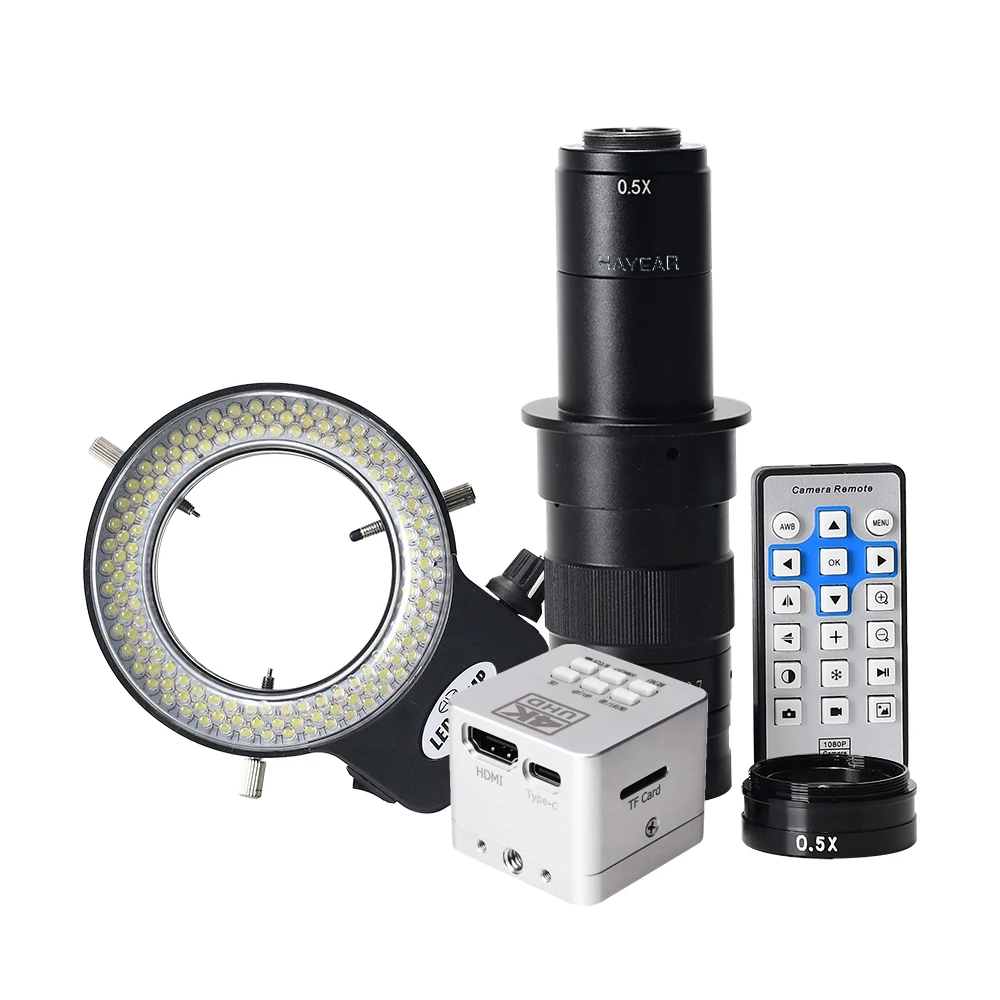

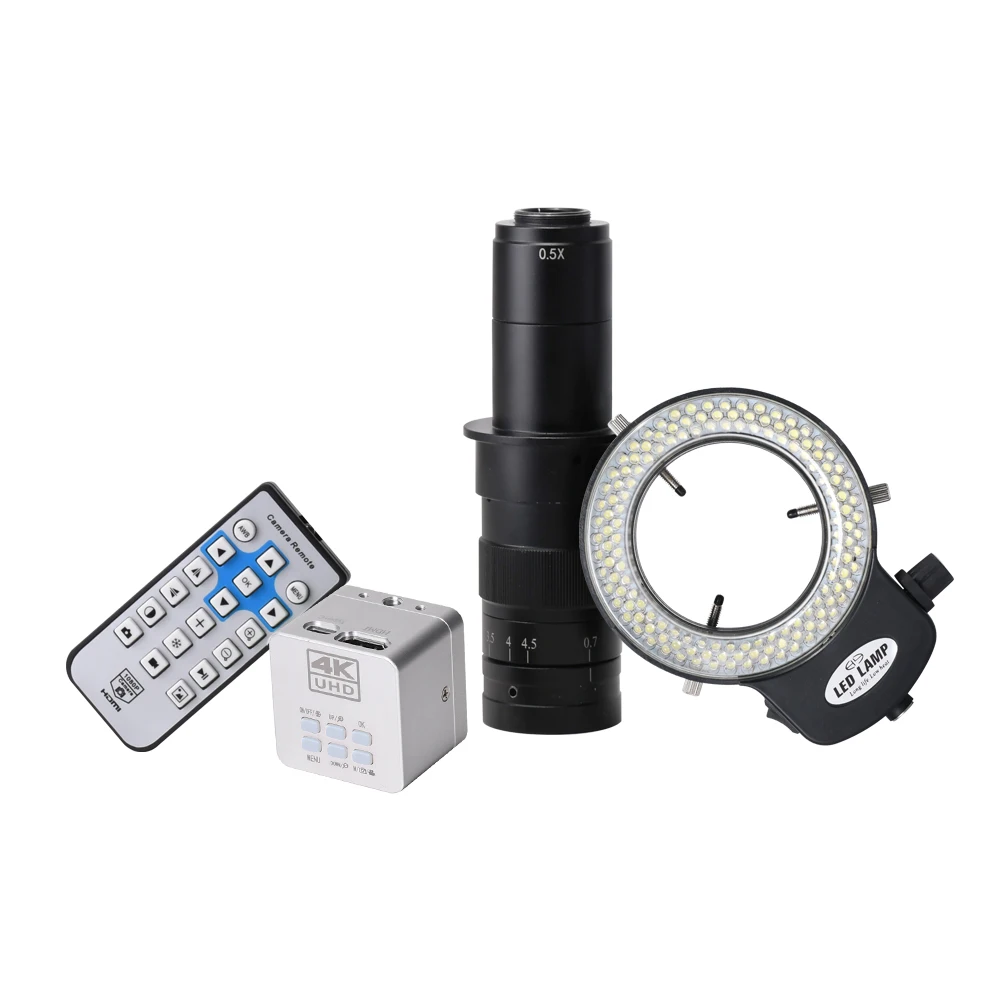

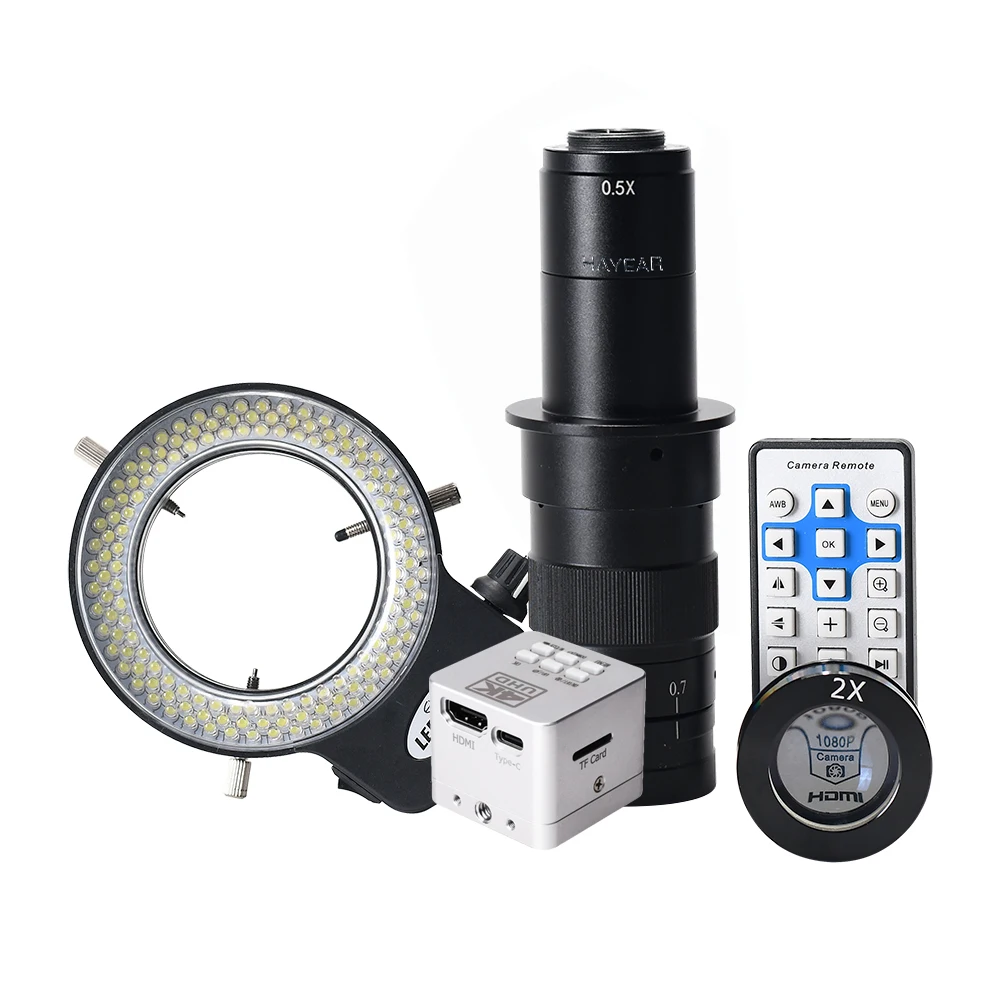

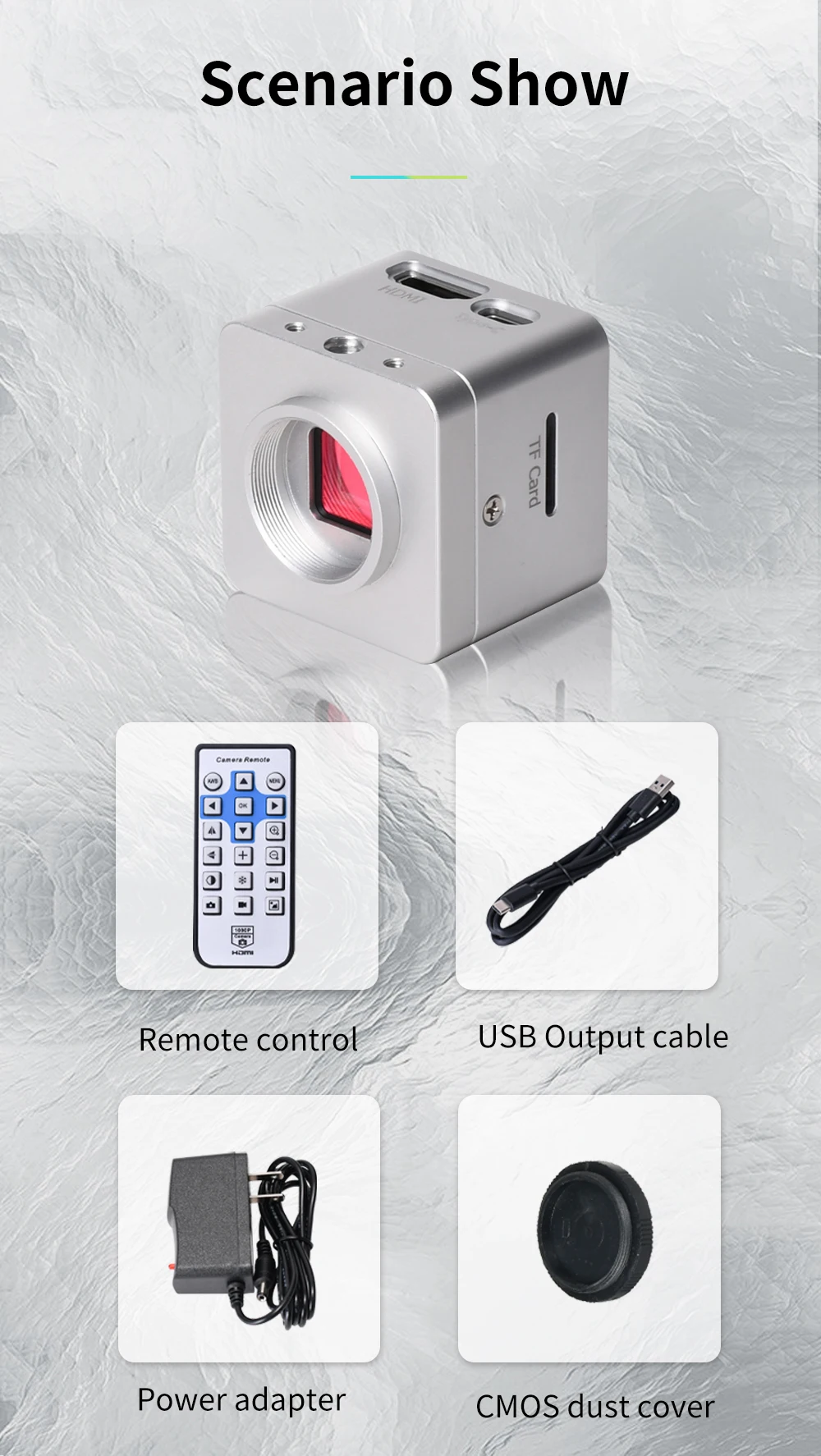

Package including:
1 x 4K Microscope Camera
1 x Power adapter (EU/US/AU/UK optional)
1 x Type-C cable
1 x Software (Online download)

1 x Remote Control

1 x 180X Lens (for Full kit option)

1 x 144 LED Light (for Full kit option)

1 x 0.5X/2X Barlow (for 0.5X/2X Full kit option)
