Automatically select measurement range
Full range overload protection
The maximum allowable voltage between the measuring end and the ground is 1000V DC or 750V AC
Working height: maximum 2000m

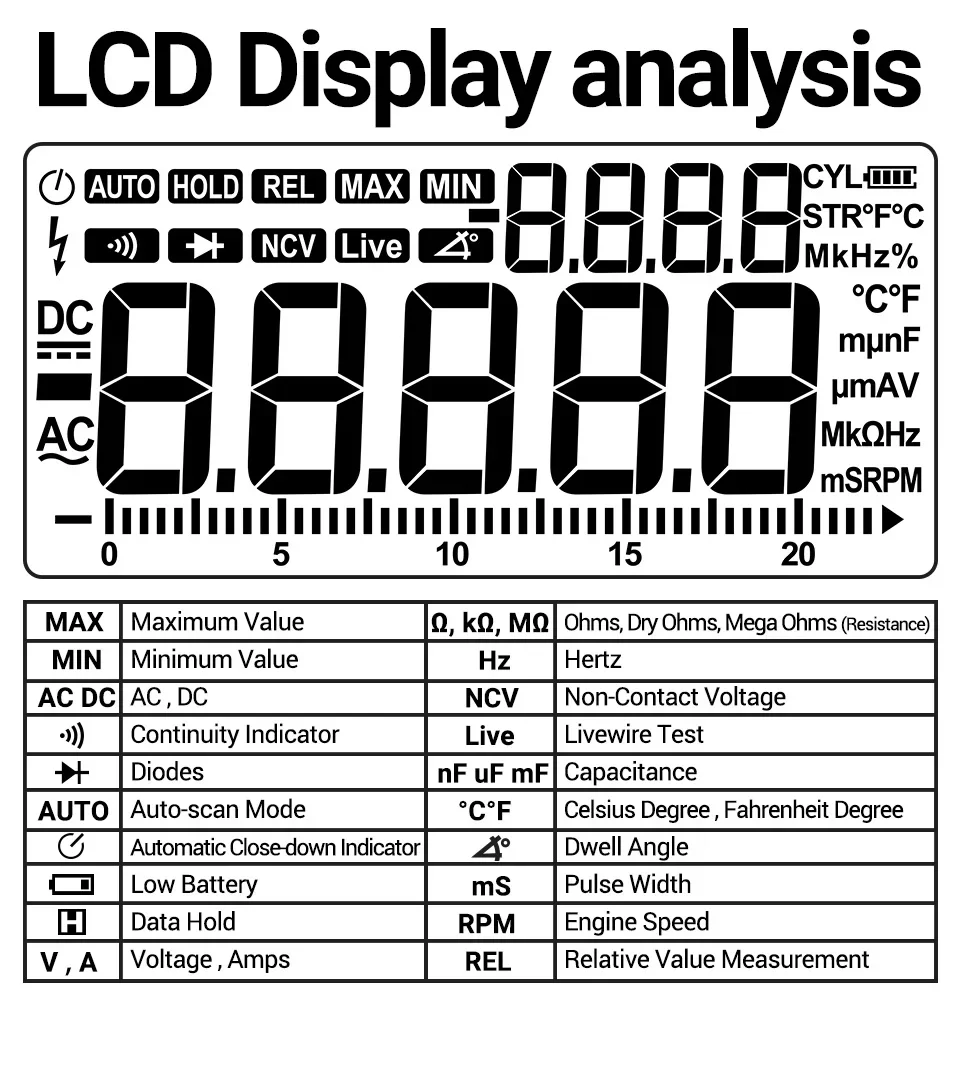

Display: LCD
Maximum display value 19999 digits
Polarity indication: Automatic indication, '-' indicates negative polarity.
Over range display: 'OL' or '- OL'
Sampling time approximately: 2 times per second
Unit display: with functionality, displaying electricity units
Automatic shutdown time: about 15 minutes

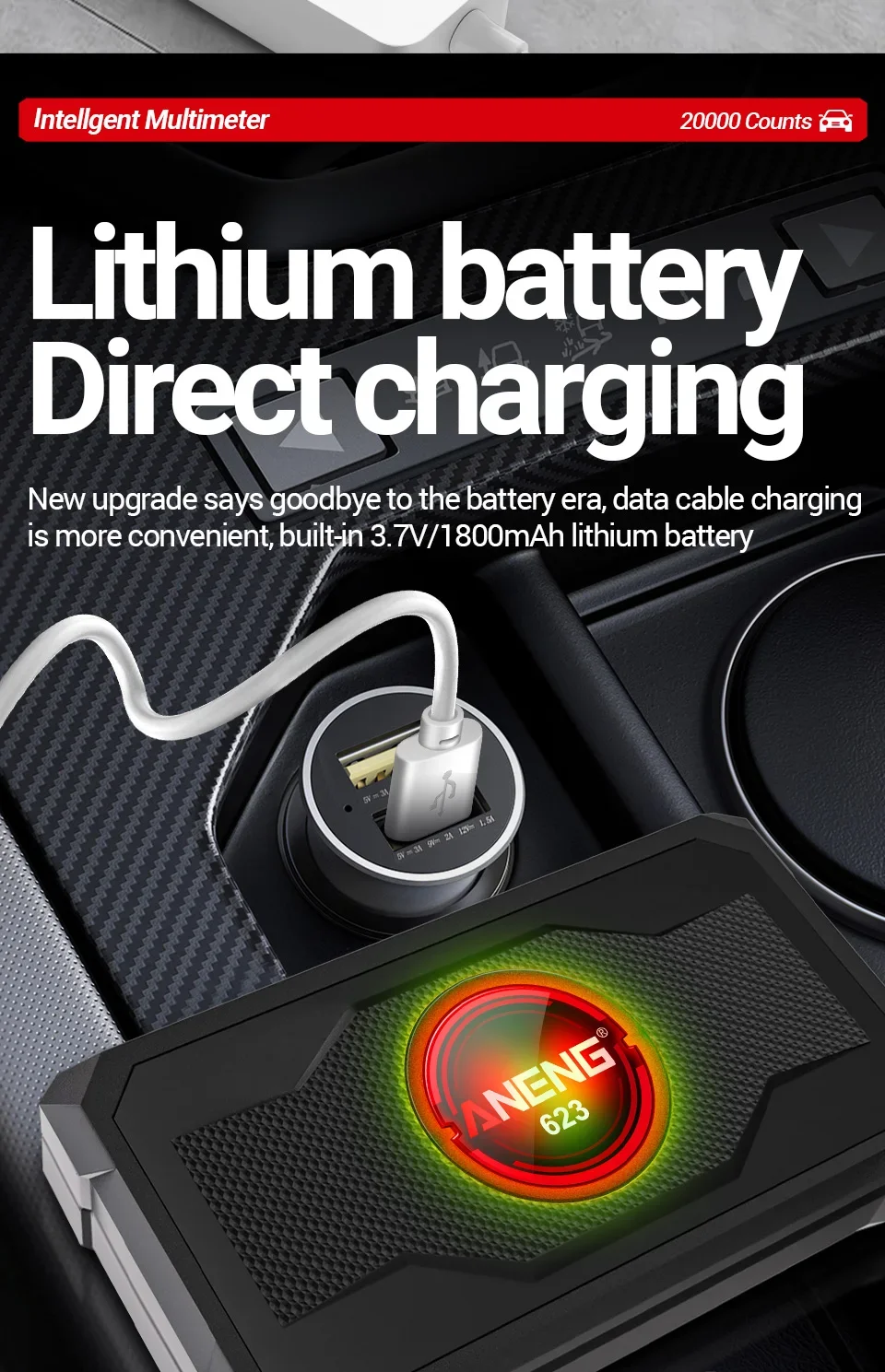

Power supply: 3.7V/1800mAh lithium battery
Temperature coefficient: less than 0.1 x accuracy/℃
Working temperature: 0 ℃ -40 ℃
Storage temperature: -20 ℃ -60 ℃

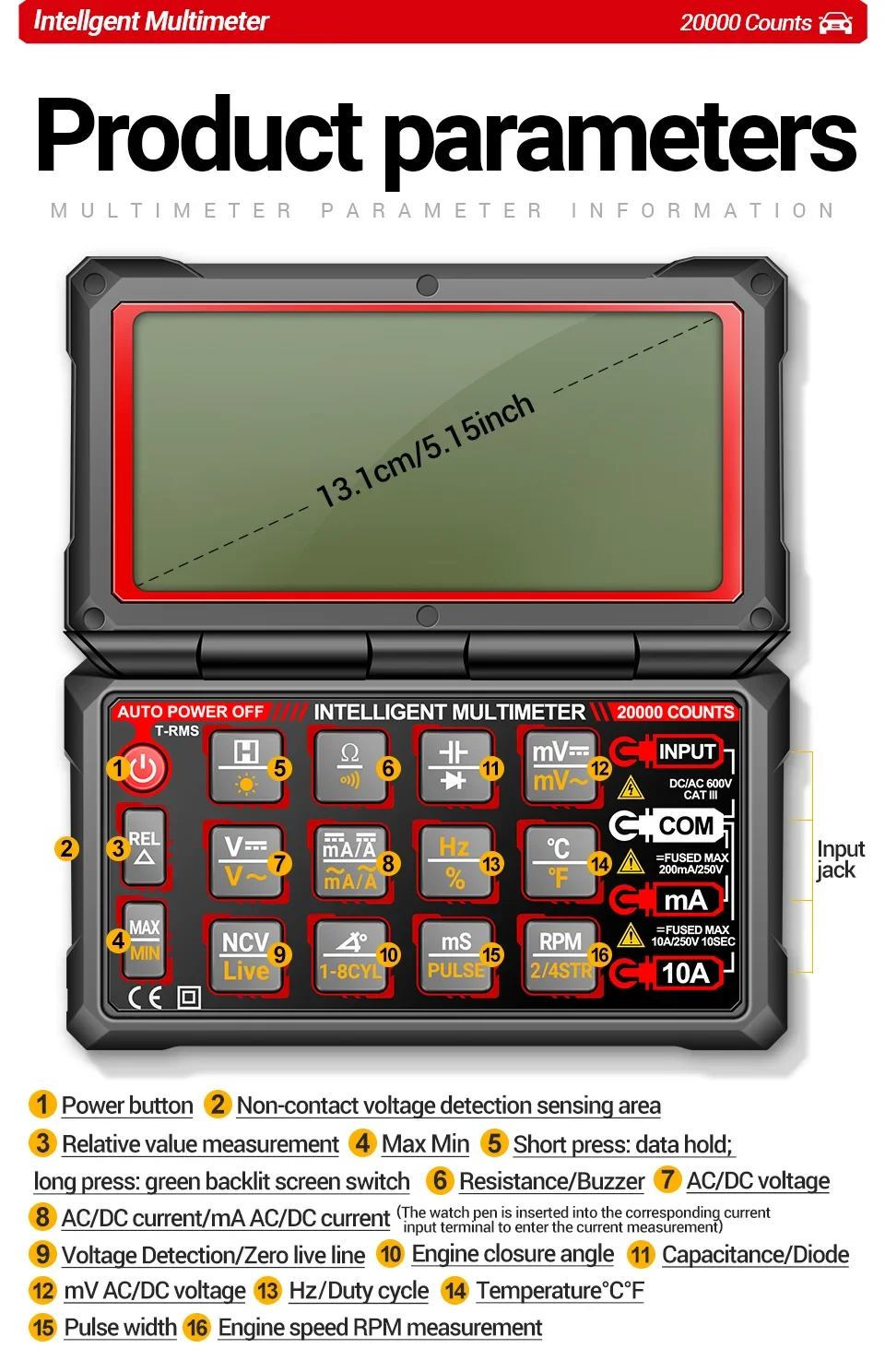

Features:
|

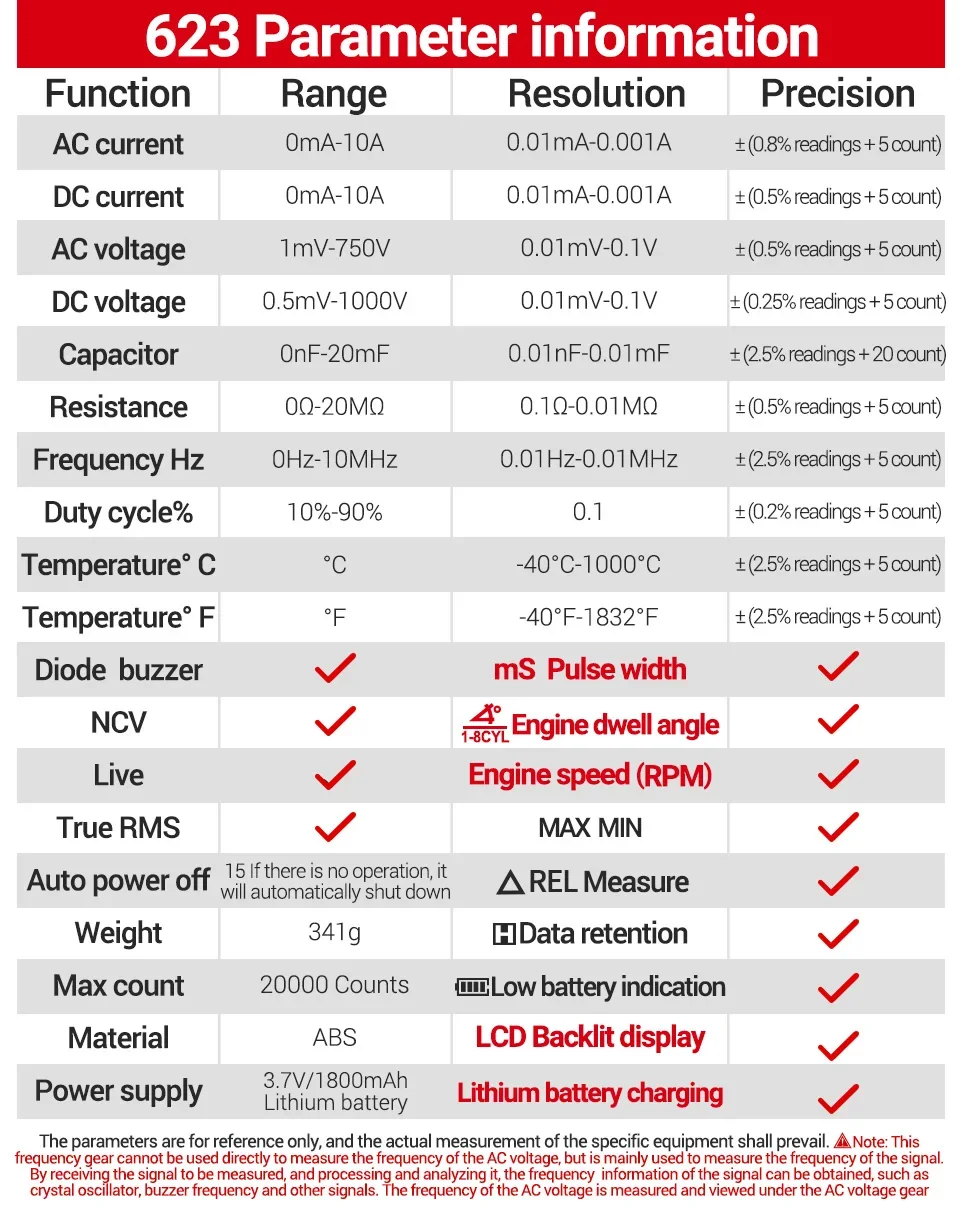

Function |
Range |
Resolution |
Precision |
|

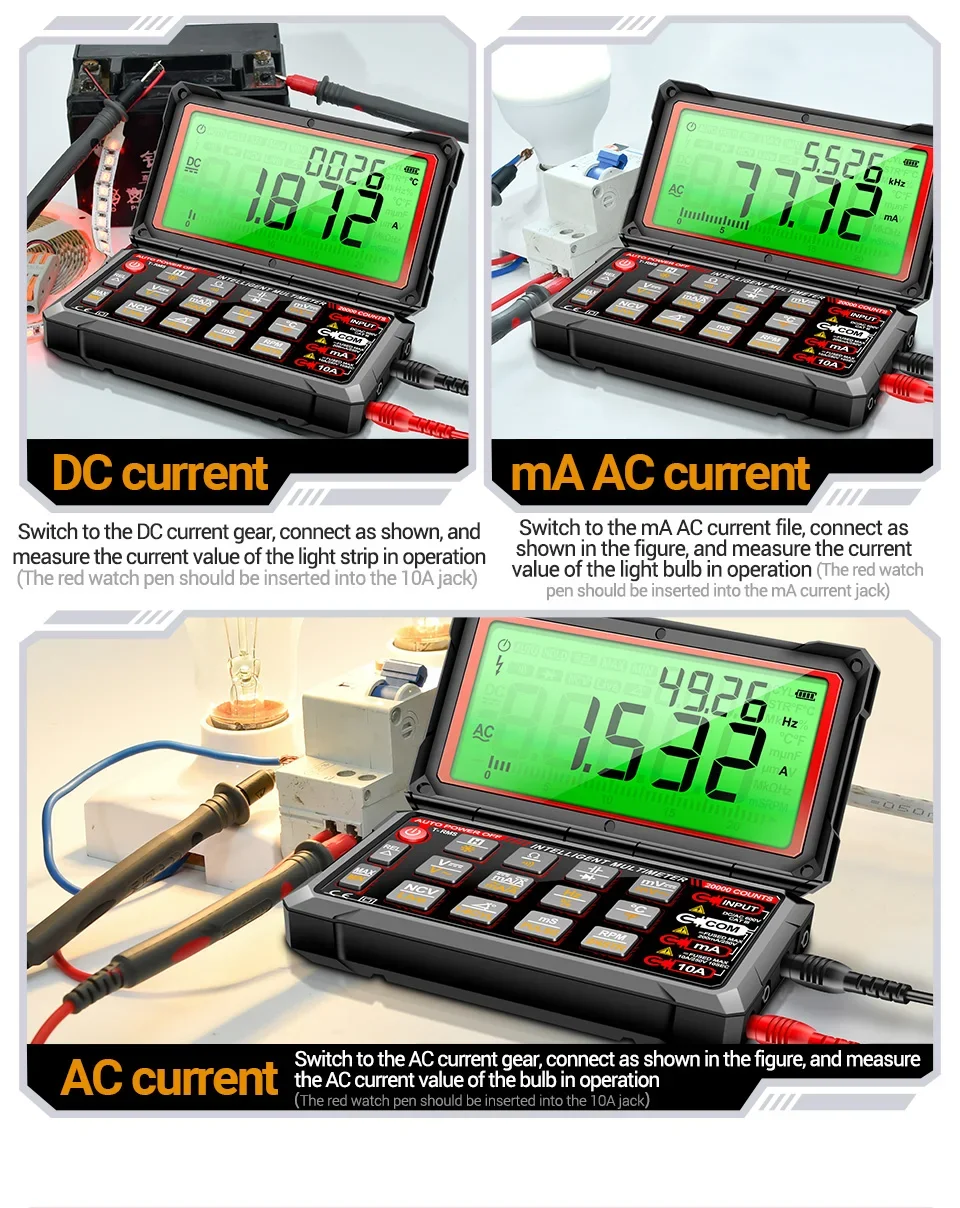

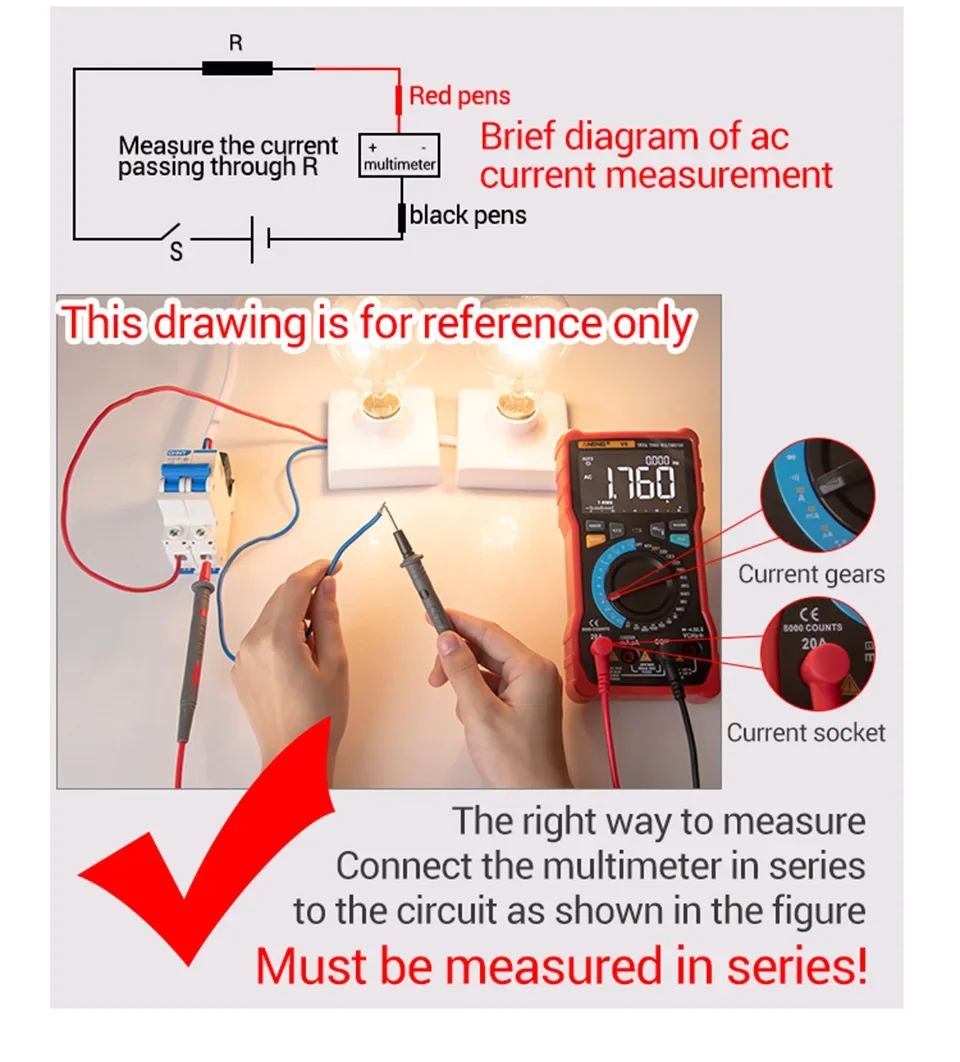

AC current |
0mA-10A |
0.01mA-0.001A |
±(0.8% readings + 5 count) |
|
DC current |
0mA-10A |
0.01mA-0.001A |
±(0.5% readings + 5 count) |
|

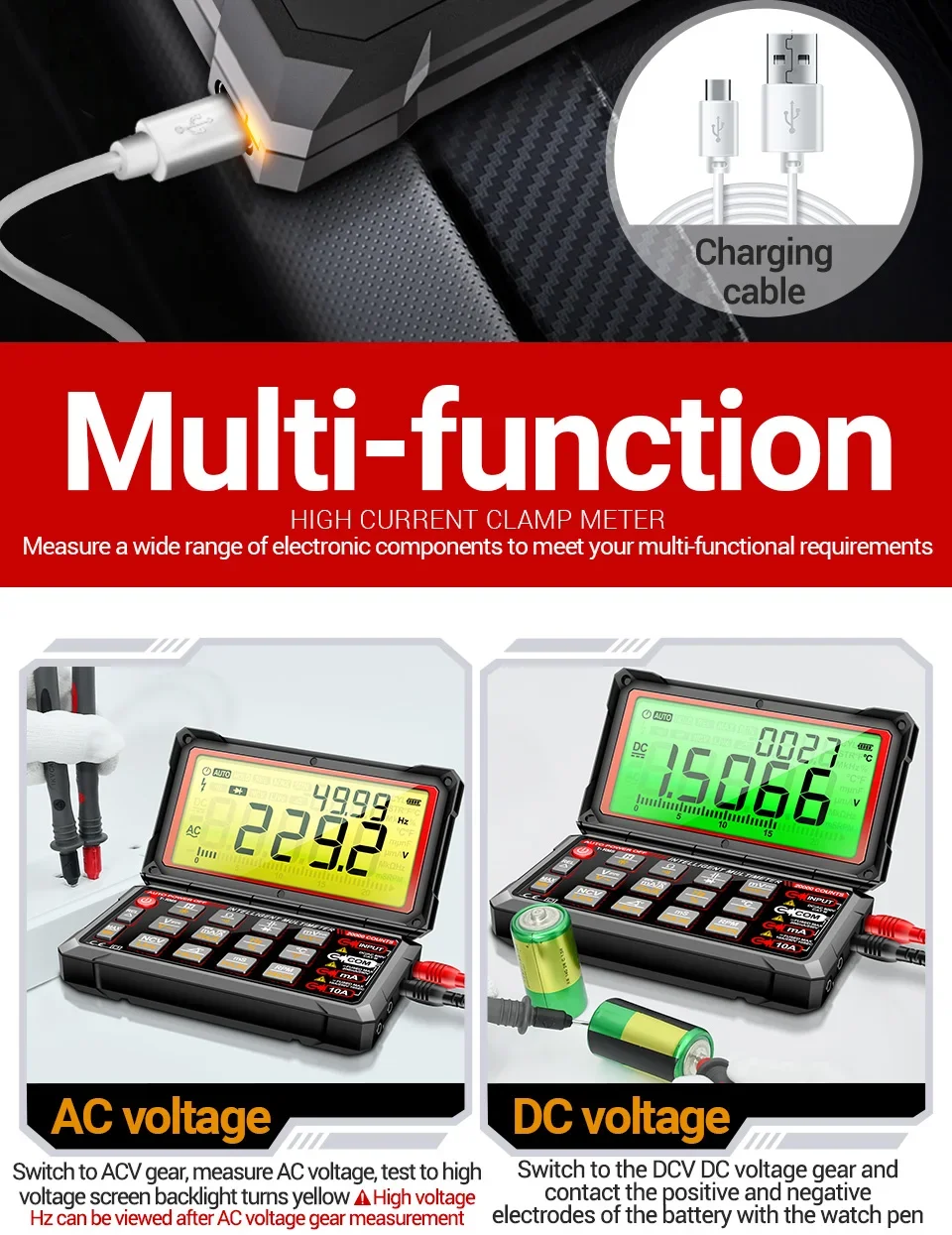

AC voltage |
1mV-750V |
0.01mV-0.1V |
±(0.5% readings + 5 count) |
|
DC voltage |
0.5mV-1000V |
0.01mV-0.1V |
±(0.25% readings + 5 count) |
|
Capacitor |
0nF-20mF |
0.01nF-0.01mF |
±(2.5% readings + 20 count) |
|
Resistance |
0Ω-20MΩ |
0.1Ω-0.01MΩ |
±(0.5% readings + 5 count) |
|

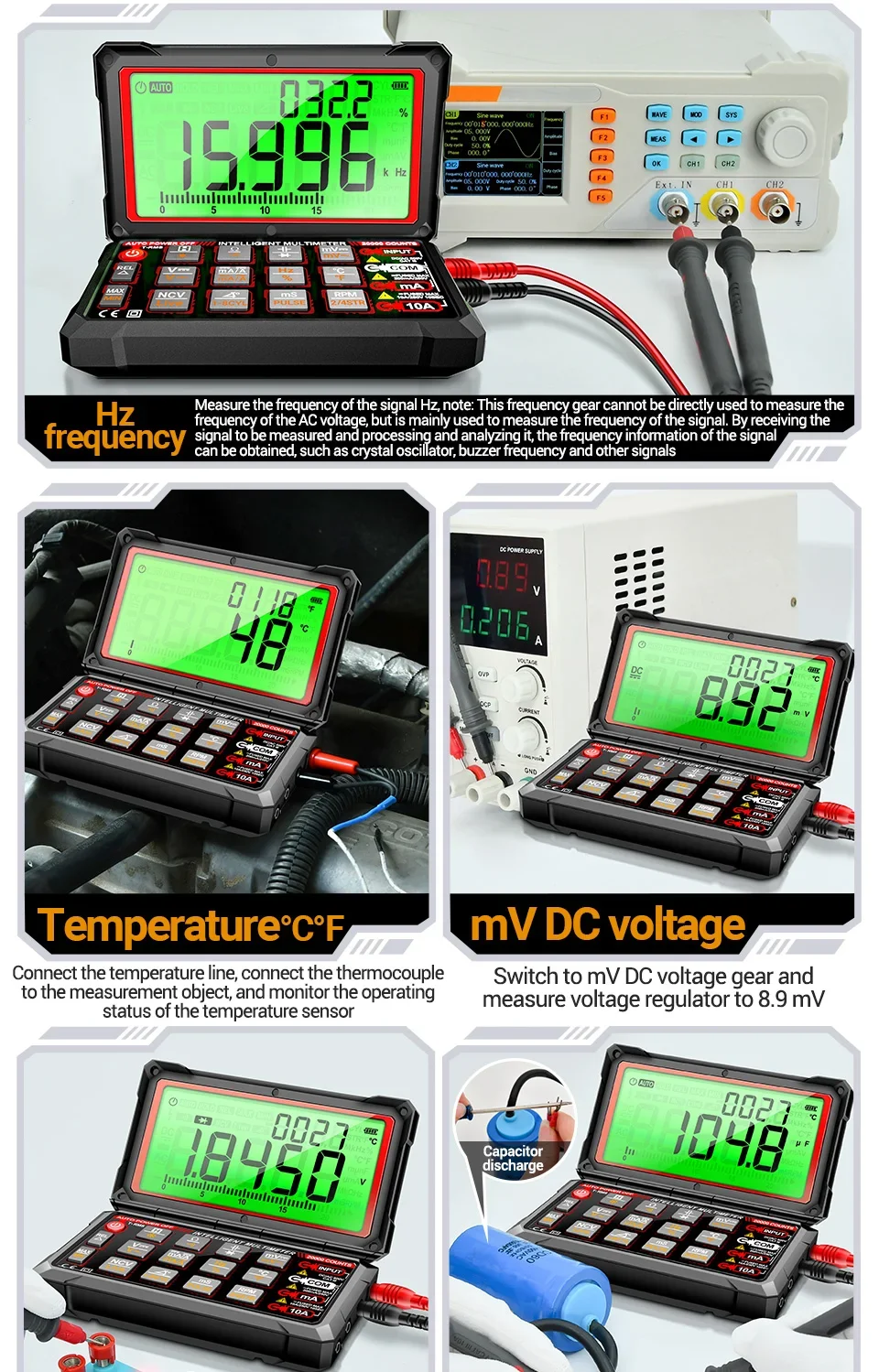

Frequency Hz |
0HZ-10MHZ |
0.01Hz-0.01MHz |
±(2.5% readings + 5 count) |
|
Duty cycle% |
10%-90% |
0.1 |
±(0.2% readings + 5 count) |
|
Temperature° C |
° C |
-40°C-1000°C |
±(2.5% readings + 5 count) |
|
Temperature° F |
° F |
-40°F-1832°F |
±(2.5% readings + 5 count) |
|

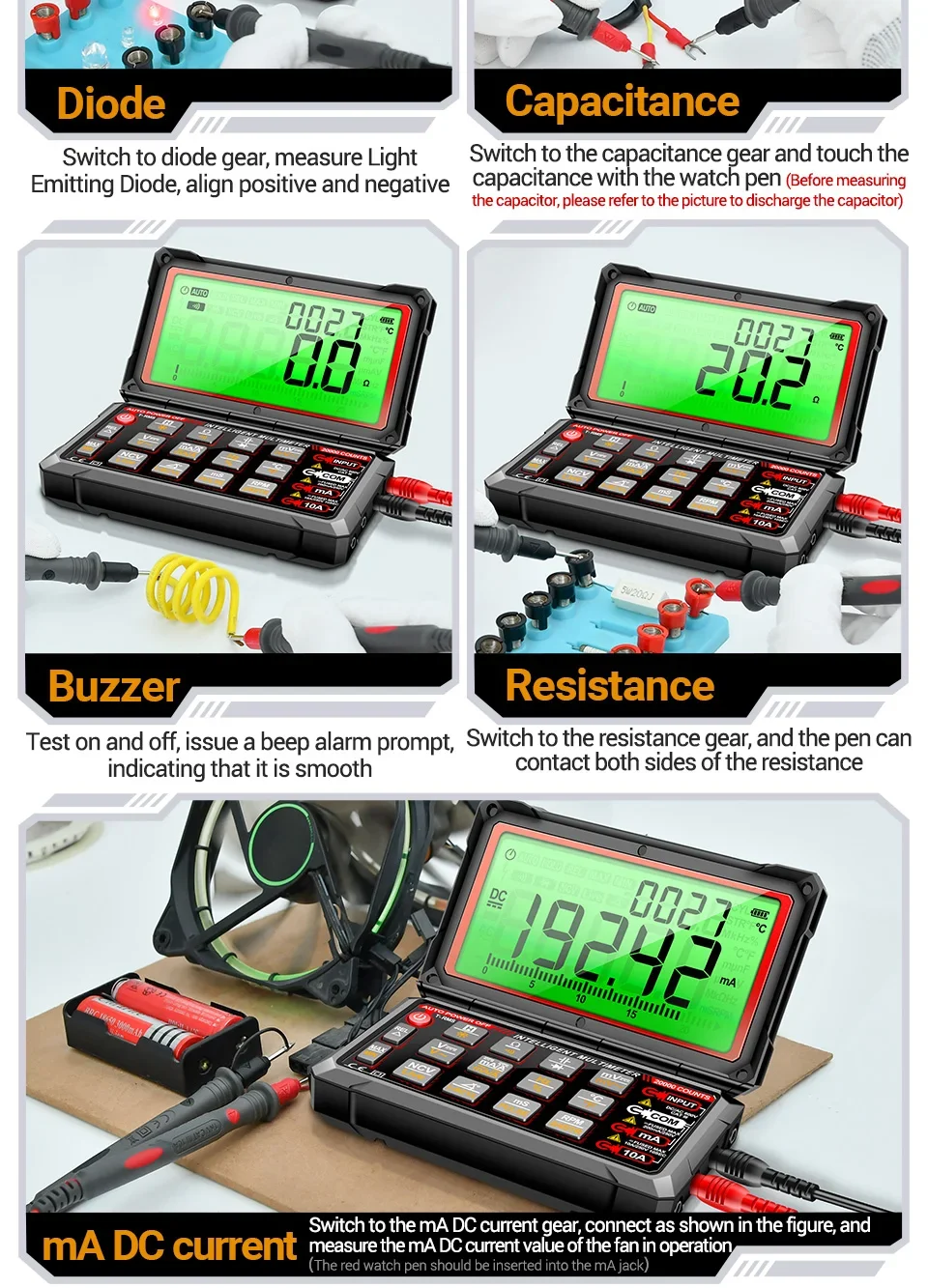

Diode buzzer |
√ |

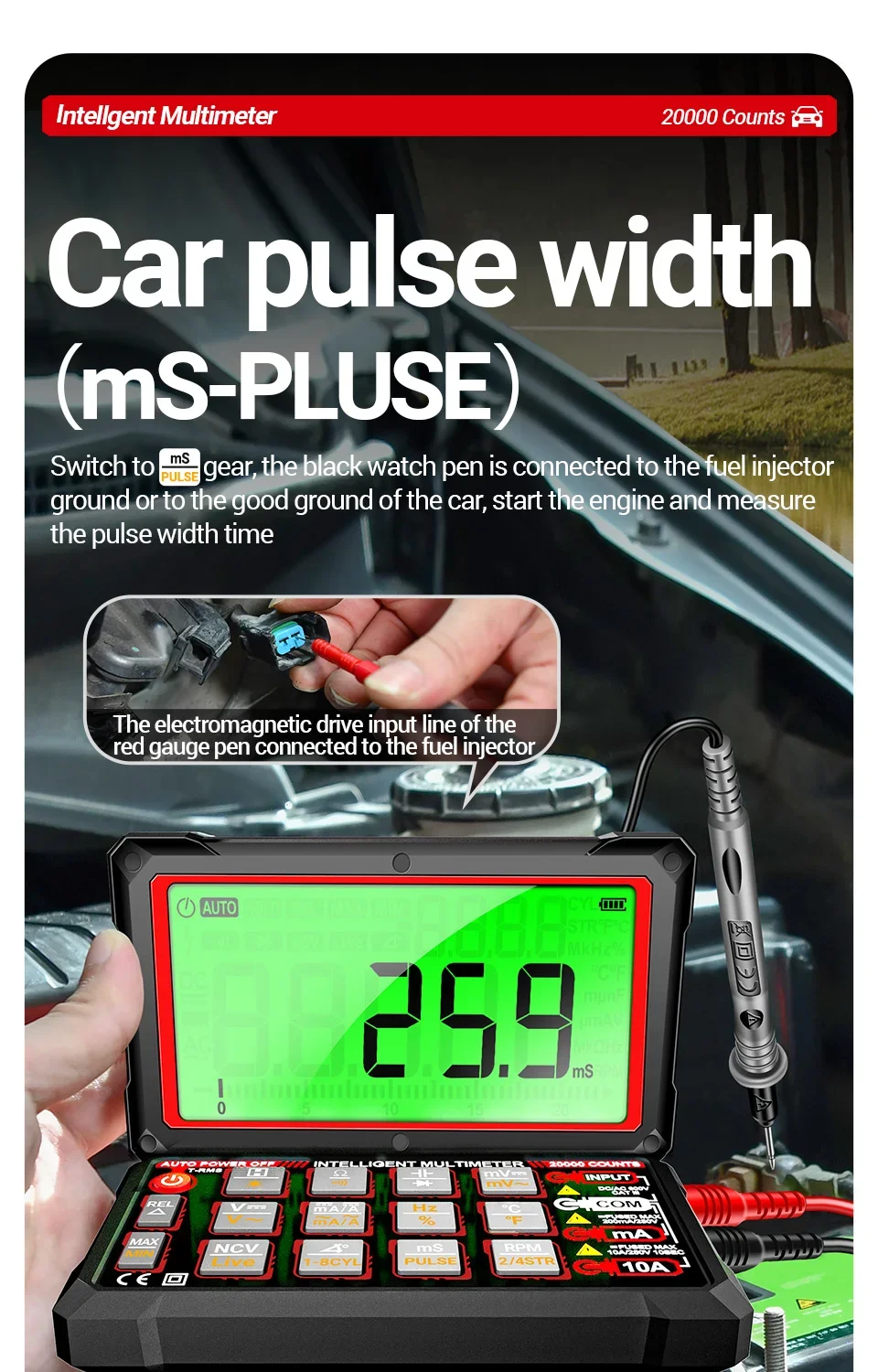

mS Pulse width |
√ |
|

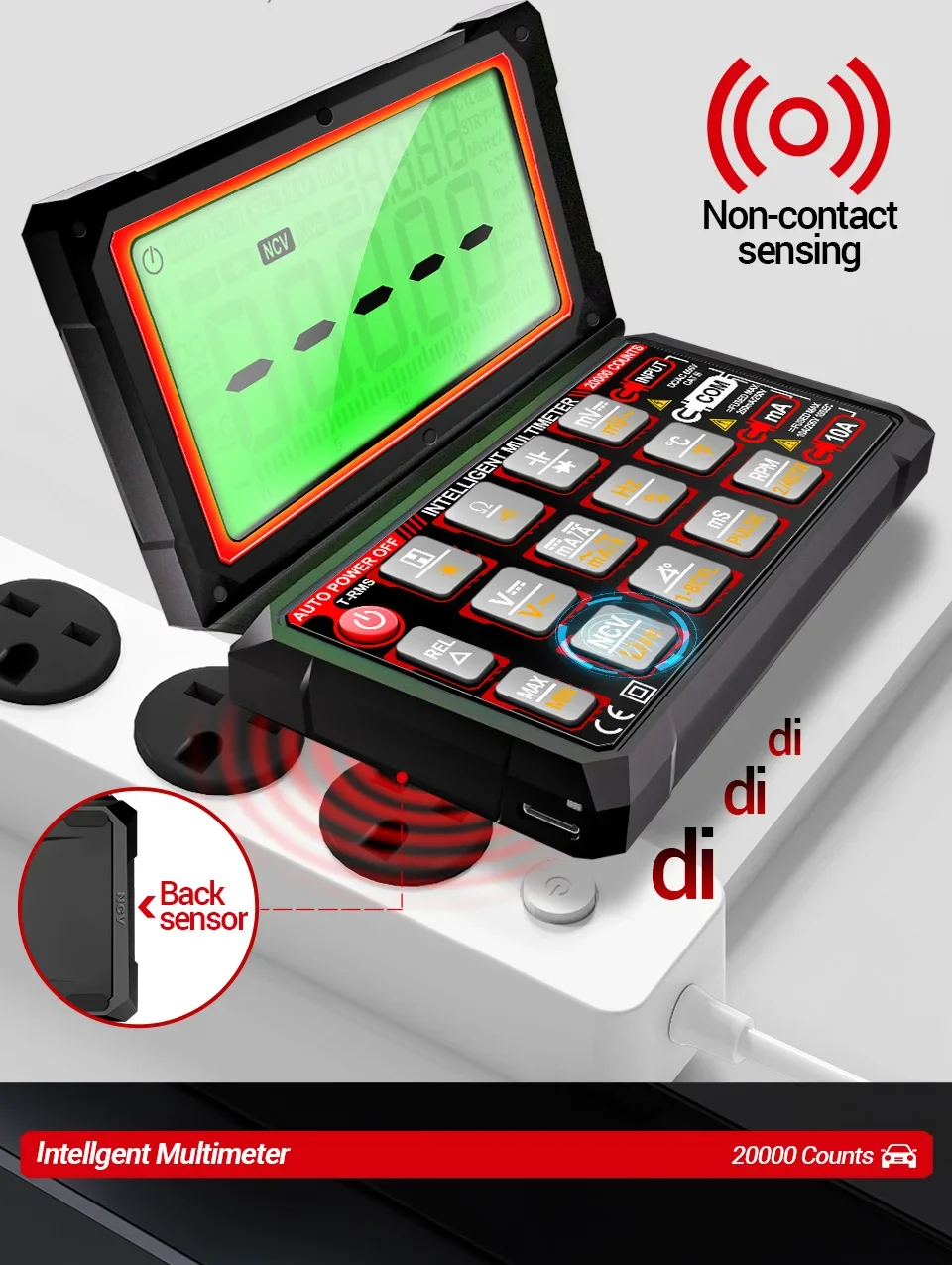

NCV |
√ |
Engine dwell angle |
√ |
|
Live |
√ |

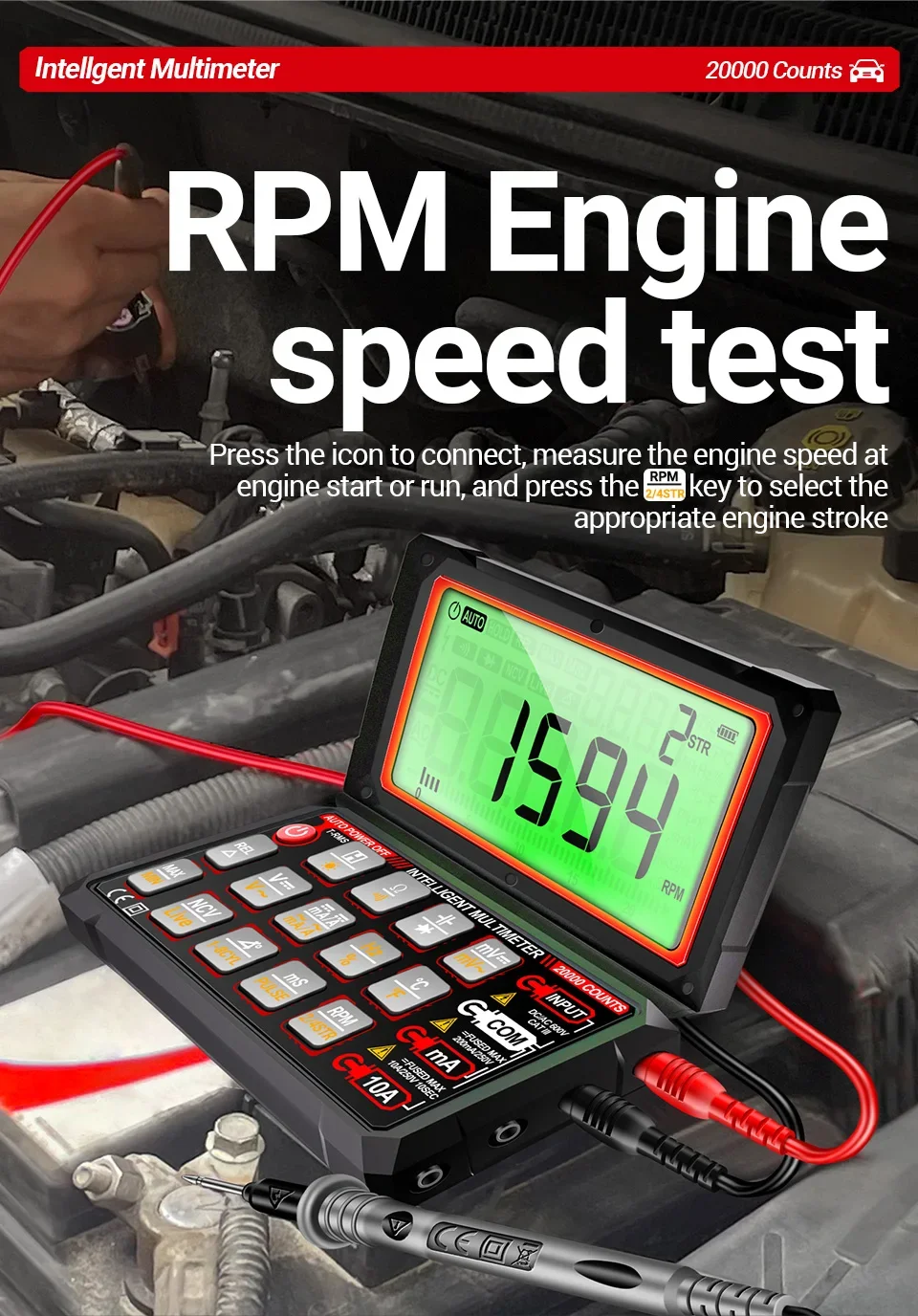

Engine speed (RPM) |
√ |
|
True RMS |
√ |
MAX MIN |
√ |
|
Auto power off |
15 lf there is no operation, it will automatically shut down |
REL Measure |
√ |
|
Weight |
341g |
Data retention |
√ |
|
Max count |
20000 Counts |
Low battery indication |
√ |
|
Material |
ABS |

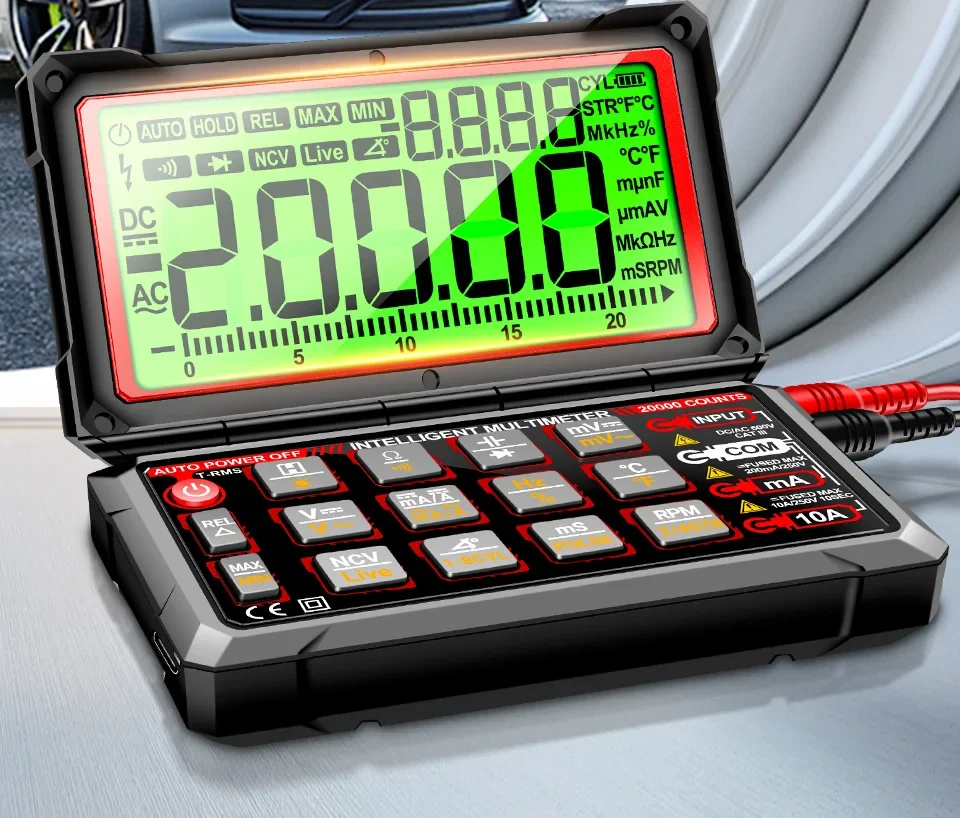

LCD Backlit display |
√ |
|
Power supply |
3.7V/1800mAh Lithium battery |
Lithium battery charging |
√ |

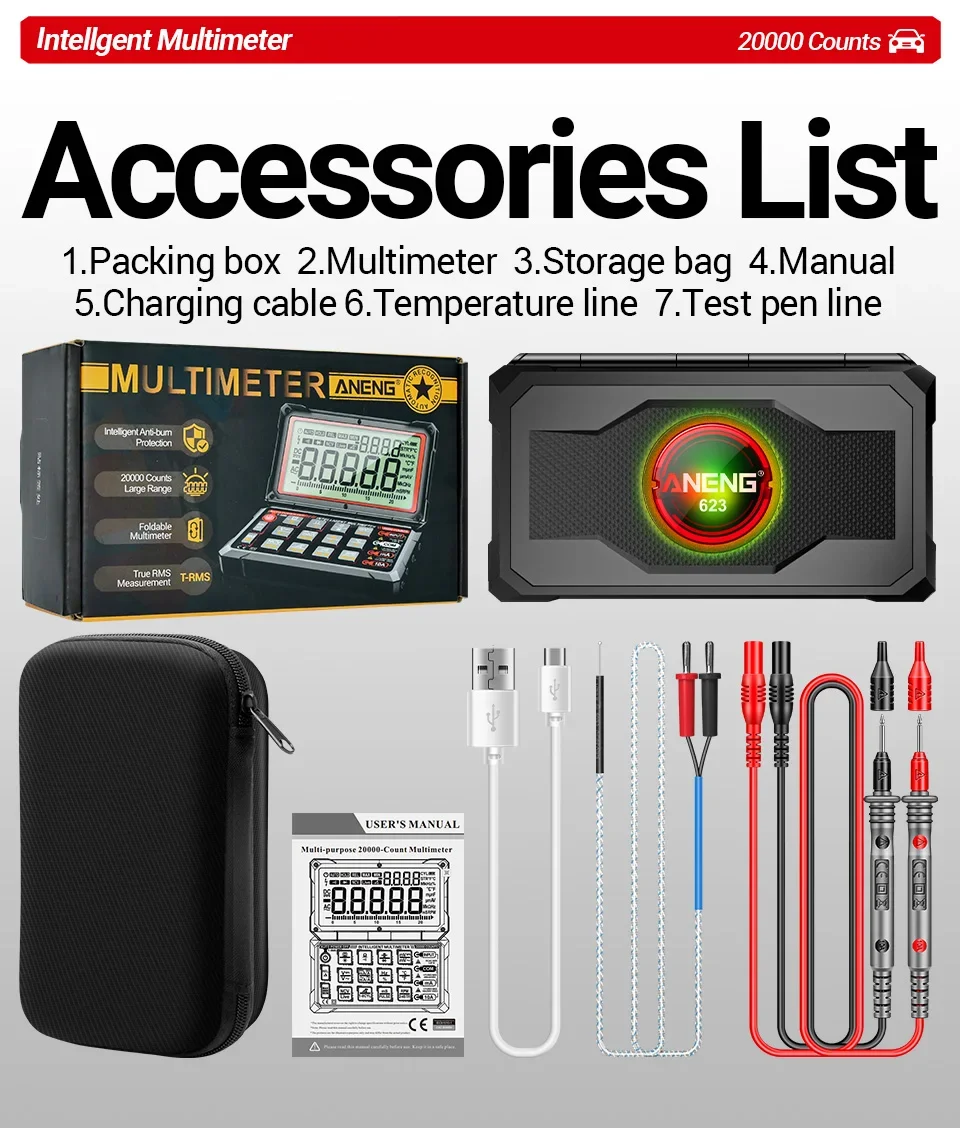

1 * Multimeter
1 * Packing box
1 * Storage bag
1 * Manual
1 * Temperature line
1 * Testpenline
1 * Charging cable
1 * 16-in-1 combination line (according your choice)
Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.
5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
