24 X 16 Inch ESD Rubber Mat Kits, anti Static Table Floor Pad for Electronic Device Repair Solder Assembly PC Building, W/H Grounding Kit- Antistatic Wrist Straps Bracelets Cord Plugs, Blue
Description
| Color | Anti-static Kits 7 |
| Package Dimensions | 17.6 x 5.04 x 2.99 inches; 2.01 Pounds |
| Size | Blue 24x16 inch |
- 【Why Choose Us】ESD Rubber Mat Roll can be grounded by the provided grounding kit by connecting the power socket or outlet via the yellow grounding plug. Don't trouble any more to find a extra grounding cable to ground the mat.
- 【Specifications】Non-Slip ESD Rubber Mat size is L16inch*W24inch*T0.08 inch. The Top Blue layer S.F. is 10E6-10E9 Ohms, Bottom Layer is black made of brand-new conductive Rubber with S.F. 10E3-10E5 ohms. Heat Resistant 572F.
- 【Safe And Easy To Ground】 No matter where, you can ground easily by power socket via KooMall Ground Kit. The Plug is Built in 1 Mega ohms Safe Resistor which can effectively prevent electric shock. Non-Slip Antistatic mat is made of brand-new material, Non-toxic, no harmful to human body.
- 【Wide Application】 ESD Mat is designed for repairing, soldering or assembling ESD Sensitive Devices. Perfect for smart phone, computer, tablet, sport watches, smart toy, IC circuit boards and other electronic devices repair.

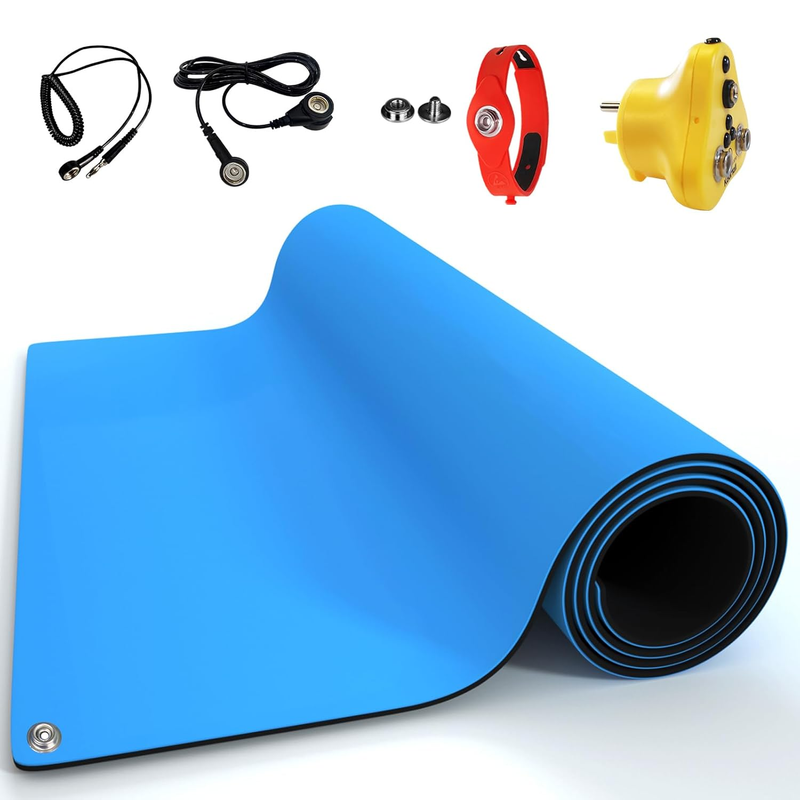

- 【You Can Get】Each Package includes 1 x Anti Static Rubber Mat (16*24 inch), 1 x US Grounding Plugs, 1 x ESD Wrist Straps, 1 x Grounding Cords and 1 x 10mm Universal Screw Studs
Product description
About KooMall
KooMall is a brand focused on producing anti-static products. We can not only protect your electronic components from static damage, but also protect your harm from static electricity
INSTRUCTION
The plug fits directly in to the mains supply socket, connecting with only the earth conductor. Live and Neutral pins have been molded in insulating plastic, fitting into the supply socket but completely dormant.
The 1M Ohm resistor to each connector offer protection in the event the workstation becomes live. That protection would limit the current to less than 0.3mA at 240 volts. Should the fault current continue the resistor will open circuit.
IInsert the plug into the supply socket making sure it is fully home, then connect the various elements of the EPA...such as ESD wrist strap,ESD Mat, Grounding Cord,Equipment and so on. This ensures that the EPA is at the same earth potential. As generally the workstation has more than one plug socket it is possible to use more than one EBP if more connections are required
The EBP is sealed and cannot be opened for repair. To test each connection use a multi-meter from the connector to the earth pin. The reading should be between 0.9 and 1.1M Ohms. As each connection point has its own 1M Ohm resistor, the resistance between two connectors should be approximately 2M Ohms. All EBP's are tested and then packed.
Applications
Work with Wrist strap
Work with ESD Mat
Work with Equipment
How To Test The Conductivity
KooMall ESD kit system resistant is 1-3M Ohms. There is 1M Ohms Safety Resistor in each grounding part. That is, there is 1M ohms in ESD Plug, ESD Wrist Strap Coiled Cord and Grounding Cord. So, when you test any part of conductivity by multimeter. You need to choose the right channel which resistance is more than 2M Ohms. Otherwise, there is not any value in multimeter.
