It is suitable for moderate temperature racing to street use, Rotor is cast from premium grade, long grain carbon iron, The 32 straight vane casting provides superior heat management and long service life, Manufactured to very close tolerances on face and vane thickness, Provides long wear, high thermal stability, and excellent resistance to distortion in high heat

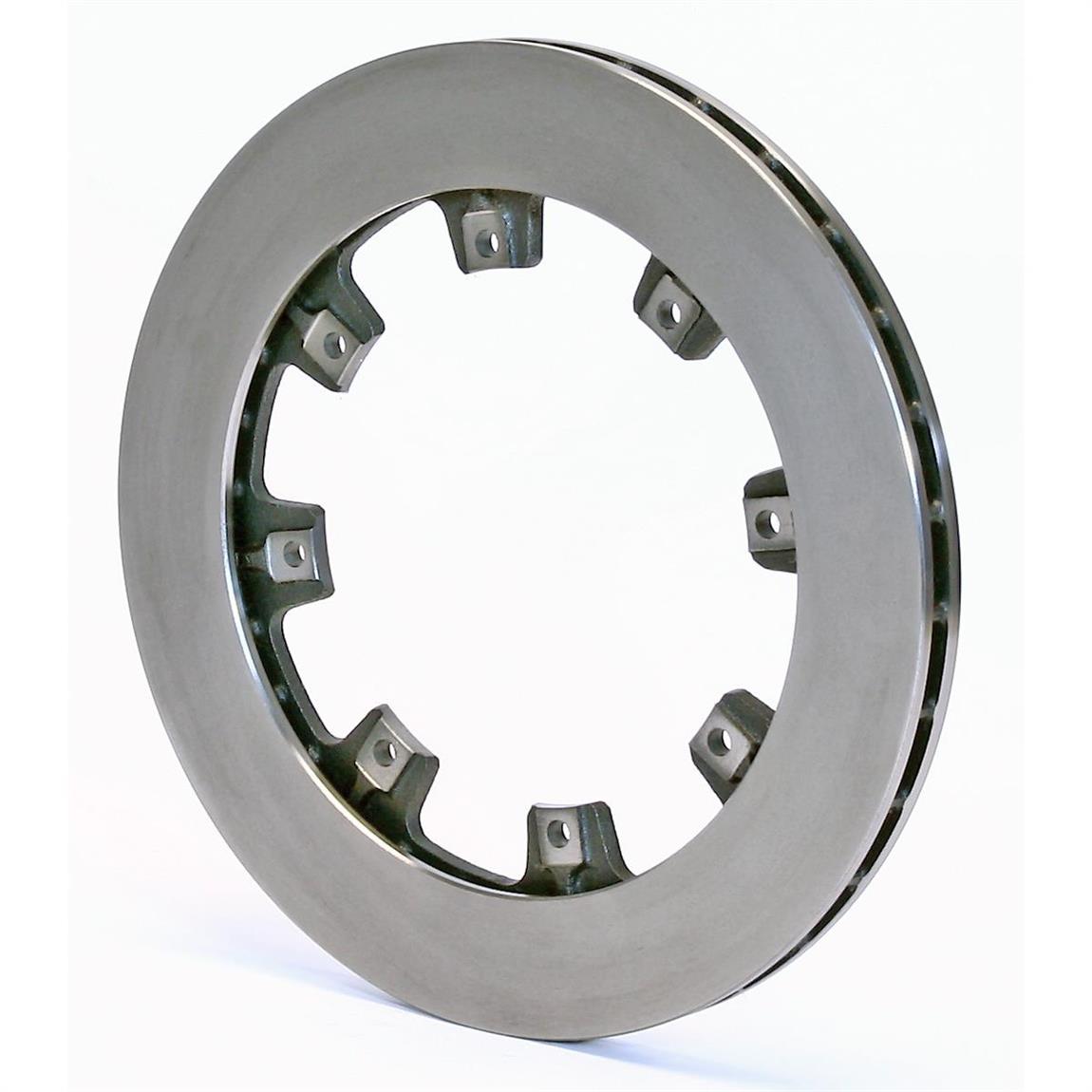

Wilwood 160-0277 Ultralite 32 Vane Vented Iron Rotor, 12.19 x .810 In. Wilwood
Wilwood 160-0277 Ultralite 32 Vane Vented Iron Rotor, 12.19 x .810 In.
Sku # 8351600277
Mfr. Part # 160-0277
Condition
New
Brand
Wilwood
Sold
Each
Details
  • Suitable for moderate temperature racing to street use
  • Cast from premium grade, long grain carbon iron
  • Long wear, high thermal stability, and excellent resistance to distortion in high heat
  • Close tolerances on face and vane thickness
  • 32 straight vane casting provides superior heat management and long service life
  • Low rotating and unsprung weight
  • Left or right hand mounting locations
  • Inboard mounted (Sprints)
  • Threads: Thru
  • Weight: 9.1 lbs
  • Face: solid
  • Rotor Mount Hole Size: .326"
  • Lug ID / Registration: 6.38"
  • Far Side Inside Diameter: 8.56"

Item Details

0.81 X 12.19
8 x 7" B.C.

IMCA Approved.

Specs
Position
Rear
Rotor Shape
Round
Rotor Diameter
12.19 Inch
Rotor Type
Vented
Rotor Style
Plain Face
Rotor Material Type
Iron
Rotor Finish
Plain
Rotor Thickness
0.81"
Vane Count
32 Straight Vane
Rotor Hat Bolt Pattern
8 x 7.00"
Bedded
No
Balanced
No
Lug ID
6.38"
Inside Diameter
8.56"
Weight
8.9 lbs.
MFG. Part #
160-0277
Sold in Quantity
Each
GTIN Code
889545037463
Reviews

This works grate on my pinion brake

Rated
Product Rating
by Fred1979 on March 30, 2014

Summary: Using it on my 2.5ton rock wells in a bronco fits my kit good

Yes, I recommend this product.

Related Items / Suggested Parts

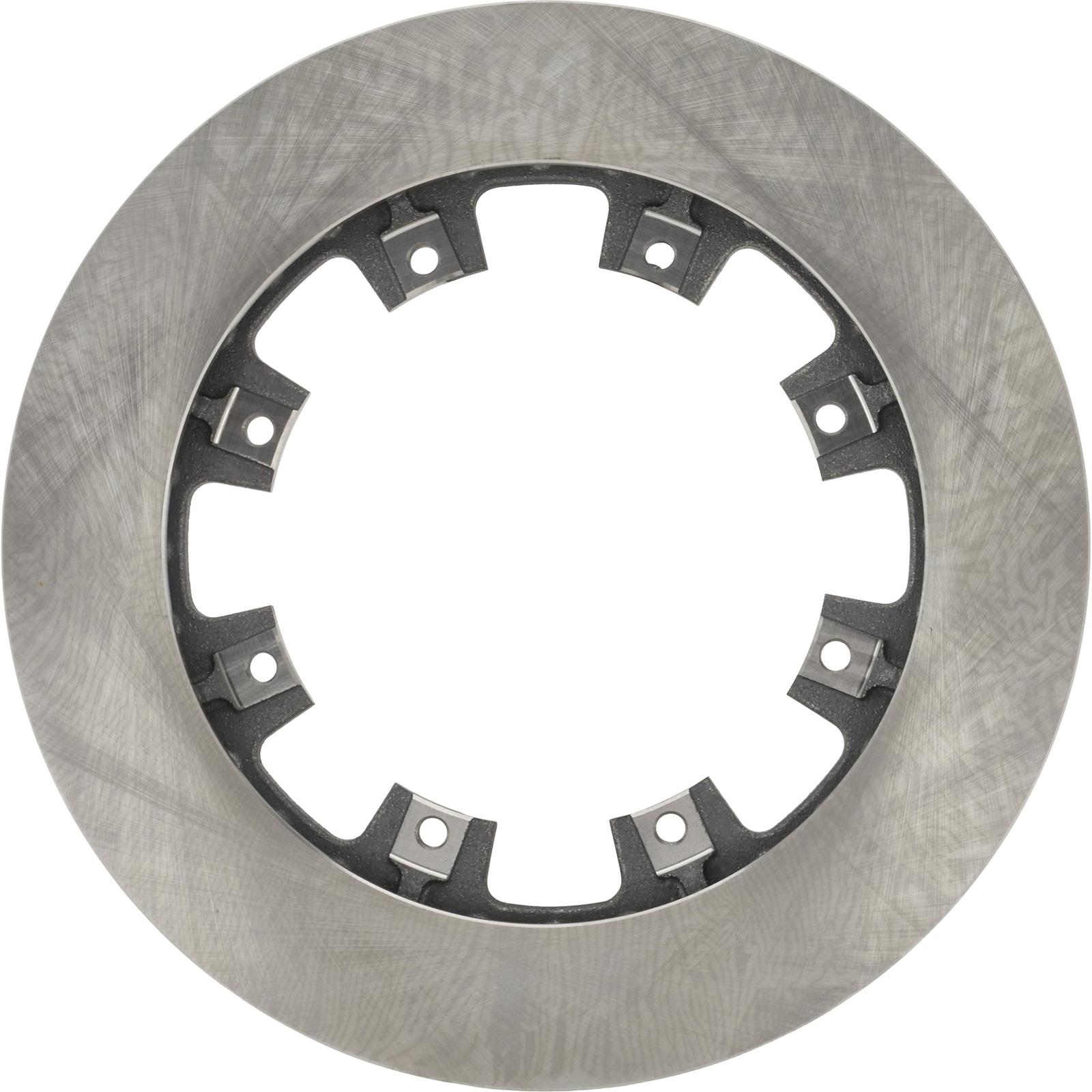

Pro-Lite Vented Brake Rotor, 12.19 x .81 Inch
Pro-Lite Vented Brake Rotor, 12.19 x .81 Inch

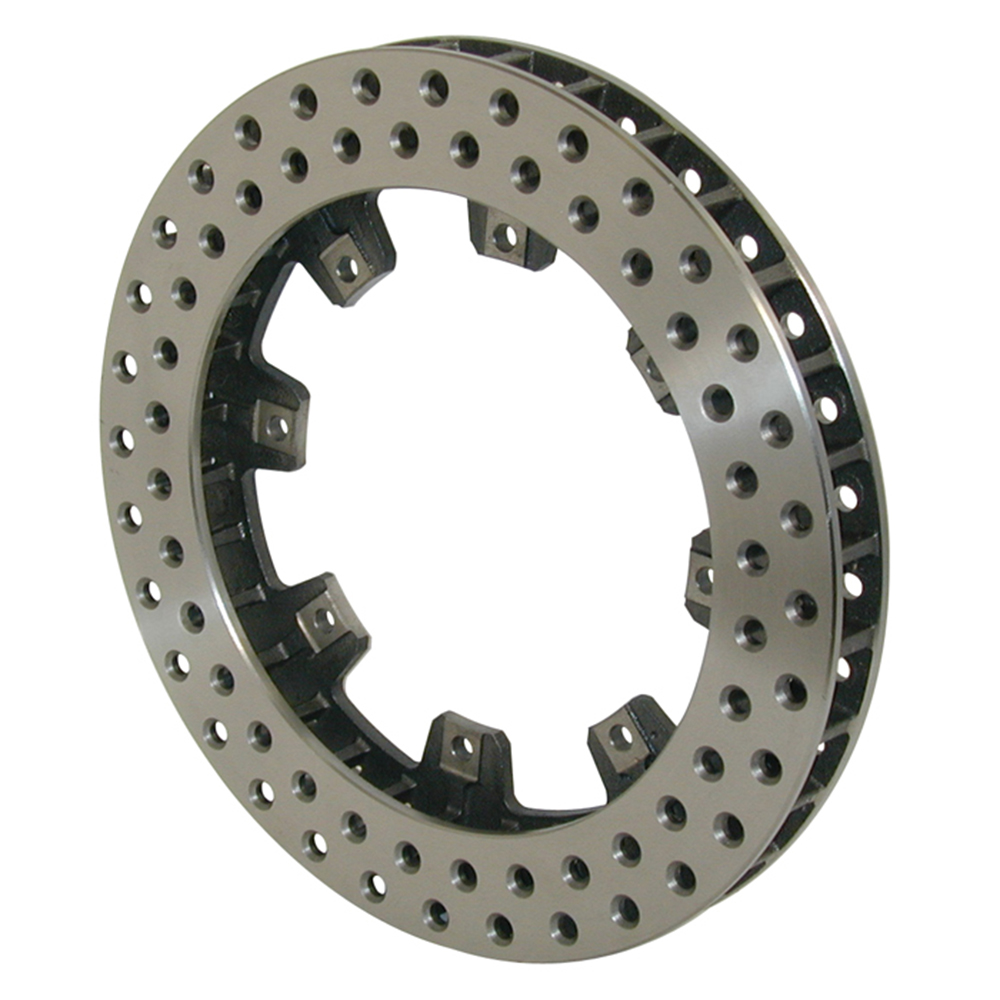

Wilwood 160-5865 Ultralite 32 Vane Drilled Vented Iron Rotor, 12.19 In
