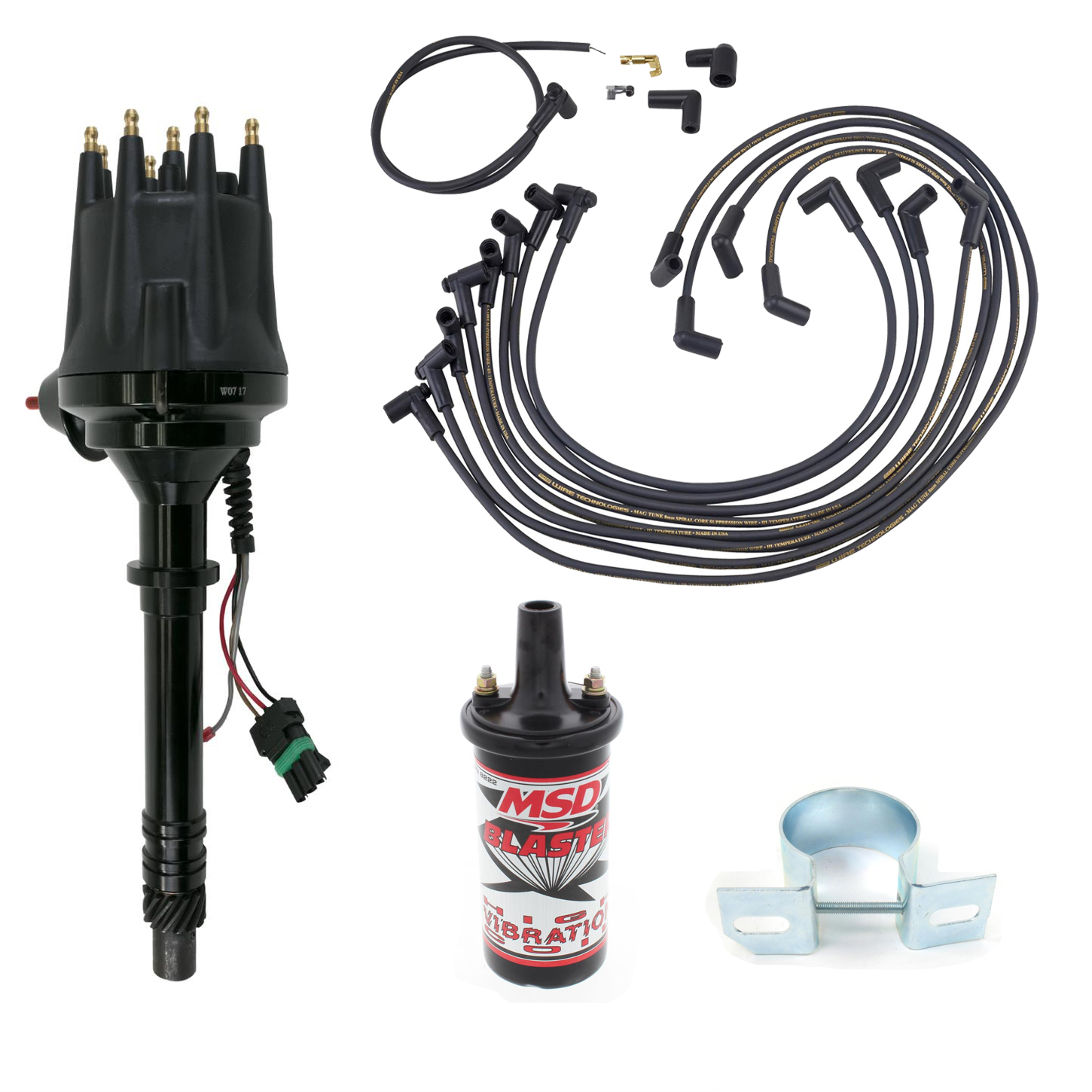

This kit is the perfect way to give your ride a street performance ignition upgrade at a price you can't beat! When your ignition system is due for an upgrade, this kit gives you the best performance and best reliability, at the best price. Kit includes Ready-to-Run Billet Distributor, MSD 8222 Blaster 2 Coil and bracket, and Moroso 9867M Mag-Tune Spark Plug Wires.
Kit Contents:
(1) Speedway Motors Ready to Run Pro Billet Distributor
This distributor features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.
An important feature on all Speedway Motors Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Built using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.
- 3 Bushings and 4 Springs for Mechanical Advance
- Color-Matched Spark Plug Wire Retainer with Screws
- Vacuum Advance Block-off Plate (Black)
- Power Extension Cable
- Tachometer Output Extension Cable
(1) MSD 8222 Blaster 2 Coil, Black
In applications such as off-road, marine or other harsh conditions, the MSD Blaster High Vibration Coil is the best choice. The sturdy metal housing of the High Vibration Coil is completely potted with a premium grade epoxy to completely encase the coil's primary and secondary windings. This protects the coil's internal components from high and low frequency vibrations that are commonly experienced in racing.
- Coil is CARB E.O. approved and produces 45,000 volts
- Primary resistance is .70 ohms and secondary is 4.5 ohms
- Has an improved output coil for electronic ignitions, and MSD Ignitions
- The 100:1 turns ratio and lower primary resistance produce high voltage output
- The metal canister is encased with epoxy to protect the windings from high vibration applications
(1) Moroso 9867M Mag-Tune Spark Plug Wires, SBC, Under Headers
If you have ever tried to put plug wires together yourself, you know how frustrating it can be. These pre-assembled Moroso spiral core wires are fiberglass reinforced with a silicone outer layer. 100% silicon boots and Snap-lock spark plug terminals make installation well....a snap! All Mag-Tune spark plug wires are made with high-temperature EPDM jackets and are ready for install!
- Fits Small Block Chevy Engines - Under the Headers
- Assembled Set ready for install
- Boot Size: 8.00mm
- Distributor Terminal Ends: HEI
- Spark Plug Boot Ends: (2) 90 Degree
(1) PerTronix 10001 Bracket Coil, Zinc Clear
Universal Coil Bracket available in Chrome or Zinc plated. FIts your Flame-Thrower I, II or II canister style coil.
- Universal Coil Bracket available in Chrome or Zinc plated.
- High-quality construction.
- Fits all 2.15" diameter Coils.
- Limited 90 Day Warranty.
