Description

This rail cutter not only cuts rails accurately, but it also comes with a quality ruler that makes it easier for you to make precise measurements and adjustments, ensuring accurate and stable rail cutting. It also has a user-friendly design that is easy to hold and use. If you need to cut guide rails, this rail cutter will be your good choice.

Key Features

Long Service Life: This product is made of 40CR, 45# steel, and A13 steel, which is hard, tough, and strong, so you can use it for a long time.

Precise & Efficient Cutting: The rail cutter comes with a special ruler that allows you to quickly adjust the cutting size and cut most aluminum rails with ease. In addition, the smooth and sharp cutting edges make for a neat and smooth cut, which saves time and effort and ensures that cutting tasks are more efficient.

Wide Cutting Range: With a cutting width of 13.8 to 15.7 inches and a cutting thickness of up to 0.8mm, this product has a wide cutting range and can cut most aluminum rails

Practical Tool: The rail cutter provides a solution for power, construction, and completing other tedious cutting tasks, making work easier and more efficient.

Safe to Use: The handle adopts the principle of leverage and is equipped with non-slip rubber, which is comfortable to grip and not easy to slip, ensuring the safety of use.

Simple Operation: You just need to push the slider, set the cutting length, insert the guide, and press the handle to cut and get the guide you need.

Easy to Carry: The product is small in size (folded size: 25.6*3.3*5.3inches) and light in weight (9.9 lbs), which is convenient for you to carry and store.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

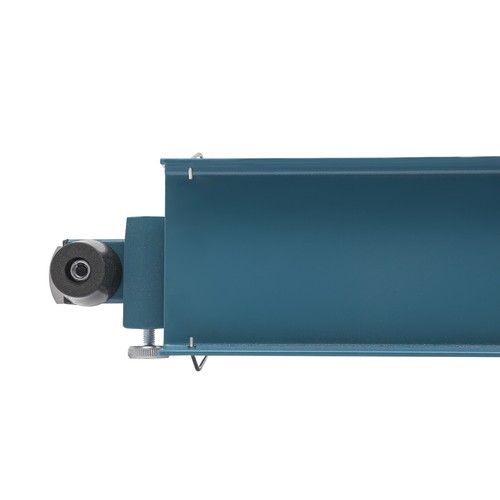

Iron Wire: It holds the handle in place to prevent shifting and help you store it better.

Parallel Base: The flat base design at the bottom makes this product more stable and not easy to fall and shake.

Application

It is suitable for cutting aluminum guide rails and is also used in the power and construction industries.

How to Operate

1. Rotate the ruler 90° to fix it, move the slider to the length to be cut, and turn the screw to fix it.

2. Insert the guide rail from the left side and push it to the fixed position of the slider.

3. Hold the handle and press down to cut the guide rail.

4. After the guide rail is cut, gently open the handle and check the length by measuring it with a ruler.

Specifications

Model: DC-35

Material: 40CR, 45# Steel, A13 Steel , Iron Wire, Rubber

Color: Blue

Cutting Object: Aluminum Rail

Cutting Model: C 45

Work Form: Manual

Cutting Width: 35-40cm/13.8-15.7in

Cutting Height: 7mm/0.3in

Cutting Thickness: ≤  0.8mm/0.03in

Product Size:

Handle Length: 64cm/25.in

Folded Size: 65*8.5*13.5cm/25.6*3.3*5.3in

Unfolding Size: 60*8.5*64cm/23.6*3.3*25.2in

Gross Weight: 5.5kg/12.13lbs

Net Weight: 4.5kg/9.9lbs

Package Size: 70*17*10cm/27.6*6.7*3.94in

Package Included

1*Rail Cutter

1*English Manual

All Accessories for Installation

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
