Condition: Used
Dimensions: 6.00 x 4.00 x 4.00 inches (L x W x H)
Weight: 0.90 Lbs.

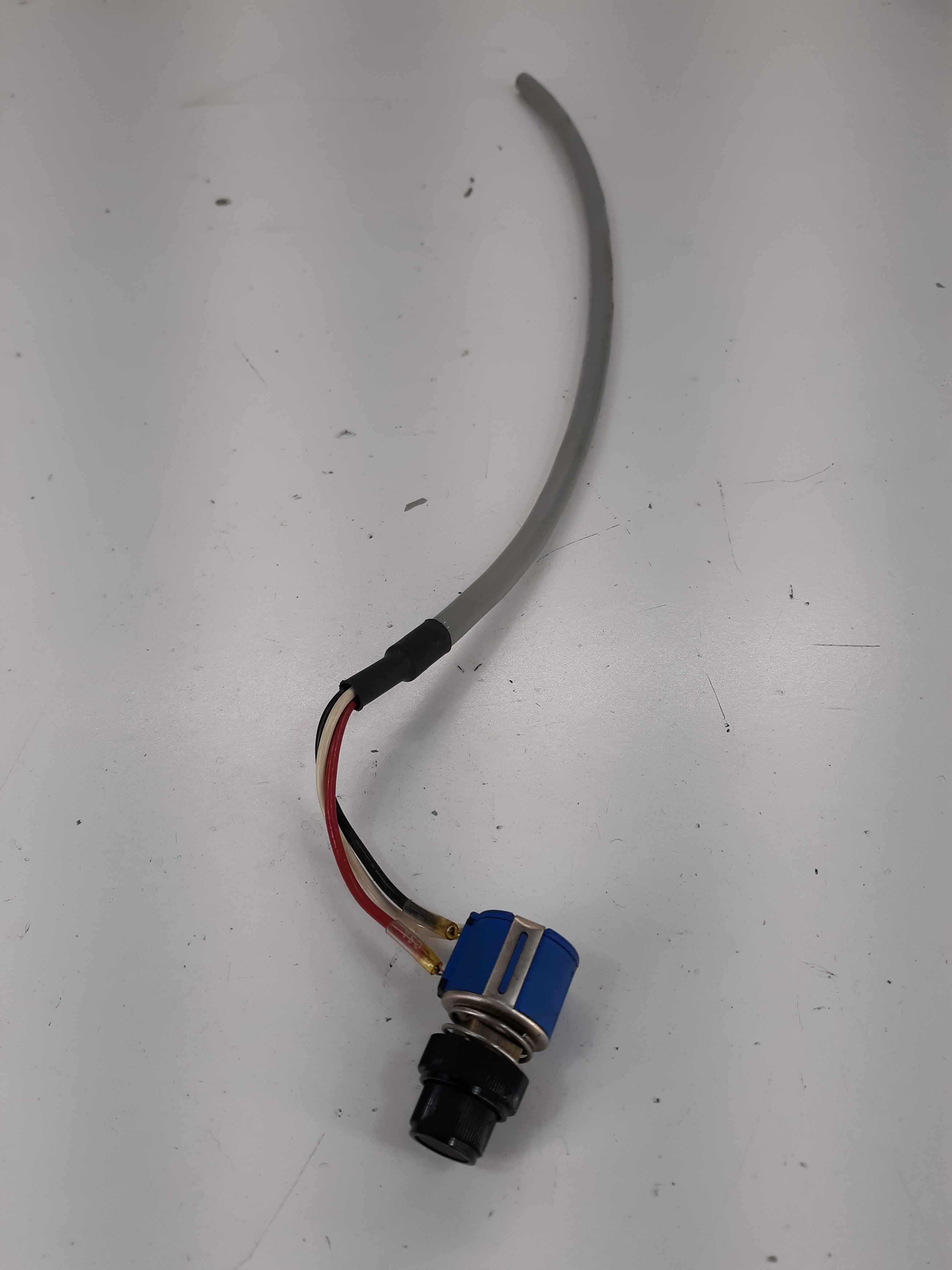

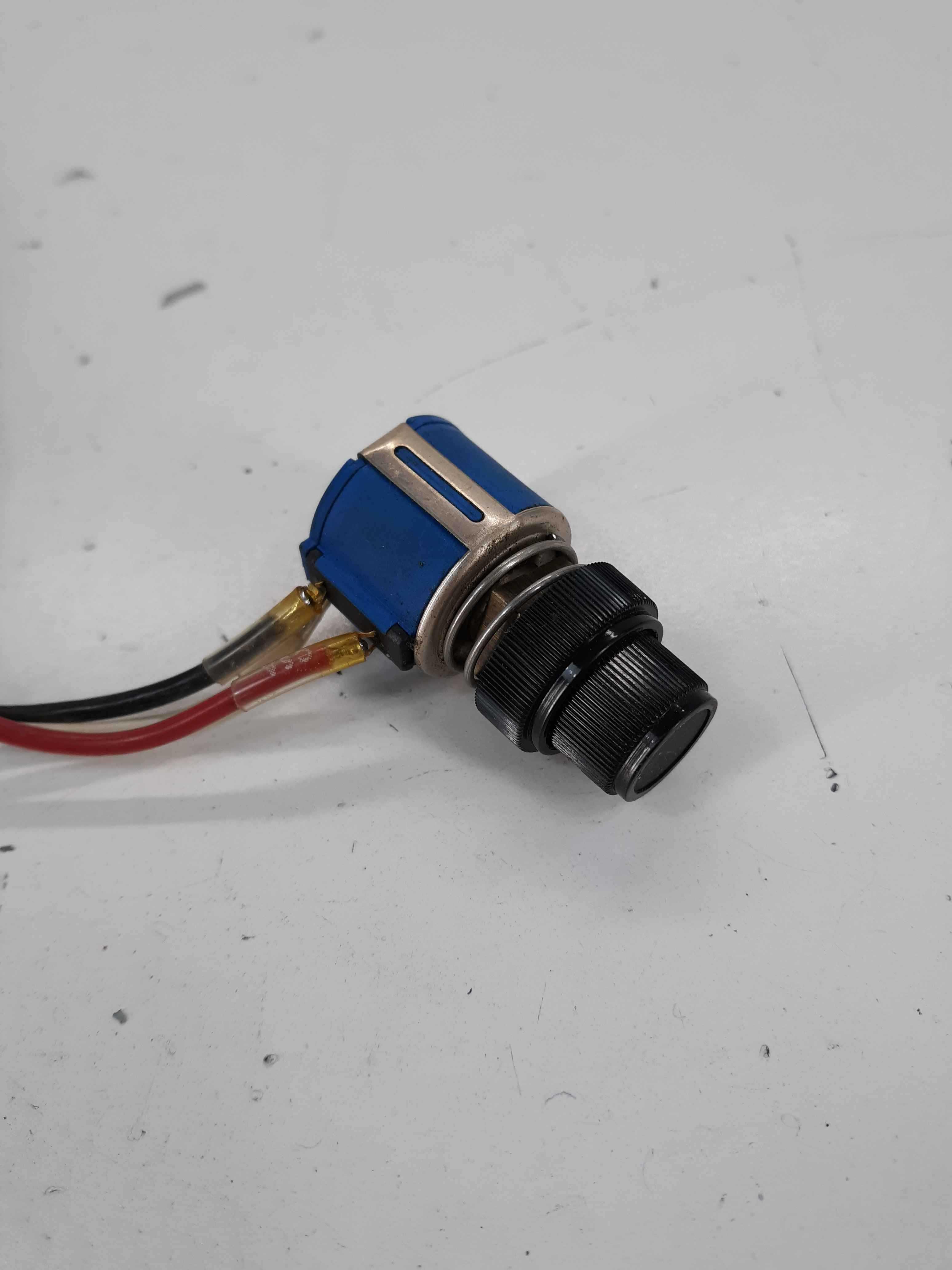

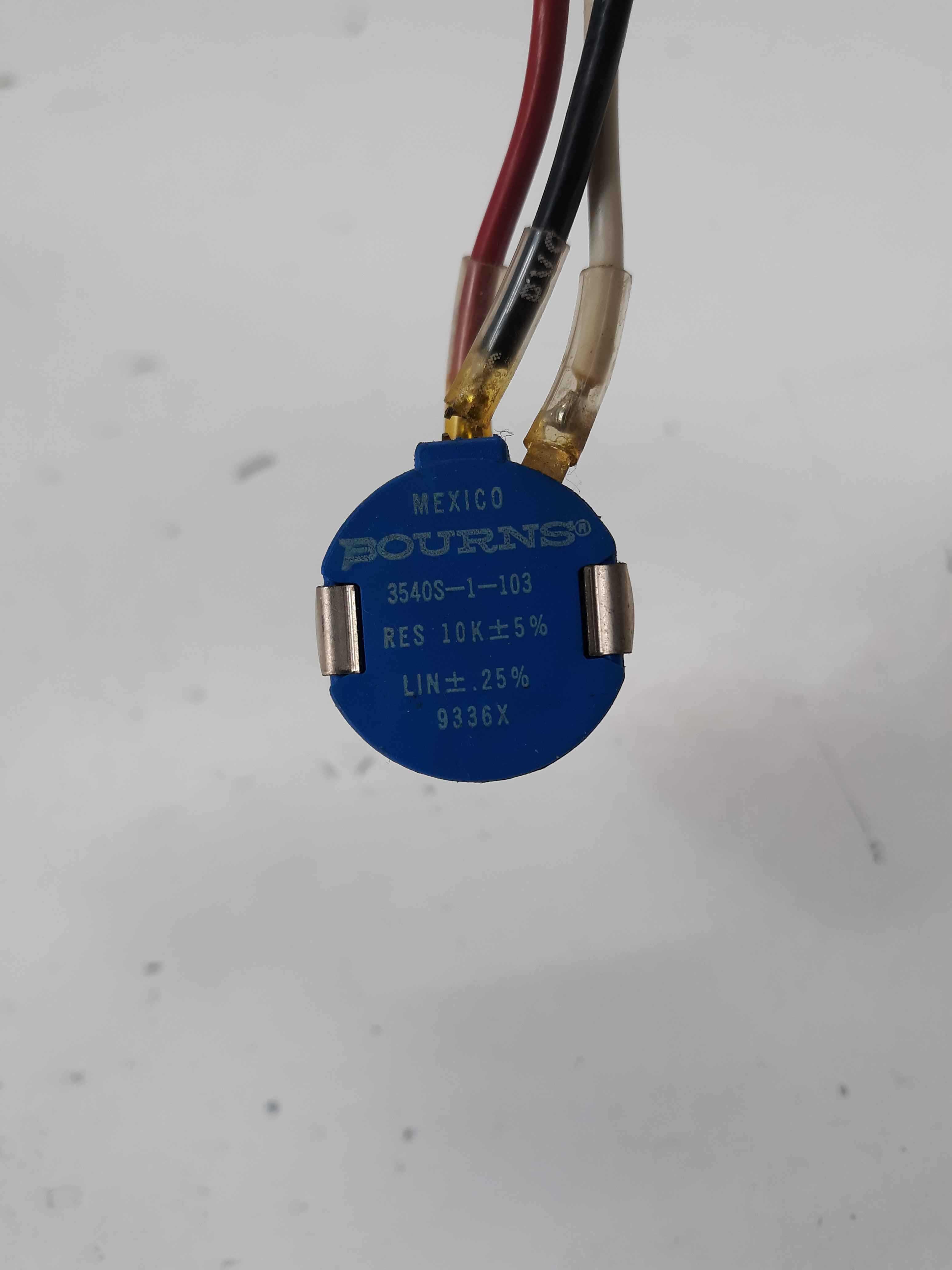

The Bourns 3540S-1-103 is a high-precision, multi-turn wirewound potentiometer designed for industrial control, calibration, and instrumentation applications. It offers superior resolution, excellent linearity, and long operational life, ideal for fine-tuning and adjustment circuits in sensitive electronic systems. Technical Specifications: Manufacturer: Bourns, Inc. Model Number: 3540S-1-103 Product Type: Precision Multi-Turn Wirewound Potentiometer Resistance Value: 10 kΩ (10,000 ohms) Tolerance: ±5% Power Rating: 2 Watts at 70°C Temperature Coefficient: ±20 ppm/°C Adjustment Type: 10-turn precision screw adjustment Electrical Travel: 3600° ±2° (10 turns) Mechanical Travel: 3600° ±10° (10 turns) Linearity: ±0.25% independent linearity typical End Resistance: 1 Ω maximum or 0.1% of total resistance (whichever is greater) Wiper Resistance: 1 Ω maximum Operating Voltage: 500V maximum Dielectric Strength: 900V RMS between terminals and case Shaft Type: Slotted, ¼-inch (6.35 mm) round shaft Bushing Mount: ⅜-inch × 32 UNEF threaded bushing for secure panel mounting Rotation Torque: 3.5 to 35 mN·m typical Temperature Range: -55°C to +125°C (-67°F to +257°F) Housing Material: Conductive plastic body with metal mounting hardware Terminals: Solder lugs or wire leads (as shown) Expected Life: 1,000,000 shaft revolutions minimum Applications: Precision calibration, servo systems, instrumentation controls, test equipment, and analog interfaces Compliance Standards: MIL-PRF-39035, RoHS Compliant Manufacture Country: USA Please review pictures carefully and let us know if you have any questions!
