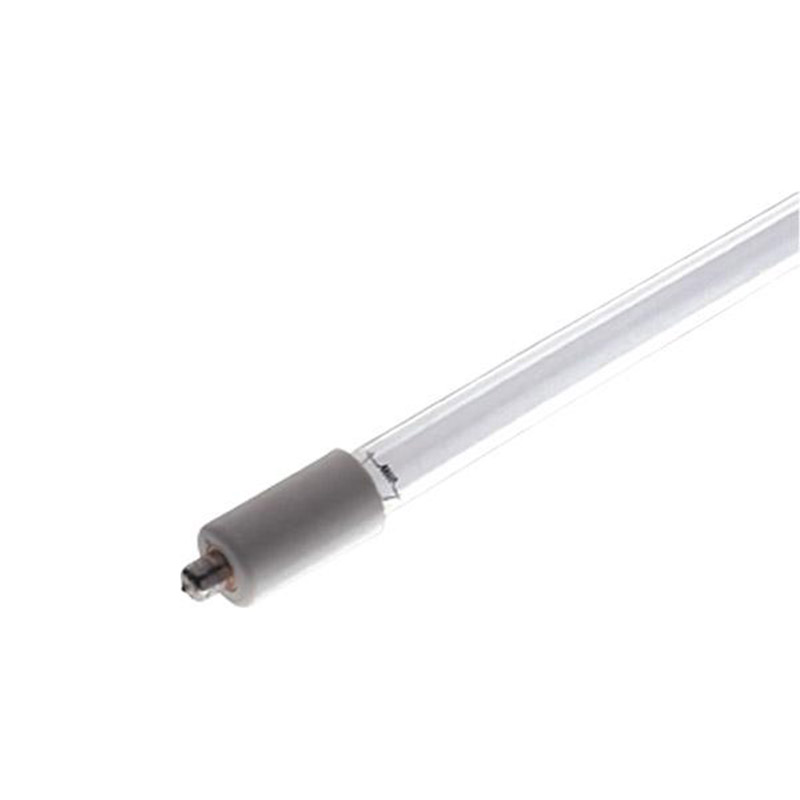

USHIO G64T5L 65W GERMICIDAL/UV-C T5 Quartz Lamp

Responsive image

Description:

Ushio UV-C lamps are Low-Pressure Mercury-Arc lamps that emit radiation peaking at 253.7nm(UV-C).
This output at 253.7nm. Features:
- Low Mercury Dose to Meet Environmental Demands
- Specially Formulated Coating Achieves High Output Over Long Life Hours
- High Purity Lamp Construction to Stabilize UV Output and Minimizes Depreciation (Averages 20-25% Depreciation at End of Life)
- Flexible Design Capability for Custom Lamp Development

Applications:
- Drinking Water
- Wastewater
- Air Conditioning System
- Pharmaceutical Processing
- Food Processing Facility
- Packaging Materials
- Laboratory / Research
- Photochemistry
- Clean Room
- Other Sterilization Disinfection Needs

Cross Reference:
- Ushio 3000014
- Ushio G64T5L Quartz

Lamp DescriptionG64T5L
BaseFa8 Single Pin
Bulb TypeHigh Intensity Discharge Bulbs (Hid)
Maximum Overall Length (In)61.89
Diameter (in)0.59
Rated Life (Hours)7500
ShapeT6
Wattage (W)65W
Volts220v
Lamp current (A)0.425
Spectral Peak (nm)253.7
UV output (w)

3000014
