9IMOD Digital Servo Winch Hook & Boom 25KG/35KG/45KG/51KG IP67 Waterproof 6.0V~8.4V 360°C For 1/10 TRX4 SCX10 LCG Climbing Car
Features:
1. Premium Materials-Made of CNC aluminum alloy, anodized, exquisitely crafted and durable.
2. Size: 135 * 67 * 112mm (lowest installation position) (adjustable installation angle/height), Weight: 104g.

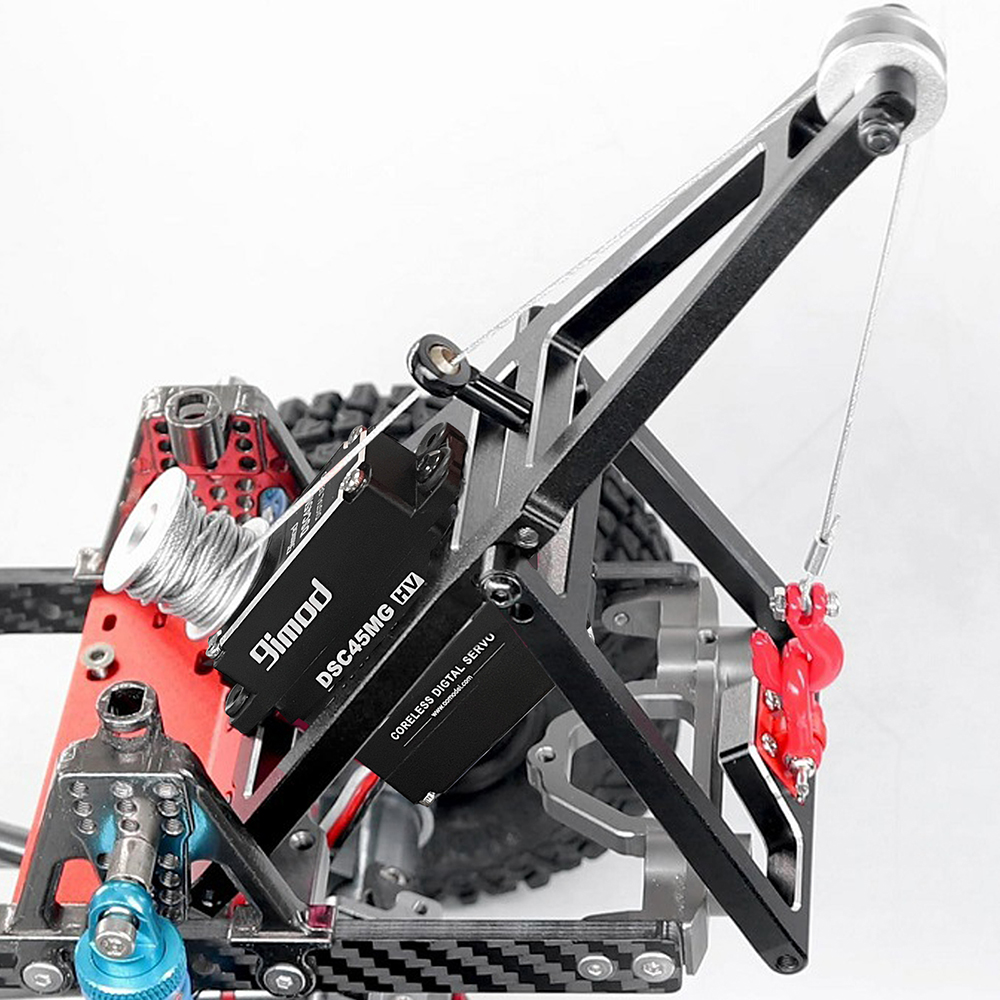

3. Applicable models-The 1/10 scale tow truck crane arm wrecker kit has multifunctional compatibility and is suitable for 1/10 ratio RC tracks and trailers, such as SCX10, TRX4, Capra, and other similar models.
4. 6.0V ~8.4V High voltage.

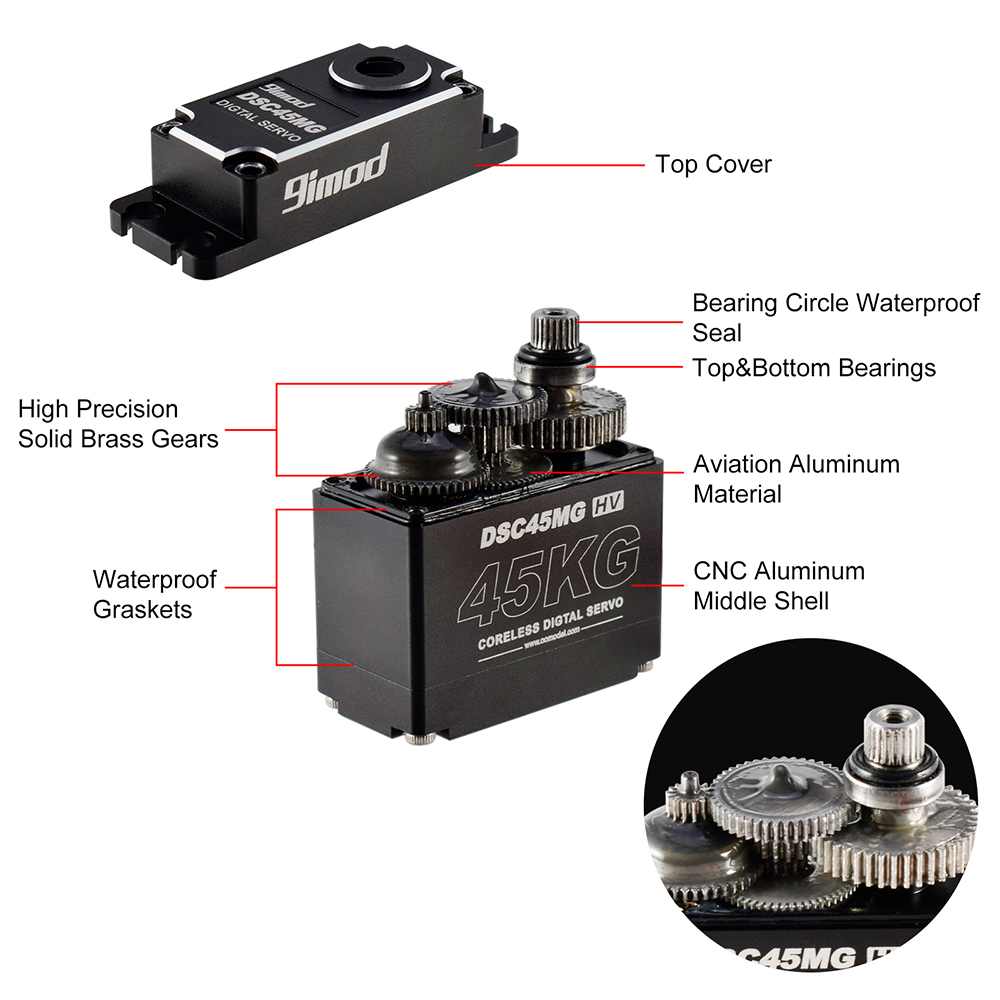

5. Metal Gear brushless Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.
6. High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (79g)
Description:

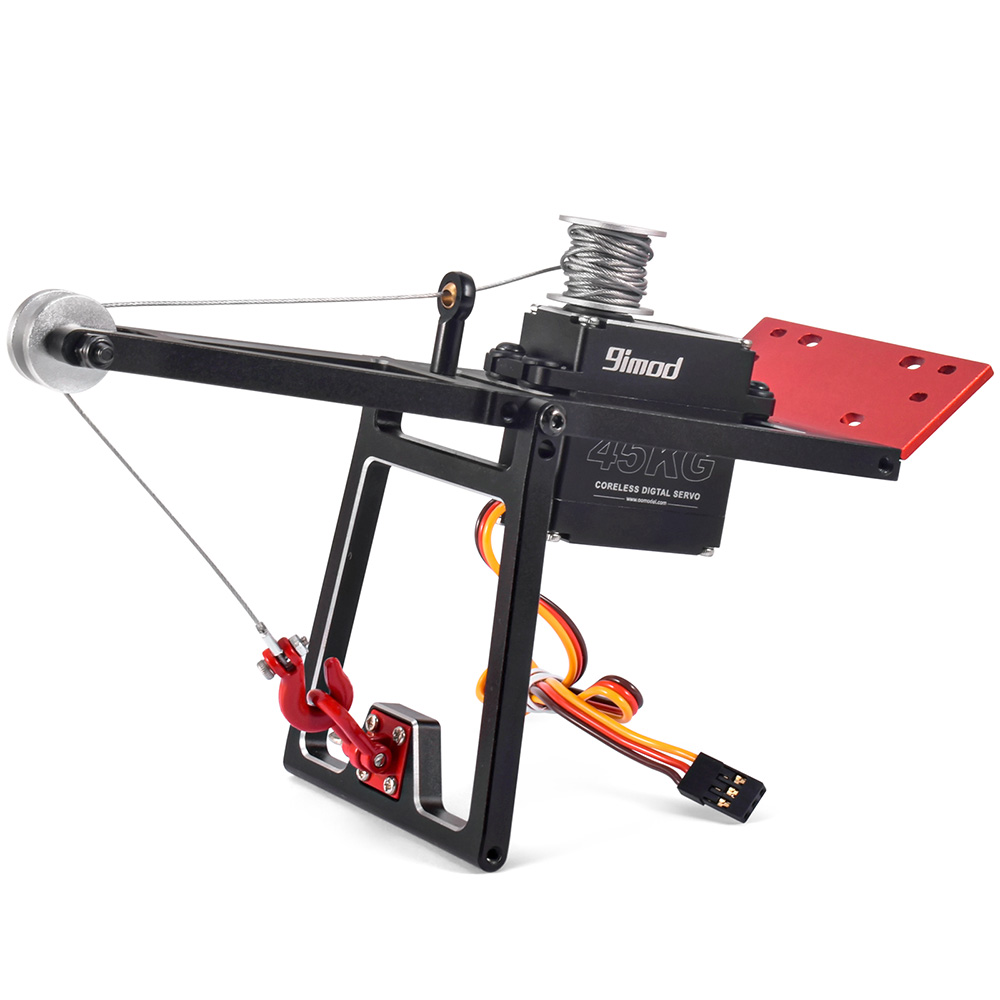

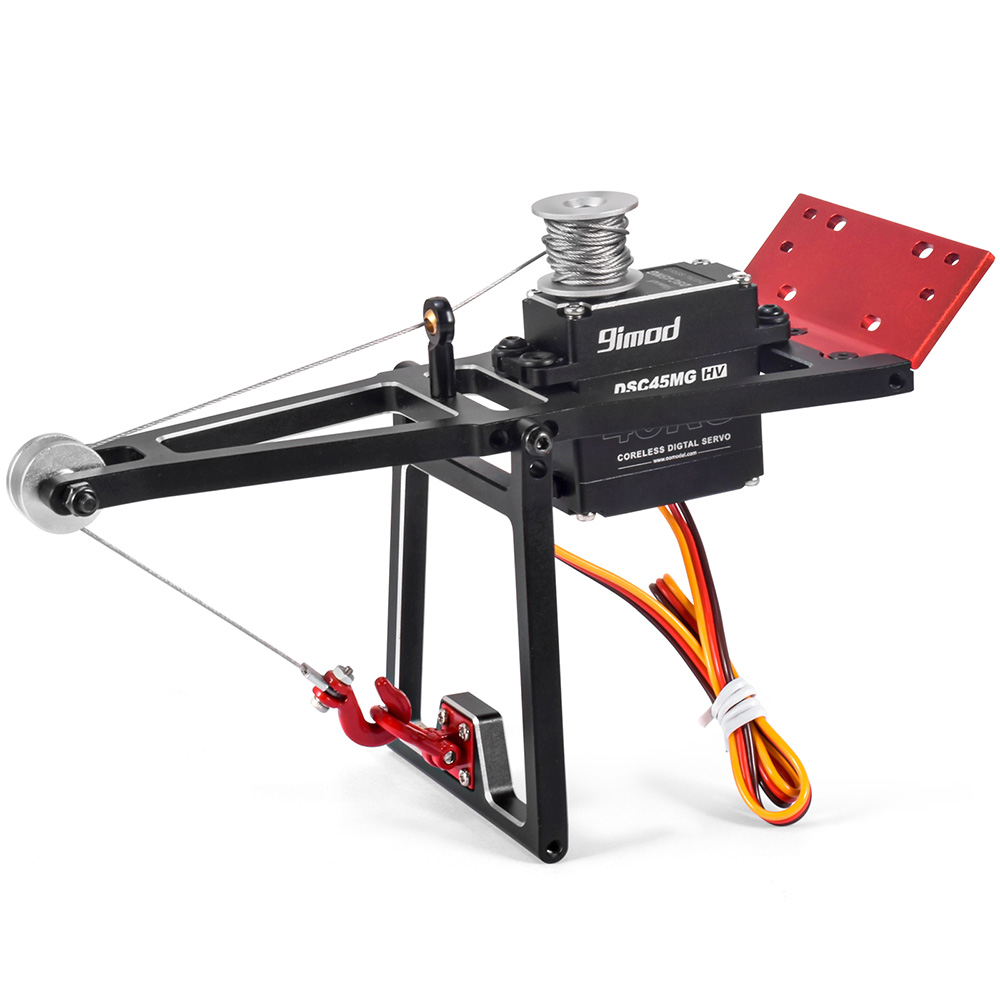

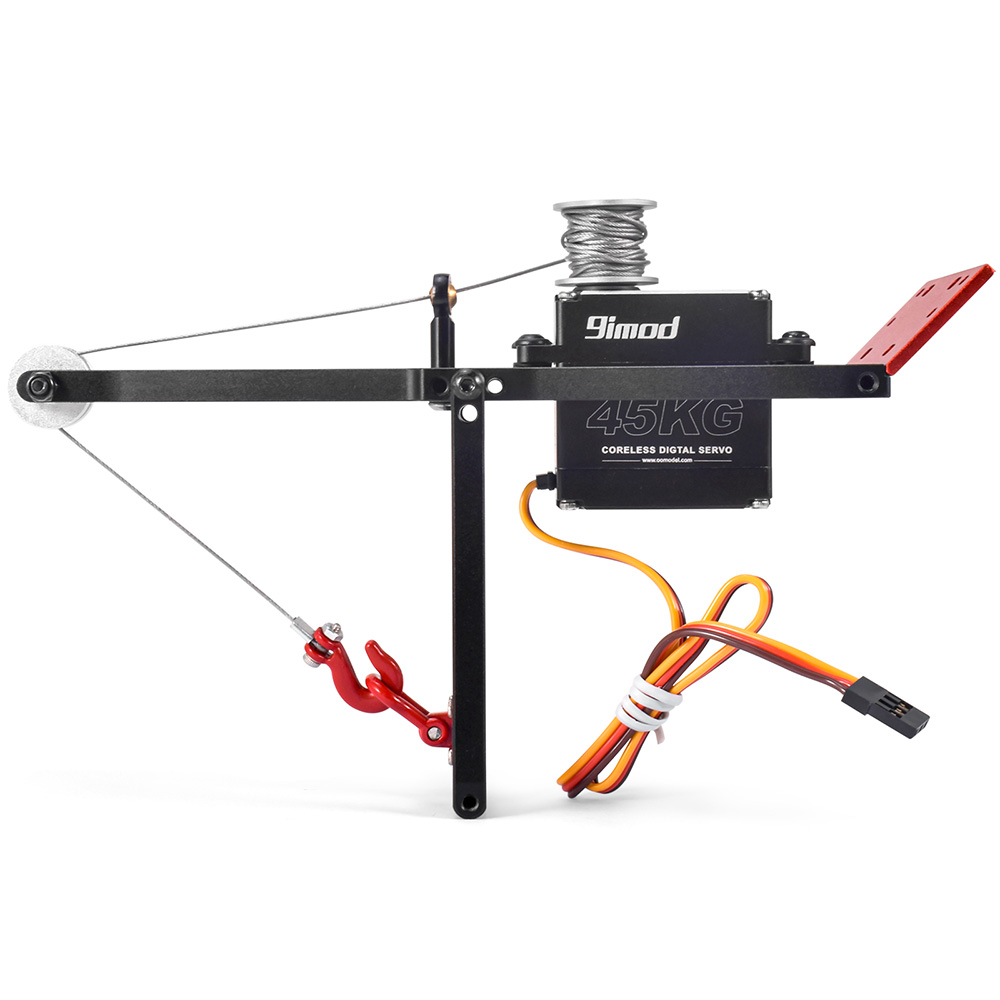

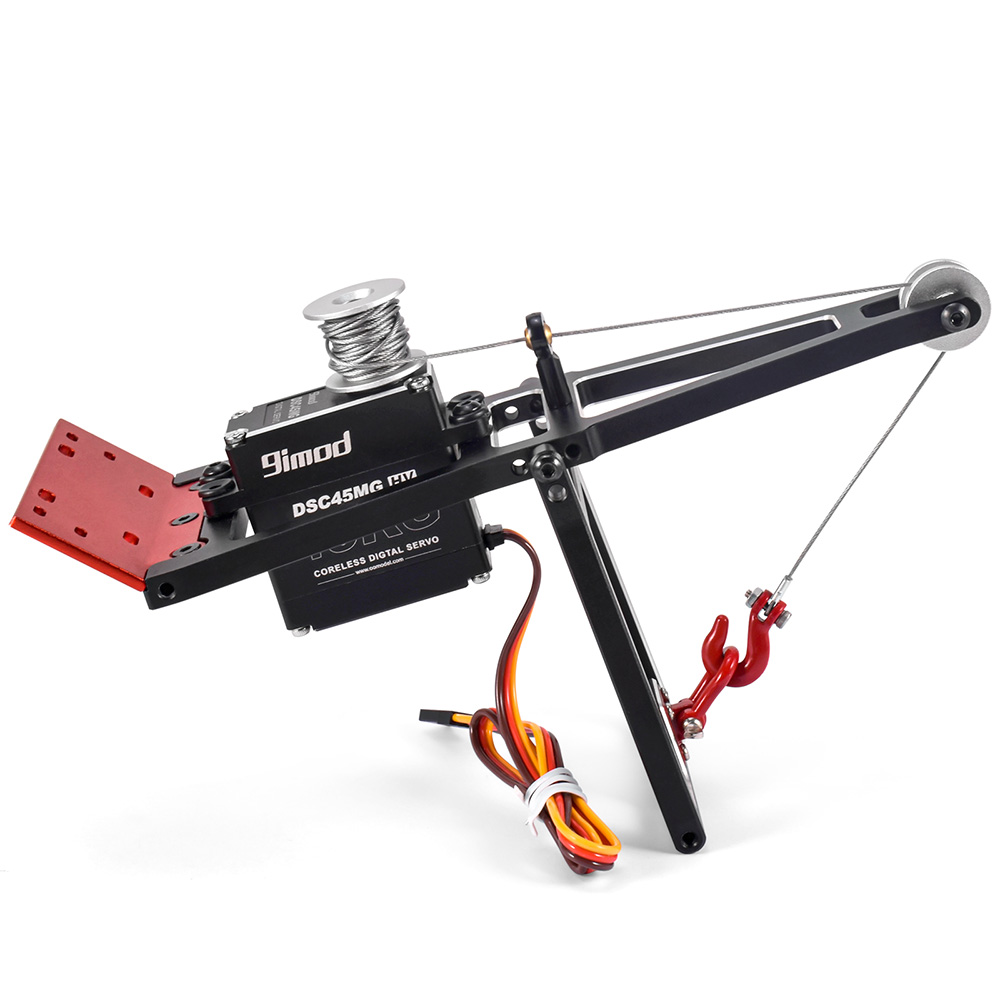

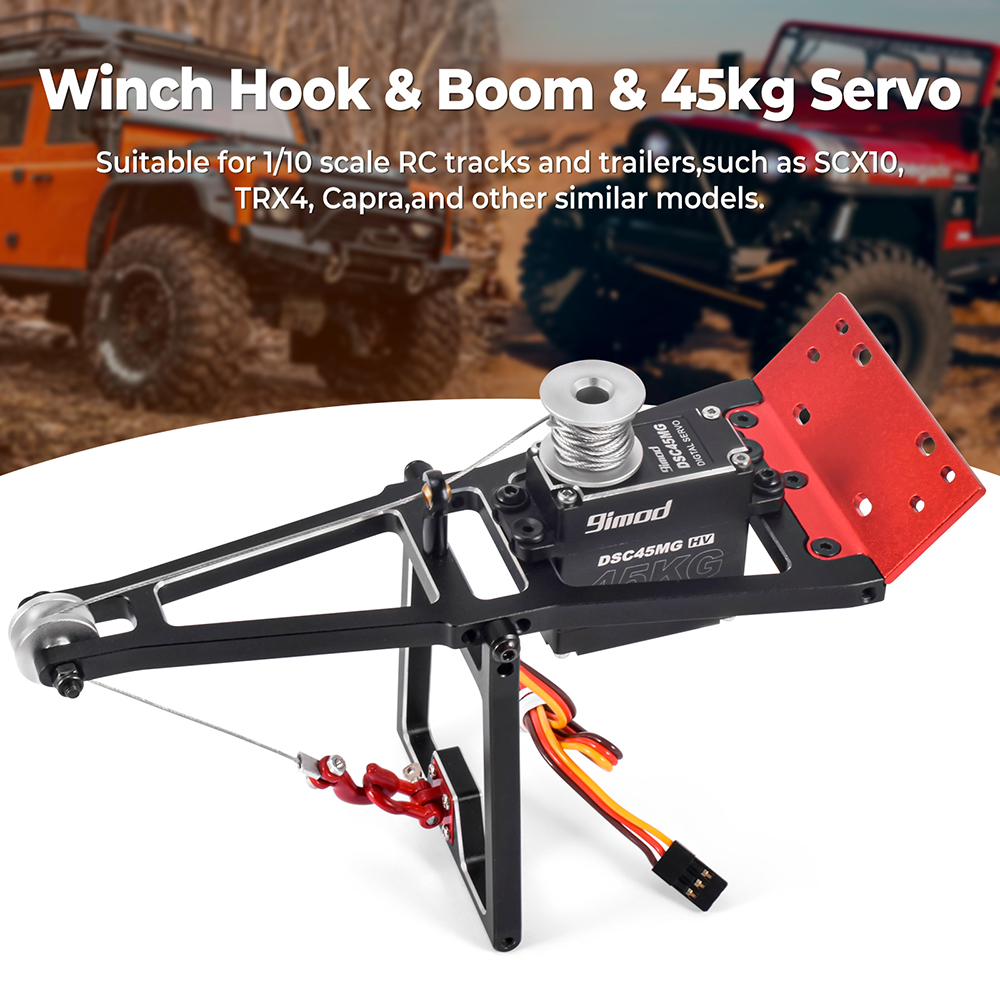

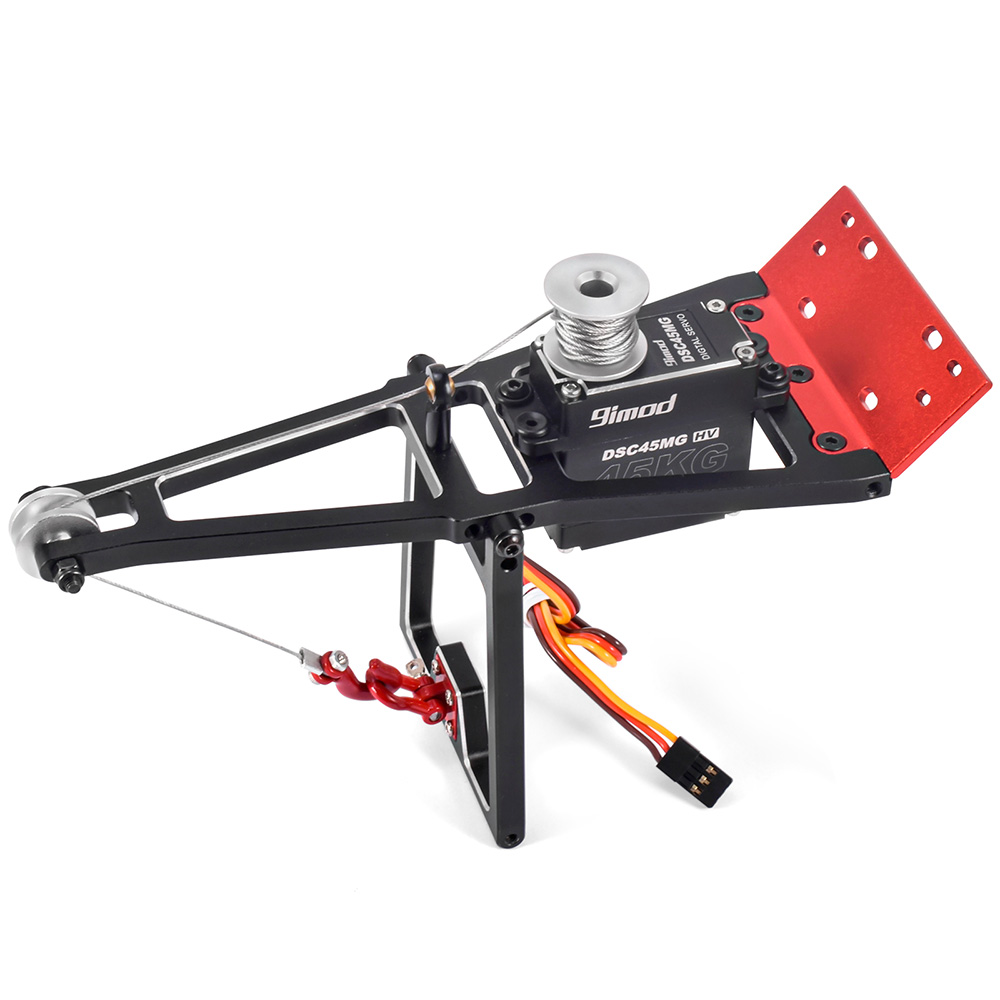

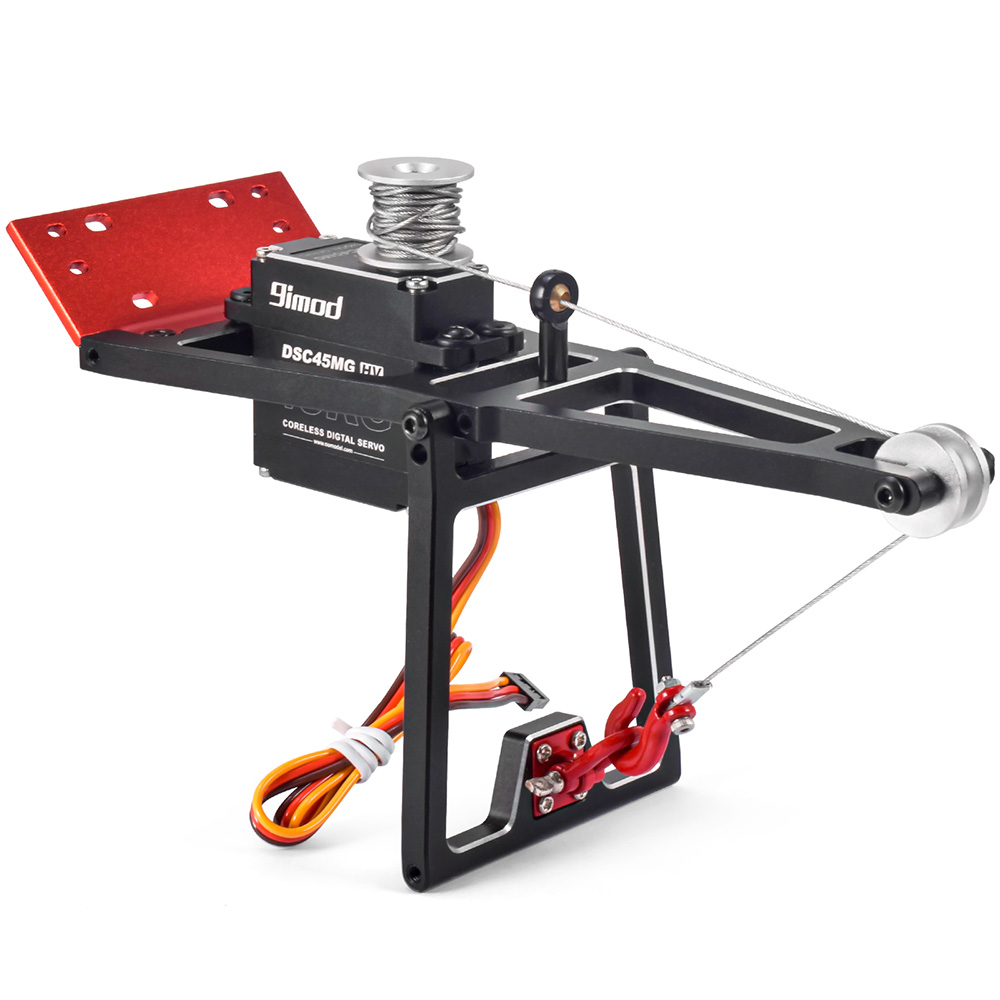

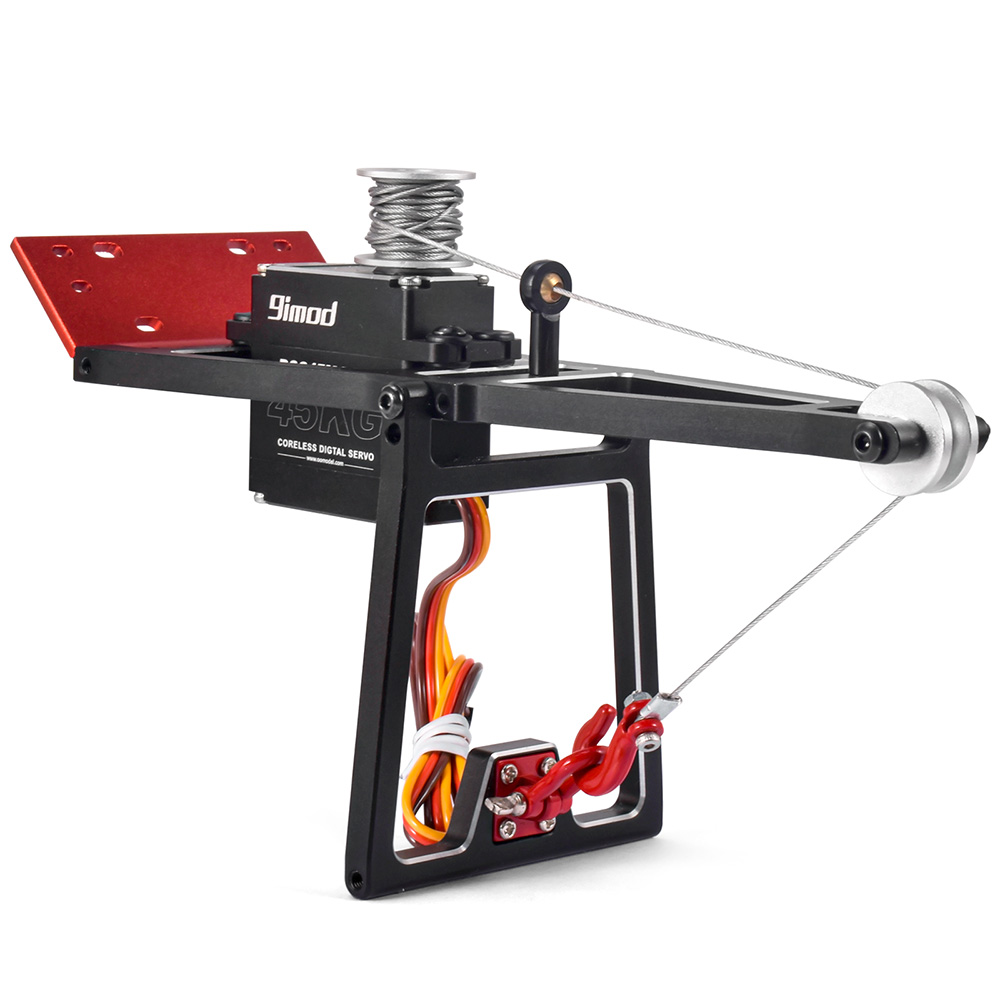

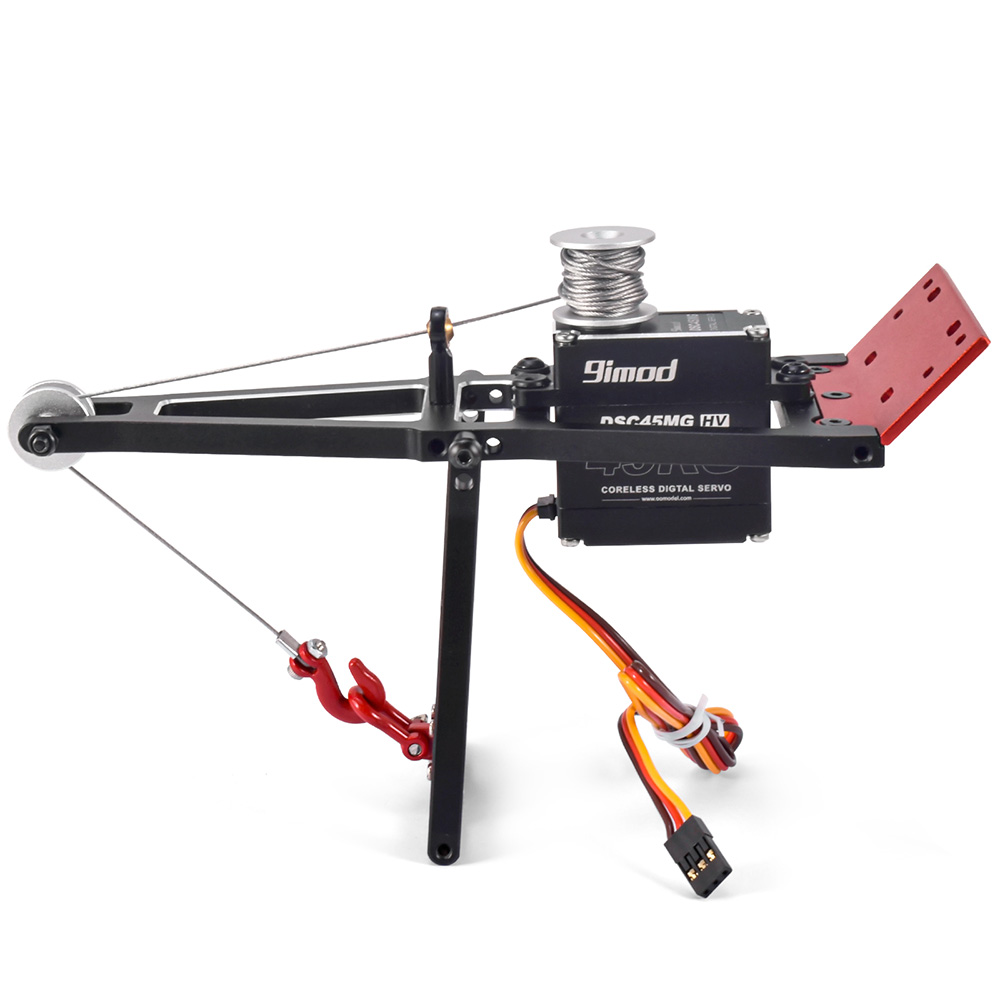

waterproof digital servo, equipped with rescue clearance boom and 25T servo winch wheel, suitable for 1/10 scale trailer crane boom clearance kit with multi-functional compatibility, suitable for 1/10 scale RC tracks and trailers such as SCX10, TRX4, Capra and other similar models.

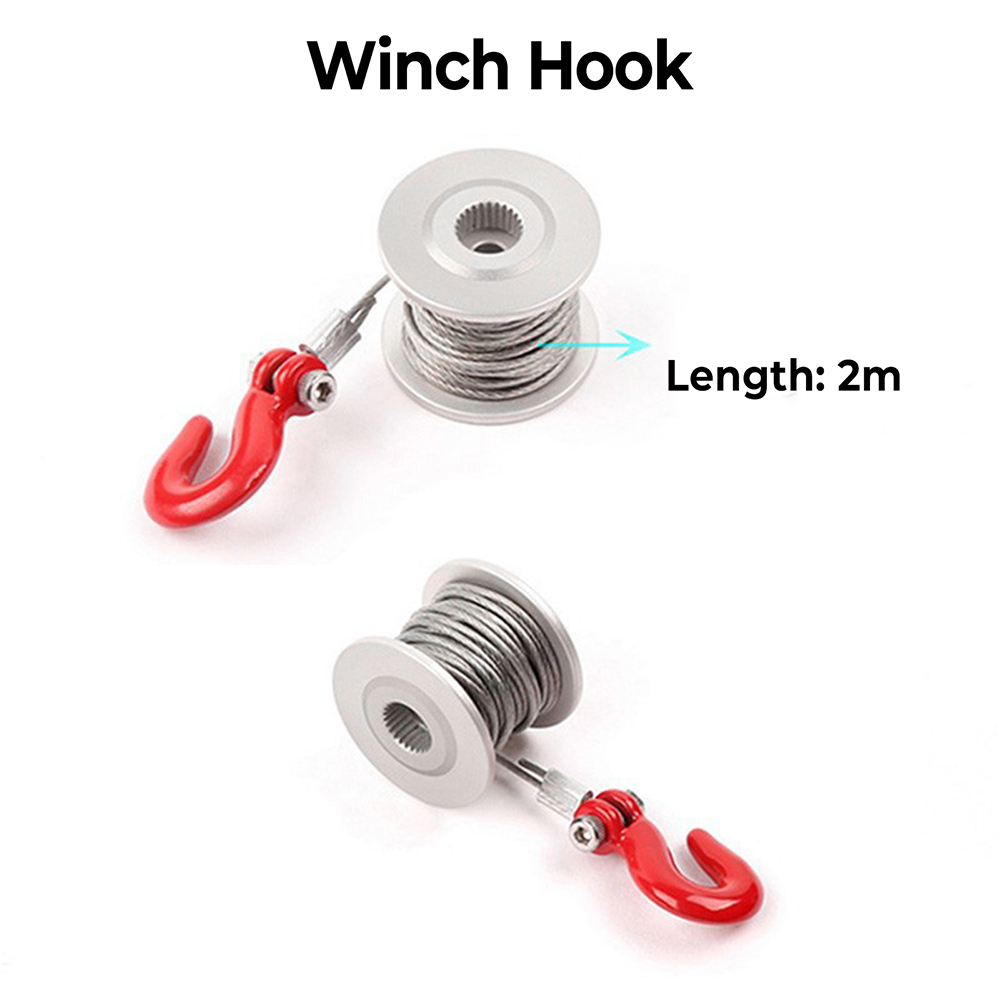

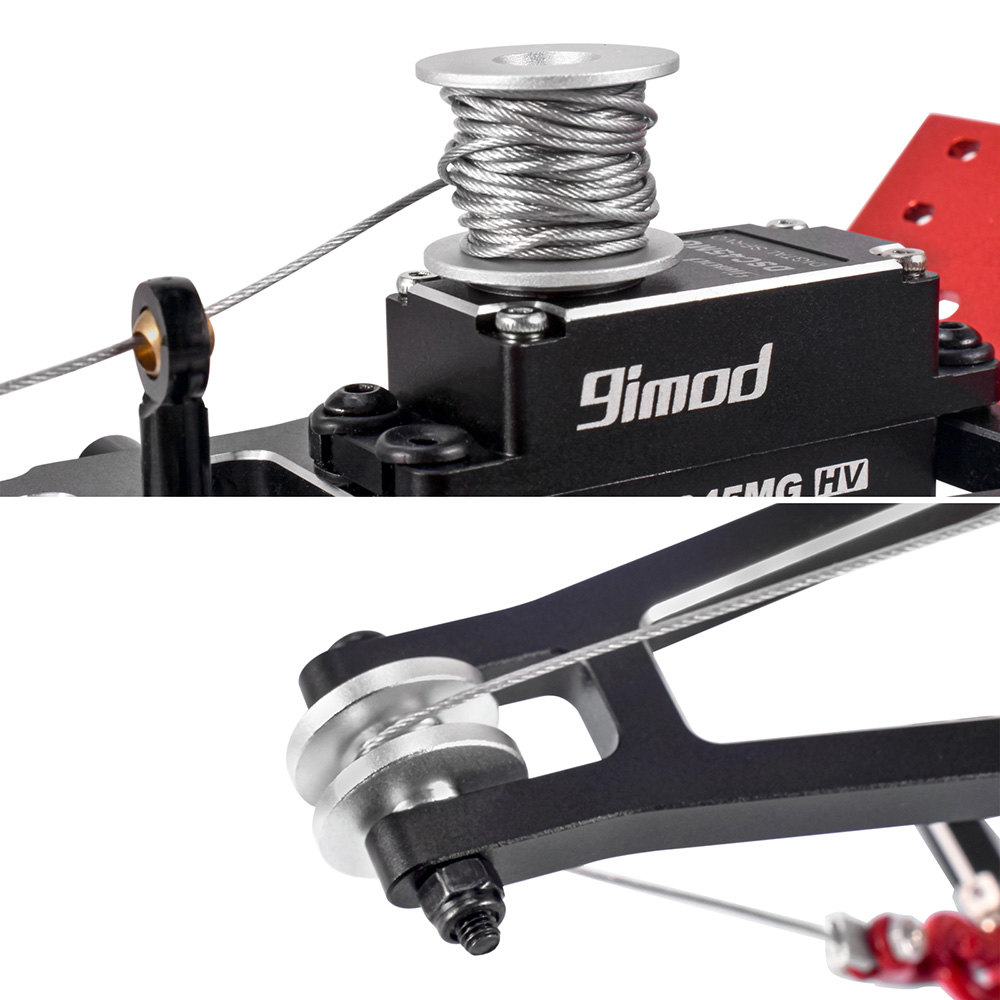

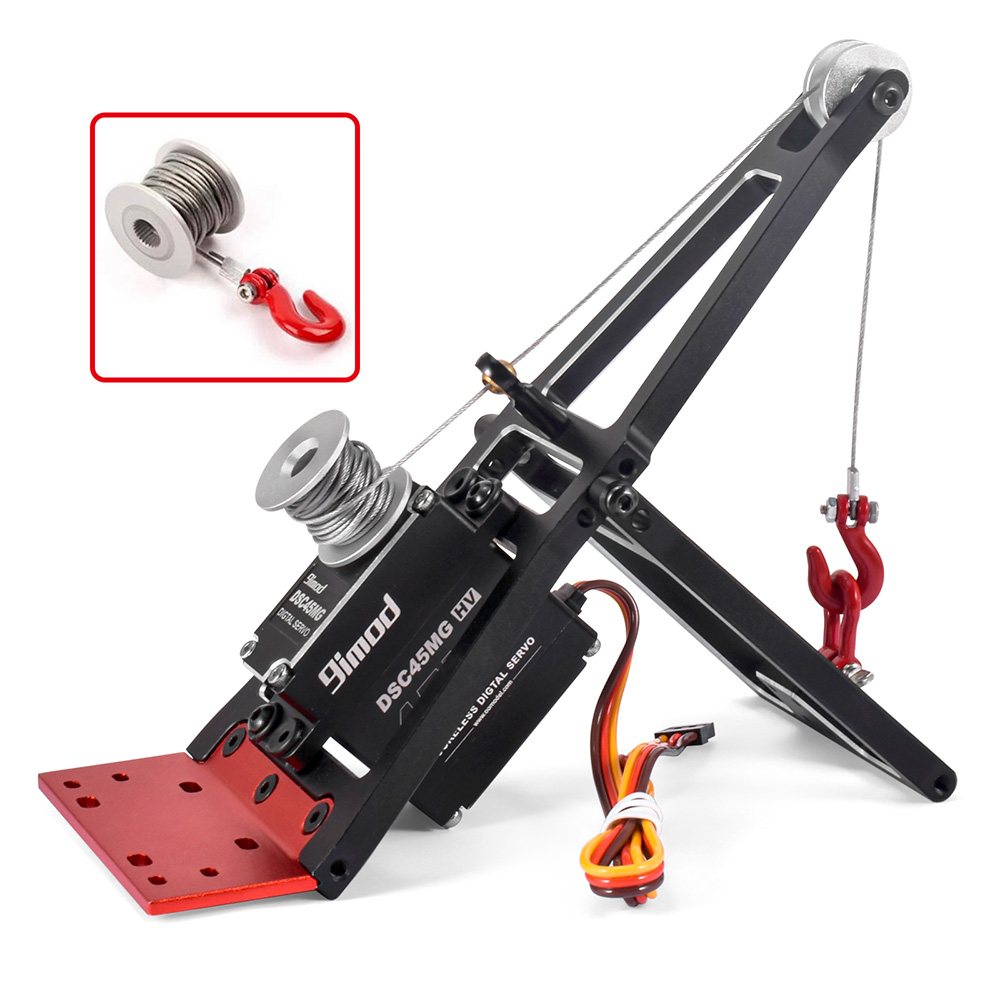

Winch Hook Specifications:
Material: Aluminum
Wire length: approximately 198cm
Net weight: 10.4g

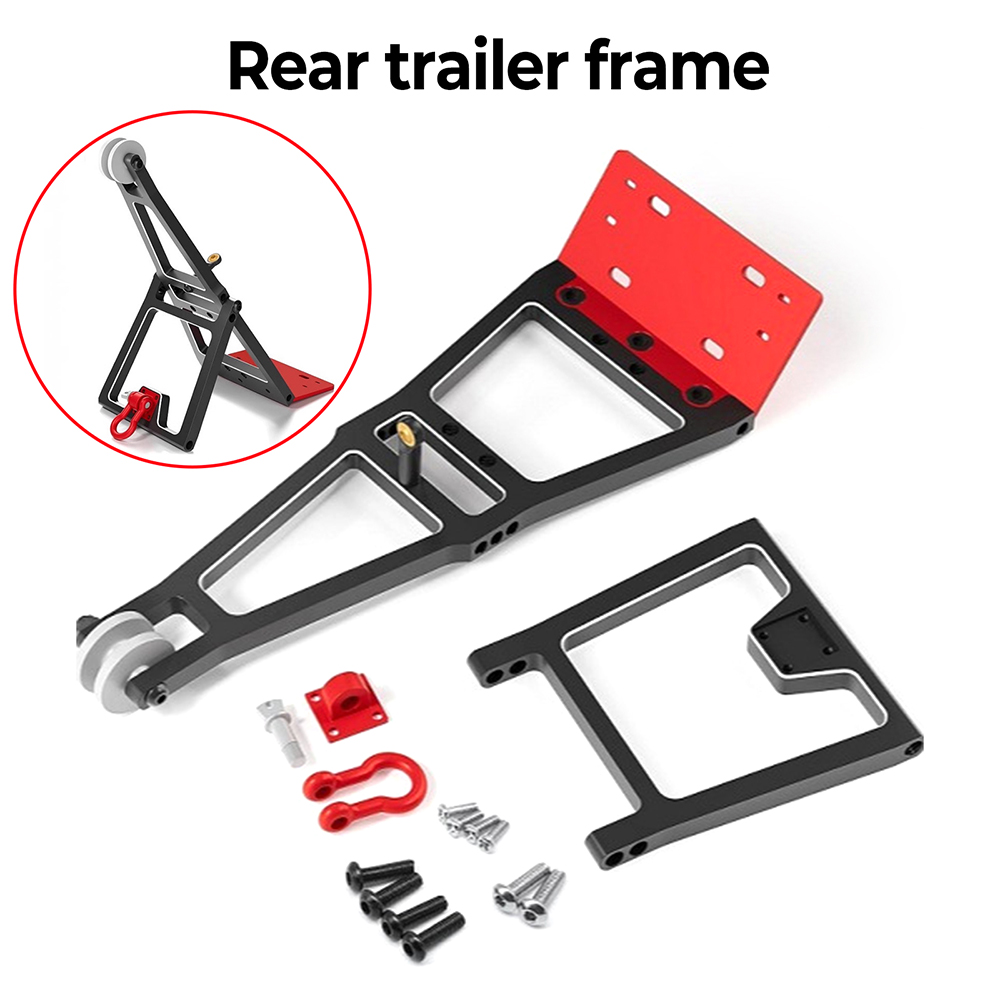

Rescue Clearance Boom Specifications:
Material: Aluminum

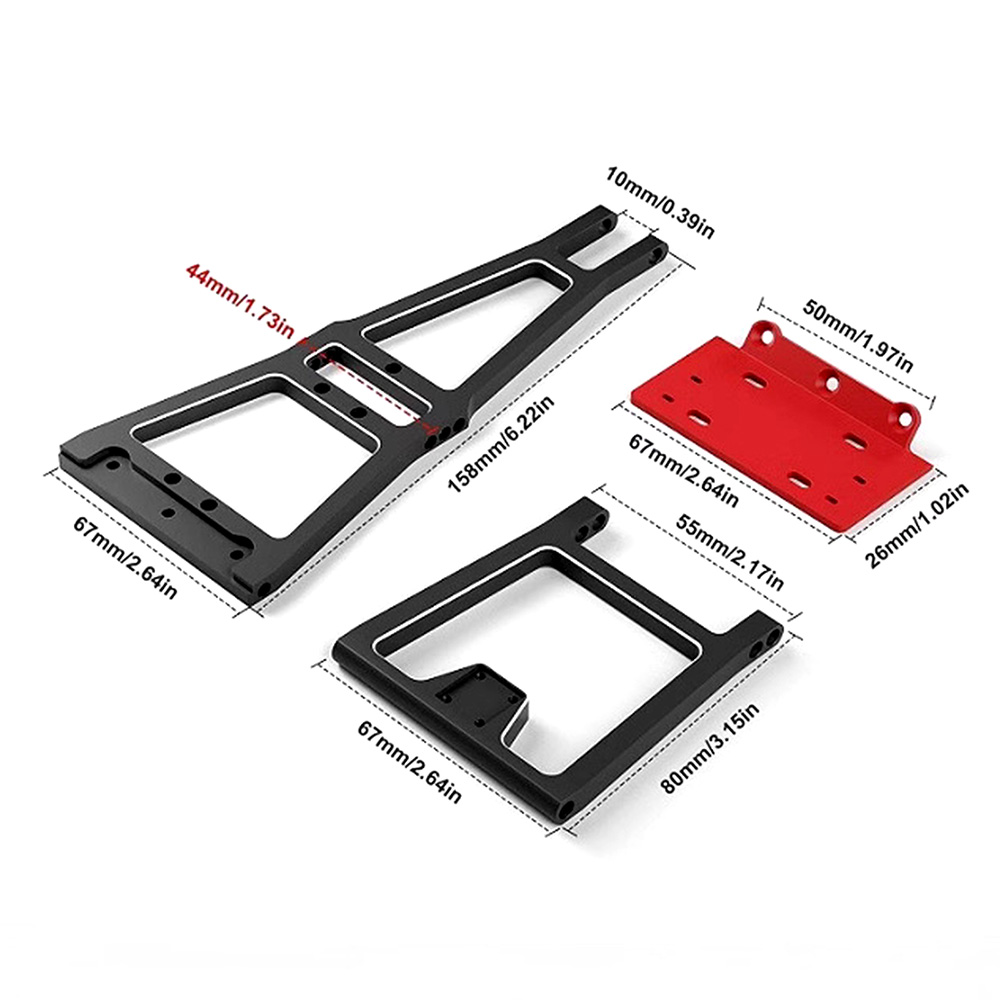

Size: 135 * 67 * 112mm (lowest installation position)
Weight: 104g.

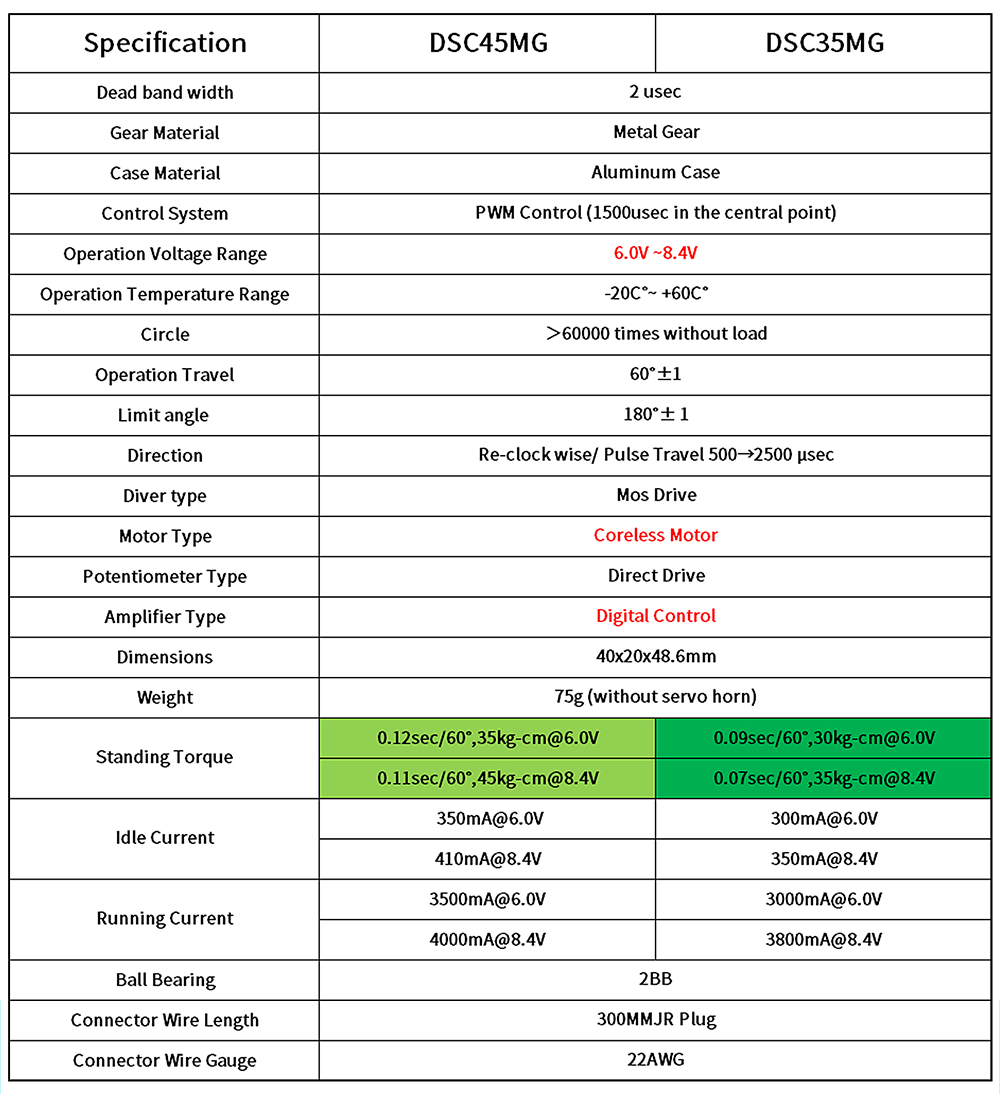

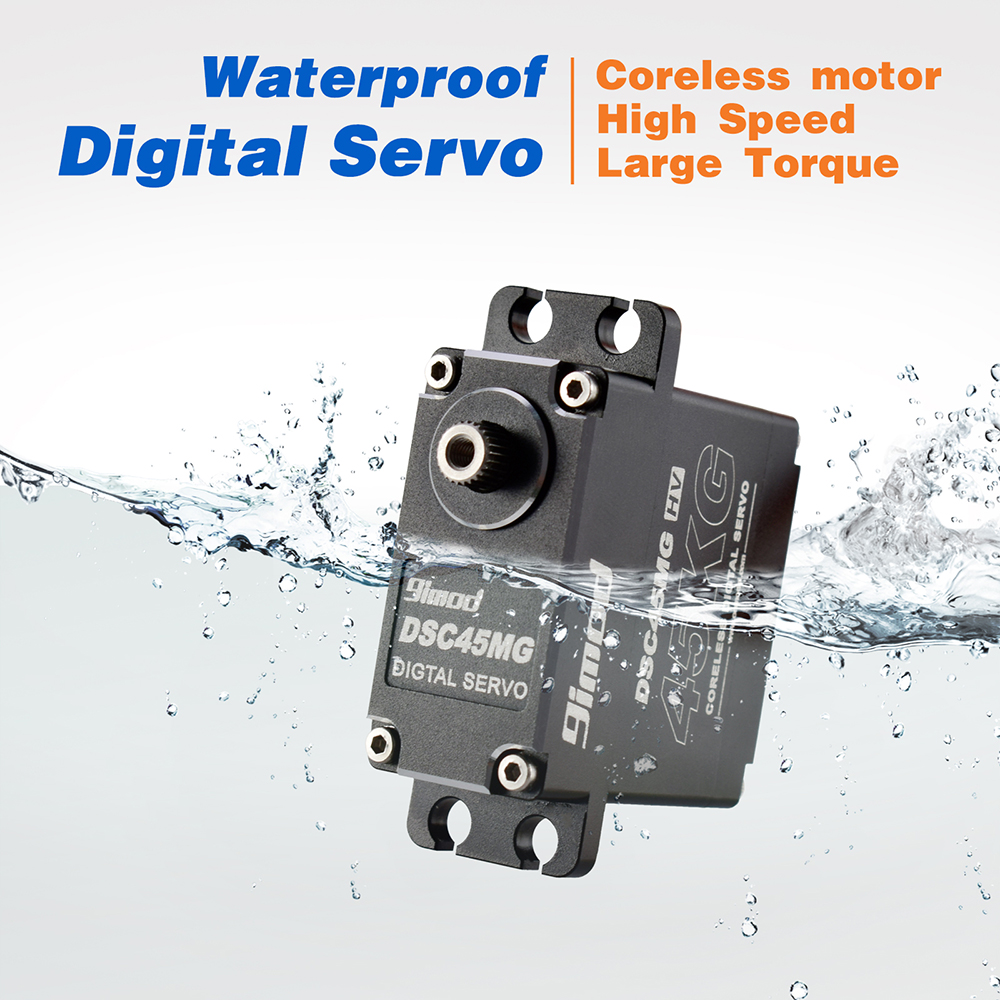

Model:DSC45MG(45kg),DSC35MG(35kg) optional
Dead band width:2 usec
Gear Material:Metal Gear
Case Material:Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:＞60000 times without load
Operation Travel:60°±1
Limit angle :180°± 1
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:coreless Motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control

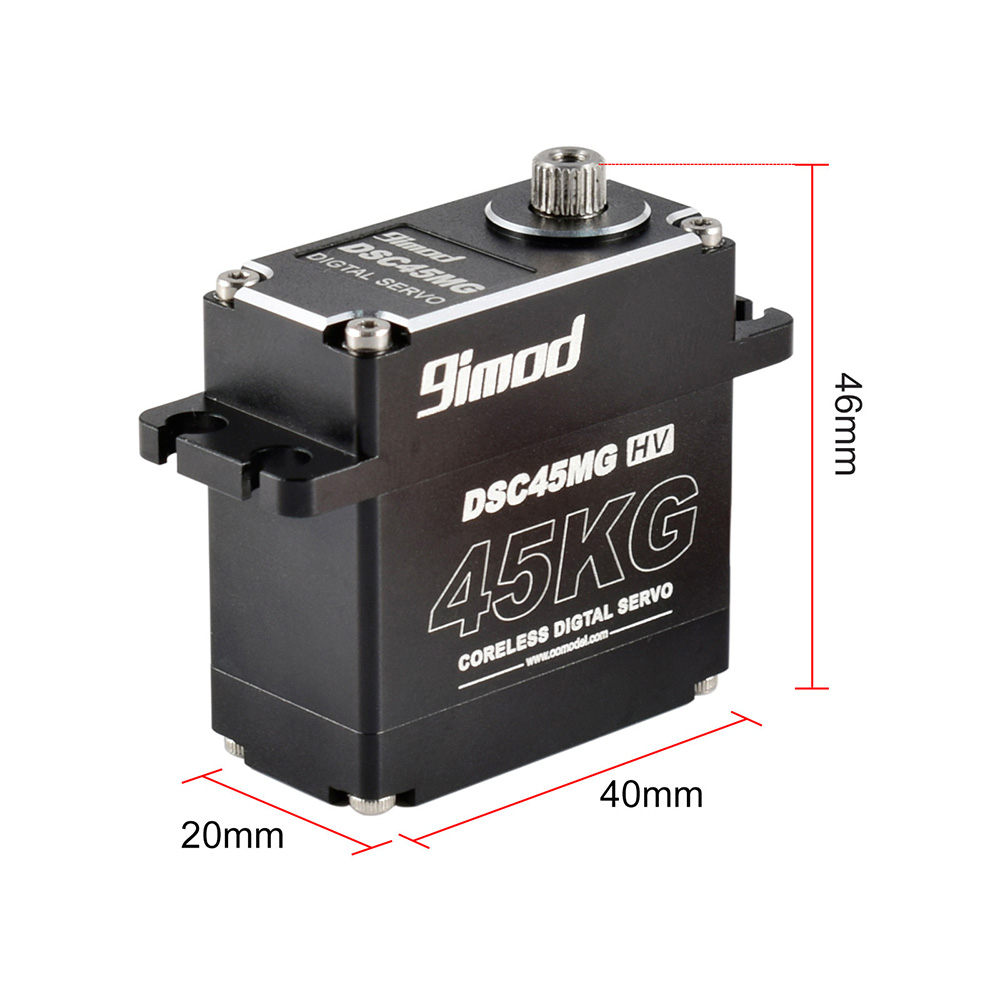

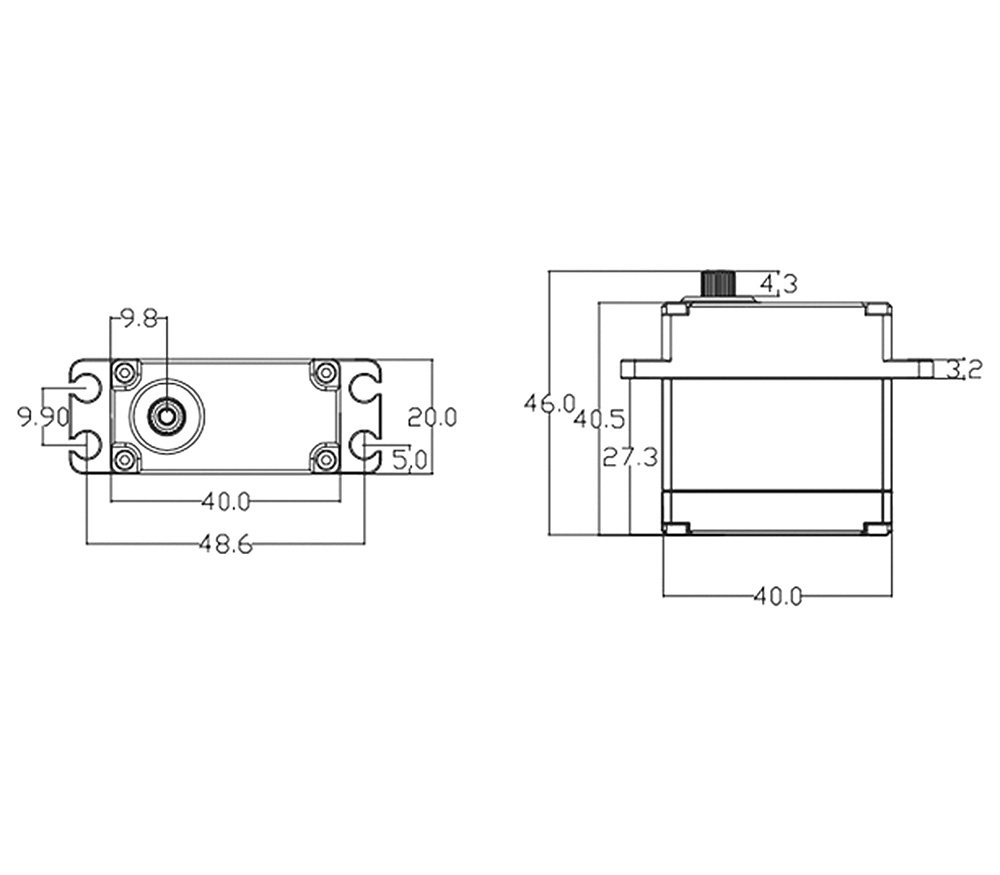

Dimensions:40x20x48.6mm
Weight::75g (without servo horn)

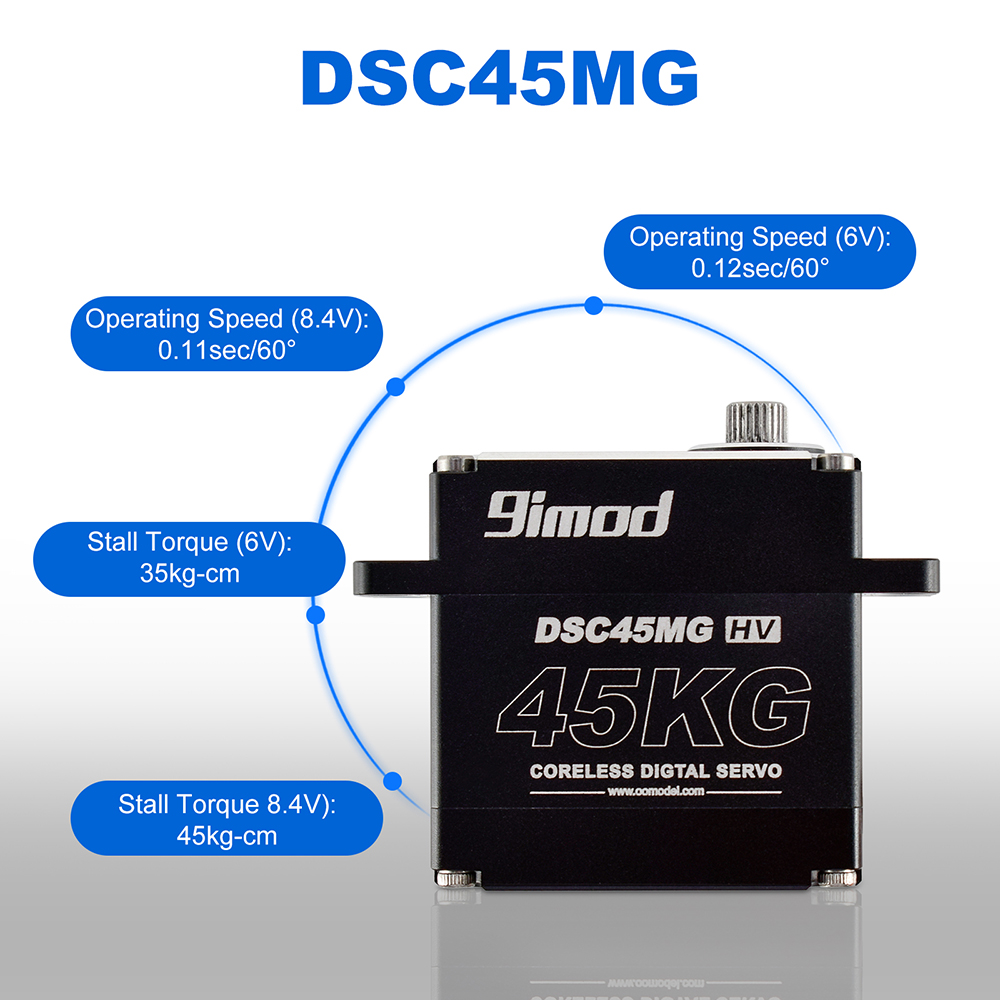

Standing Torque:0.12sec/60°,35kg-cm@6.0V 0.11sec/60°,45kg-cm@8.4V
Idle Current:350mA@6.0V 410mA@8.4V
Running Current:3500mA@6.0V 4000mA@8.4V
Specifications:
Model:BLS-HV45MG(45KG), BLS-HV35MG(35KG),BLS-HV25MG(25KG) optional
Dead band width:1 usec
Gear Material:Metal Gear
Case Material:Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:＞100 milion times without load
Operation Travel:60°±5
Limit angle :180°± 5
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x48.6mm
Weight::75g (without servo horn)
Standing Torque:0.12sec/60°,35kg-cm@6.0V 0.11sec/60°,45kg-cm@8.4V
Idle Current:450mA@6.0V 600mA@8.4V
Running Current:5000mA@6.0V 7000mA@8.4V
Ball Bearing:2BB
Connector Wire Length: 300MMJR Plug
Connector Wire Gauge:22AWG
Package contents:
1* Digital Servo（Optional）
1* rescue clearance boom（Optional）
1* 25T servo winch hook（Optional）
Only the above package content, other products are not included.
