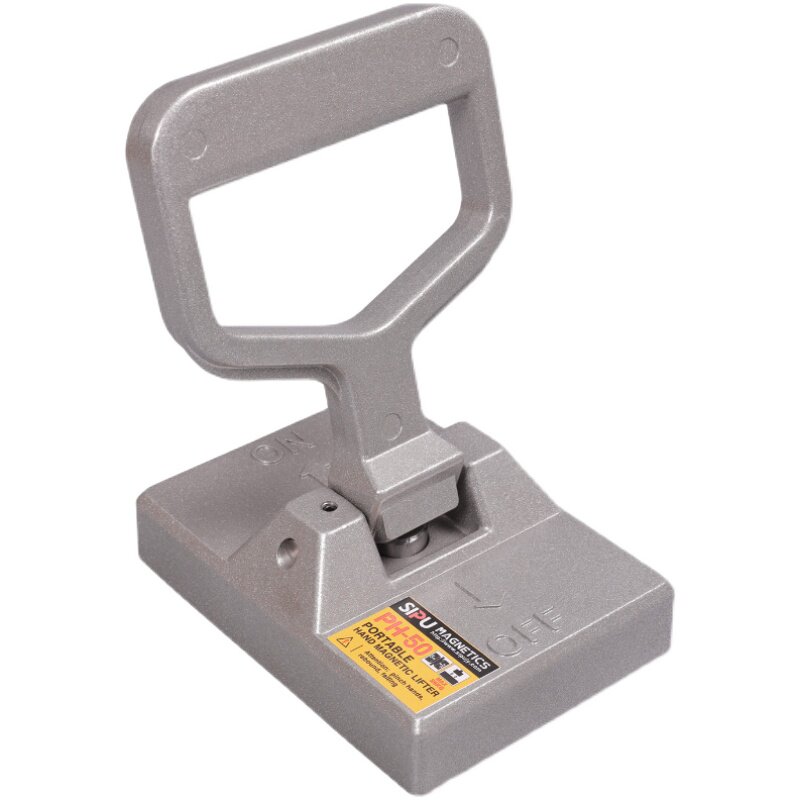

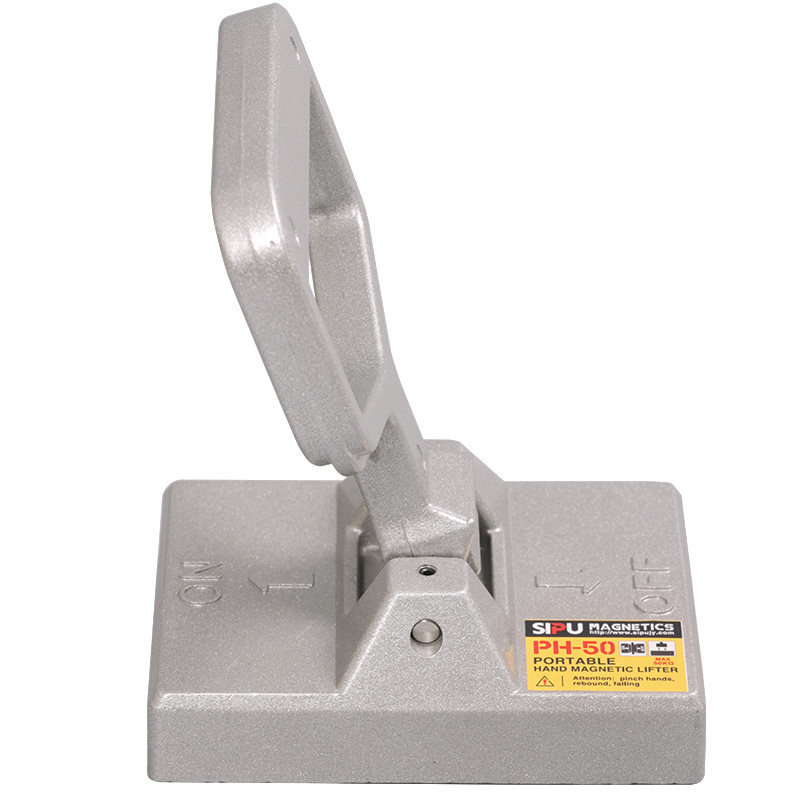

PH-50 Permanent Magnetic Lifter Hand-held Portable Sheet Material Magnet

Specifications:

Name: PH-50 hand-held sheet special suction cup

Rated suction power: 50kg

Maximum pull-off force: 300kg

Operating temperature: ≤80℃

Magnet: Ferrite Y35

Shell material: aluminum die-casting

Suitable for handling small workpieces such as thin steel plates, iron blocks, large saw

blades, etc.

Precautions:

1. The rated suction power is 50kg. The exertion of magnetic force is directly

related to the appearance of the material. Not all materials can exert the rated

suction power of 50kg;

2. To ensure safe use, the weight of the adsorbed material should not exceed

the rated suction;

3. The temperature of the use scene should not exceed 80 degrees Celsius, and

it cannot be used in water;

4. Don't disassemble the product privately, you can directly contact customer

Picture showing:
