1. For this instrument, we recommend testing for moisture content greater than 10%
2. If you want to test less than 10%, please contact us, we recommend other models to you

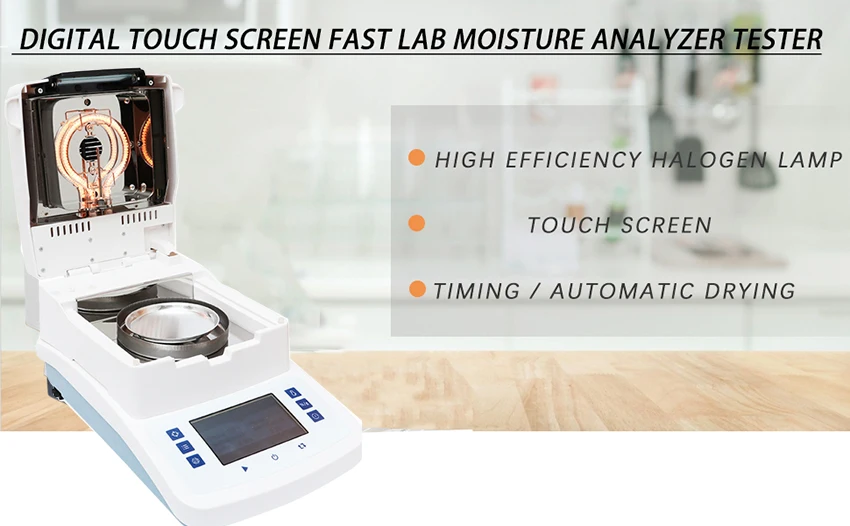

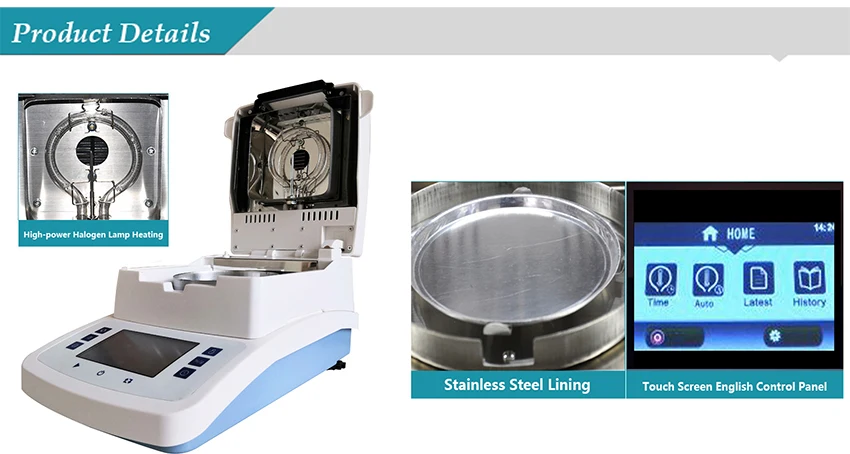

Product features:
- The weighing part adopts high-precision pressure sensor, which is more stable;
- Heating part of imported polymer materials and ultra-high temperature molding to ensure product stability;
- The temperature rise during the test is fast, and the multi-layer stainless steel heating cabin can effectively improve the heating efficiency and shorten the working time;
- Large LCD touch screen, all results are clear at a glance, and a printer can be selected to objectively record the test results for future reference;

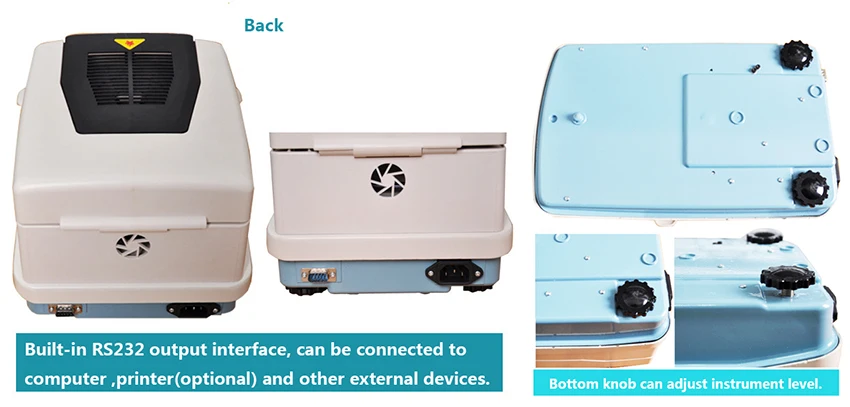

- RS232 data interface can realize printer connection (the printer is not included in the standard configuration, and the printer is optional)
Product purpose:
- The moisture tester can be widely used in all industries that need rapid moisture determination, such as paper, food, feed and other laboratories and production processes.
- At the same time, it meets the measurement requirements of moisture content of solids, particles, powders, colloids and liquids.
- The company is always determined to provide users with multi-purpose and multi-performance high-quality products, so as to create a perfect model of fast, accurate and value for money moisture meter for you.
Specification:
|
Name |
Moisture analyzer |
|
Model |
- |
|
Range(g) |
50 |
|
Readability(g) |
0.005 |
|
Operating Temp.Range |
5°C---35°C |
|
Display |
Touch LCD screen |
|
Calibration |
External |
|
Pan size（mm） |
Φ90 |
|
Dimensions(L*W*H) |
180*380*200mm |
|
Weight(Kg) |
5.8 |
|
Heat soure |
Halogen lamp |
|
Temp.sensor |
PT-100 |
|
Temp.range |
40°C---199°C |
|
Temp.step |
1°C |
|
Moisture range |
0.00%---100% |
|
Moisture readability |
0.02% |
|
Dry residual range |
100.00%---0.00% |
|
Dry residual readability |
0.02% |
|
ATRO |
100%---999% |
|
ATRO |
0%---999% |
|
Temperature setting |
40°C---199°C by 1°C step |
|
Time setting |
1---99min by 1s step |
|
Auto stop |
0.1%---9.9%within 1 min |
|
Number of storage |
6 |
|
Heater |
110-220V+15%50Hz
115V+15%
400W |
|
Communication interface |
Rs232 |
|
Balance |
External power supply
Output: 9V
Lnput: 220V+15%50Hz |
