Feature:

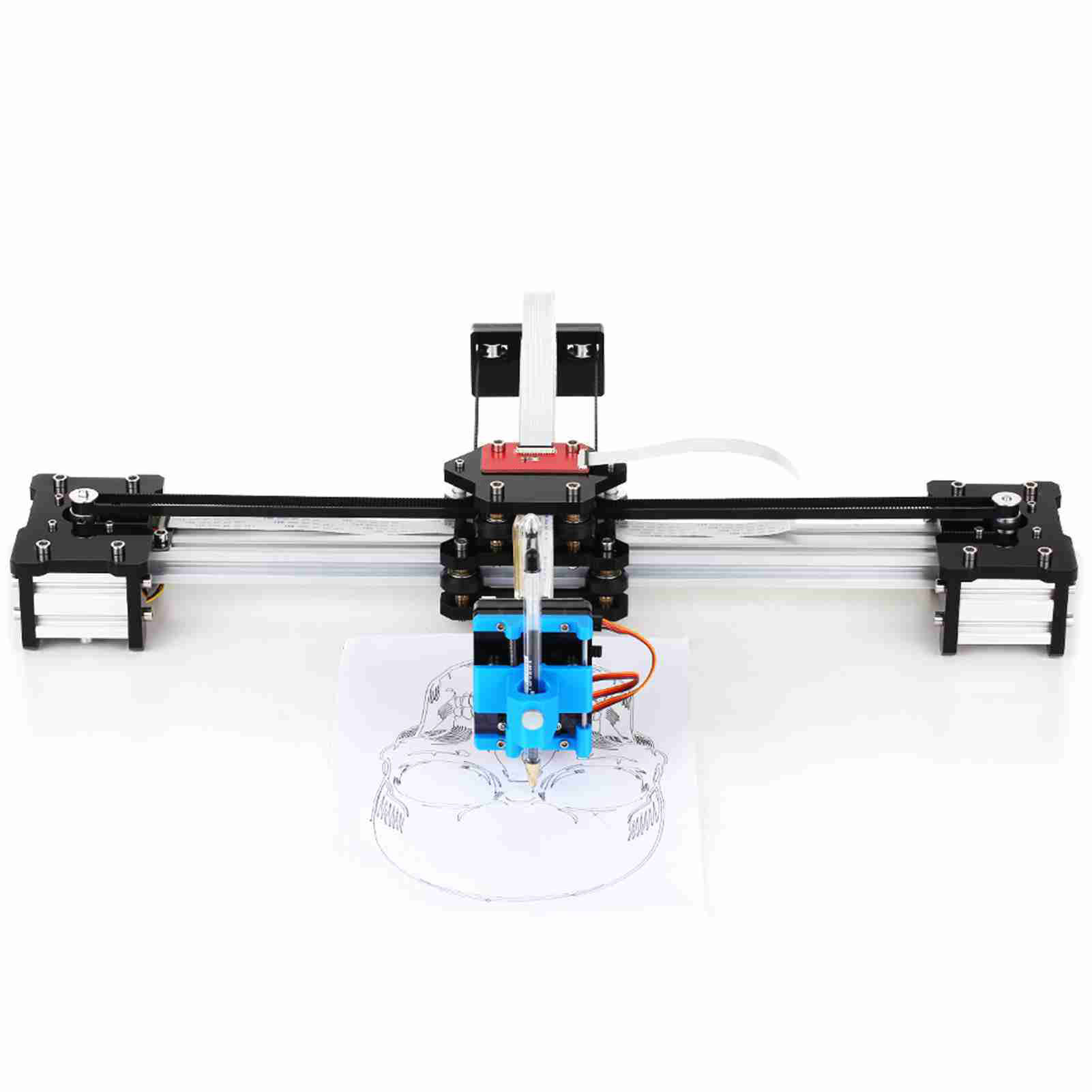

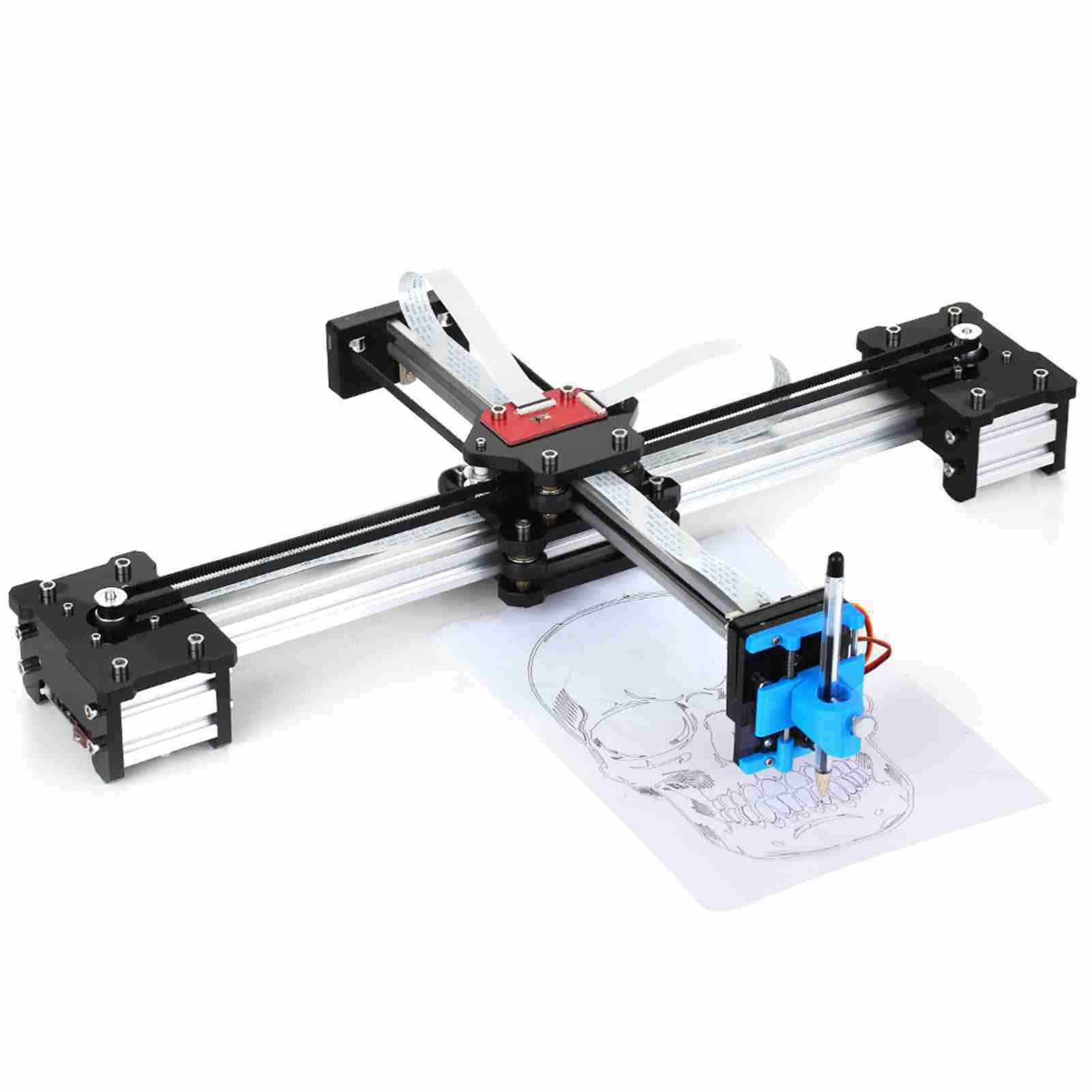

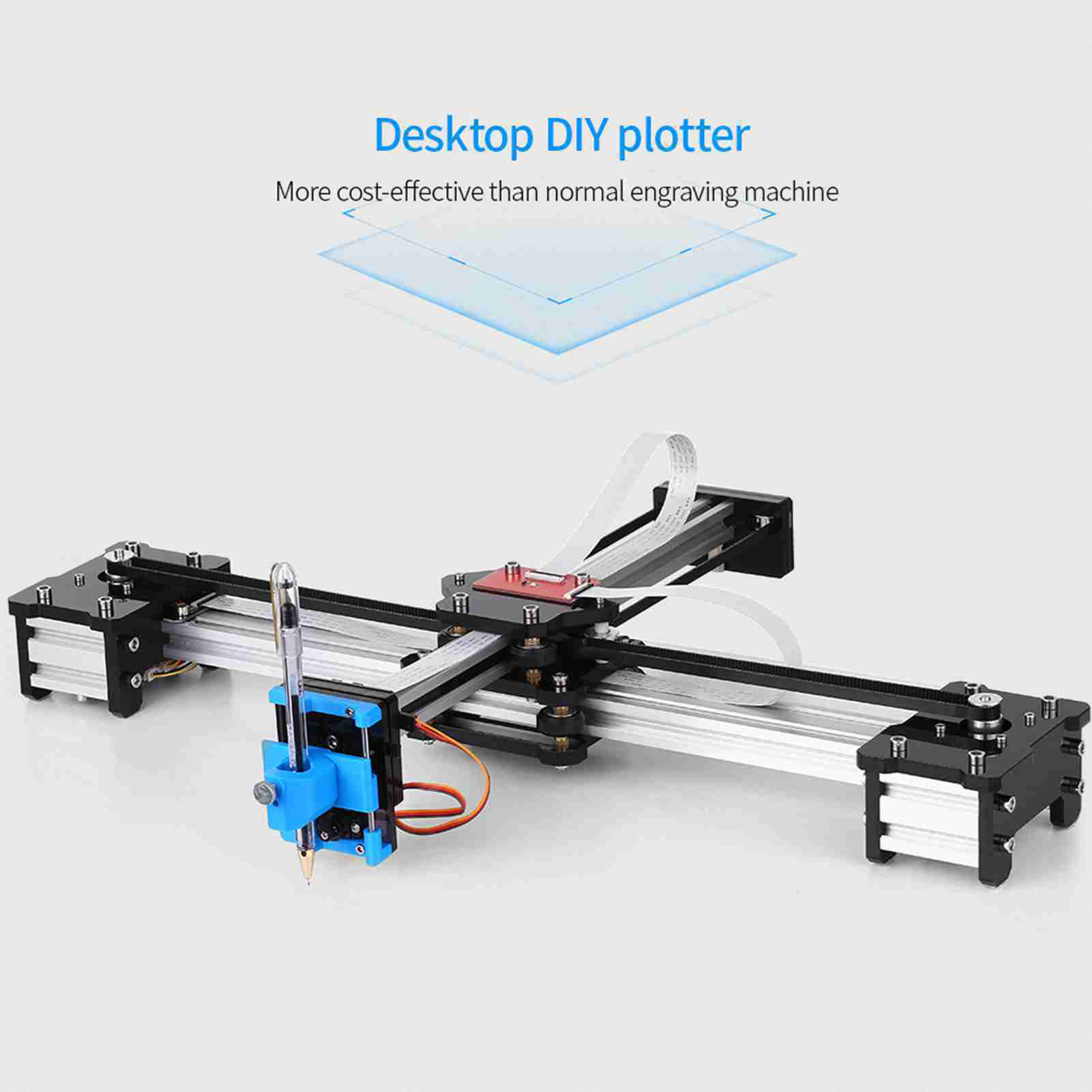

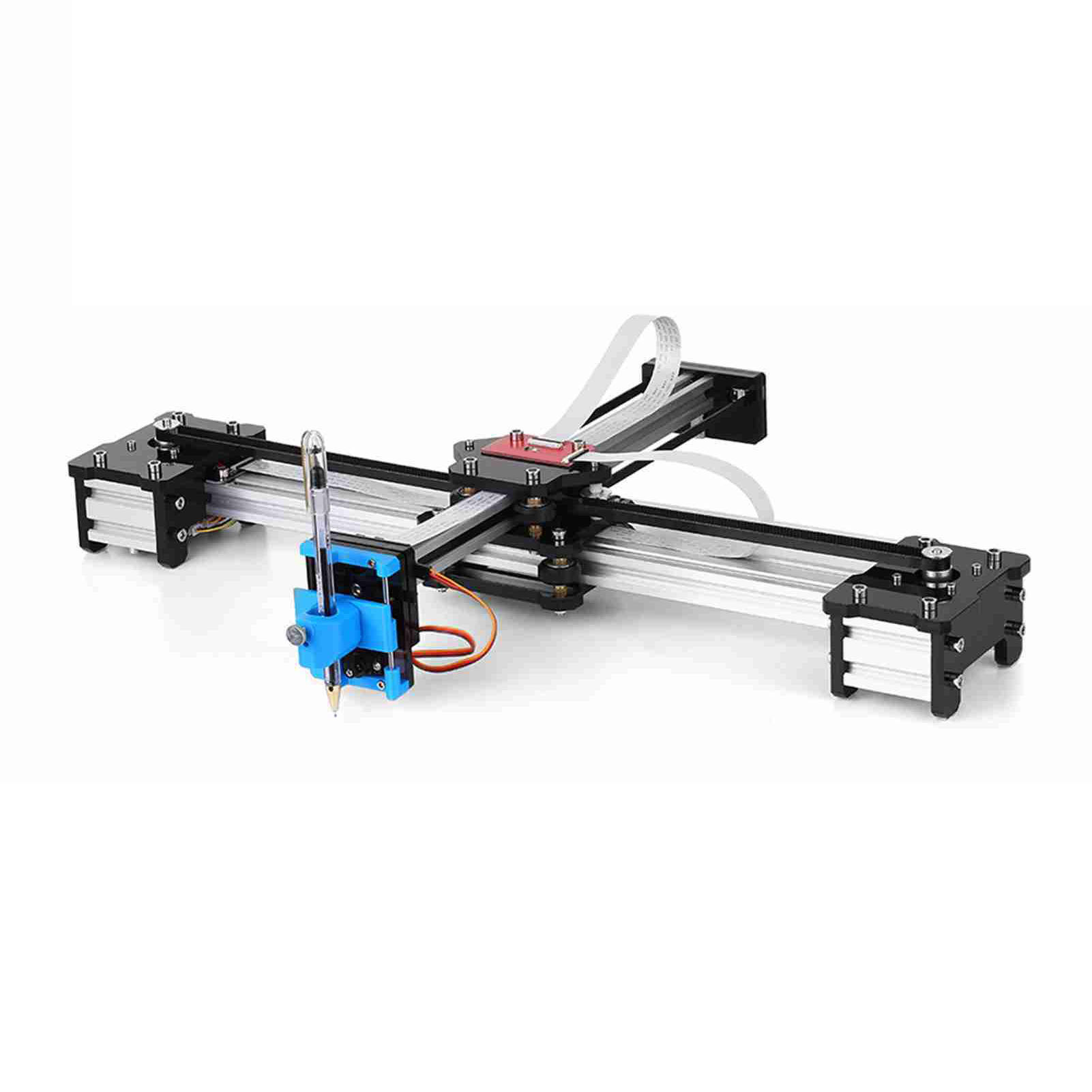

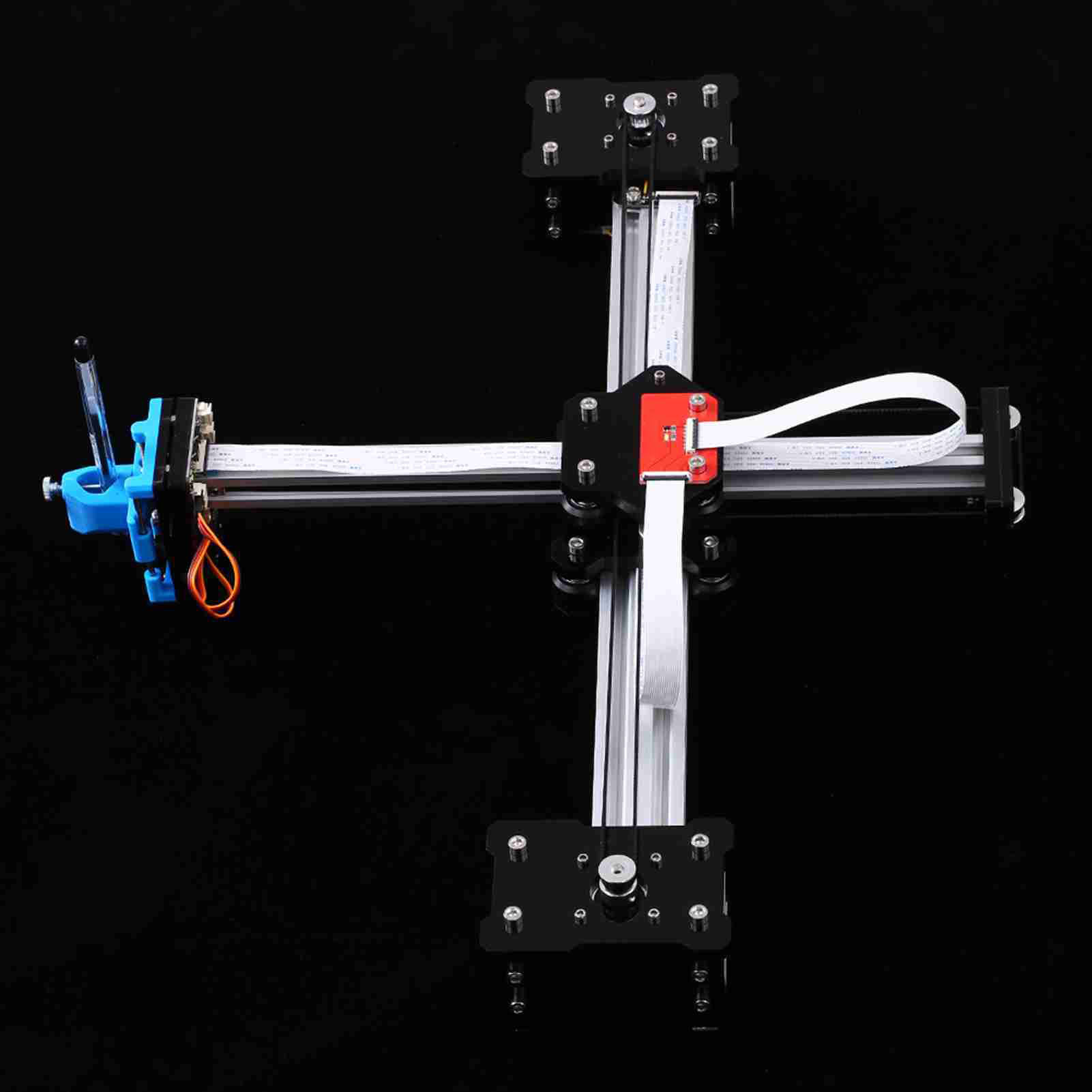

1. Desktop DIY plotter is simple and modern pen plotter, capable of writing or drawing on almost any flat surface.
2. Support Win7 and above software system, support Chinese and English bilingual operation interface.
3. 310 * 256mm large drawing space, easy to operate.

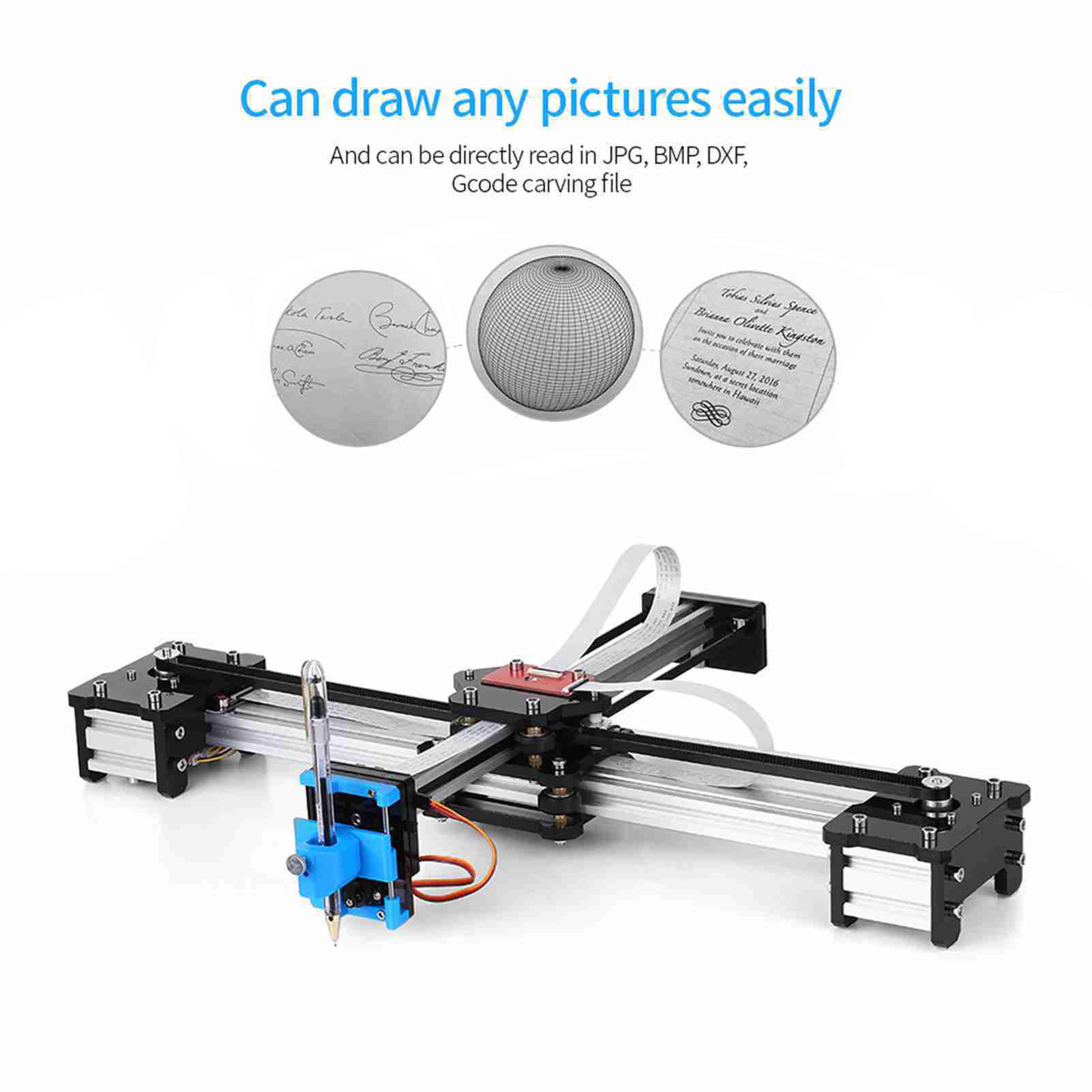

4. Can draw any pictures easily and can be directly read in JPG, BMP, DXF, Gcode carving file.
5. Aluminum alloy and acrylic body with fine workmanship show excellence in quality.
6. Interesting to install and use, ideal gift for drawing DIY enthusiasts.
7. According to the form of the ball-point pen or pencil, provide the outline of the font, fill it, and draw the black back or grayscale image in the simulation of dot or curve mode.

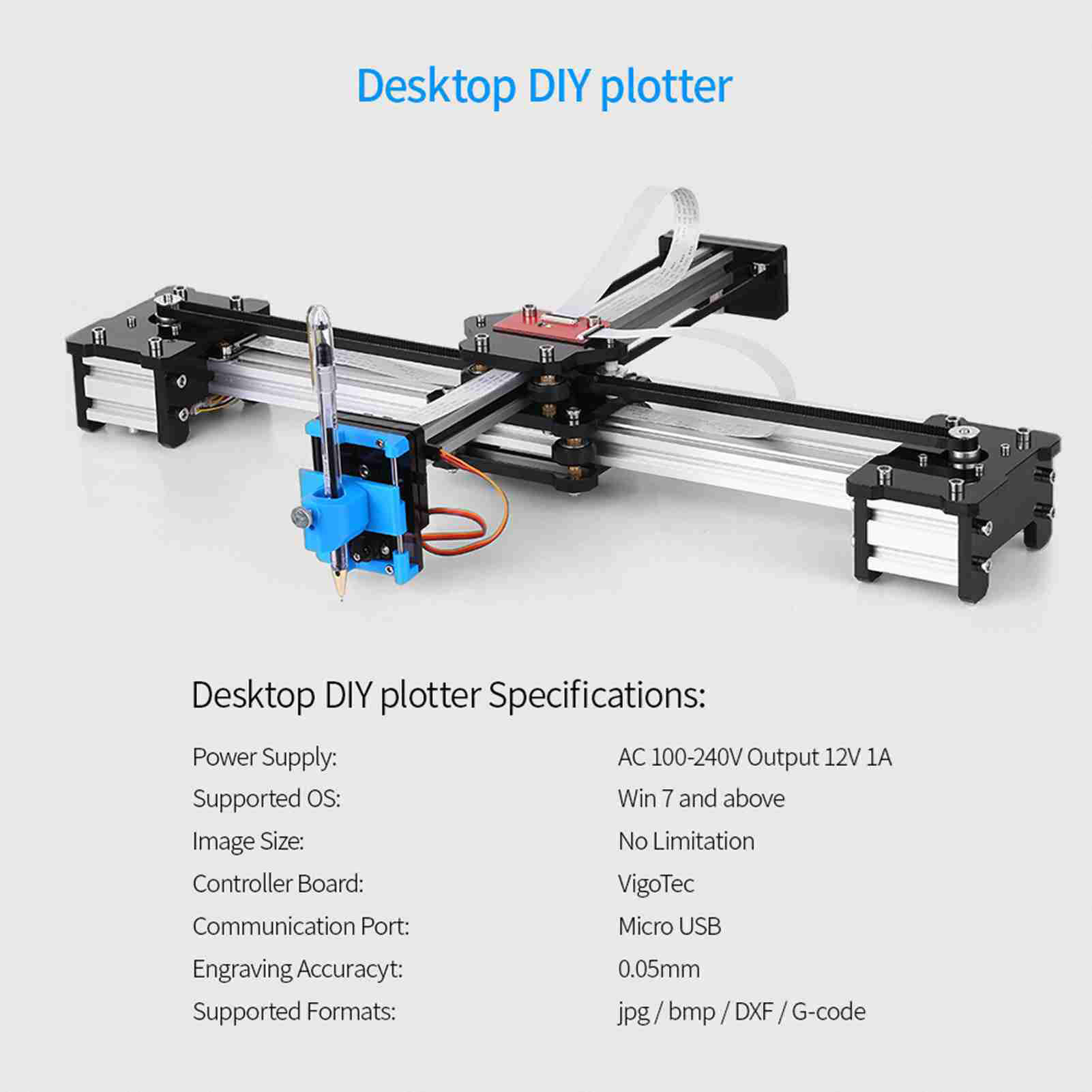

Specification:
Material: Aluminum Alloy + Acrylic
Supported OS: for 7 and above
Controller Board: VigoTec
Communication Port: Micro USB
Stepper Motor: 26mm thick 42SHD0503, Step Distance Angle 1.8°
Supported Software: Drawing machine software uses for VigoWriter, Support for GRBL, for benbox, for elekscam, if you have firmware you can use.
Supported Formats: jpg / bmp / DXF / G-code
Image Size: No Limitation
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Grayscale, Black White
Continuous Work Time: Sustainable Working
Working Voltage: DC 12V
Working Current: DC 5A
Engraving Accuracy: 0.05mm
Effective Working Area: 310 * 256mm / 15.6 * 11.2in

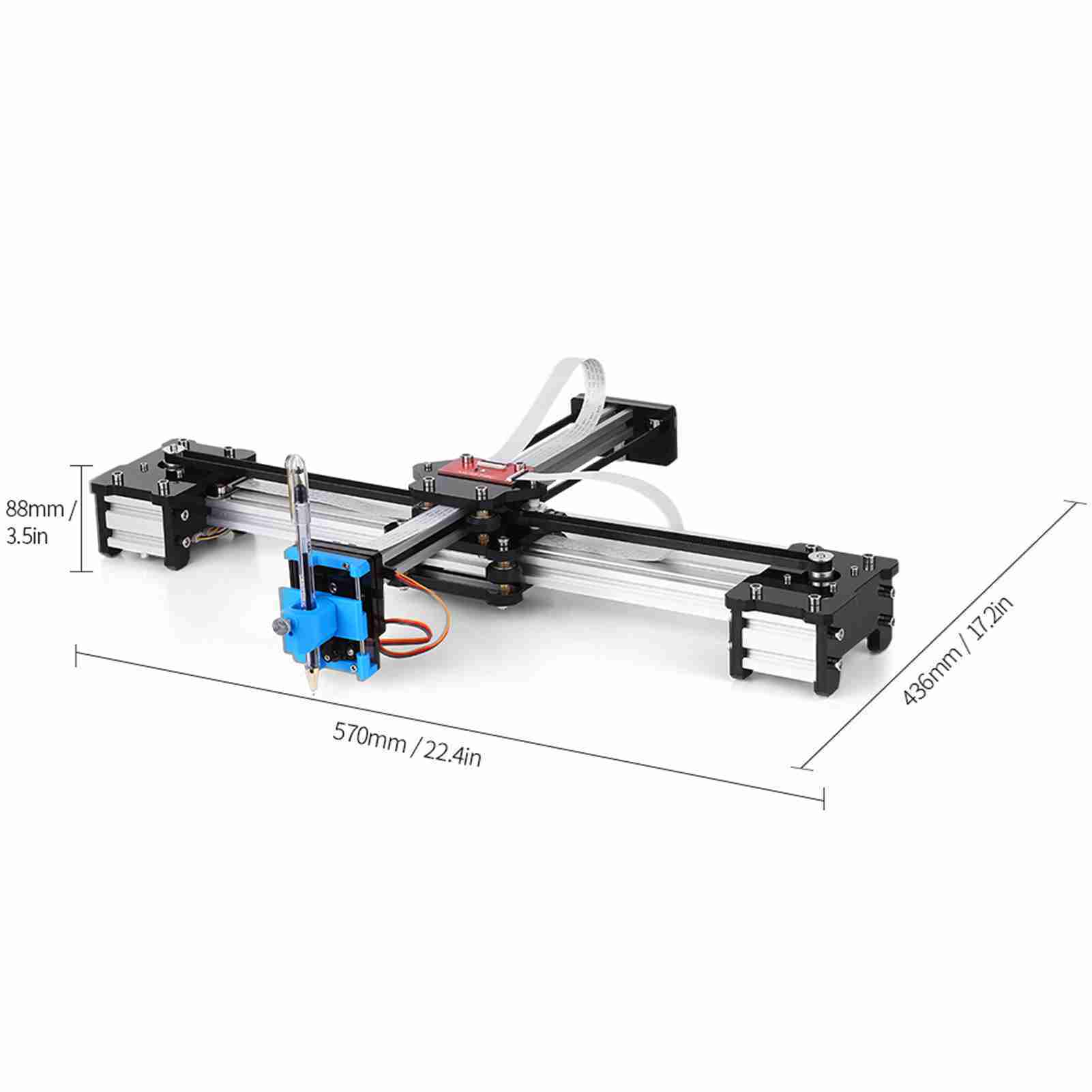

Item Size: 570 * 436 * 88mm / 22.4 * 17.2 * 3.5in
Item Weight: 2.4kg / 5.29 lb
Package Size: 50.5 * 40.5 * 10.5cm / 19.9 * 15.9 * 4.1in
Package Weight: 3119g / 6.88 lb

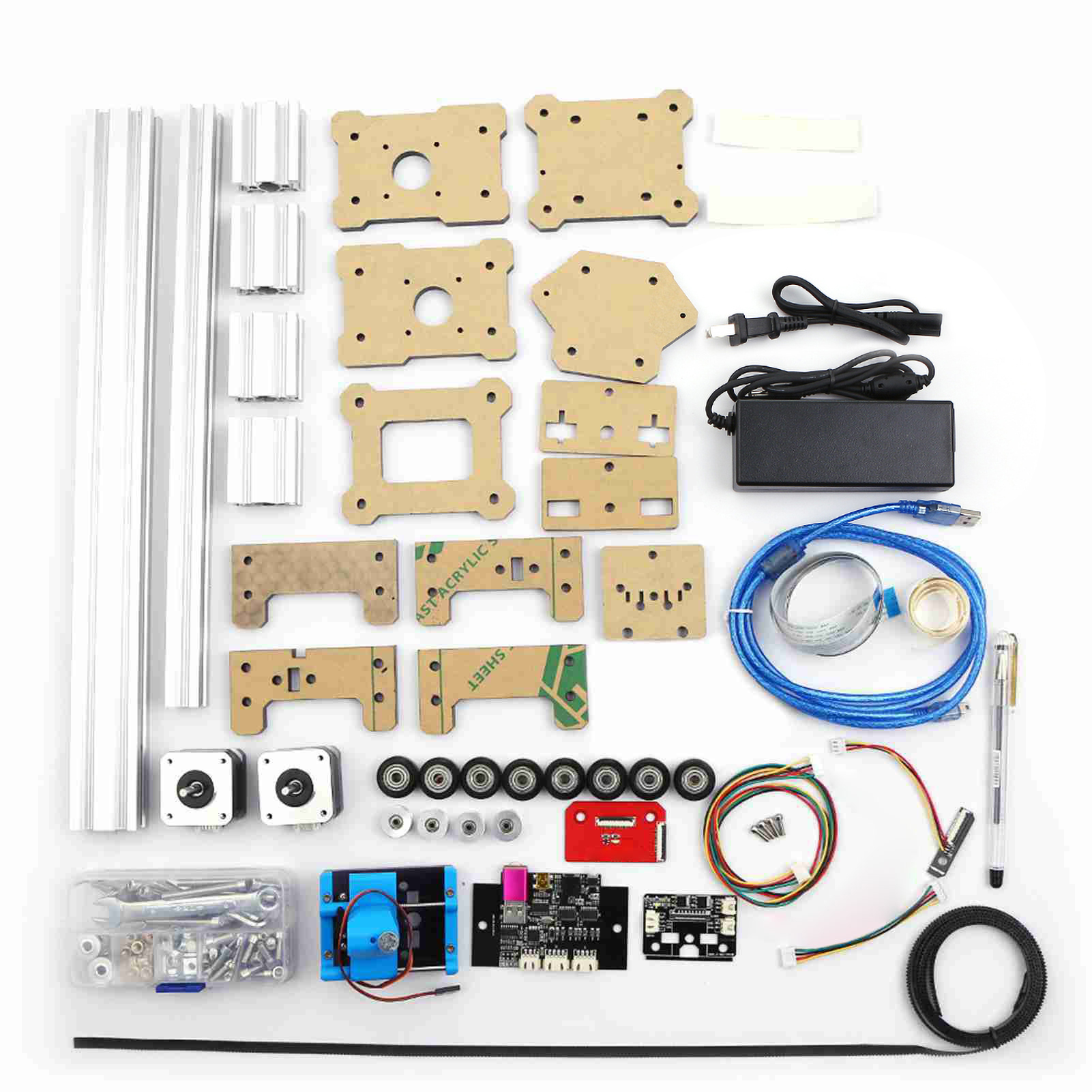

Package List:
1 * F1 430mm Aluminum Profile
1 * F2 360mm Aluminum Profile
4 * F3 50mm Aluminum Profile
1 * P1 Acrylic Central Plate A (Top，Thickness 8mm)
1 * P2 Acrylic Central Plate B (Middle，Thickness 8mm)
1 * P3 Acrylic Central Plate C (Bottom，Thickness 8mm)
2 * P4 Acrylic Motor Plate (Thickness 8mm)
2 * P5L, P5R Acrylic Leg A（Inside，Thickness 8mm)
2 * P6 Acrylic Leg B（Outside，Thickness 5mm)
1 * P7 Acrylic Rear Plate A (Thickness 8m)
1 * P8 Acrylic Rear Plate B (Thickness 5mm)
1 * P9 Acrylic Front Plate (Thickness 8mm)
8 * W1 Flat Pulley
2 * M1 Stepper Motor
2 * Set M2 Synchronous Pulley and Set Screw
4 * W2 Driven Pulley
8 * S1 Inner Hex Screw (M5×45，Fastening the acrylic central plate and flat pulley)
9 * S2 Inner Hex Screw (M5×20，Fastening the acrylic leg plate, front plate, rear plate and pen control kit)
25 * S3 Inner hex Screw (M5×12，Fastening the acrylic motor, leg and front plate)
8 * N1 Antiskid Nut (M5，Fastening the acrylic central plate and flat pulley)
13 * N2 Square Nut (M5，Fastening the acrylic motor plate and synchronous belt)
2 * N3 L Type Connector (M5 Nut，Fastening the acrylic front and rear plate)
1 * Parts Box

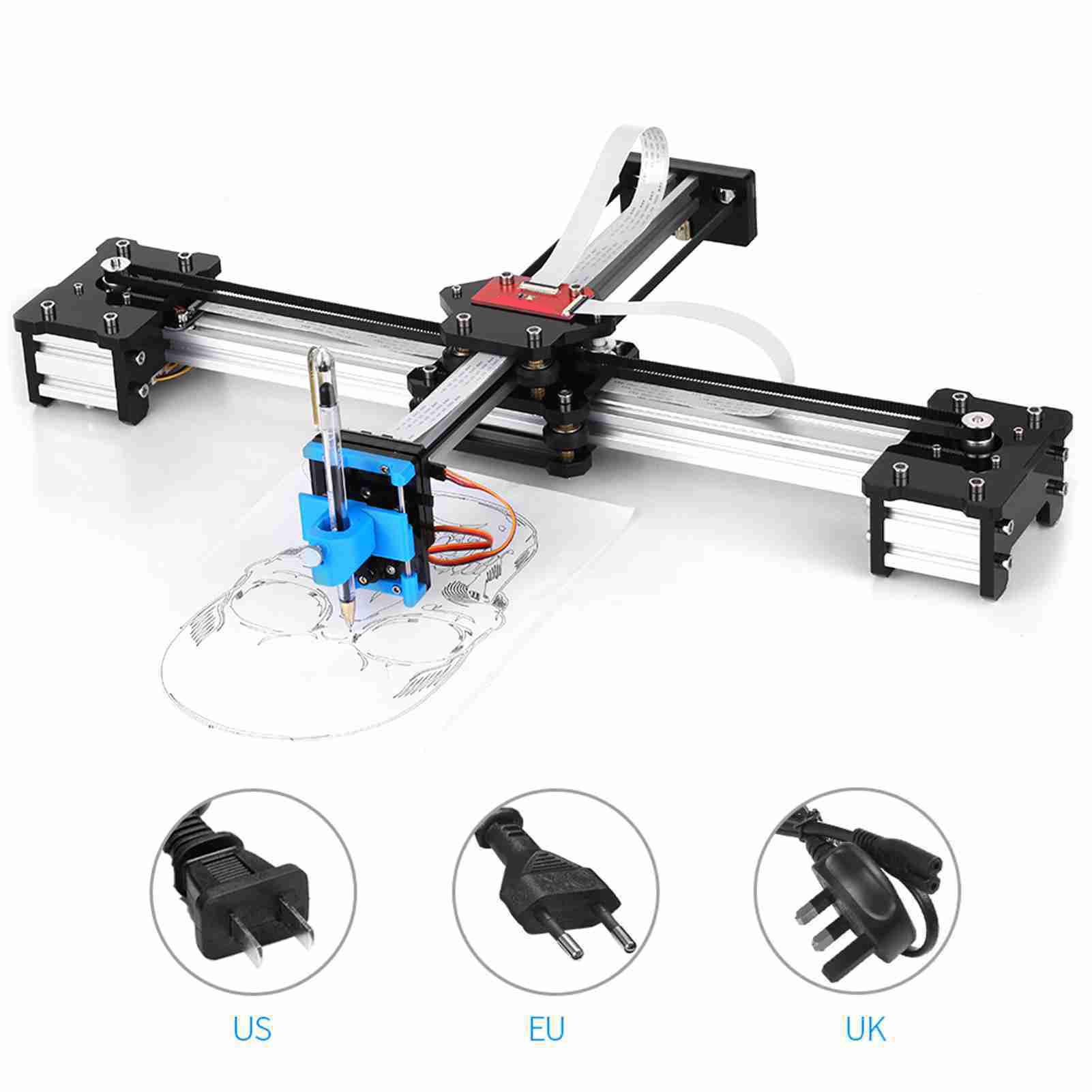

1 * Power Adapter
1 * Hardware Installation Manual
Note:
Please note that your need To Assemble By Yourself
