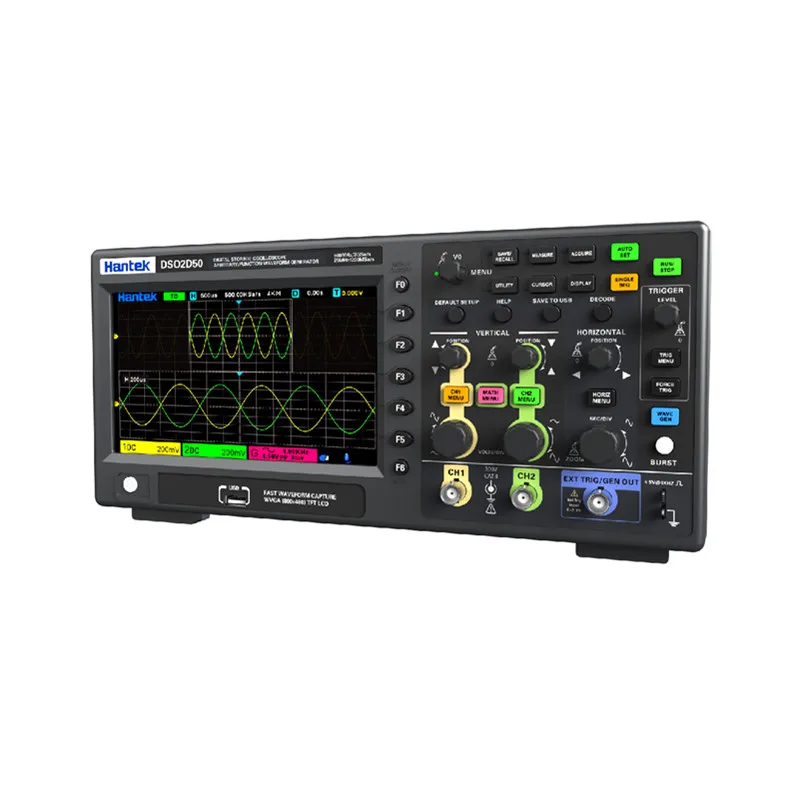

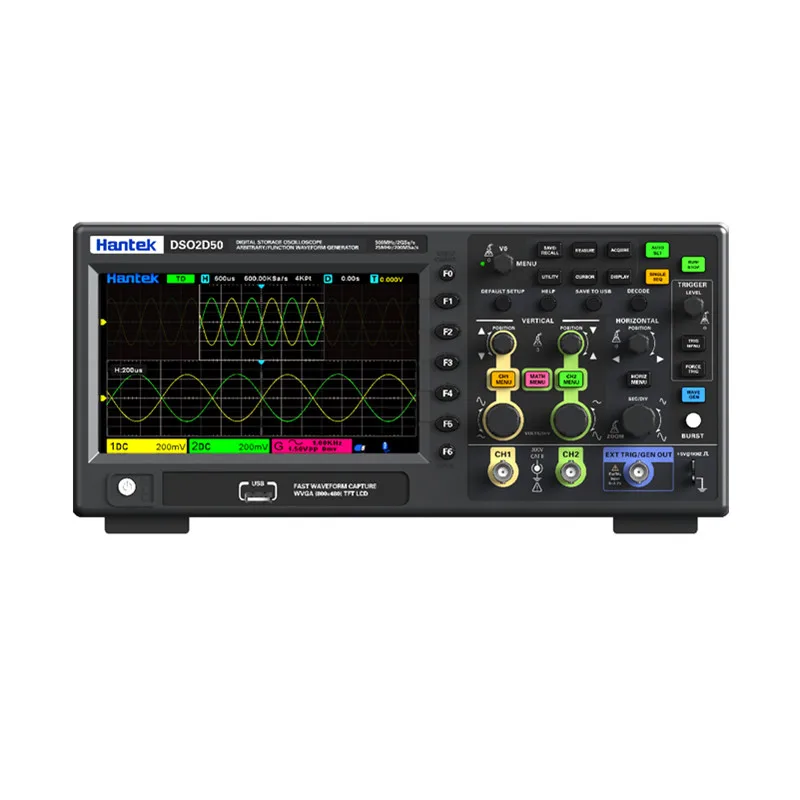

Hantek Digital Storage Oscilloscope DSO2D35 DSO2C20 DSO2D20 DSO2C35 DSO2C50 DSO2D50 2 Channels 200Mhz/500Mhz USB Osciloscopio Tester

Note:DSO2C20/DSO2C35/DSO2C50 NO Waveform Generation

DSO2D20/DSO2D35/DSO2D50 With Waveform Generation

Please read the specificaitons before your purchase!!! UK Order will include UK style adapter.

Support 1MΩ/50Ω impedance switching to ensure signal integrity;
The sampling rate of the entire system is 2GSa/s, with a maximum bandwidth of 500MHz;
Built in arbitrary waveform generator, capable of outputting 5 standard waveforms, supports custom arbitrary waveform output, and supports burst output;
Protocol Trigger: Comes with five standard serial protocol triggers and decoding, supporting protocols including UART, LIN, CAN, SPI, IIC, making it easy to analyze serial bus data;
32 automatic measurement and threshold measurement functions, with test results supporting statistical analysis;
Two sets of digital voltmeter functions and hardware frequency meter functions;
Standard SCPI remote control instructions, convenient for users to build testing systems;
Save and export function, which can save settings CSV, Information such as images, reference waveforms, and waveforms;
Four sampling methods: normal, average, peak, and high-precision;
14 operating languages, supporting over 90% of countries and regions worldwide;
There are two cursor measurement modes: manual and tracking, and the Math function also supports cursor measurement;
500uV-10V vertical measurement gear, 300VCAT Ⅱ withstand voltage input;
FFT scale display, convenient for reading results;
Manual, single time, one click AUTO measurement, simple and fast waveform measurement;
XY mode supports dual window display, making it easy to understand waveform phase changes;

Model	Analog Channel	Analog Bandwidth	Real time sampling rate	Memory Depth	Waveform Generator	Decode
DSO2C20	2	200MHz	2GSa/s	80K	-	5 types
DSO2C35	2	350MHz	2GSa/s	80K	-	5 types
DSO2C50	2	500MHz	2GSa/s	80K	-	5 types
DSO2D20	2	200MHz	2GSa/s	80K	1	5 types
DSO2D35	2	350MHz	2GSa/s	80K	1	5 types
DSO2D50	2	500MHz	2GSa/s	80K	1	5 types

Model	DSO2C20	DSO2D20	DSO2C35	DSO2D35	DSO2C50	DSO2D50
Analog Bandwidth	200MHz		350MHz		500MHz
Rising Time (typical)	≤1.75ns		≤1ns		≤700ps
No. of Input/Output Channels	2 analog channel inputs; 1 signal generator channel output (DSO2D20 series)
EXT Channel Input	1 EXT channel input
Waveform Generator	╳	√	╳	√	╳	√
Sampling Mode	Real-time sampling
Max. Sample Rate of Analog Channel	2GSa/s (single-channel)，1GSa/s (all channels)
Max. Memory Depth	80Kpts (single-channel)，40Kpts (all channels)
Peak Detection	Under all the time base settings, capture 1ns glitches
LCD Size and Type	7-inch capacitive multi-touch screen
Display Resolution	800 × 480
Vertical System Analog Channel
Input Coupling	DC, AC, GND
Input Impedance	1MΩ±1%，50Ω±1%
Input Capacitance	17pF±3pF
Maximum Input Voltage	1MΩ	CAT I 300 VRMS，400 Vpk；Transient Overvoltage 1600 Vpk
	50Ω	5VRMS
Vertical Resolution	8bit
Vertical Sensitivity Range	1MΩ	500uV/div ~ 10V/div
	50Ω	500uV/div ~ 1V/div
Offset Range	1MΩ	±1V (500uV/div ~ 50 mV/div)
		±10V(100mV/div ~ 500 mV/div)
		±100 V (1V/div ~ 10 V/div)
	50Ω	±1V(500uV/div ~ 50 mV/div)
		±10V(100mV/div ~ 500 mV/div)
		±100V(1 V/div )
Dynamic Range	±5div ( 8bit )
Bandwidth Limit (Typical)	20MHz,100MHz,200MHz,350MHz; selectable for each channel
DC Gain Accuracy	±3%FullScale
DC Offset Accuracy	<200mV/div (±0.1div±2mV±1.5%of offset value)
	>200mV/div (±0.1div±2mV±1.0%of offset value)
Channel-to-Channel Isolation	40dB, from DC to maximum rated bandwidth of each model
ESD Tolerance	±8kV（on input BNCs）
Horizontal System--Analog Channel
Range of Time Base	200MHz		350MHz		500MHz
	2ns/div~1ks/div		1ns/div~1ks/div		500ps/div~1ks/div
Time Base Accuracy	±50ppm
Time Base Delay Range	before triggering	≥1/2 screen width
	after triggering	1 s or 100 div, whichever is greater
Time Interval (△T)	Measurement±(1 sample interval)±(50ppm××readout)±50ps
Horizontal Mode	YT	Default
	XY	X1 = Channel1，Y1 = Channel2
	SCAN	Time base≥100ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
	ROLL	Time base≥100ms/div, available to enter or exit the ROLL mode by rotating the Horizontal SCALE
Acquisition System
Max. Sample Rate of Analog Channel	2GSa/s(single-channel)，1GSa/s (all channels)
Max. Sample Rate of Analog Channel	80Kpts(single-channel)，40Kpts (all channels)
Acquisition Mode	Normal	Default
	Peak Detection	Capture 1ns glitches
	Average Mode	2, 4, 8, 16…128 are available for you to choose, averaging point by point
	High Resolution	12bits(max .)
Arbitrary Waveform Generator
Sample Rate	200MSa/s
Vertical Resolution	12bit
Max. Frequency	25MHz
Standard Waveform	Sine, Square, Ramp, Exp, Noise, DC
Arb	Arb1, Abr2, Arb3, Arb4
Sine	Frequency Range	0.1Hz~25MHz
Square	Frequency Range	0.1Hz~10MHz
Ramp	Frequency Range	0.1Hz~1MHz
Exp	Frequency Range	0.1Hz~5MHz
Arb	Frequency Range	0.1 Hz-25MHz
Waveform Length	4K
Frequency	Accuracy	100ppm(<10kH), 50ppm(>10kHz)
	Resolution	100 mHz or 4 bits (whichever is greater)
Amplitude	Output Range	10mV~7Vpp(HighZ)
		5mV~3.5Vpp(50Ω)
DC Offset Accuracy	Range	±3.5V，HighZ
		±1.75V，50Ω
	Resolution	100 uV or 3 bits (whichever is greater)
	Accuracy	2%(1 kHz)
Output Impedance	50Ω ± 1%
