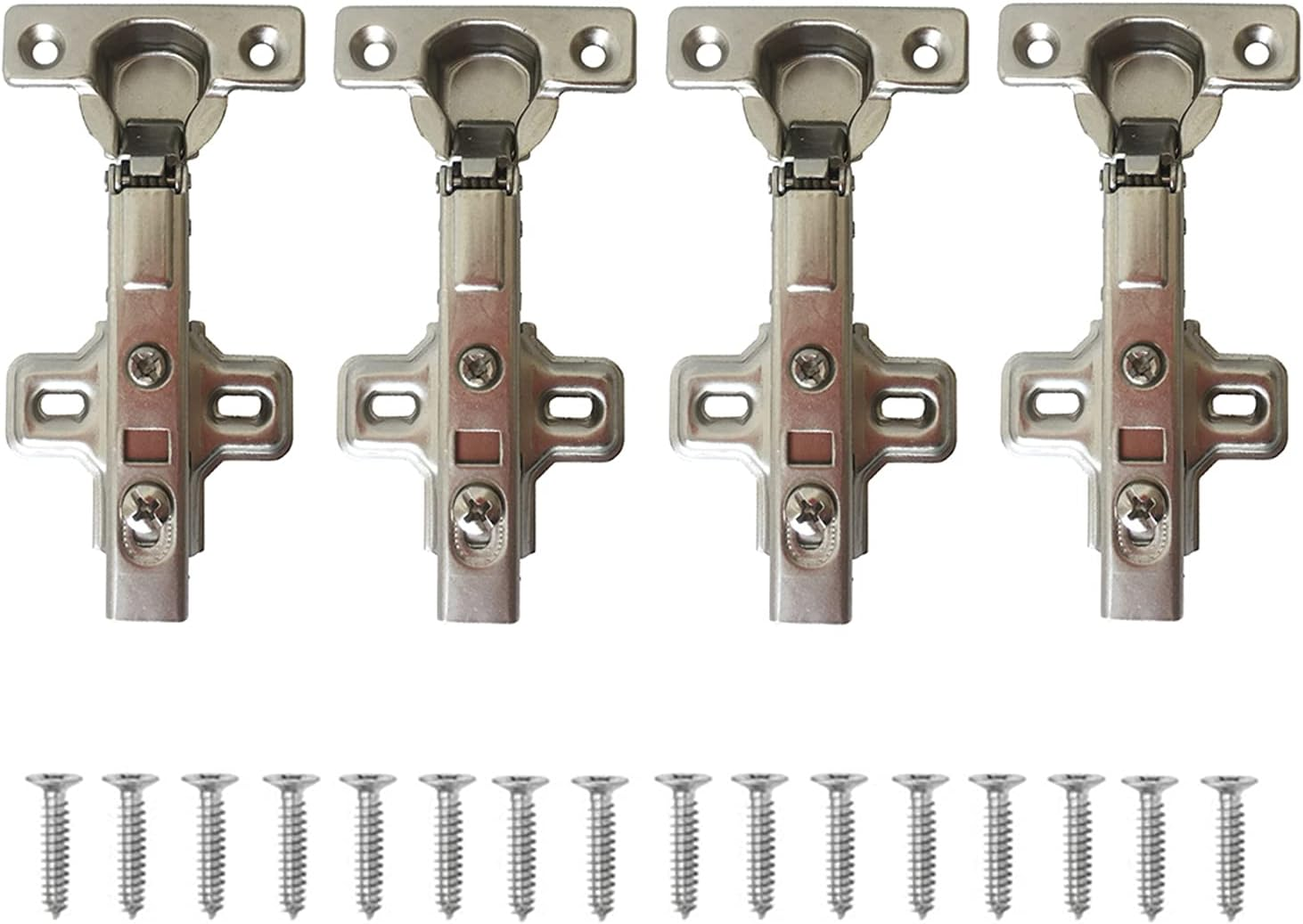

95 Degree Half Overlay Hinges 26Mm with Damper Soft Closing Clip on Assembly Kitchen Cabinet Cupboard Wardrobe Door Hinge Pack of 4
Description
| Item model number | HW261006 |
| Part Number | HW261006 |
| Batteries Required? | No |
| Finish | nickel-plated |
| Number Of Holes | 2 |
| Hole Count | 2 |
| Mounting Type | Door Mount |
| Item Package Quantity | 4 |
| Color | nickel-plated |
| Size | Half Overlay |
| Product Dimensions | 4.33 x 2.36 x 1.18 inches |
| Material | Iron metal |
| Item Weight | 2.46 ounces |
| Batteries Included? | No |
| Number Of Pieces | 4 |
| Finish Type | nickel-plated |
| Included Components | screws |
- Concealed hinge with clip on assembly; with damper (soft closing function)
- Heavy strong and sturdy metal Hinge; Door mounting option: Half Overlay Application
- For door thickness 12- 18mm; Cup diameter Ø 26mm; Cup depth 10mm; Two holes distance in mounting plate is about 32mm
- Height adjustment at mounting plate; excellent hinge replacement solution for kitchen worn-out hinges
- Quality classification under EN 15570, Level 2
Please figure out the type of your current hinge/door application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important for your installation.
Product Details
-Article type: for screwing on and clip on
-Material: Iron metal
-Opening angle (°): 95°-110°
-Cup diameter: Ø 26mm
-Cup Depth: 10mm
-Distance between the two screw holes (next to the cup): 38mm
-Two holes distance in mounting plate is about 32mm
-The distance from door edge to cup center is suggested about 3-5mm
-Mounting option: for screwing on
-Door mounting option: Half Overlay Application
-For door thickness: 12mm (min) – 18mm (max)
-For panel door thickness: 6mm (min) – 9mm (max)
-Integrated overlay adjustment: +0.5 mm / -1.5 mm
-Integrated depth adjustment: +1 mm/ -1 mm
-Height adjustment at mounting plate
-Hinge cup/arm finish: nickel-plated
-Cover cap for carcass: NO
-Stay closed function: Yes
Standard Package
-Hinges: 4 Pieces
-with fixing screws (Size: M4x16mm)
-No Mounting Instruction and Processing Information (see photo above)
Note
-These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary
-These hinges are great suitable for cabinet cupboard doors. If you still need damper / soft slow closing mechanism for these hinges, please search for LIKERAINY
