Condition: New
Dimensions: 20.00 x 20.00 x 20.00 inches (L x W x H)
Weight: 49.00 Lbs.

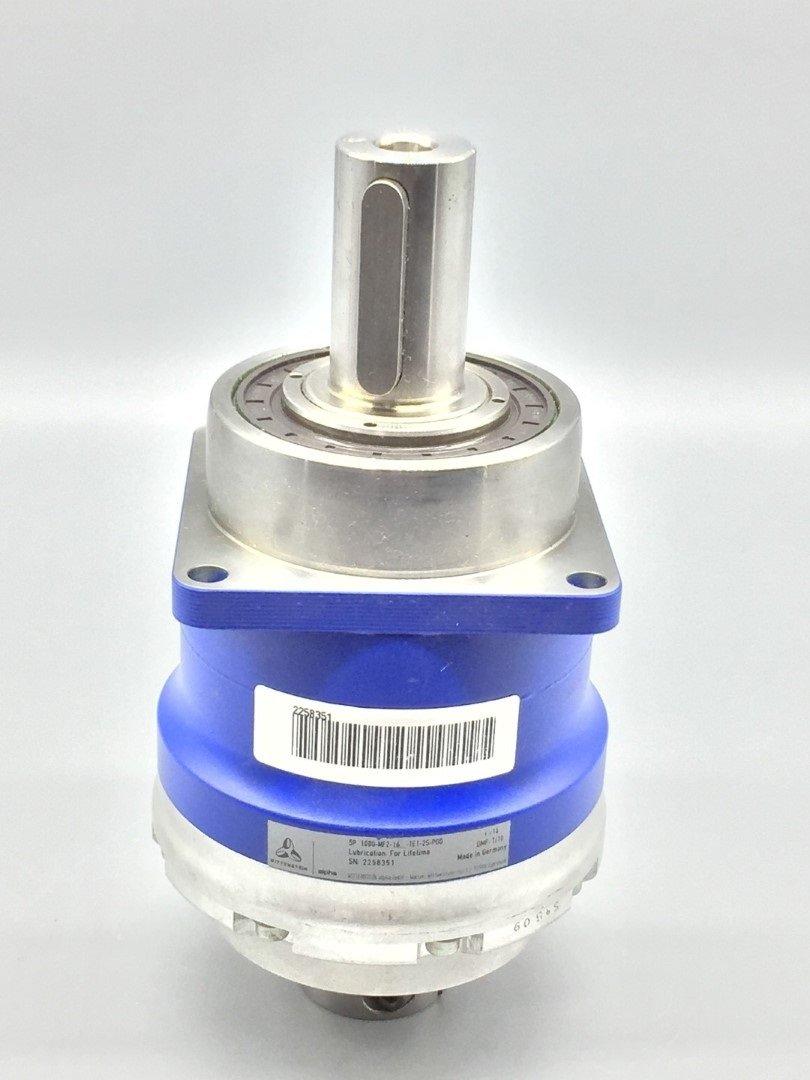

The Wittenstein Alpha SP+ 100G-MF2-16-1E1-2S is a high-precision planetary gearbox, designed for applications requiring accurate positioning, high torque transmission, and minimal backlash. With a gear ratio of 16:1, this gearbox ensures smooth and efficient power transfer, making it suitable for demanding industrial automation and motion control applications. Key Specifications: Gearbox Series: SP+ Frame Size: 100 Version: MF2 (motor-mounted with input flange) Gear Ratio: 16:1 Output Shaft Type: Smooth shaft (1E1) Design Variant: Standard (2S) Performance Characteristics: Max. Backlash: ≤ 3 arcmin Max. Torque Output: Up to 5700 Nm Max. Input Speed: Up to 8500 rpm Torsional Rigidity: High, ensuring precise motion control DMF: 7/10
