This is NOT plug and play, you'll need cut wire to install !!!

Does NOT fit model with JBL

Product Description

Specifications

• --Screen size:9.7''
• --Memory:2GB (RAM)+32GB (ROM)
• --Screen resolution:1024*600
• --Mirror link:Android/IOS
• --Power output:4*45W
• --Bluetooth version:4.0
• --Video output:Support
• --External microphone: support
• --USB:Double USB interface
• --Car logo change:Support
• --Audio format:APE/FLAC/WAV/MP3/WMA etc
• --Video format:MKV/RMVB/AVI/MP4/MDV etc
• --Picture format:PNG/JPEG/JPG/GIF/WBMP/BNP etc
• --Factory setting keyword:8888

Upgraded dual system mirror link

GPS&wifi

• built-in offline maps.
• With WiFi connected, click "Here we go" APP to download maps of any country you need (via menu - download map) for offline navigation.such as , Sygic, Waze, IGO, etc.
• With wifi, you can also downlaod your favourite android app from store, watch online video, it support to play 1080P format

Bluetooth/FM radio/Colorful Backlit Buttons

• Built-in Bluetooth for making hands-free calling and playing Bluetooth music, phone contacts and view Call log.
• Easy connect to phone, more safer when driving.
• FM radio with high-quality stereo
• FM frequency: 87.5-108MHz
• Built-in FM with 18 preset stations, you will never miss your favorite radios anymore.
• Support colorful backlight settings,
• seven color backlights are available

Wiring and Installation

• "ACC": Connect the car ignition detection cable
• "B +": Connect it to the positive terminal of the car battery.
• "GND": Ground / Iron / Negative battery.
• "KEY1/ KEY2": Only one of the cables is selected for wiring depending on the compatibility of the model and the steering wheel control system. If you use two steering wheel controllers, you need to connect 2 cables.
• "BACK": Connects to the rear camera input port.
• "Lamp Control": Connect it to the small lamp in the front of the car to turn on the button backlight.
• "ANT CONT": Connect the car radio antenna (no antenna, no wiring).
• Signal Input: Connect to the input port of the reversing camera.
• "Audio / Video": See wiring diagram (Note: "AMP-CON" cable has no output voltage and must supply the amplifier or subwoofer via the car's ACC ignition cable).

How to connect power cable:

• Red wire connects to ACC (ignition switch)
• Yellow wire connects to 12V battery positive
• Black wire connects to 12V battery negative

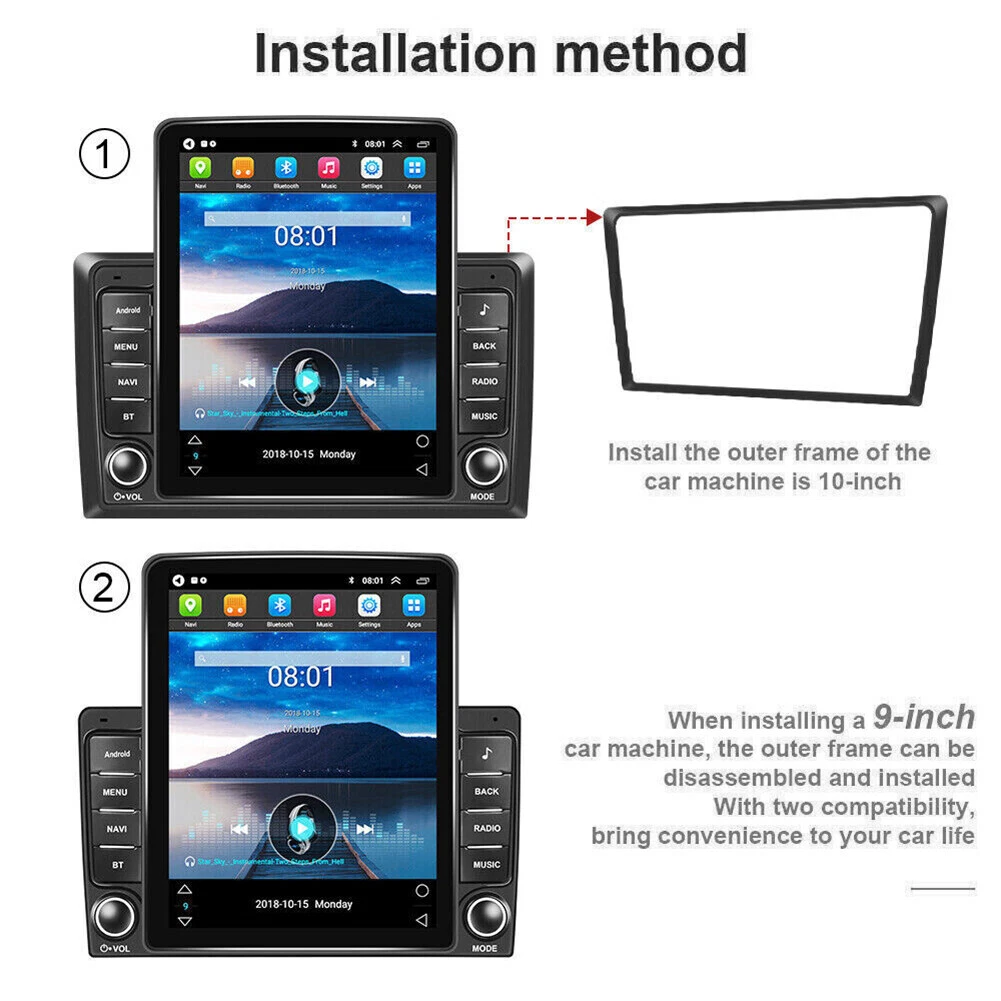

Note: The Installation size of this car radio is 180(W)*75(H)*70(D)mm, Please compare the size with your car dashboard.

Features:
●HD 9.7''  2.5D Tempered Glass Mirror auto radio  player
●Vertical screen: the display effect is more three-dimensional

●Upgrade Android Auto & Carplay : Support Wired & WirelessAndroid Auto, Support Wired & WirelessCarplay . NO extra dongle required !!!

●Built-in GPS Navigation: Users can purchase directly from play store for offline navigation. With wifi connected, Google Maps can be used perfectly, you can go anywhere you want and never get lost again.
● Built-in WIFI: Connect to WIFI, and you will find a new world，the most convenient one is the online map.
●Rear view camera: car is connected to the reverse gear to automatically switch(backup camera included)
●Steering wheel control: Through it you can control the functions you need by steering wheel, more convenient
●Built-in Bluetooth with A2DP/Hands Free/Phone book:Bluetooth hands-free calls,Bluetooth music player,Auto loading phonebooks
●Driving recorder: You can choose a recorder, and the car has playback, the evidence can be retained
●Double USB adapter input
●Support file manager: Support download, install and delete over thousands of android apps
●Support multilanguage: Support languages, up to 40 national languages
●You can enjoy music from you mobilephone without any cables, and also support USB connetion.
●FM Radio: Online music you can transfer the music to the car stereo by FM to enjoy the original car stereo sound,with 18 preset stations
● Time Setting:You can use the network or GPS to open the date and time automatically, or you can adjust it manually.

●Built-in carplay system: You can choose wired connection or wireless connection to carplay, connect to Apple mobile phone, access mobile phone address book, mail, notification, map navigation, music, video and other information, and realize voice control.

● Wired & Wireless Android Auto : Android Auto car system can closely integrate the user's Android phone and player, and realize navigation, make calls, send and receive information, listen to music and other operations through data cable connection;

Specifications：
System:Android 14.0
Chipset:8227L-DEMO
Screen size:9.7''
Memory:2GB (RAM)+32GB (ROM)
Screen resolution:1024*768
Mirror link:Android/IOS
Radio chip:MTK
Power output:4*45W
Work temperature:-40℃-80℃
Steering wheel control function:Support
Bluetooth version:4.0
Power amplifier chip:AC7388
Radio Band:FM/RDS
Video output:Support
Reversing input: Support (item comes with a backup camera as gift)
External microphone: support
Maps:Built-in offline maps
WIFI:Support
USB:Double USB interface
Audio format:APE/FLAC/WAV/MP3/WMA etc
Video format:MKV/RMVB/AVI/MP4/MDV etc
Picture format:PNG/JPEG/JPG/GIF/WBMP/BNP etc
Factory setting keyword:8888
Language:Chinese/English/French/Italian/Korean/Japanese/Arabic/Spanish/Portuguese/Russian/Turkish/Vietnamese/Hebrew/Polish/German

Package Included:
1 x Car MP5 Player
1 x Power Cable
1 x GPS Antenna
1 x Backup Camera
1 x RCA Input and Output
2 x USB Cable
2 x Metal Frame
4 x Screw
1 x  Instruction manual
