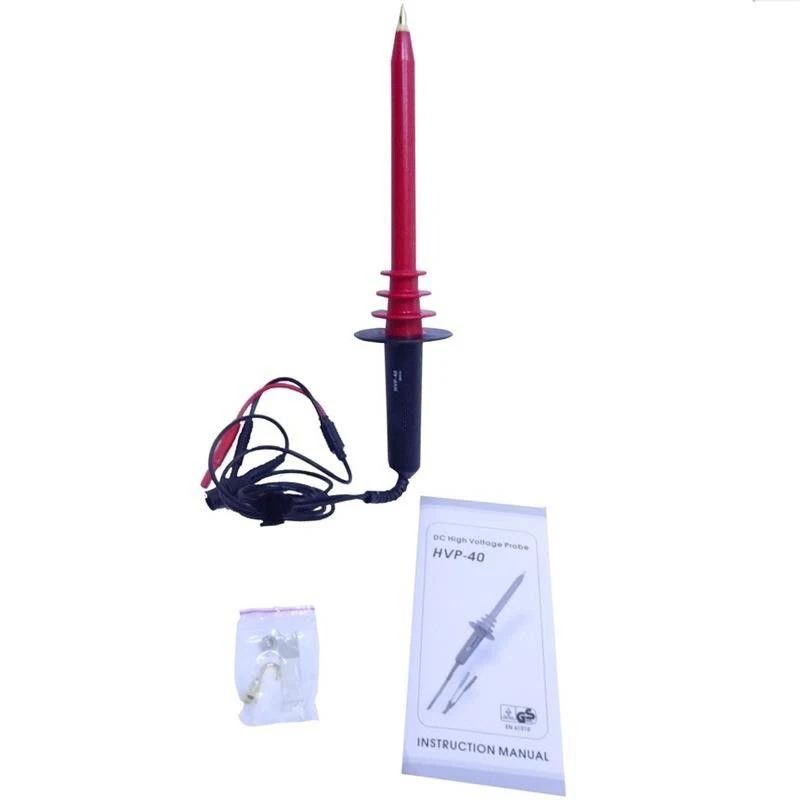

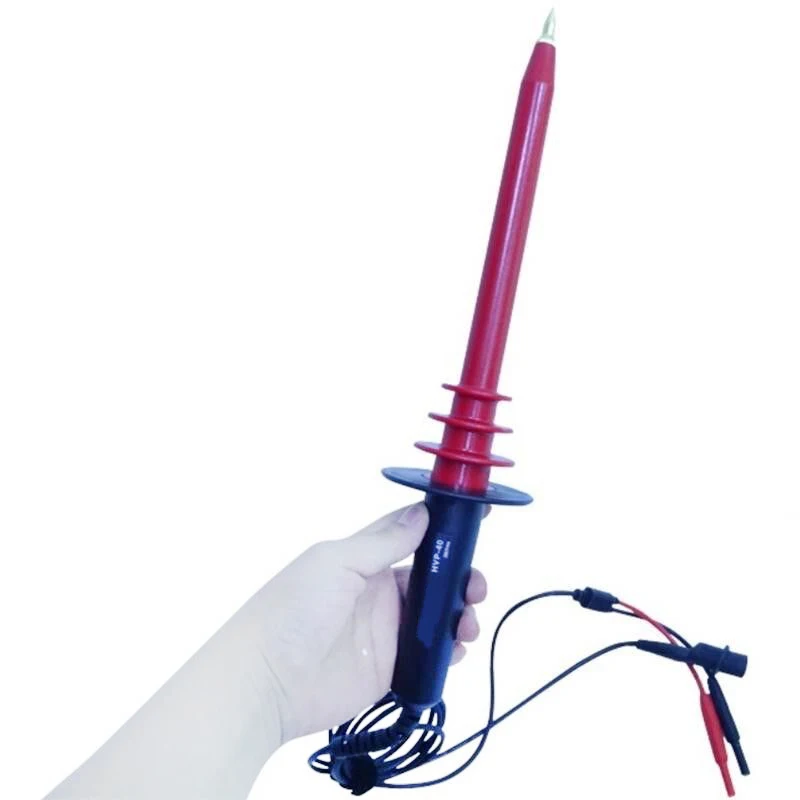

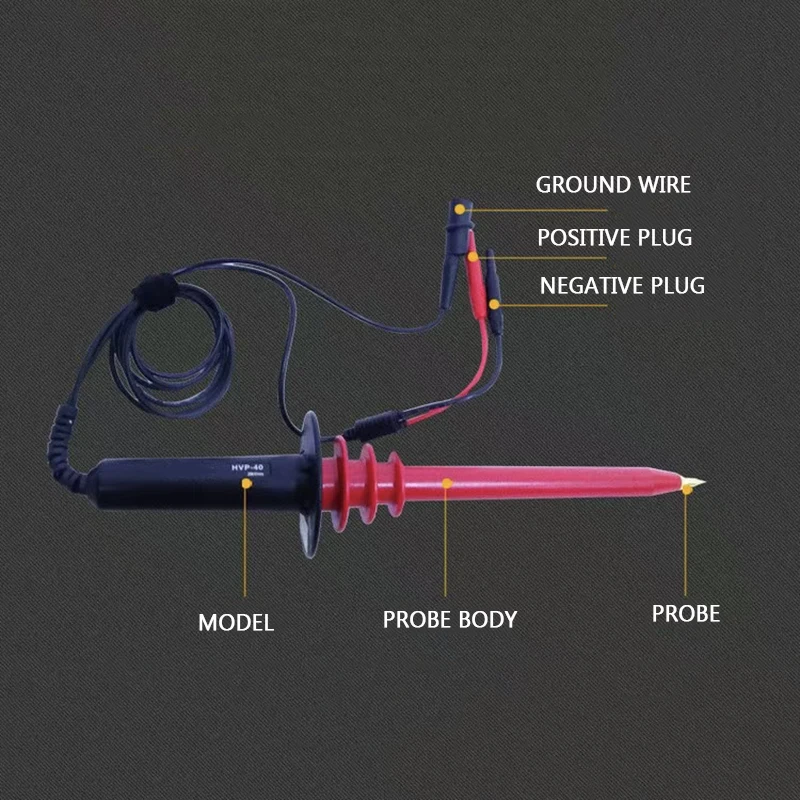

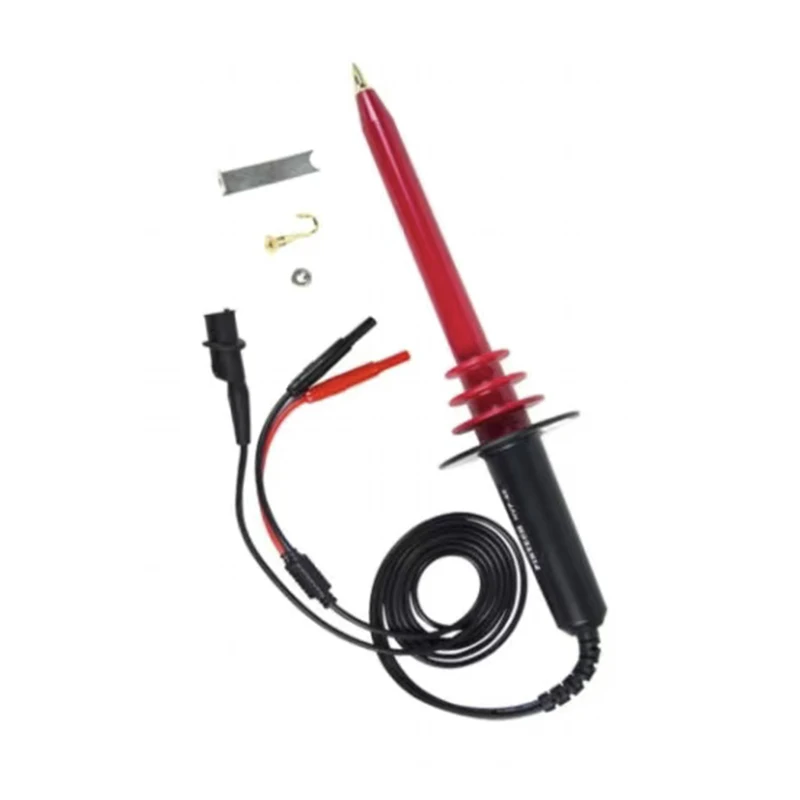

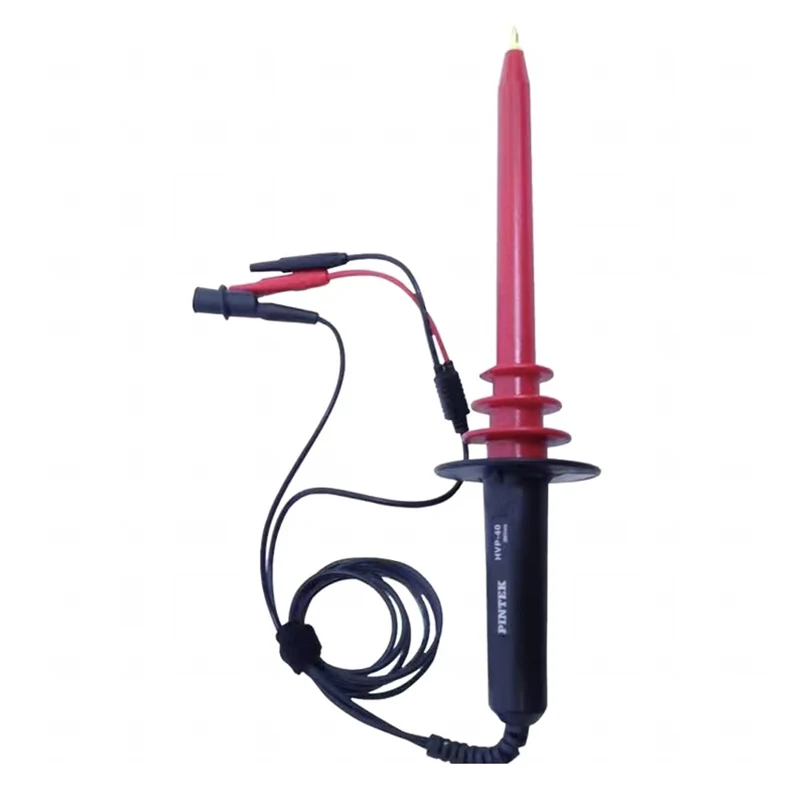

HVP-40 high voltage attenuation probe AC and DC multimeter probe high voltage test rod
Model: HVP-40
Input impedance: 1000MΩ
Attenuation ratio: 1000:1
Maximum test voltage: DC 0-40KV, AC 0-28KV (50/60Hz)
Safety certification: EN61010, UL3111-1, TUV-GS IEC1010 CAT II Pollution 2
Polarity: both positive and negative can be measured
Accuracy: DC: ±1% to 20KV, ±2% to 40KV/AC; -5% to -10% at 50-60Hz
Coefficient: 10-50PF variable
Size: about 1.4 meters
Temperature coefficient: ≤200PPM/°C
Maximum load current: when 40μA (at 40KV DC)
Maximum power consumption (heating): ≤1.6 watt
Working temperature: 0°C~ +50°C
Storage temperature: -20°C~ +70°C

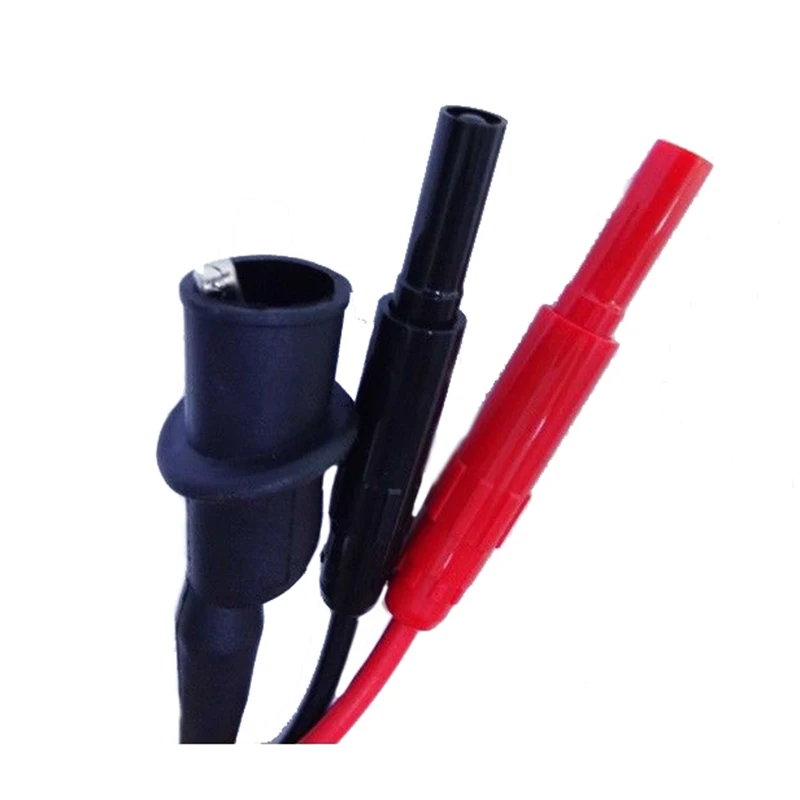

Ground wire length: 90cm (3.3ft)
Cable length connected to meter: 100cm (3.3ft)
Specified link: Digital multimeter with 10Ω input impedance
Meter output indication: 1000 digits X, that is, 1V to 1000V
Meter output indication: 1000 digits X, that is, 1V → 1000V
10V→10KV
Size: 340mm (L), 80 Medium (mm)
