If you want to purchase 3 pin male brake in a 1T5 cable, please click on the picture to purchase▲

Parameter：

LCD Display

Type : S866/CS866 LCD Display

Voltage : 24V 36V 48V

Plug : 5Pin Male SM Plug

Holder Diameter :φ22mm

Cable Length: 170cm ( SM )

17AController

●Type: 17A Controller

●Size(L*W*H):About 97*52*31mm

●Rated Power:250W/350W

●Speed Set:1.1-4.2V

●Mosfet:9Mosfet

●Booster:1:5

●Brakes:Low-Level

●Rated Voltage:DC24V/36/48V/52V

SM Controller line length:150mm/5.9in

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

26A Controller

●Type: 26A Controller

●Size(L*W*H):About 150*65*40mm(The measured size includes ear hooks)

●Rated Power:500W/750W

●Speed Set:1.1-4.2V

●Mosfet:9Mosfet

●Booster:1:5

●Brakes:Low-L evel

●Rated Voltage:DC24V/36/48V/52V

SM Controller line length:150mm/5.9in

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

30A Controller

●Type: 30A Controller

●Size(L*W*H):175*65*40mm(The measured size includes ear hooks)

●Rated Power:1000W

●Speed Set:1.1-4.2V

●Mosfet:12 Mosfet

●Booster:1:5

●Brakes:Low-Level

●Rated Voltage:DC24V/36/48V/52V

SM Controller line length:150mm/5.9in

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

40A Controller

●Type: 40A Controller SM Plug

●Size(L*W*H):212*85*45mm(The measured size includes ear hooks)

●Rated Power:2000W

●Speed Set:1.1-4.2V

●Mosfet:15 Mosfet

●Booster:1:5

●Brakes:Low-Level

●Rated Voltage:DC24V/36/48V/52V

SM Controller line length:100mm/3.9in

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

●Can manually connect to the 25km/h speed limit line

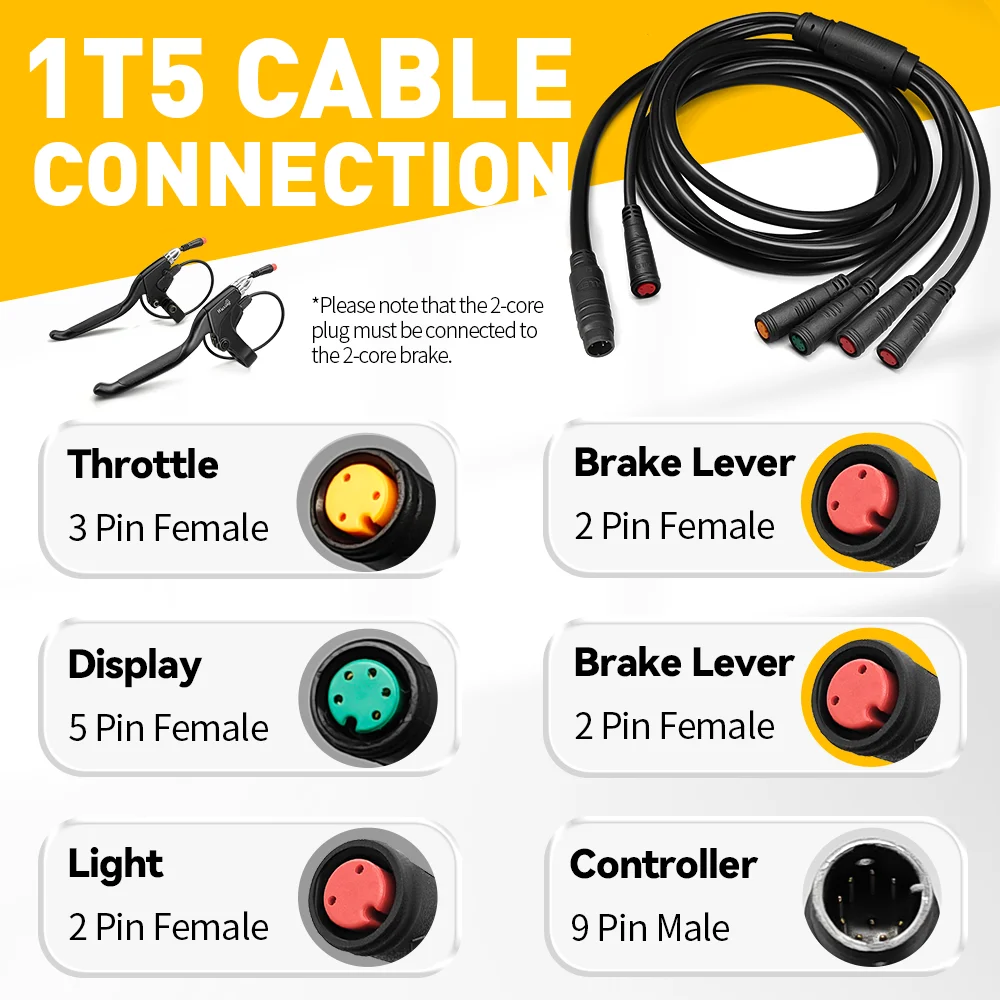

1T5 Cable (Julet Brand) Cable Length:1500mm/59.1in

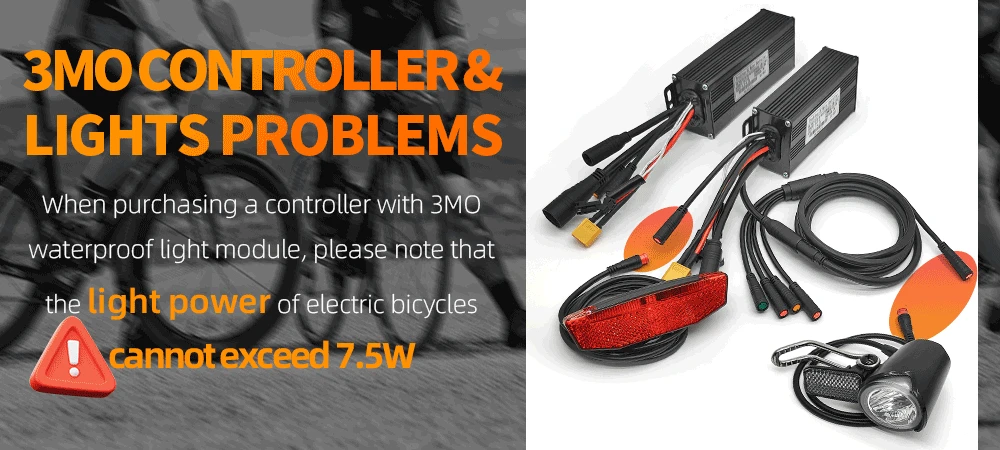

Please note that when purchasing a waterproof controller, the size measurement of the motor connection plug should be accurate to ensure that it can be connected▼When purchasing a controller with 17A-30A 3MO waterproof plug light module, please check that the light power of the electric bicycle you purchased cannot exceed 7.5W, otherwise the 17A-30A 3MO waterproof plug light module will not be able to be used!!!△17A Controller Cable Length

Battery plug wire length:13cm/5.1in                  1T5 plug wire length:15cm/5.9in

PAS plug wire length:15cm/5.9in                       Light plug wire length:14.5cm/5.7in

Motor plug wire length:18.5cm/7.3in                  Learning line plug length:14.5cm/5.7in

△26A Controller Cable Length

Battery plug wire length:12.5cm/4.9in                  1T5 plug wire length:12.5cm/4.9in

PAS plug wire length:13cm/5.1in                          Light plug wire length:13cm/5.1in

Motor plug wire length:15.5cm/6.1in                    Learning line plug length:13cm/5.1in

△30A Controller Cable Length

Battery plug wire length:17cm/6.7in 1T5 plug wire length:9cm/3.5in

PAS plug wire length:15cm/5.9in                          Light plug wire length:15cm/5.9in

Motor plug wire length:17cm/6.7in                       Learning line plug length:11.8cm/4.6in

Please note that when purchasing a waterproof controller, the size measurement of the motor connection plug should be accurate to ensure that it can be connected!!!!!
