Condition: Used
Dimensions: 8.00 x 8.00 x 8.00 inches (L x W x H)
Weight: 3.00 Lbs.

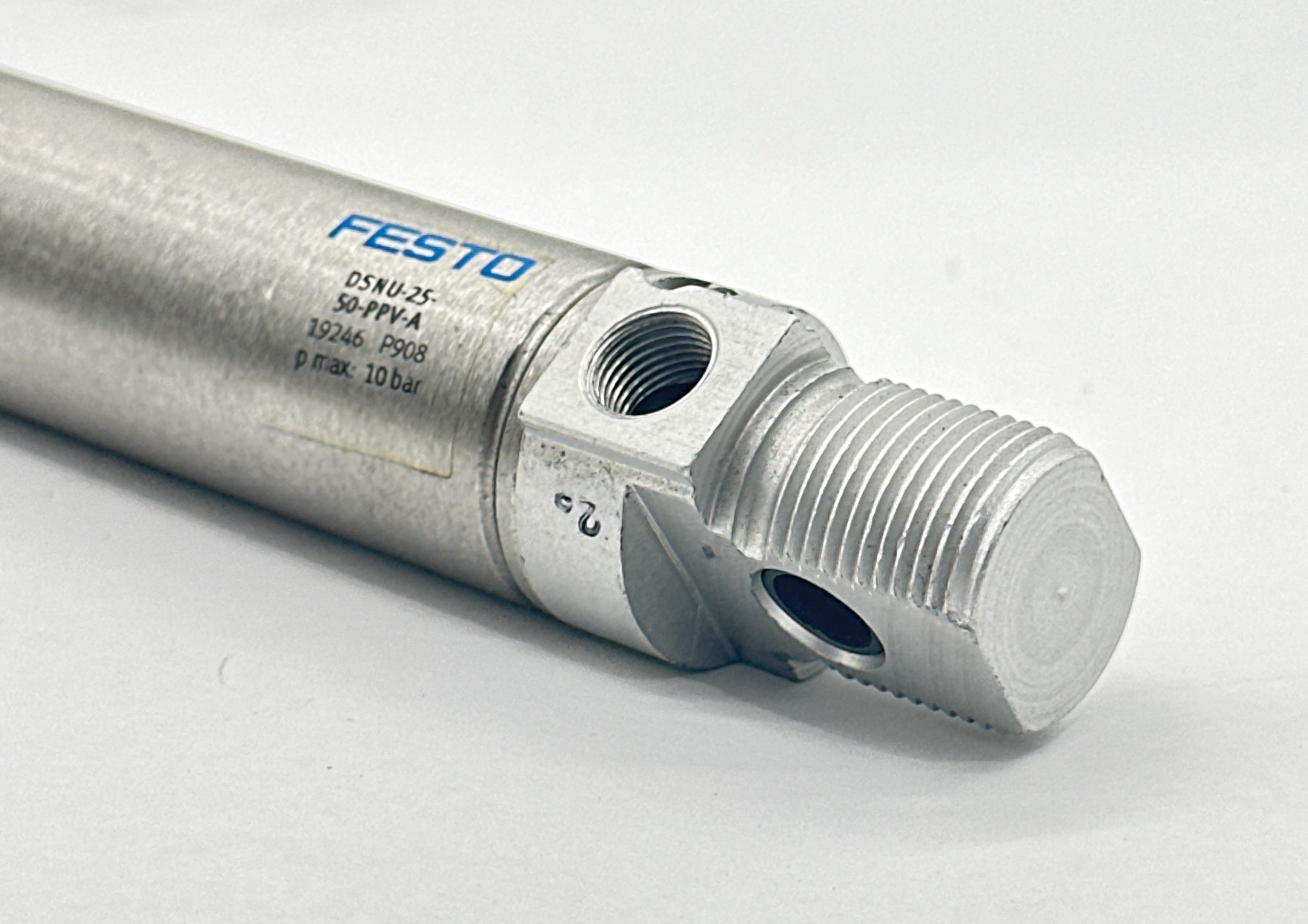

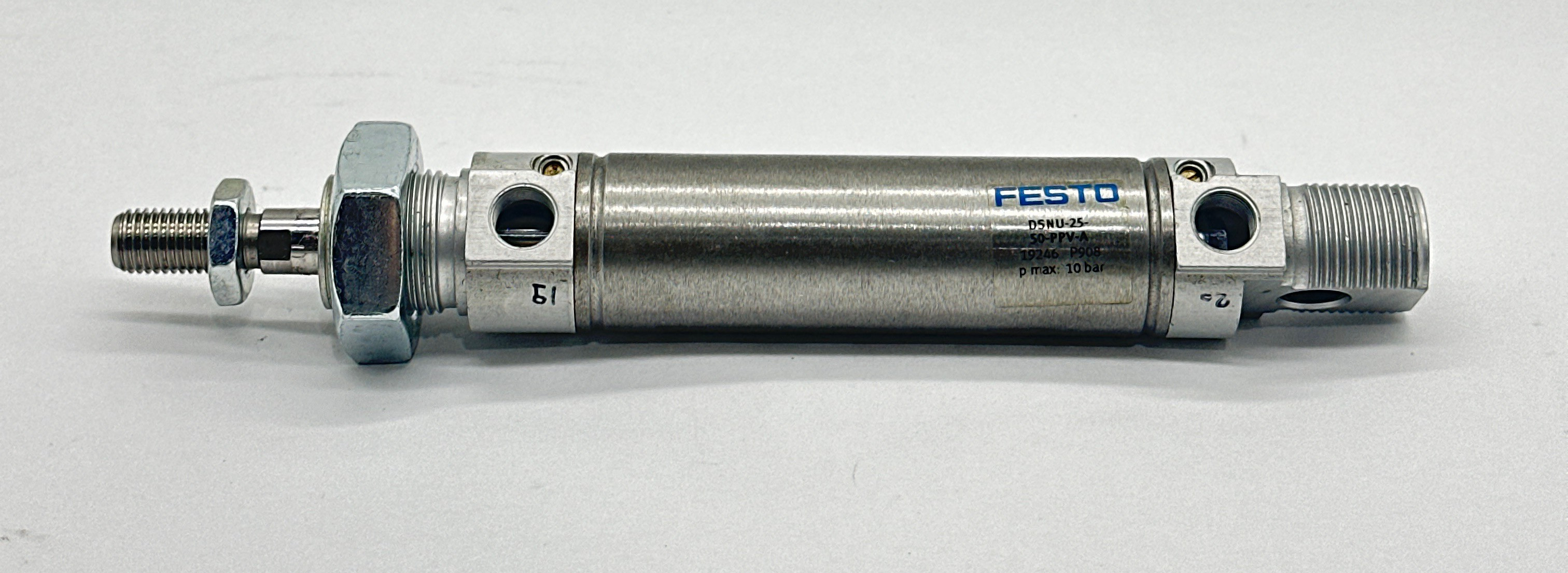

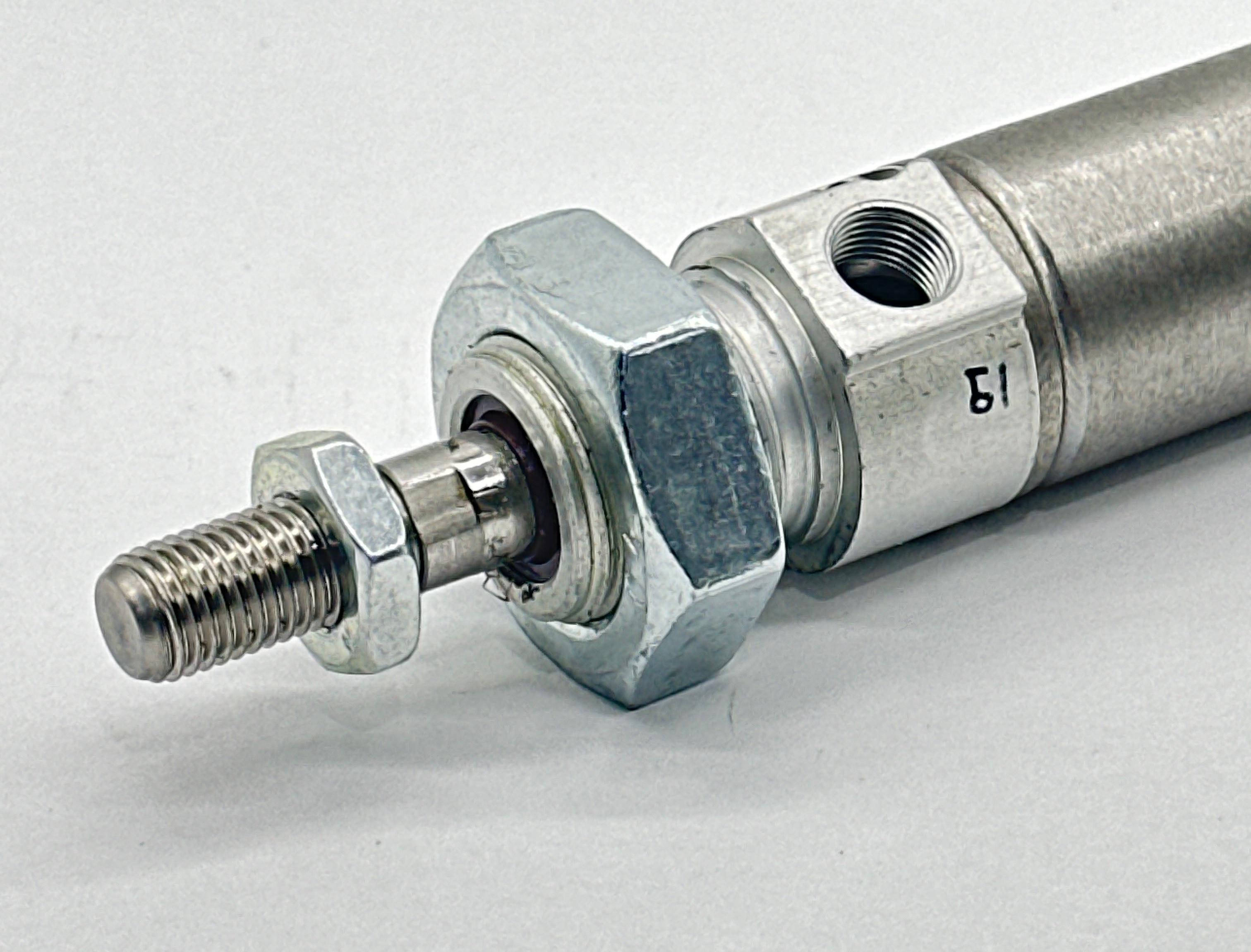

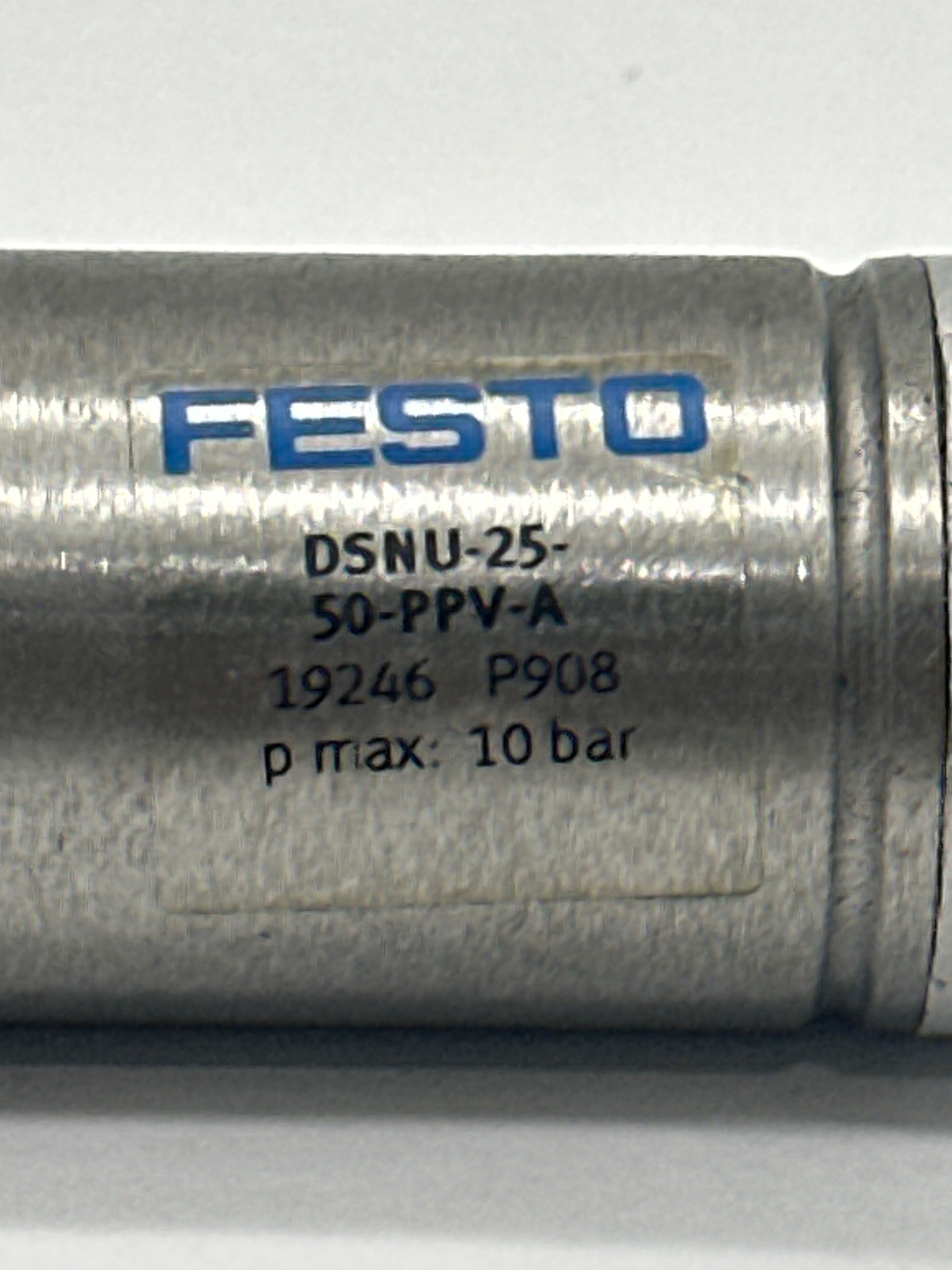

Festo DSNU-25-50-PPV-A is a round-body pneumatic cylinder designed for precision linear motion in automation systems. It features a 25 mm bore and a 50 mm stroke with self-adjusting pneumatic cushioning for optimized cycle performance. Model: DSNU-25-50-PPV-A Manufacturer: Festo Type: ISO 6432 round-body pneumatic cylinder Bore Size: 25 mm Stroke Length: 50 mm Action: Double acting Cushioning: Self-adjusting pneumatic end-position cushioning (PPV) Piston Rod Thread: Male thread Piston Rod Material: Stainless steel Cylinder Barrel: Stainless steel End Caps: Anodized aluminum Mounting Options: Foot mount, flange mount, clevis, or trunnion (with accessories) Port Size: G1/8 Operating Pressure: 1 to 10 bar (14.5 to 145 psi) Temperature Range: -20°C to +80°C Max Speed: Up to 1 m/s Magnetic Piston: Yes (for position sensing) Conformance: ISO 6432 Weight: Approx. 260 grams Application: Industrial automation, robotics, packaging, and precision assembly systems Please review pictures carefully and let us know if you have any questions!
