New Fits for Ford 9 Inch Bolt-On Rear Disc Brake Kit w/ E-Brake Caliper
Items Description
Quality Parts for Quality Rides – Your Car's Best Companion!

At DRIVE DREAM AUTOPARTS, we are dedicated to providing you with a wide range of top-notch automotive components to keep your vehicle in peak condition.



Specifications:

Sold in Quantity: Kit

Rotor Diameter: 11.25 Inch

Caliper Finish: Natural

Color: Natural

Hardware Included : Yes

Rotor Thickness:1.00

Rotor Backspace: 2.30

Rear Rotor Included: Yes

Master Cylinder Included: No

Front Caliper Included: No

Rear Caliper Included: Yes

Rotor Material Type: Cast Iron

Bolt Pattern: 5 on 4.5" | 4.75"

Ford Bearing End Style: Big Ford (Old/New) & Small Ford

Finish: Natural

Minimum Recommended Wheel Diameter: 15 Inch

Rotor Shape: Round

Thread Pitch: 7/16"-20

Parking Brake Provision: Yes

Rotor I.D.: 2.78

Position: Rear

Front Spindles Included: No

Brake Booster Included: No

Front Rotor Included: No

Rotor Type: Vented

Caliper Pistons: One

Axle Flange Offset: 2.36" - 2.50"



Hardware and Instructions Included:

  • Disc brake stopping power at nearly the same cost as rebuilding/replacing drum brakes
  • 11-1/4” diameter, 1” thick vented cast iron rotors dissipate heat faster than drum brakes
  • Serviceable design ensures good drivability and piece-of-mind when on the road
  • Street-friendly GM D154 style pads, replacements available nearly everywhere
  • GM “Metric” style single piston calipers with 7/16”-20 banjo-style inlets
  • Fits Ford “big bearing” 9 inch housings from passenger cars and 8 inch rear ends
  • Use with Ford 9 inch rear ends with 2-3/8” or 2-1/2” axle flange-to-housing offsets
  • Dual wheel bolt patterns covering all GM/Ford/Mopar (5x4.5” for 1/2” studs, 5x4.75” for 7/16” studs)
  • Use with 15” or larger disc brake-style wheels
  • Easy bolt-on installation w/ included instruction sheet
  • Includes heavy steel mounting brackets, Grade 8 hardware and nylock nuts (everything you need)

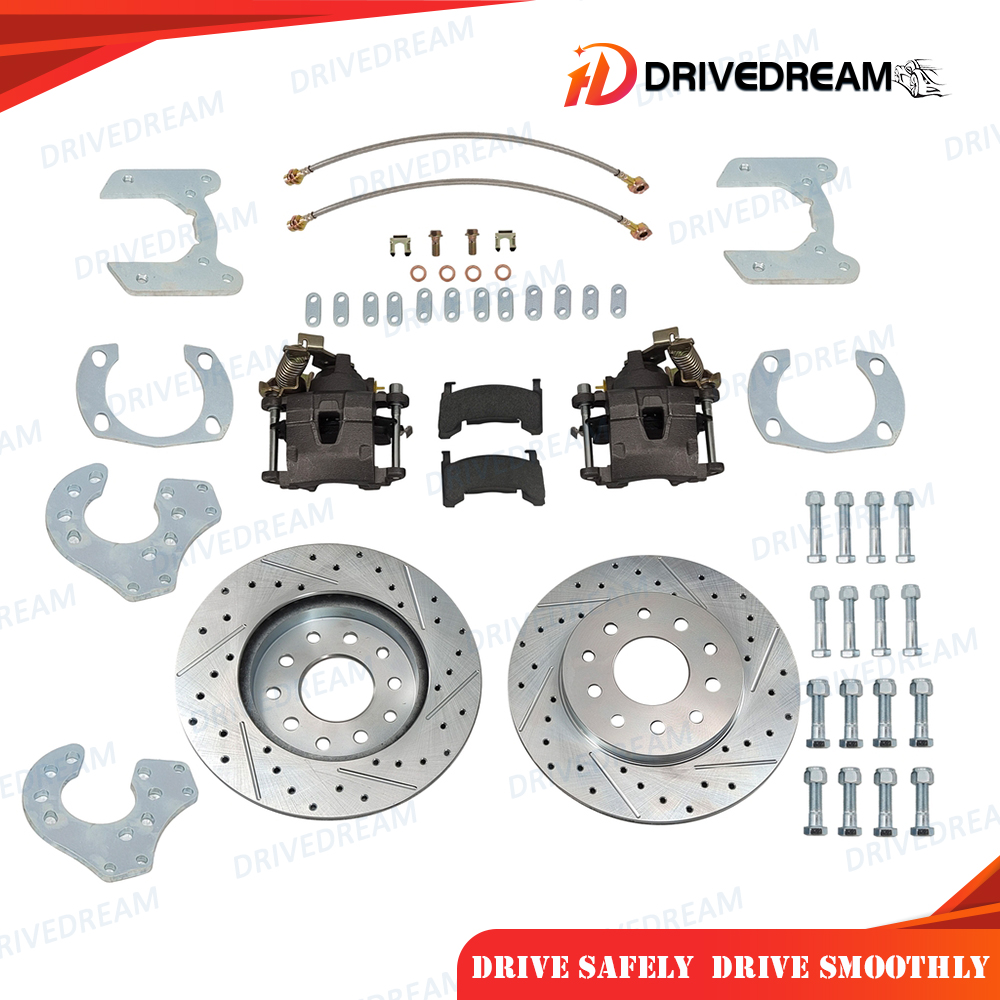

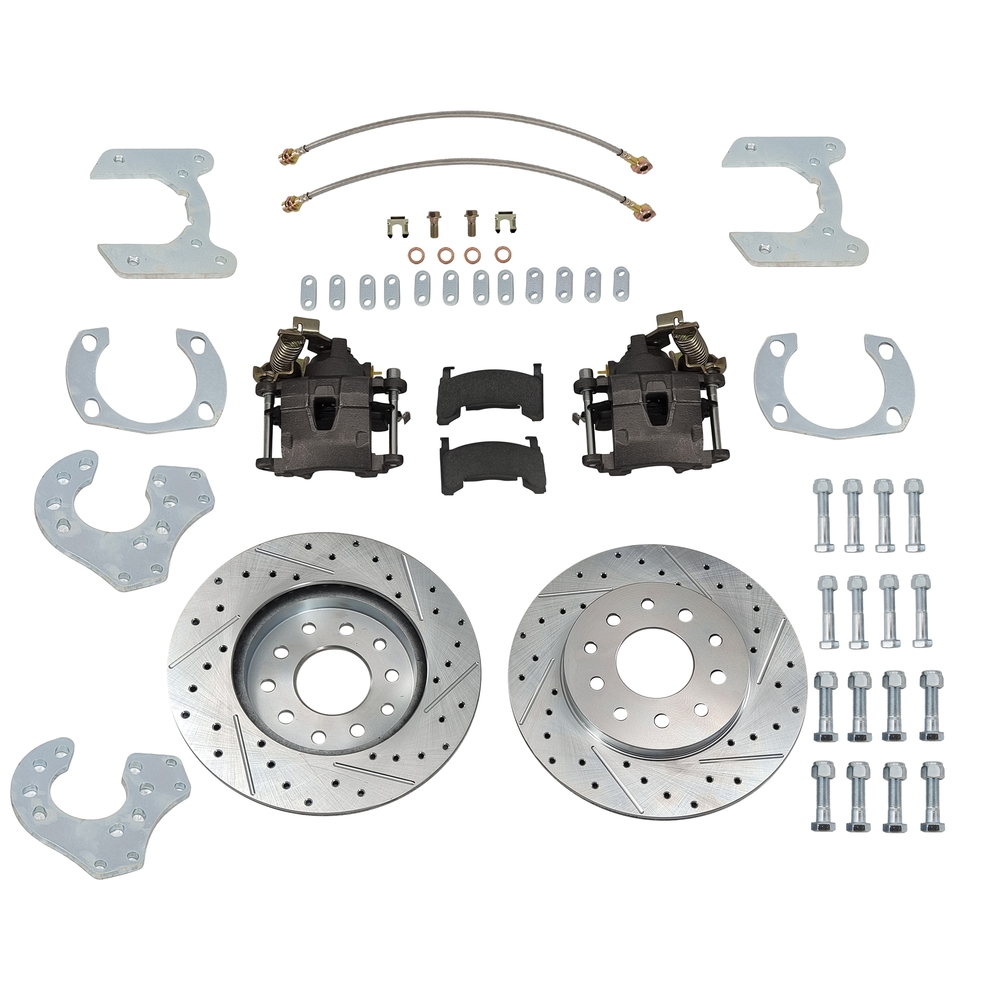

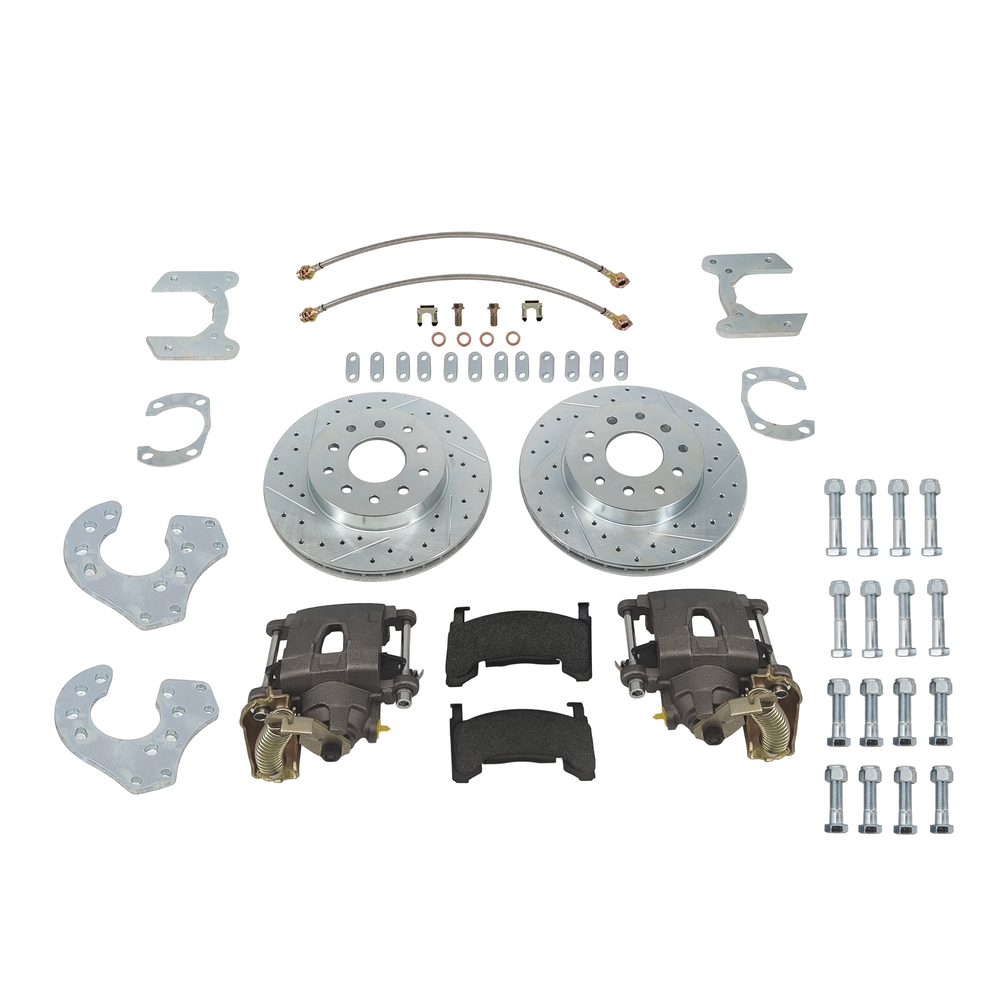

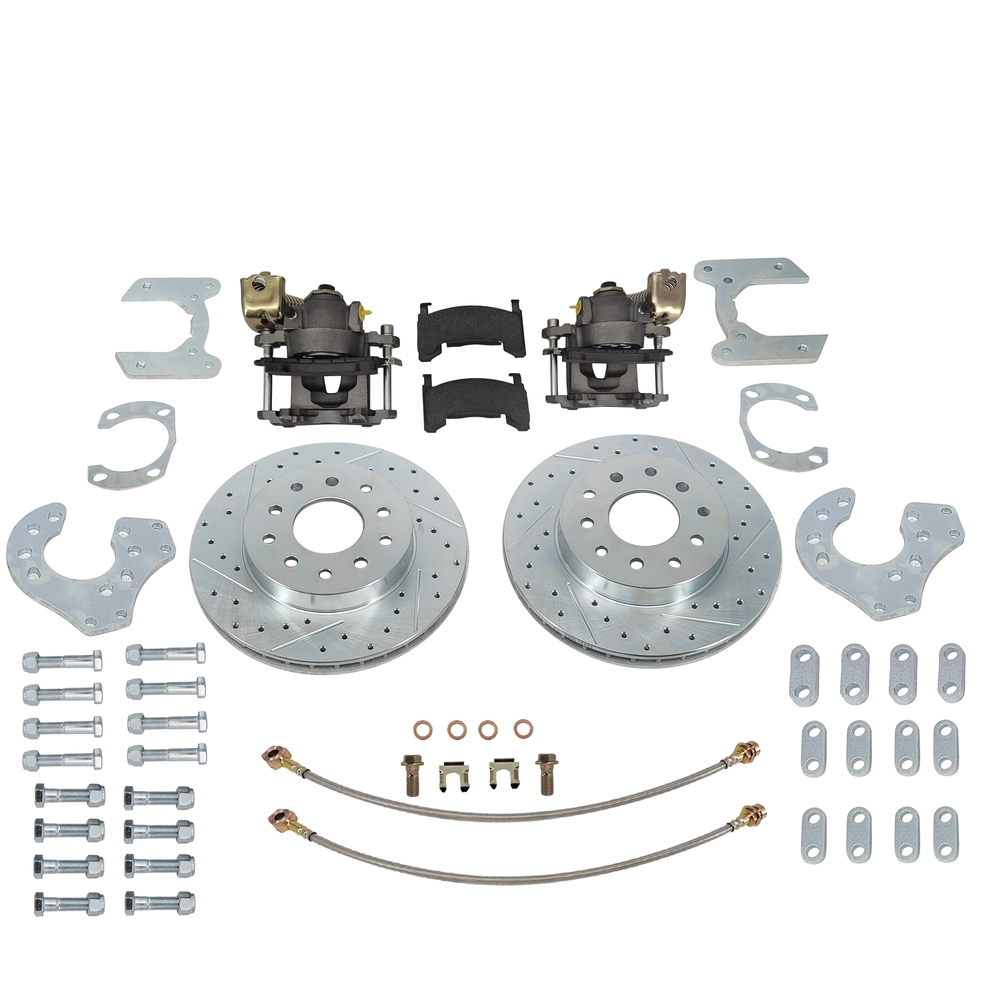

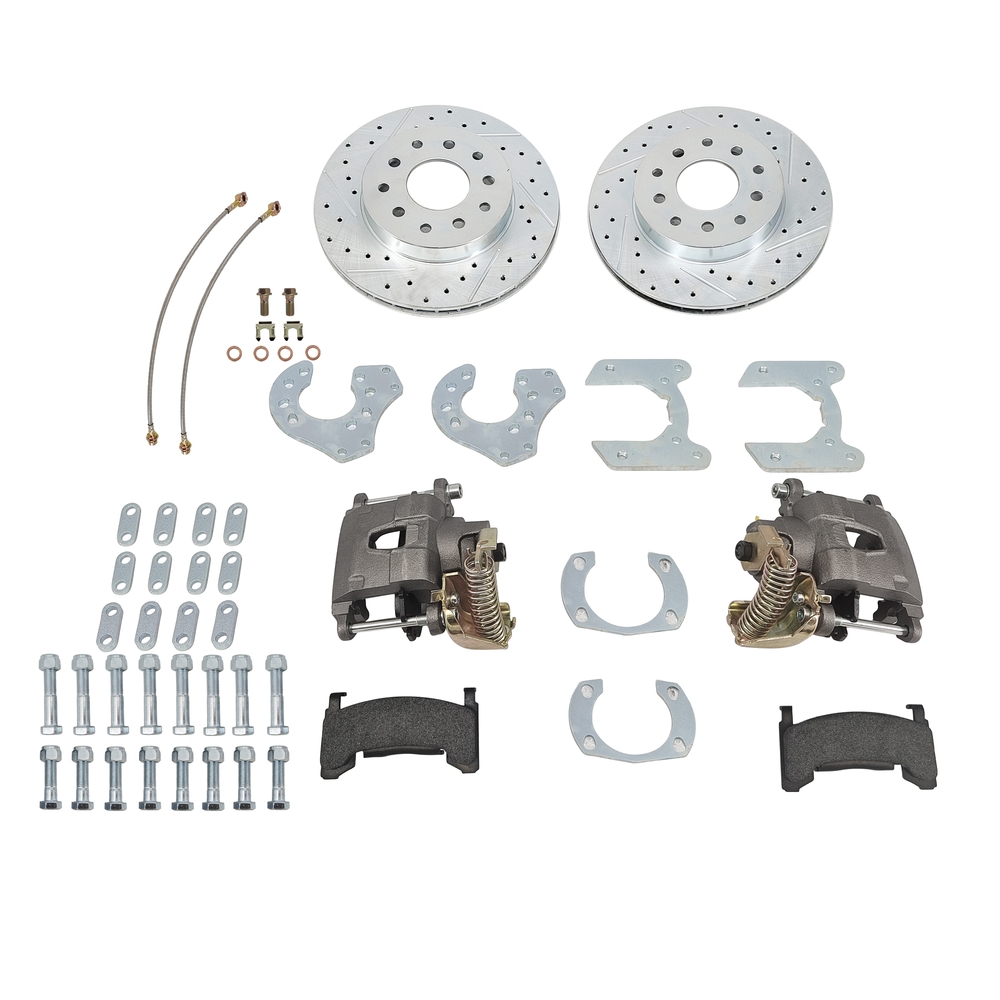

Included in this Kit:

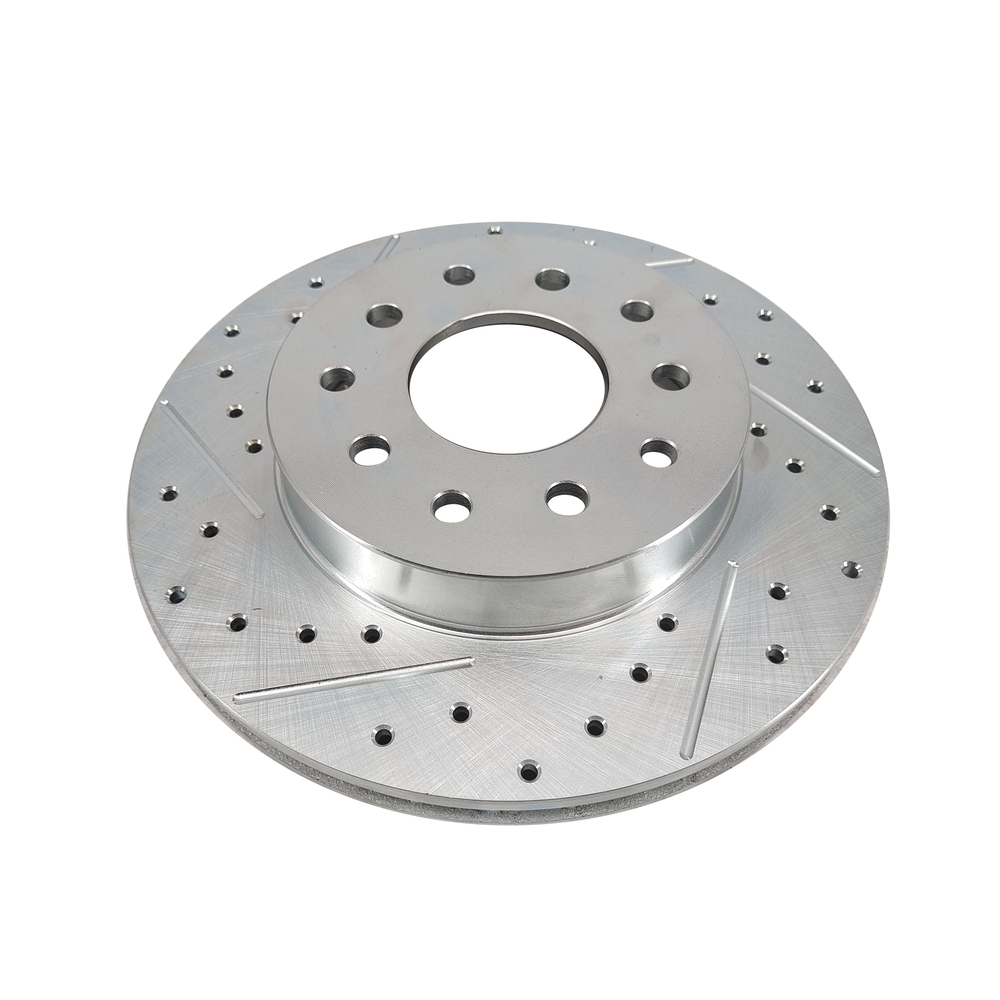

(2) 11-1/4 Inch Cross Drilled and Slotted rotors

(1) GM Metric Disc Brake to 9 Inch Ford Bracket Set

(1) Ford 9 Inch Brake Bolt Kit

(1) 1978-Up GM Metric Emergency Brake Caliper, LH, 5.45 Mount Bolts

(1) 1978-Up GM Metric Emergency Brake Caliper, RH, 5.45 Mount Bolts

(1) Stainless Braided brake hoses



Application:

This Part Fits

  • "Old-style" big bearing 9" Ford axle
  • "New-style" big bearing 9" Ford axle
  • Axle housings with minimum axle offsets of 2-3/8" to 2-1/2"

This kit will NOT work on pickup housings or the 50's 9" housings as they only have about 2" backspace. The exception would be the late 50's station wagon rear ends.

When using with a Currie Axle with an o/d register of 2.795", the rotor is included in this kit with an i/d register of 2.78" and therefore will need to be machined by increasing the hole diameter in the rotor to match the Currie axle spec of 2.795"

Check out our on the Toolbox for more tips on this brake kit.
