ZNN-D6B/S six-speed rotational viscometer drilling fluid analysis tester mud bentonite viscosity tester

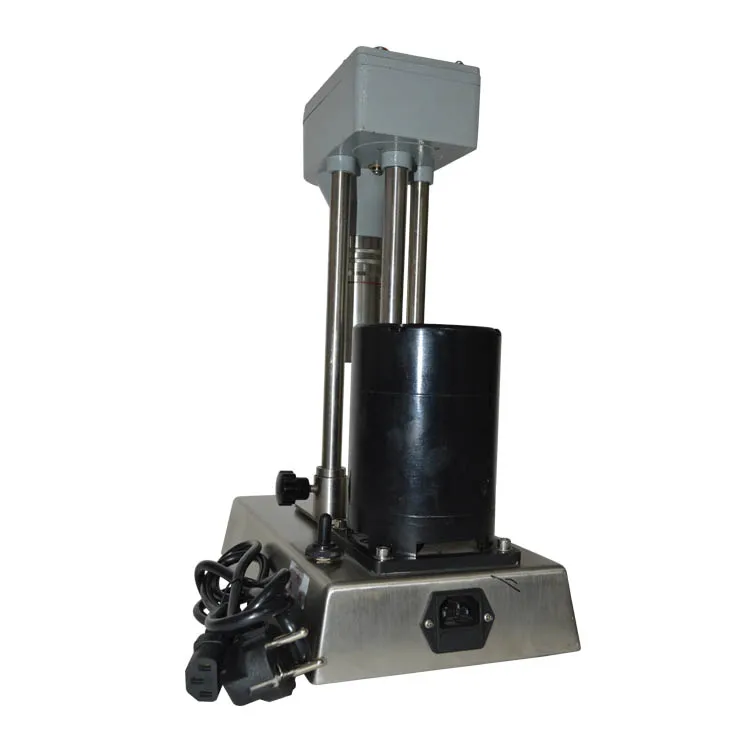

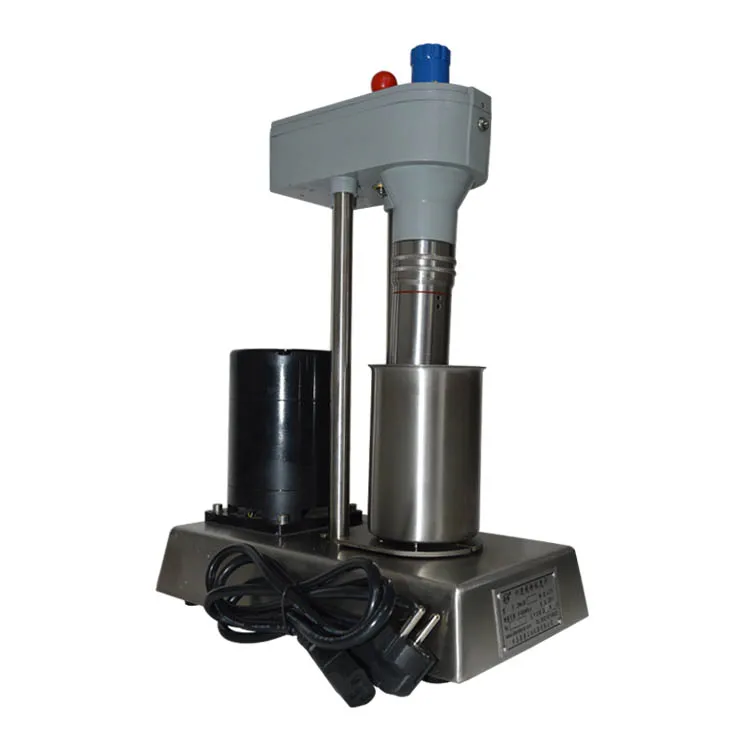

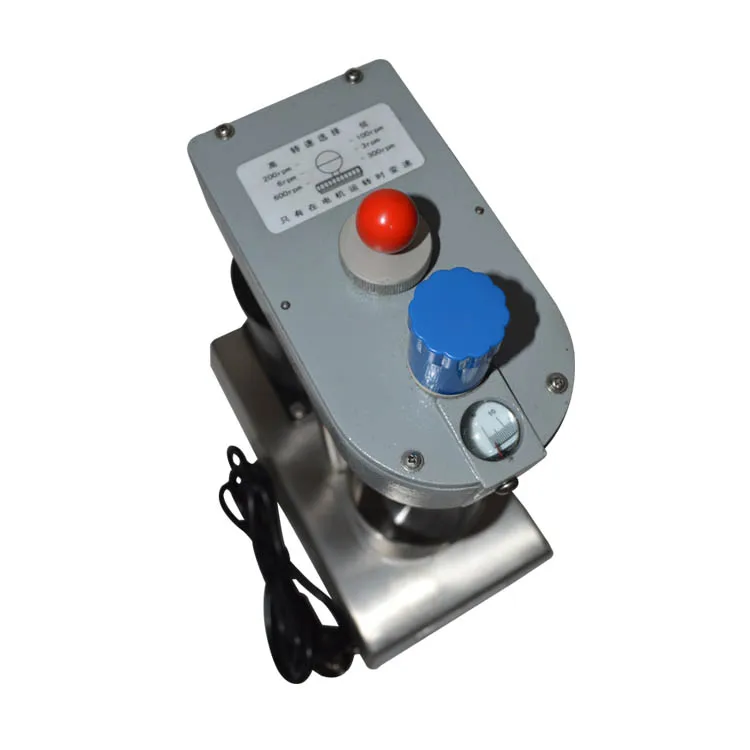

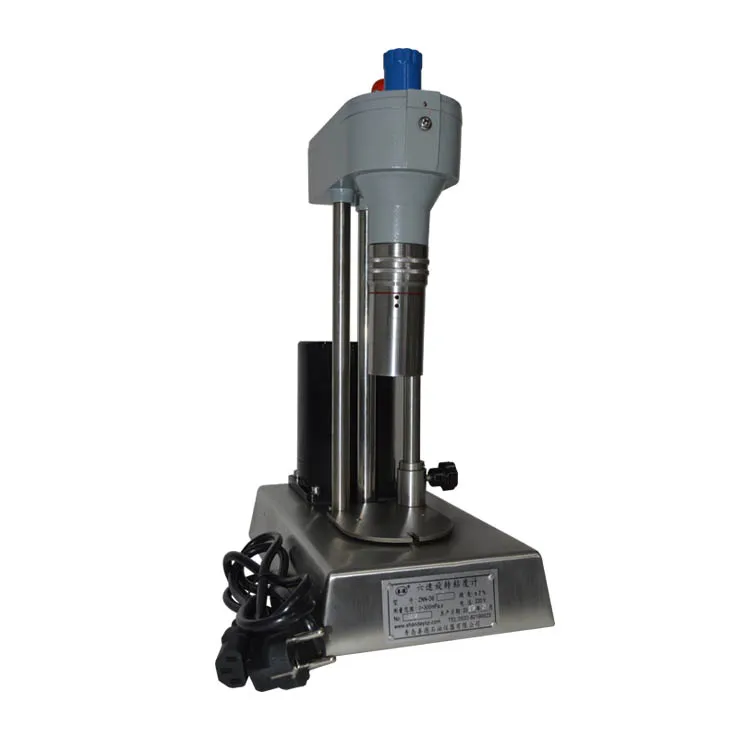

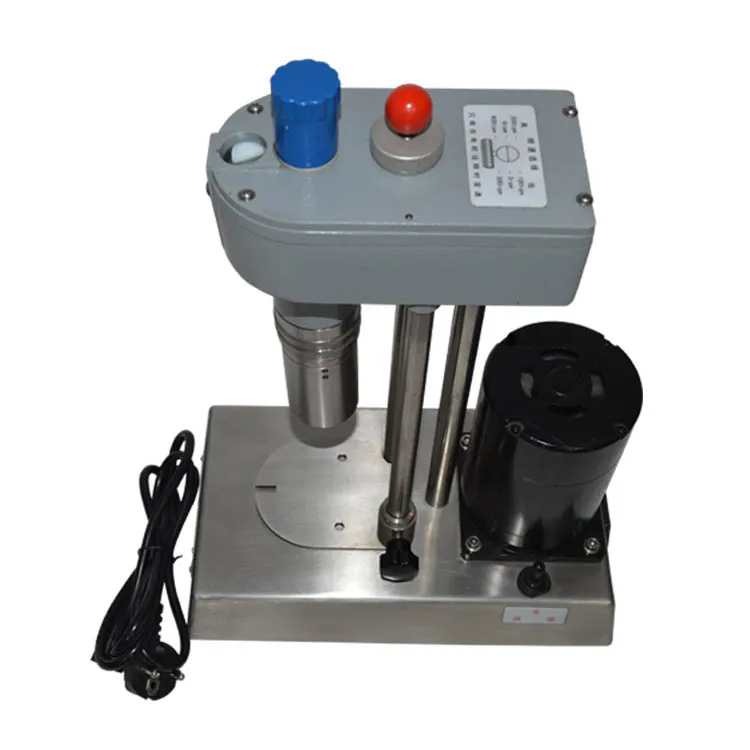

Picture showing:

Overview:
  The six-speed rotational viscometer can measure the rheological parameters, draw the

rheological curve according to the multi-point measurement value, determine the flow pattern of

the liquid in the process of flow, choose the appropriate formula, the non-Newtonian fluid for

more accurate measurement, It is used to analyze the rheological parameters of drilling fluid

in the field. At the same time, a series of technical parameters such as dynamic and static

shear force, flow index and consistency coefficient can be measured. Is conducive to safe,

fast, scientific drilling needs. With easy operation, accurate test features.

Description:

Power supply: 220V ± 5% 50Hz

Motor power: 7.5W / 15W

Motor speed: 750/1500 r / min

Variable speed range: 3,6,100,200,300,600r / min

Staircase: 5,10,170,340,511,1022 S-1

measurement accuracy:

1 ~ 25 mPa · s ± 1 mPa.s (Newtonian fluid)

25 mPa · s or more ± 4% (Newtonian fluid)

Viscosity measurement range:

Newtonian fluid: 0 ~ 300mPa.s (F1 measurement kit)

0 ~ 60mPa.s (F0.2 measuring unit)

Non-Newtonian fluid: 0 to 150 mPa.s (F1 measurement kit)

0 ~ 30 mPa.s (F0.2 measuring unit)

Shear stress: 0 to 153.3 Pa (F1 measurement kit)

0 ~ 30.7Pa (F0.2 measuring unit)
