A 50K potentiometer from the Taiwan Alpha RV16AF series. The potentiometer has a Ø16mm metal case with a Ø6.35 x 15mm long shaft. Ideal for use in audio, musical instruments, TV/video and industrial control applications as well as being suitable for general purpose use.



  • Operating voltage max. 200V AC

  • Logarithmic taper

  • Ideal for high-end audio applications

  • Ø16mm metal case

  • Milled shaft

  • 300° Rotation stop

  • Supplied with nut and washer

  • Taiwan Alpha RV16AF-20-15R1-A50K-3

Responsive image

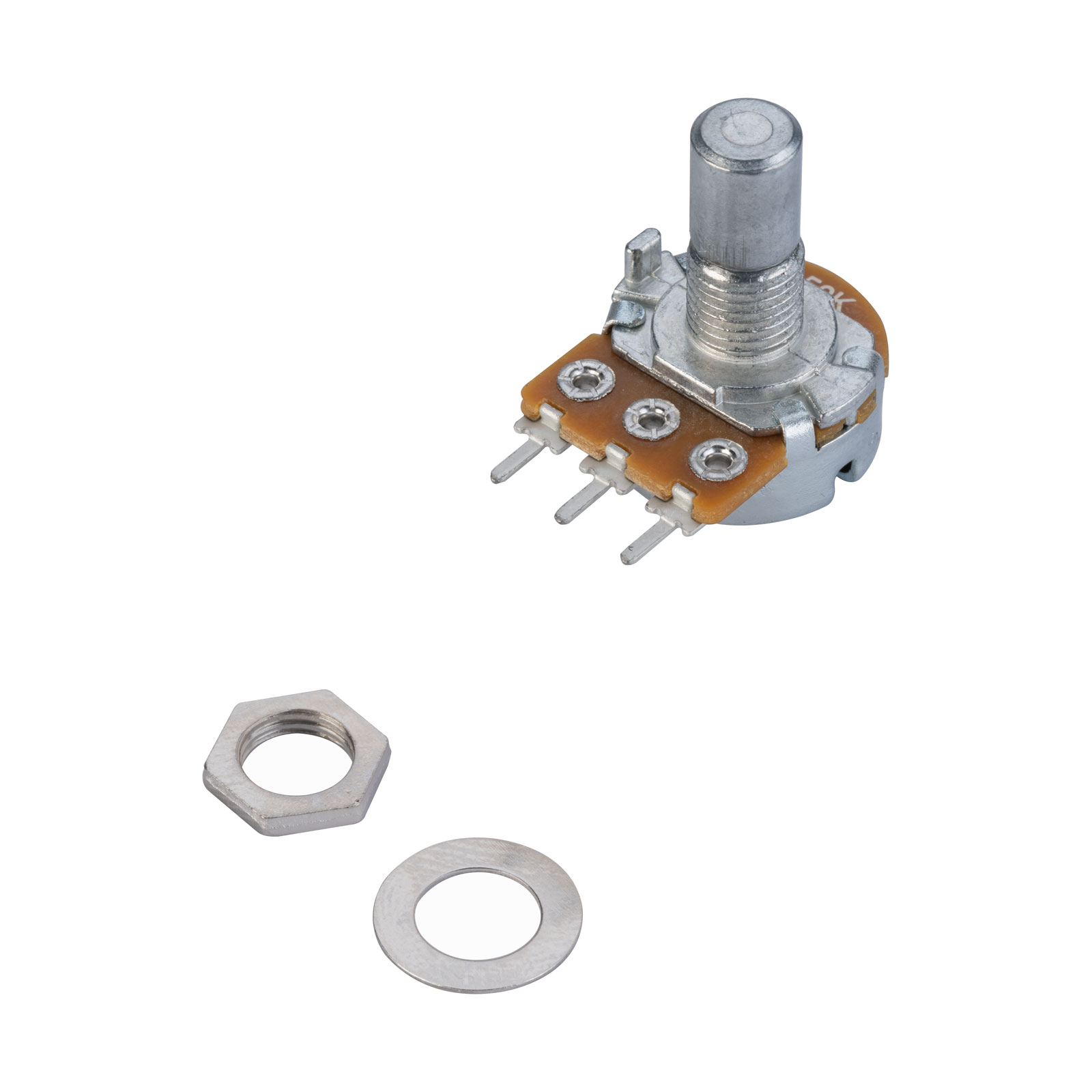

Taiwan Alpha RV16AF-20-15R1-A50K-3 50K LOG 16mm Metal Case Horizontal Mount Pot

Product Details

A 50K potentiometer from the Taiwan Alpha RV16AF series. The potentiometer has a Ø16mm metal case with a Ø6.35 x 15mm long shaft. Ideal for use in audio, musical instruments, TV/video and industrial control applications as well as being suitable for general purpose use.


  • Operating voltage max. 200V AC
  • Logarithmic taper
  • Ideal for high-end audio applications
  • Ø16mm metal case
  • Milled shaft
  • 300° Rotation stop
  • Supplied with nut and washer
  • Taiwan Alpha RV16AF-20-15R1-A50K-3
NameValue
No of Turns300°
Resistance50kΩ
Shaft Diameter6.35mm
Shaft Length15mm
TaperLogarithmic
Tolerance± 5°
TypeLogarithmic Potentiometer
