Note: This motherboard has been used, we will test 100% before Shipping, Have 90% New

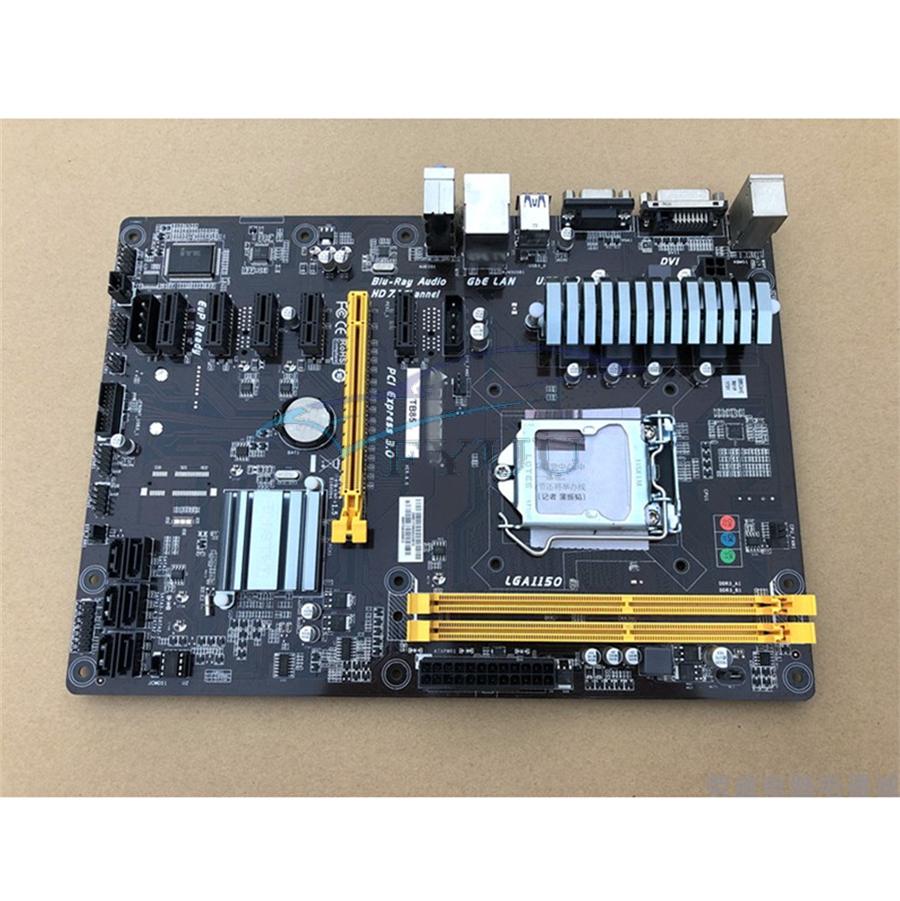

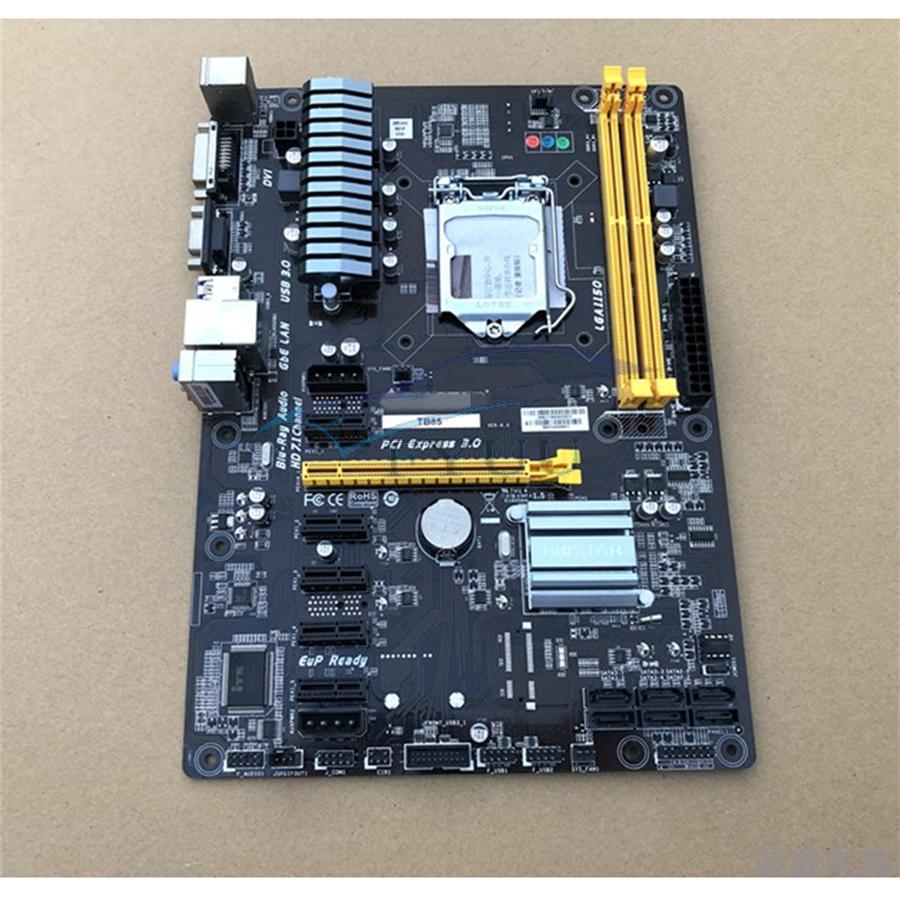

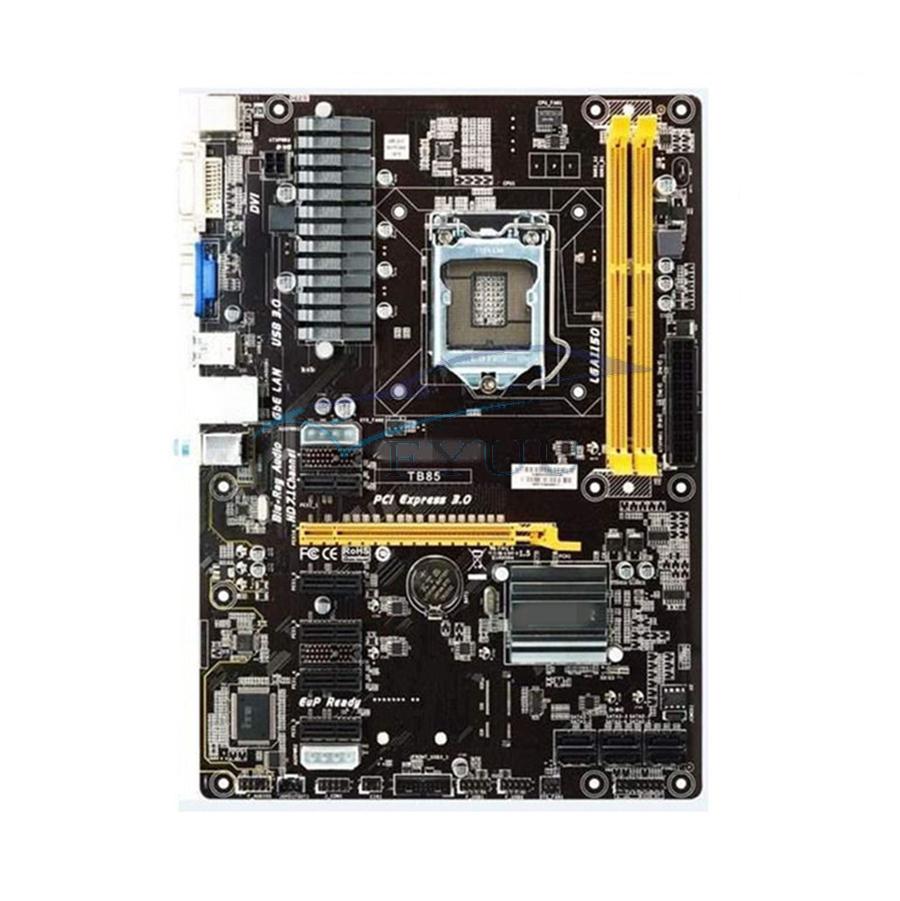

TB85 parameters
Main chipset: Intel B85
Audio chip: Integrated Realtek ALC892 8 channels
Memory type: 2×DDR3 DIMM
Maximum memory capacity: 16GB
Main board type: ATX board type
Dimensions: 29.5×21cm
Power socket: a 4-pin, a 24-pin power connection
Integrated chip sound card/network card
Main chipset Intel B85
The chipset description uses Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC892 8-channel sound effect chip
Realtek RTL8111G Gigabit network card onboard network card chip

Processor specification
CPU type Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1150
The CPU description supports Intel 22nm processors
Memory size
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Dual channel DDR3 1600/1333/1066MHz memory is supported

Storage extension
PCI-E standard PCI-E 3.0
PCI-E slot 1 x PCI-E X16 graphics card slot, 5 x PCI-E X1 slot
Storage interface: 4×SATA III interface, 2×SATA II interface

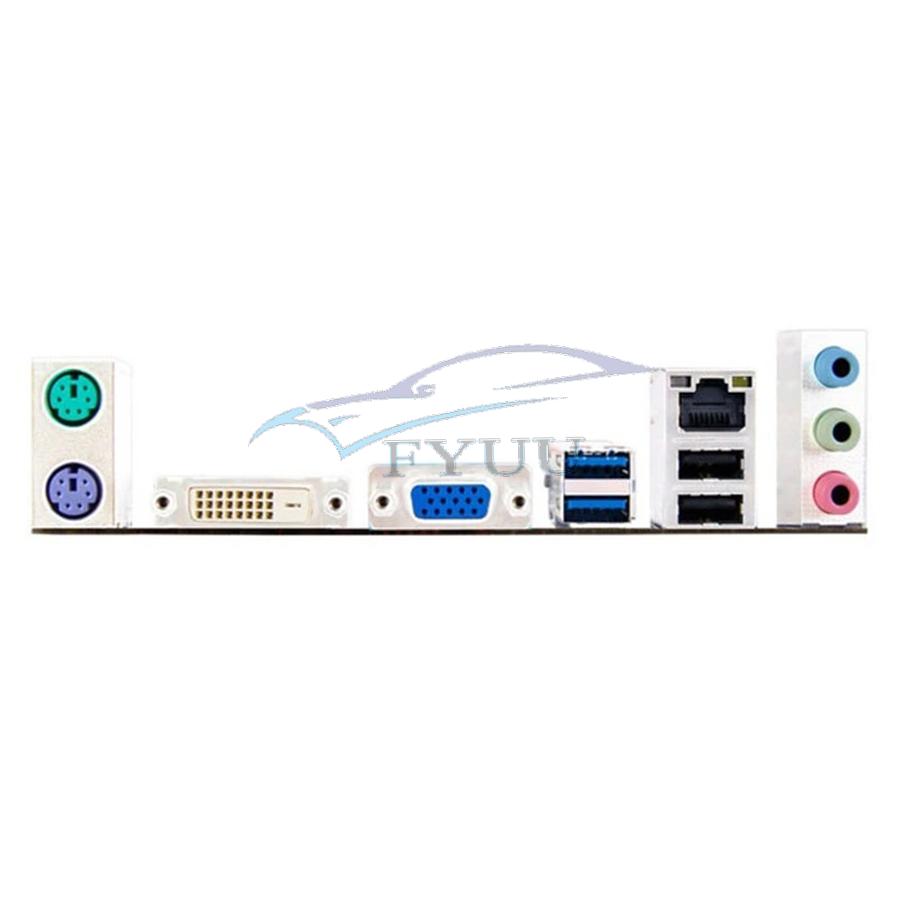

The I/O interface
USB interface 4×USB3.0 interface (2 built-in +2 backboard), 3×USB2.0 interface (1 built-in +2 backboard)
Video interface 1×DVI interface, 1×VGA interface
A 4-pin power interface, a 24-pin power interface

Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface, 1×COM interface

The plate type
Main board ATX board
Overall dimension 29.5×21cm

We accept payment by PayPal only !
Payment should be completed within 7 days after buyer places the order,or else an unpaid case will be opened in order to cancel the transaction. If you can not pay in time, please contact us.
eCHECK from PayPal will only be processed once the payment clears.
All of the items will be shipped to buyer's EBAY address,please confirm your address on Ebay before you buy.Your order will be usually shipped out the same or next business days once the payment is made and cleared.

All items will be checked before packing. All items are new and of high quality.
Item will be shipped within 1 business days upon receipt of payment, excluding weekends and public holidays.
If to USA,we will ship your order by SpeedPAK or China Post,it will take about 10-15/10-20 working days to you,and you can track it on line.
If to other country,we will ship your order by China Post,it will take about 10-20/11-35 working days to you,you aslo can track it on line.
Delivery time is about 11-35 business days and it may take up to 8 weeks to some European countries and South American countries due to strict custom inspection. We ship worldwide.

Shipping fee include packing, warehouse, distribution, order handling and processing costs.
We offer combined shipping discount on Shipping & Handling.
Please note that some countries will have custom duty or tax for certain items. It is the buyer's responsibility to pay all endued custom duty or tax. We are not responsible for any custom duty or tax since our price do not include this charge.

All sales are final.
30-day Warranty with Exchange for defective, malfunctioned, incorrect or parts-missing items. Please notify us and return the item with all parts and accessories packed and marked "FOR EXCHANGE" within 30 days of receipt.
If defective, malfunctioned or parts-missing items are no longer available, a refund may be issued.
All returning postage costs will be the responsibility of the buyers under all circumstances.

If you encounter any problems about anything, please feel free to contact us and we will do our best to assist you solve the issue. If you are not satisfied in anyway, please feel free to let us know and give us a second chance to correct it before you decide to leave any neutral or negative feedback.

Please contact us through eBay link if you have any questions. We will reply you within 24- 48 hours. Please check you spam mail if no response for 48 hours.

Note: This motherboard has been used, we will test 100% before Shipping, Have 90% New
