Product sellpoints

  • Waterproof Design:Reliable in any weather, the camera's waterproof build ensures durability and performance.
  • Supports CVBS/AHD Signal Switch:Easily switch between CVBS and AHD displays for versatile compatibility with various monitors.
  • Volkswagen Sagitar|2008 Vw Passat Sedan|170° Wide Viewing Angle:Capture a full 170° view with the fisheye lens, eliminating blind spots for a safer drive.
  • Top Starlight Night Vision:Enhanced night vision up to 15m with military-grade low-light technology for clear visibility.
  • AHD 1080P High Definition:AHD1080P option delivers crisp, real-time footage with advanced color separation and noise reduction.


3 Cameras Optional:

Tips, About E options:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!

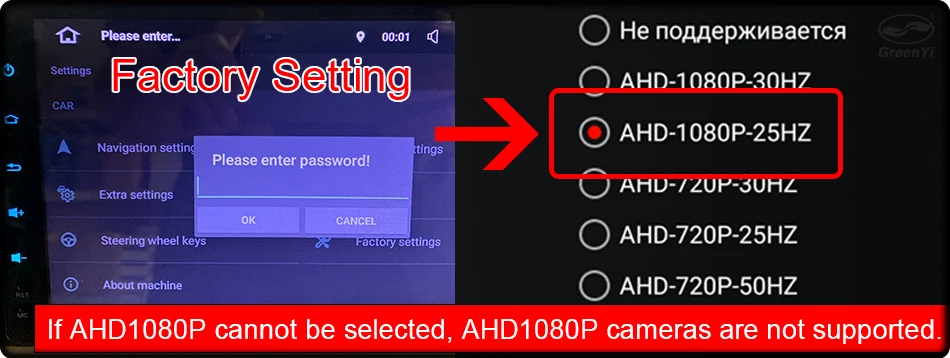

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

How to check whether the Android unit supports AHD camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

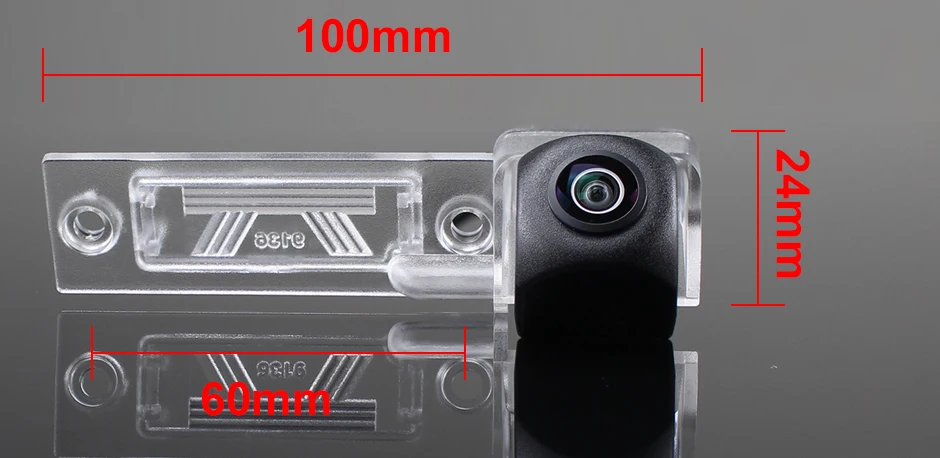

Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:

↓↓ 170° View Angle (Option D, E)

• Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

↓↓ 1280*720P Top Starlight Night Vision (Option D, E )

• Low-light Level Night Vision, 15m visible distance for night. Exclusive military low-light camera, the industry's most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!

↓↓ 2020 AHD Camera, Analog High Definition Technology (Option D,E)

• AHD1080P / AHD720P Optional
• If AHD1080P cannot be selected, AHD1080P cameras are not supported!
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.

↑↑ Support video signal control AHD/CVBS (Option D, E)

Through signal control, it can support CVBS and AHD displays.
• D camera
( CVBS )+( 1280x720 )+( 170° )
Cut the white cable→( AHD )+( 1280x720 )+( 170° )
• E camera
( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280x720 )+( 125° )

↑↑ Support parking reference line switch on/off (Option A, B, D, E)

Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.

Support Waterproof

Display effect

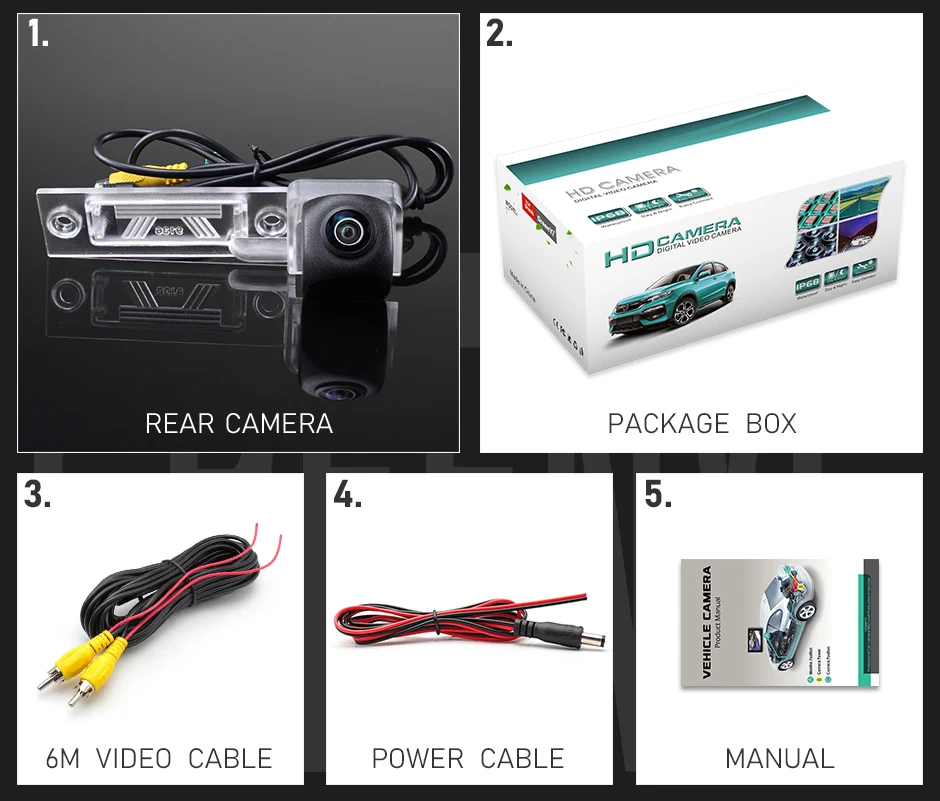

Package list

1. Rear camera
2. Package box
3. Video cable (6m)
4. Power cable
5. Manual

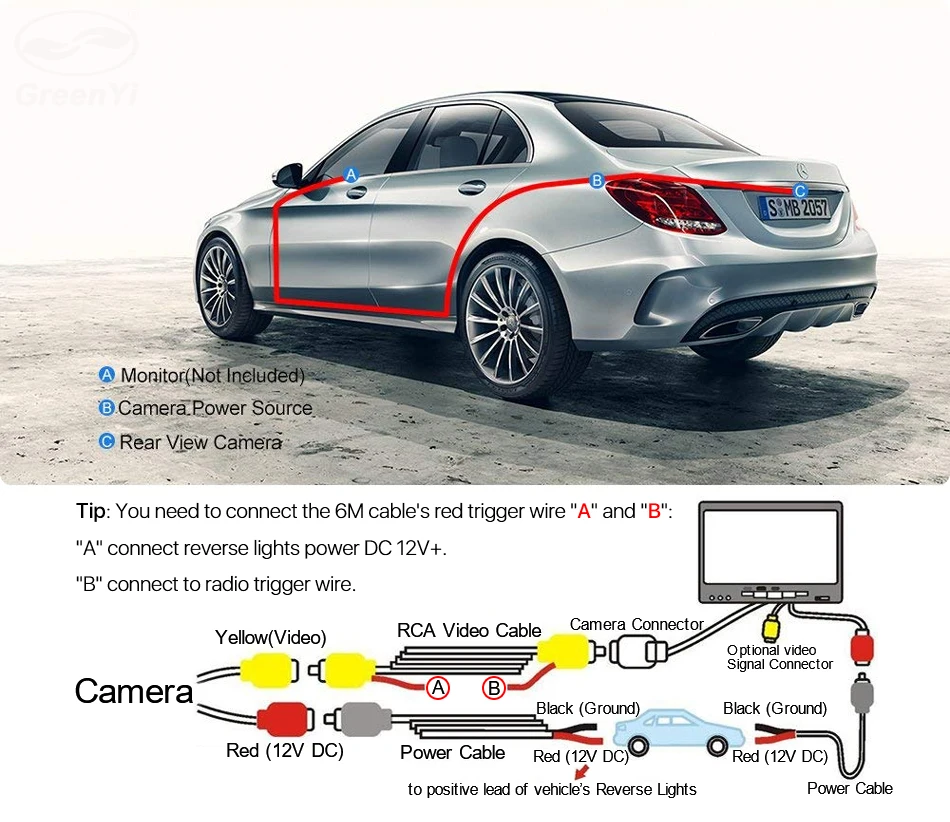

Installation Diagram

Tip: You need to connect the 6M cable's red trigger wire "A" and "B":
"A" connect reverse lights power DC 12V+.
"B" connect to radio trigger wire.
