Single Engine Channel NMEA2000 Converter 0-190ohm to 13 Sensors can be Collected

Mechanical：

• Size: 100mm*68*50mm


CX5106 Features:

• - Acquisition of sensor parameters and convert to NME A2000 parameters

• - Up to 13 sensors can be collected


Sensor Parameter(customizable)

• - Speed ratio adjustable range is 1~200

• - Engine tilt/trim 0~ 1 90ohm

• - Oil pressure 10~184ohm(0~10bar)

• - Temperature 301~22ohm(40~ 120'C)

• - Rudder 0~1 90ohm

• - Fuel level 0~ 190ohm

• - Freshwater level 0~1 90ohm

• - Wastewater level 0~ 1 90ohm


Environmental：

• - Operating Voltage 9 to 32 Volts(DC)

• - Power Consumption <120mA

• - Operating Temperature -30~75degrees

• - Storage Temperature -40~ 85degrees

• - Degree of Protection Ip67


Connection

• 1 , Connect to“Micro-C" NMEA 2000 interface .

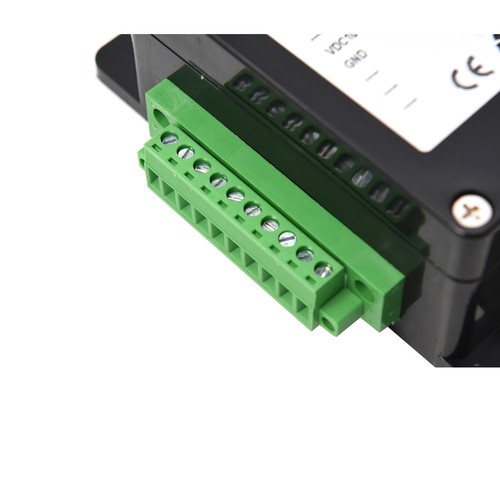

• 2 , Connect the corresponding interface

• - according to the functional requirements


Package Included:(as the picture shows)

• 1 x CX5106 NMEA2000 converter

• 1 x Tool
