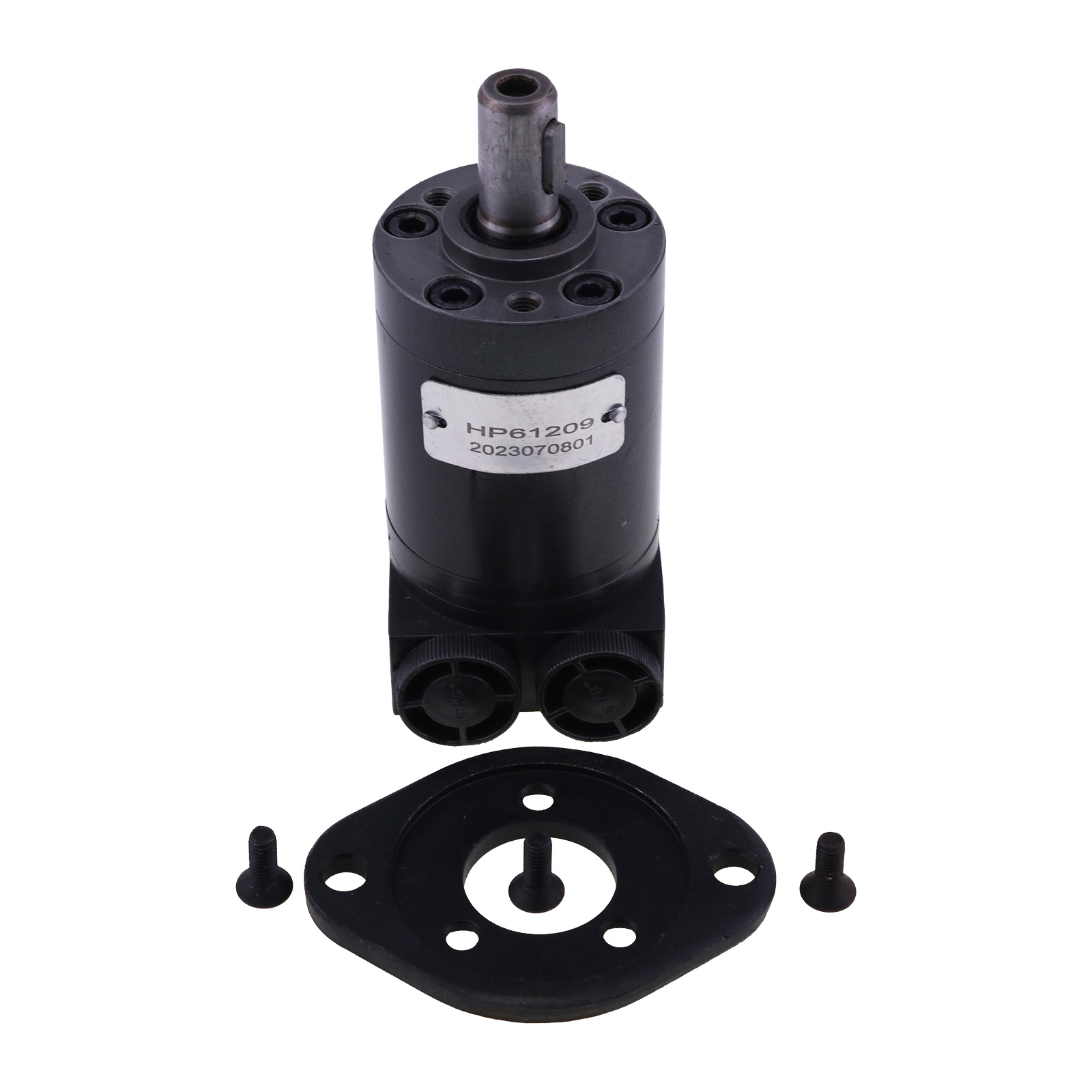

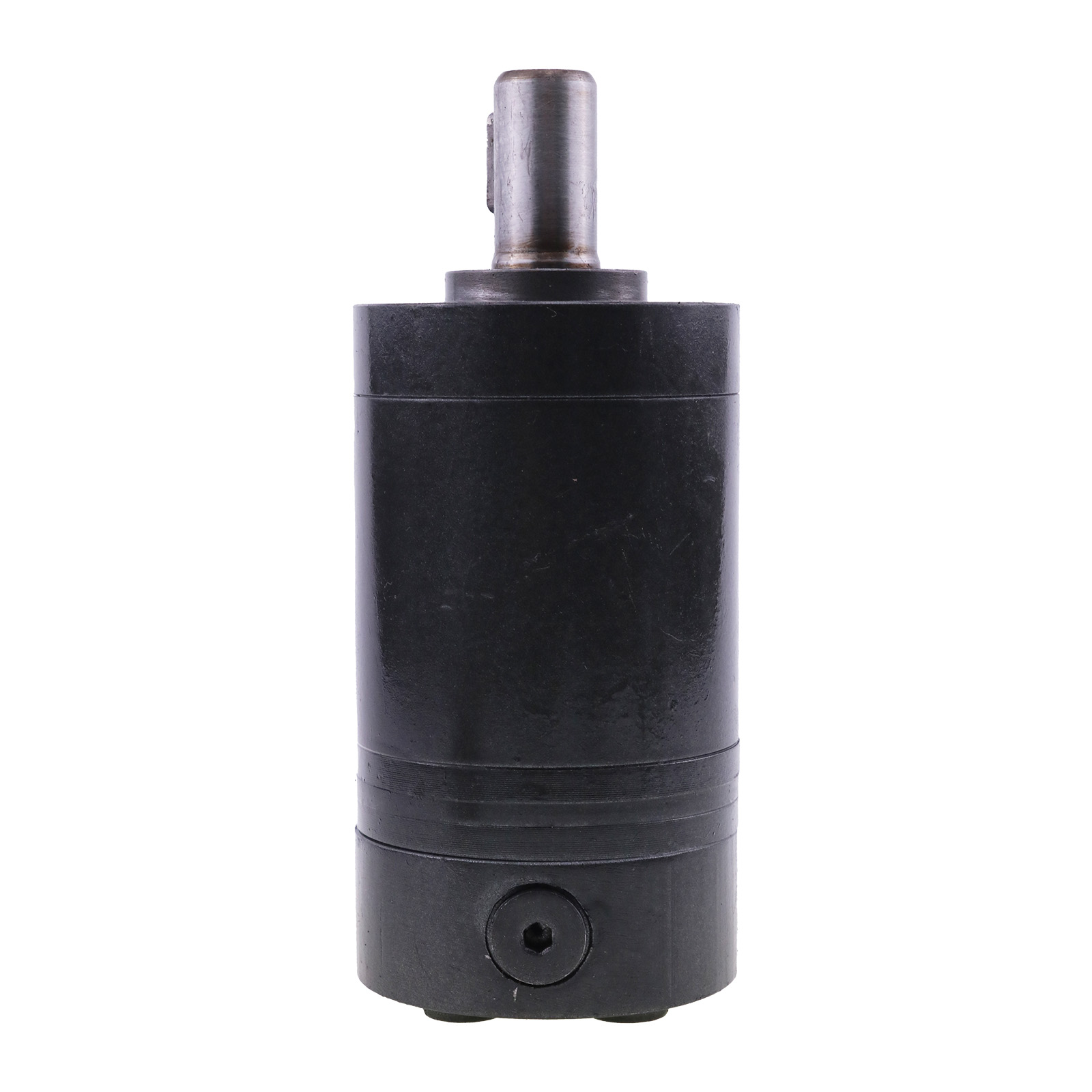

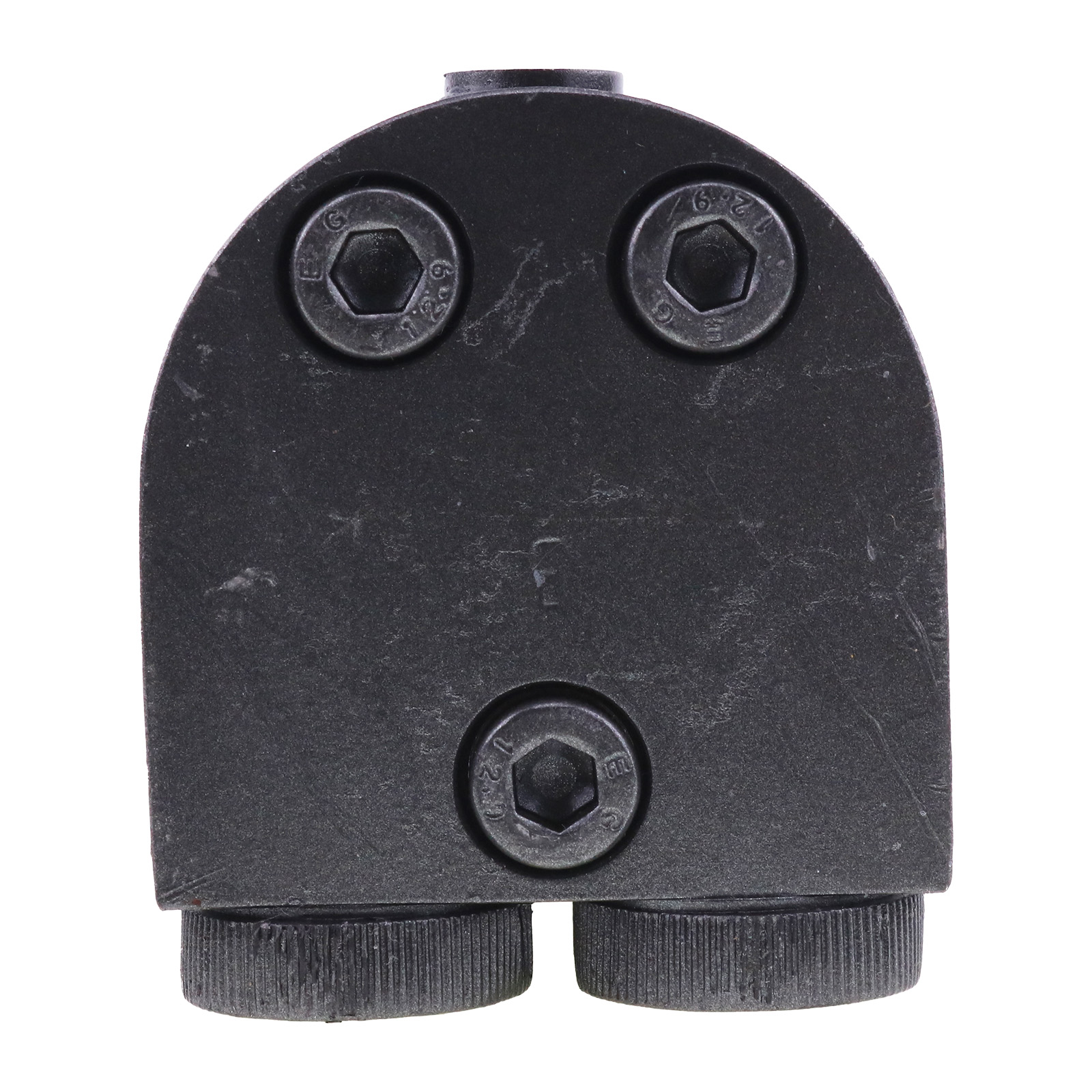

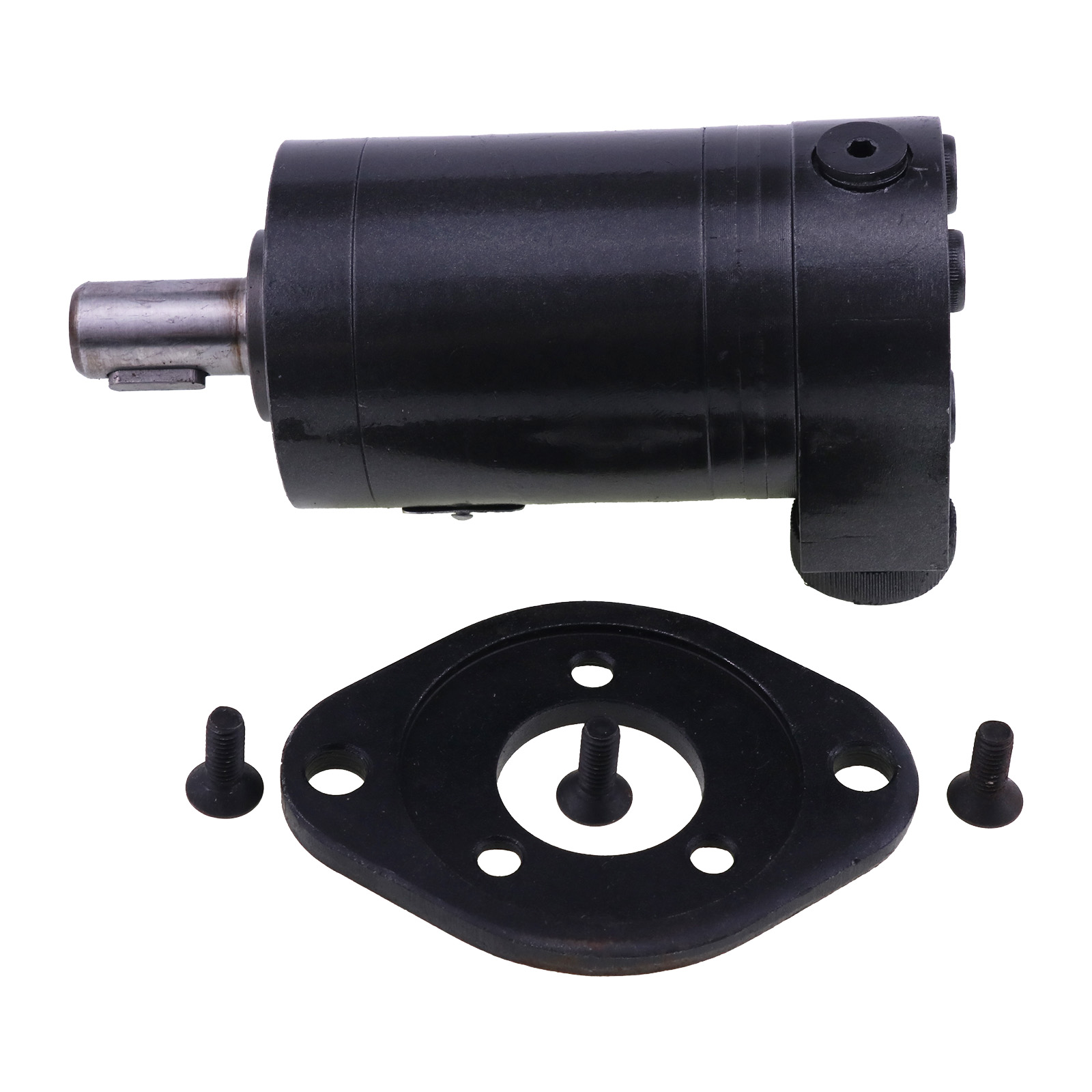

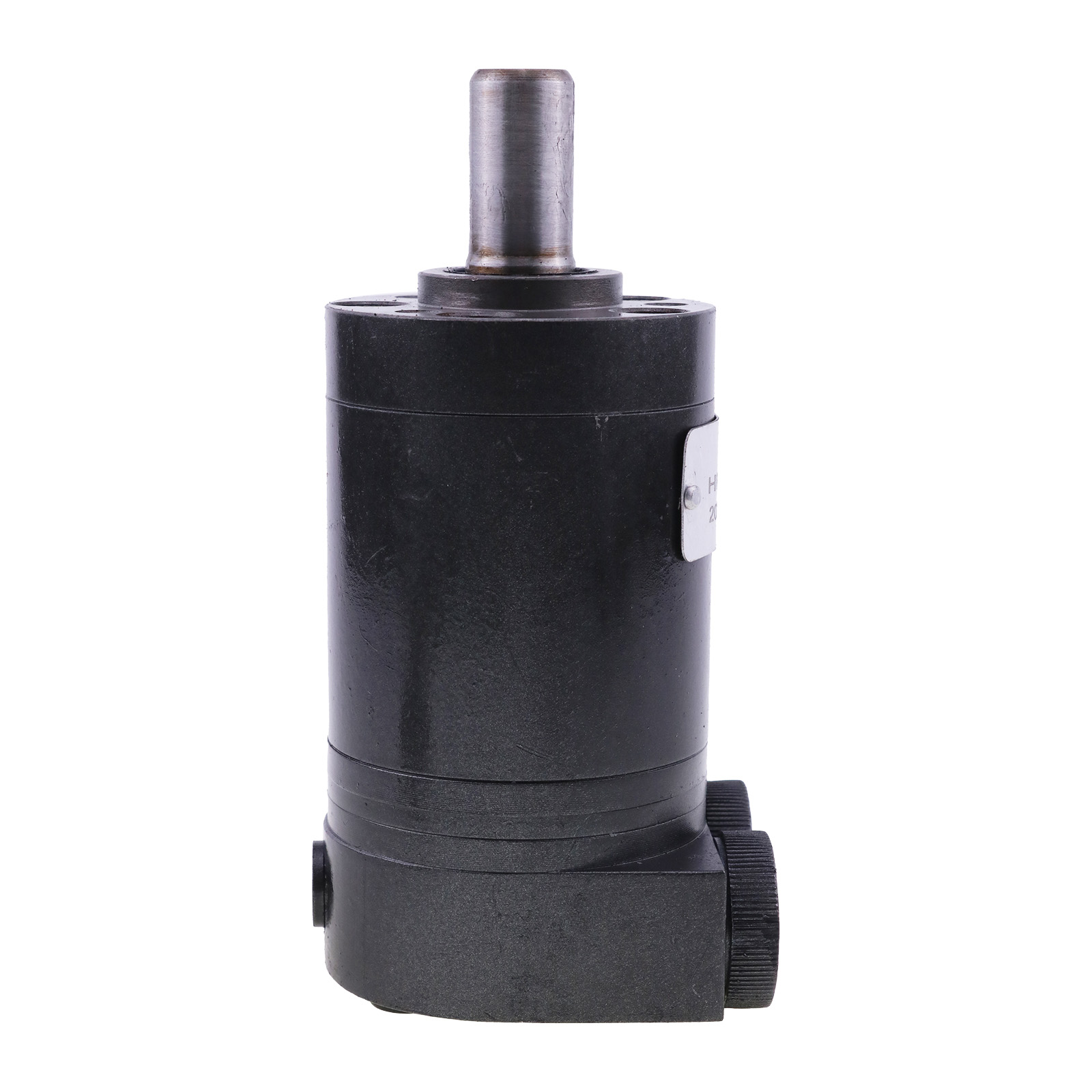

Hydraulic Orbital Motor OMM8-151G0041 151G0041 151-G0041
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMM8-151G0041, 151G0041, OMM8151G0041
Specification:
Type: OMM
Motor Size: 8
Geometric displacement: 8.2cm³/[0.5in]
Max speed cont: 1950 rpm
Max speed int: 2450 rpm
Max torque cont: 11Nm/[95lbf in]
Max torque int: 15Nm/[135lbf in]
Max output power cont: 1.8kW/[2.4hp]
Max output power int: 2.6kW/[3.5hp]
Max pressure drop cont: 100bar/[1450psi]
Max pressure drop int: 140bar/[2030psi]
Max pressure drop peak: 200bar[2900psi]
Max oil flow cont: 16L/min
Max oil flow int: 20L/min
Max starting pressure with unloaded shaft: 4bar/[60psi]
Min starting torque at max press drop cont: 7Nm/[60lbf in]
Min starting torque at max press drop int: 10Nm/[90lbf in]
Max inlet pressure cont: 140bar/[3050psi]
Max inlet pressure int: 175bar/[3630psi]
Max inlet pressure peak: 225bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 225bar/[3050psi]
