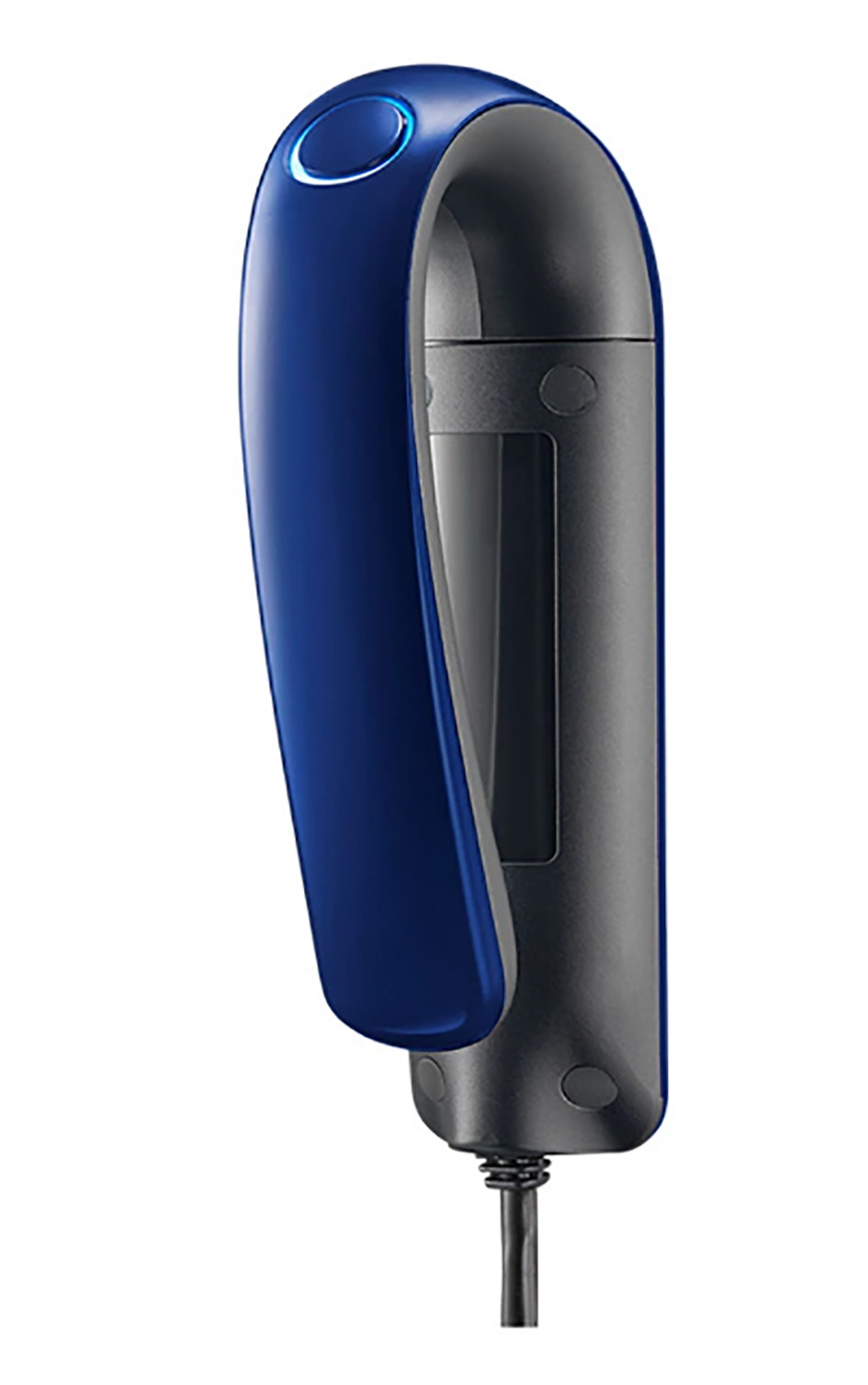

3D Modeling Scanner XYZ Printing Handheld Full Color High Precision
Features:
- Professional Precision: Using Intel RealSense 3D camera technology, using depth camera and infrared projector to capture full-color texture of objects, timely and accurately detect the movement of objects, so as to provide users with a smoother and more accurate scanning experience.
- Simple Operation: USB plug and play, using XYZ scan Handheld, you can edit the scanned model, support measurement/cutting/color matching/browsing/switching color, the output file format is OBJ/PLY/STL. Compatible with 3D Systems.
- Wide Scanning Range: It can scan the target within the range of 20cm-100 * 100 * 160cm, with a wide scanning range. It can record life in a three-dimensional way and add fun to life
- Small and Portable: XYZ printing handheld scanner is light and portable. It only needs to be connected with USB. With one key operation, you can scan anytime and anywhere.
- Wide Application: Capture life in a three-dimensional way, whether it's graduation season, wedding, vacation or travel, all your feelings can be displayed in the way of 3D model. It is widely used in 3D printing, animation design, industrial design, modeling and so on.
Scan Engine: Intel RealSense Camera
Max. Scan Size(WxDxH): 100 * 100 * 160cm/ 39.4 * 39.4 * 63.0in
Min. Scan Size(WxDxH): 20 * 20 * 20cm/ 7.9 * 7.9 * 7.9in
Scan Resolution: 1.0-1.5mm
Depth Image Size: 640 * 480p@30fps
Color Image Size: Max. 1920 * 1080p@40fps
Scan Distance: 25-60cm
Interface: USB 3.0
Spatial X/Y Resolution: 0.5mm/0.9mm
Scan Software: XYZ scan Handy
Output File Format: .OBJ/.PLY/.STL
Operating System: Windows 10(64bit), Mac OS X10.10 or above
USB Cable Length: 1.9m/ 6.2ft
Item Size: 15.7 * 6.1 * 4.1cm/ 6.2 * 2.4 * 1.6in
Item Weight: 238g/ 8.4oz
Package Size: 11 * 9.4 * 21.4cm/ 4.3 * 3.7 * 8.4in
Package Weight: 382g/ 13.5oz
Scan Tips:
Reflective, metal and transparent objects may be difficult for the scanner to capture. To scan objects with such features, you may apply rubber coating spray on the surface before scanning. When scanning a black or any dark colored object, please hold the scanner closer to the target and try to scan in different angles.
Note:
1. XYZscan Handy installation program is in SD card, you can also download it from the web.
2. Compatible with 3D Systems.
Packing List:
1 * 3D Scanner
Depth Image Size: 640 * 480p@30fps
Color Image Size: Max. 1920 * 1080p@40fps
Scan Distance: 25-60cm
Interface: USB 3.0
Spatial X/Y Resolution: 0.5mm/0.9mm
Scan Software: XYZ scan Handy
Output File Format: .OBJ/.PLY/.STL
Operating System: Windows 10(64bit), Mac OS X10.10 or above
USB Cable Length: 1.9m/ 6.2ft
Item Size: 15.7 * 6.1 * 4.1cm/ 6.2 * 2.4 * 1.6in
Item Weight: 238g/ 8.4oz
Package Size: 11 * 9.4 * 21.4cm/ 4.3 * 3.7 * 8.4in
Package Weight: 382g/ 13.5oz
Scan Tips:
Reflective, metal and transparent objects may be difficult for the scanner to capture. To scan objects with such features, you may apply rubber coating spray on the surface before scanning. When scanning a black or any dark colored object, please hold the scanner closer to the target and try to scan in different angles.
Note:
1. XYZscan Handy installation program is in SD card, you can also download it from the web.
2. Compatible with 3D Systems.
Packing List:
1 * 3D Scanner
1 * SD Card
1 * Quick Start Guide
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
