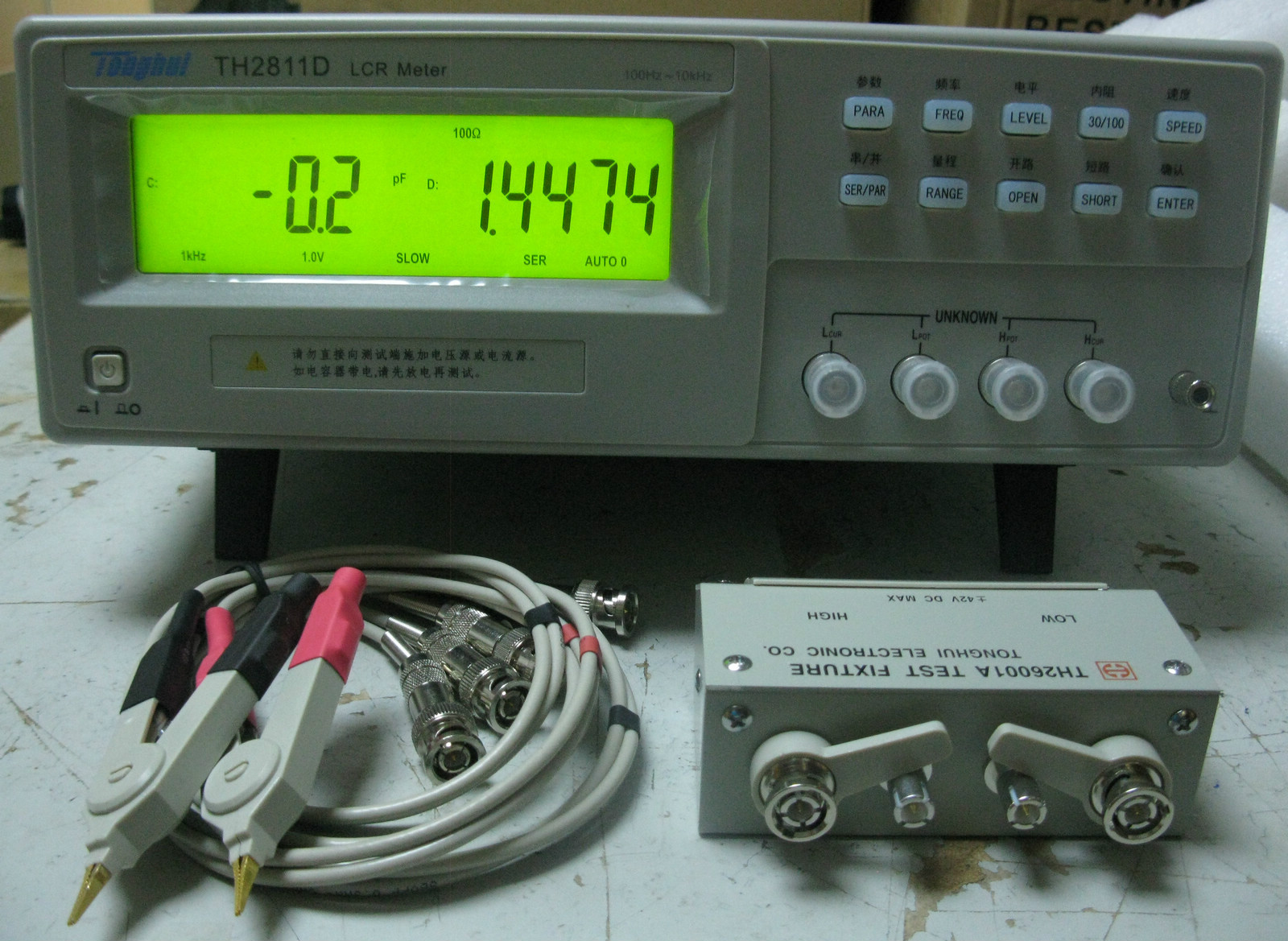

High-accuracy Benchtop LCR Meter 10KHz Inductance Capacitance RZ DQ Test TH2811D

PRODUCT DESCRIPTION

Bench Top High-accuracy 0.2% LCR Meter & Component Parameter Tester 10kHz

TH2811D LCR meter is our newly developed

successor instrument for low frequency component measurement.

TH2811D with its latest measurement technologies,

large character LCD display, surface mount techniques, easy of

use and excellent appearance can be used for quality control on

production line, incoming inspection of components and automatic

test system.

Features:

■ Large character LCD display with backlight

■ Easy operation with strong functions

■ SMT surface mount technic

■ Fast measurement speed (80mS)

■ Good Readout stability

■ 2 signal source output impedance:30Ω, 100Ω

Specifications:

Measurement parameter L-Q, C-D, R-Q, ︱Z︱- Q
Basic accuracy 0.2%
Equivalents circuit series, parallel
Rang model auto, hold
Trigger model internal
Measurement speed fast 12, med, 5.1, slow, 2.5 times/second
Calibration function open/short sweep correction
Measurement terminal 5-termainal
Display model direct
Display large character LCD with backlight
Signal frequency 100Hz, 120Hz, 1KHz, 10KHz
Out impedance 30Ω, 100Ω
Test level 0.1Vrms, 0.3Vrms, 1Vrms
Power supply 99V-121V, 198V-242V,47.5Hz-63-Hz
Power consumption ≤2 VA
Dimensions (W X H X D) 270mm x 139mm x 290mm
Net weight 3.7Kg

Measurement Display Range
|Z|, R: 0.1mΩ - 99.99MΩ
C
100Hz/120Hz 1pF - 99999μ F
1KHz 0.1pF - 9999.9μ F
10KHz 0.01pF - 999.99μ F
L
100Hz/120Hz 1μH - 99999H
1KHz 0.1μH - 9999.9H
10KHz 0.01μH - 999.99H
D 0.0001 - 9.999
Q 0.0001 - 9999
Δ% -999.99% - 999.99%

Display
Display Mode Direct
Display Large character LCD with backlight
Display digits Primary and secondary display:5 digits

Accessories:

TH26001A 4 terminal test fixture

TH26004-1 4 terminal Kelvin test clip leads

Th26010 Gilded shorting plate

Manual

Power cord
