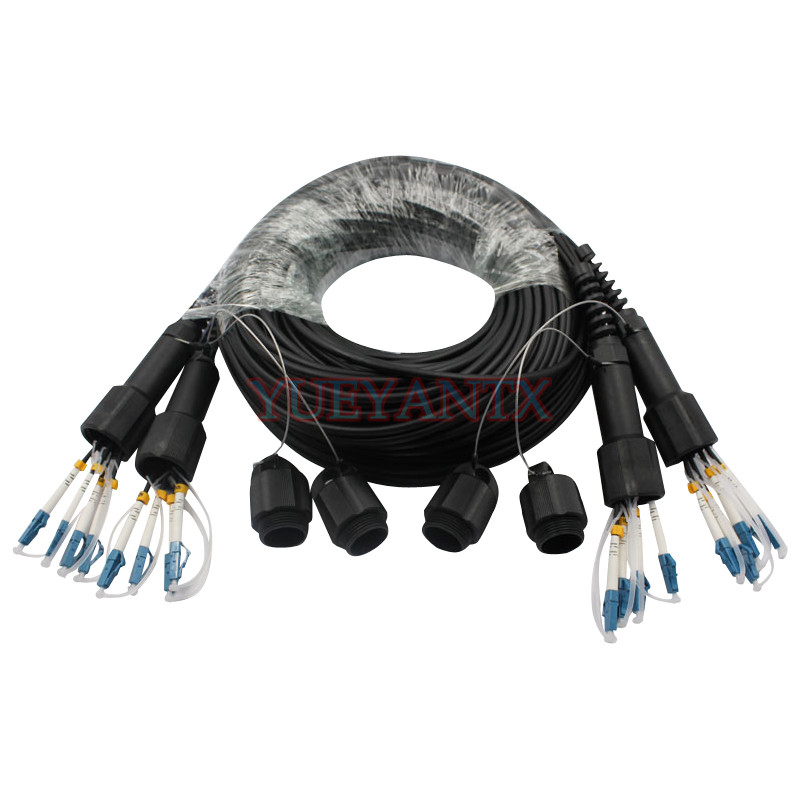

LC-LC UPC SM 100M 8 Strand Armored Field TPU Optical Patch Cord Waterproof Head
Overview:
Branch structure field optical cable is a kind of wild warfare optical cable that is manufactured by using single-core optical cable as the basic component and is specially used in field, special environment deployment or repetitive retraction. The 1~6 cores of tight-fitting optical fibers in the optical cable are arranged around the central circumferentially twisted arrangement, and the periphery is made of aramid yarn as a reinforcing element, and a polyurethane (TPU) or an equivalent material is used as a sheath.
application:
1. For military wiring;
2. For field wiring;
3. Used for harsh and harsh environmental wiring;
4. Used for temporary wiring and may be retracted for use.
Features:
1. The use of high-strength, fatigue-resistant fibers ensures the reliability and longevity of field cable in a variety of harsh conditions.
2. The special coating layer and the secondary coated composite structure can absorb mechanical and environmental stress, and the additional loss of the optical cable is small.
3. The small-pitch optical fiber SZ stranded and the aramid reinforced fiber single-strand stranded ensure that the field cable has a large tensile strain window.
4. High strength and light weight, high weight to weight ratio; round jacket structure is compact, especially suitable for repeated retractable occasions.
5. Flame-retardant high-strength, high-toughness polyurethane (PU) elastomer sheath, high oxygen index, good flame retardancy, oil and chemical resistance, tear resistance, low temperature flexibility, strong elasticity, good stress buffering, wear resistance Pressure sheath.
6. Tight cover color according to TIA-598-A standard chromatography makes it easy to carry out fiber optic cable routing and termination.
7. Cable jacket with printed product information and length marking.
8. If required by the user, quick cable connectors can be pre-installed on both ends of the field cable.
9. The number of fiber cores is 1 to 6 cores, and can be customized according to requirements.
Connector-1: LC UPC
Connector-2: LC UPC
Fiber Mode: 9/125μm
Fiber Type: Single-Mode
Material: Stainless steel tube, TPU
Operating Temperature: -20~60°C
|
|
|
|
