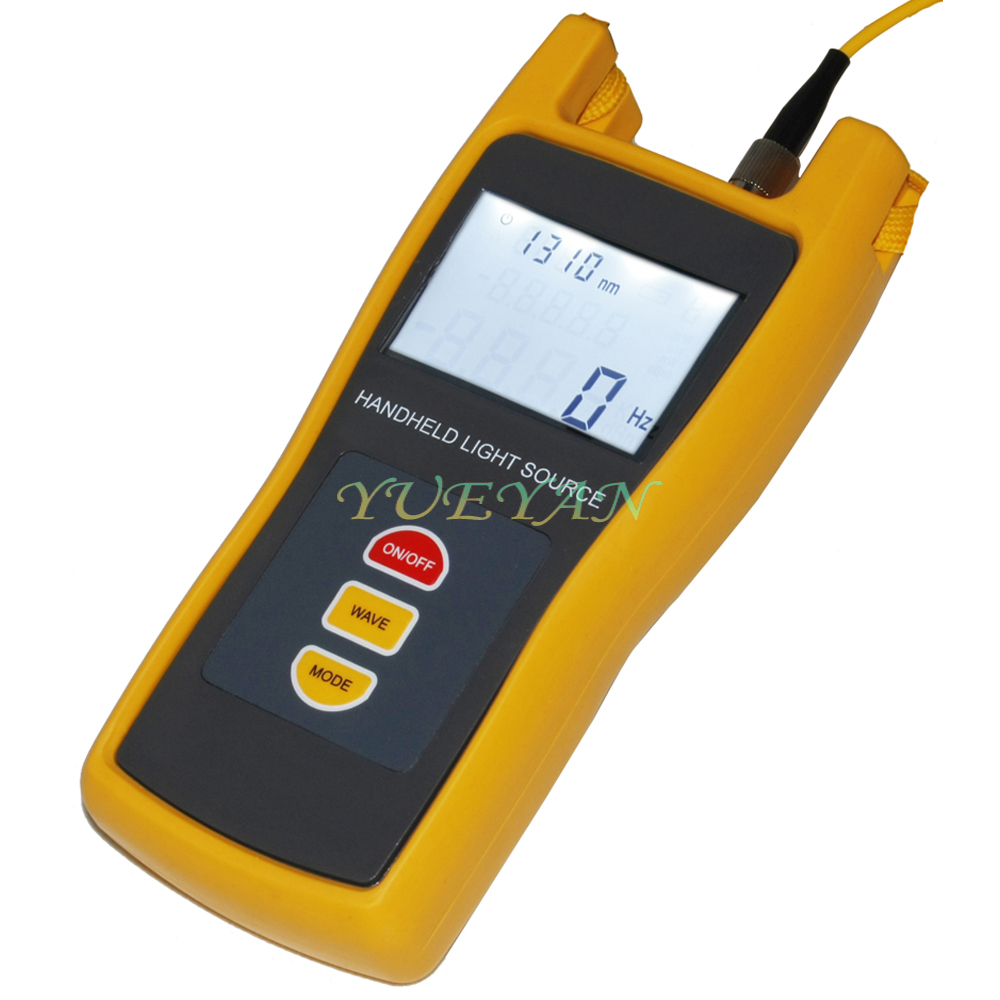

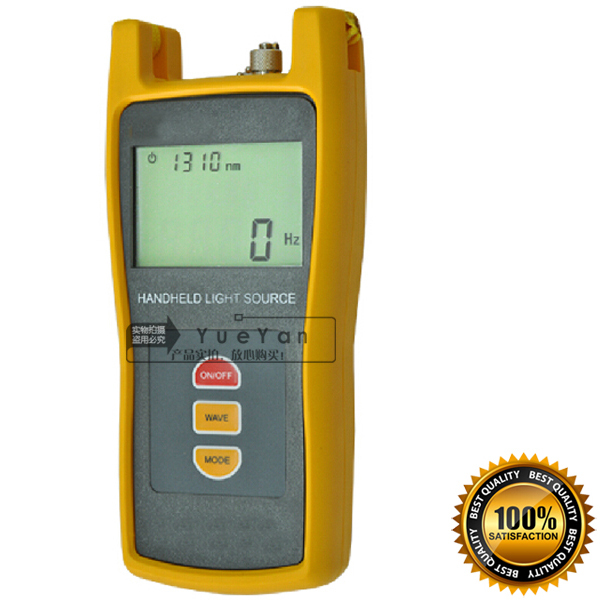

Fiber Optic Handheld Testing Tool Optical Light Source Tester 1310/1550/1625nm
Description:
YW-3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the YW-3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Key Features
Provides 1~4 output wavelengths which can be optional according to customer’s needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHzmodulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
NOTE: Colors will be different from each monitor and computer.
Specification:
Model: JW3109
Wavelength(nm): 1310/1550/1625
Emitter Type: FP-LD,LED
Typical Output Power(dBm): 0, -7dBm for LD, -20dBm for LED
Spectral Width(nm): ≤10
Output Stability: ±0.05dB/15mins; ±0.1dB/8hours
Modulation Frequencies: CW.2Hz CW, 270Hz,1KHz, 2KHz

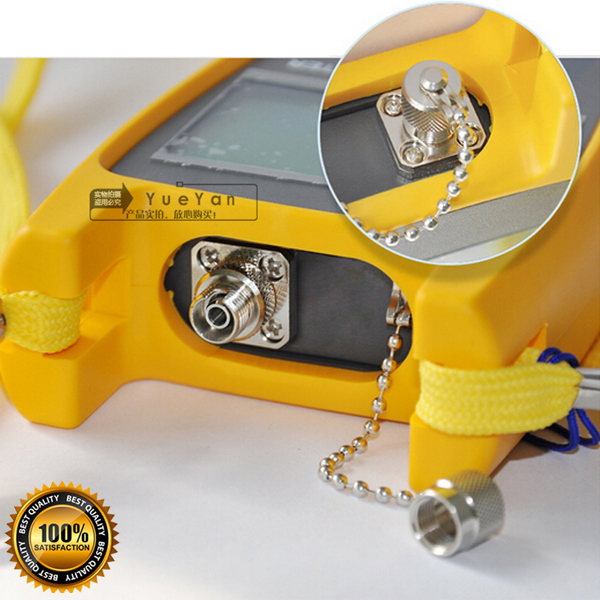

Optical Connector: FC/PC(Other type adapters can be required )
Power Supply: Alkaline Battry
Battery Operating: 45
Operating: -10~+60
Storage Temperature(℃): -25~+70

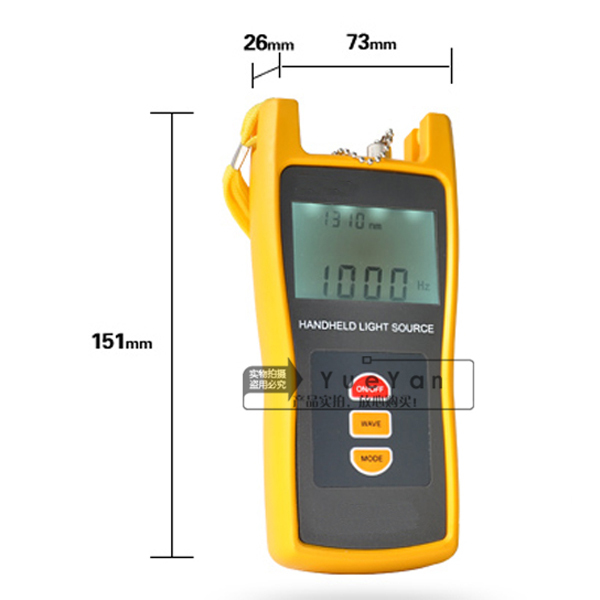

Dimension(mm): 175 x 82 x 33
Weight(g): 295
Package:
1 x Handheld Optical Light Source 1310/1550/1625nm
1 x FC Adapter
1 x Cotton Bag
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
