Features:
We Have Made Transmitter And Receiver Working Together And Test It Before Ship It, When You Get It Don' T Need To Do Anything, Just Install It.
When The Receiver Output State Is Latched, We Have Set It 0.5s Time Delay For Forwards And Reverse, It Is The Protection Function.

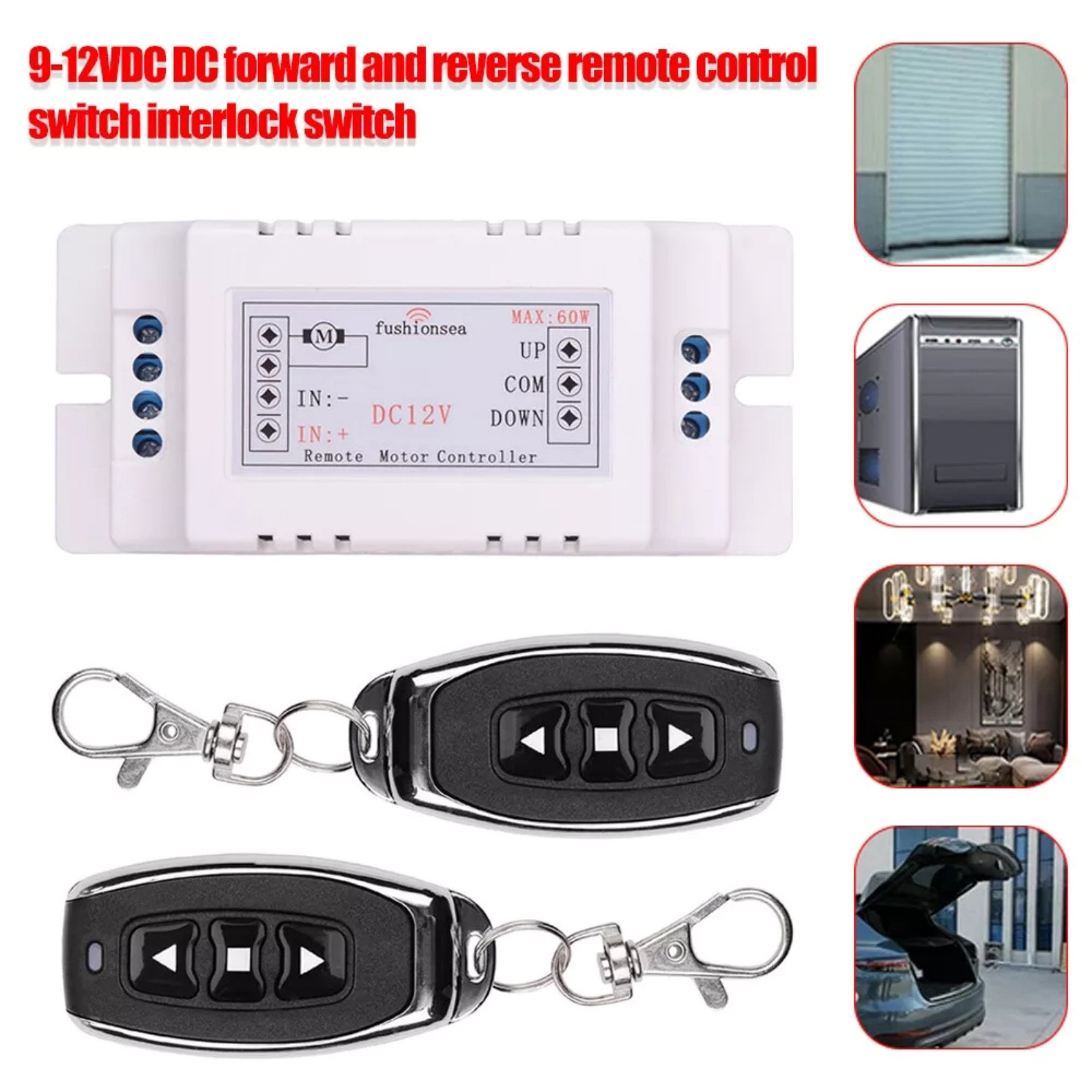

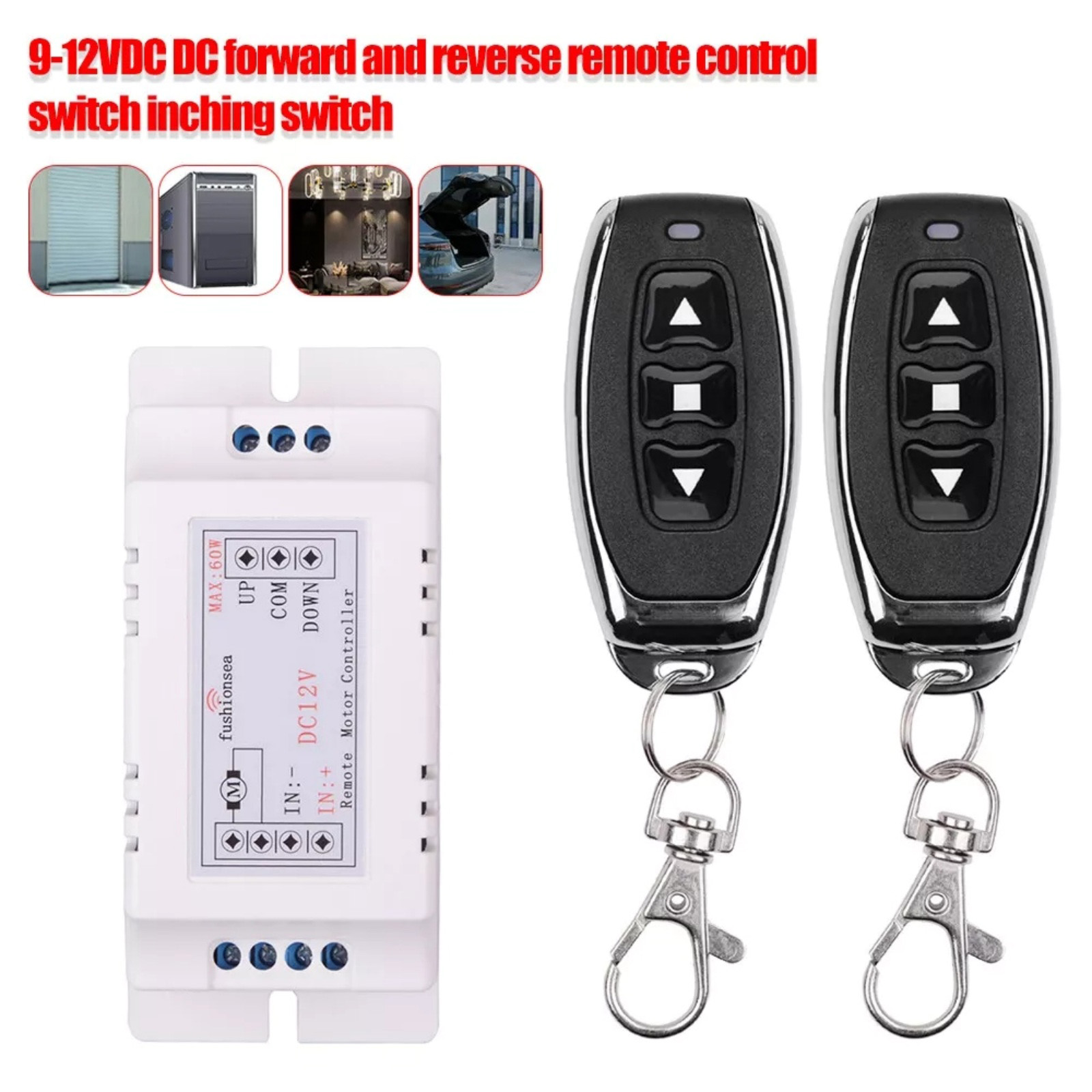

The Wireless Remote Control Switch Can Control One Or More Devices In The Room. Widely Used In Remote Water Pump Switches, Motor, Electric Curtain Machine, Wireless Remote Control Machine Switches, Wireless Remote Control Sockets, Lifting Equipment, Wireless Lamps, Window, Entrance, Garage Doors, Various Types Of Wireless Home Appliances Control And So On.
Specifications:
Material: ABS
Batteries: 2* Cr2016 Batteries(Battery Included)

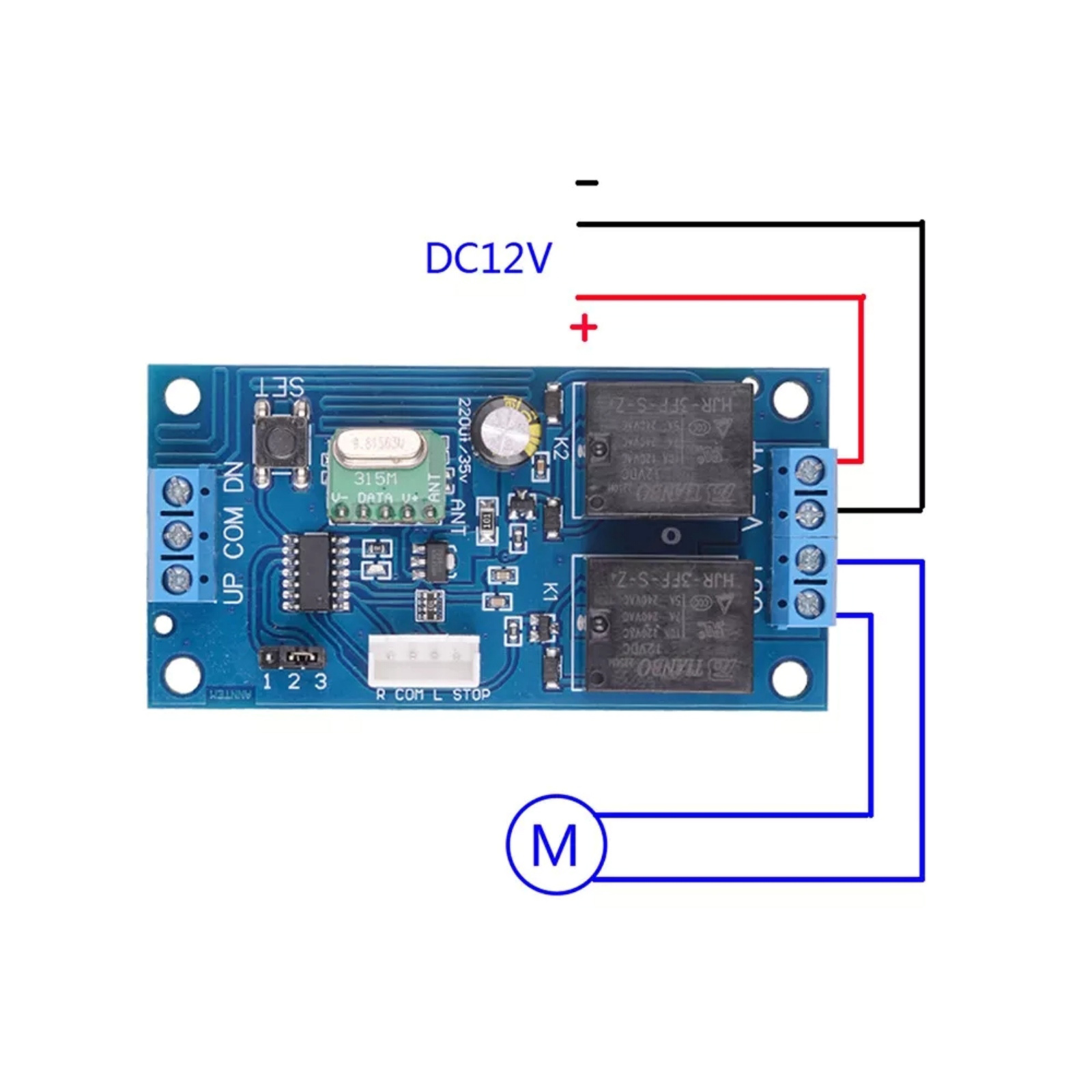

Operating Voltage: DC 9V ~12V
Operating Frequency: 433mhz
Standby Current: About 10mA
Operating Current: About 35mA
Maximum Load Current: Less Than 10A(Less Than 60 Watts Of Equipment)

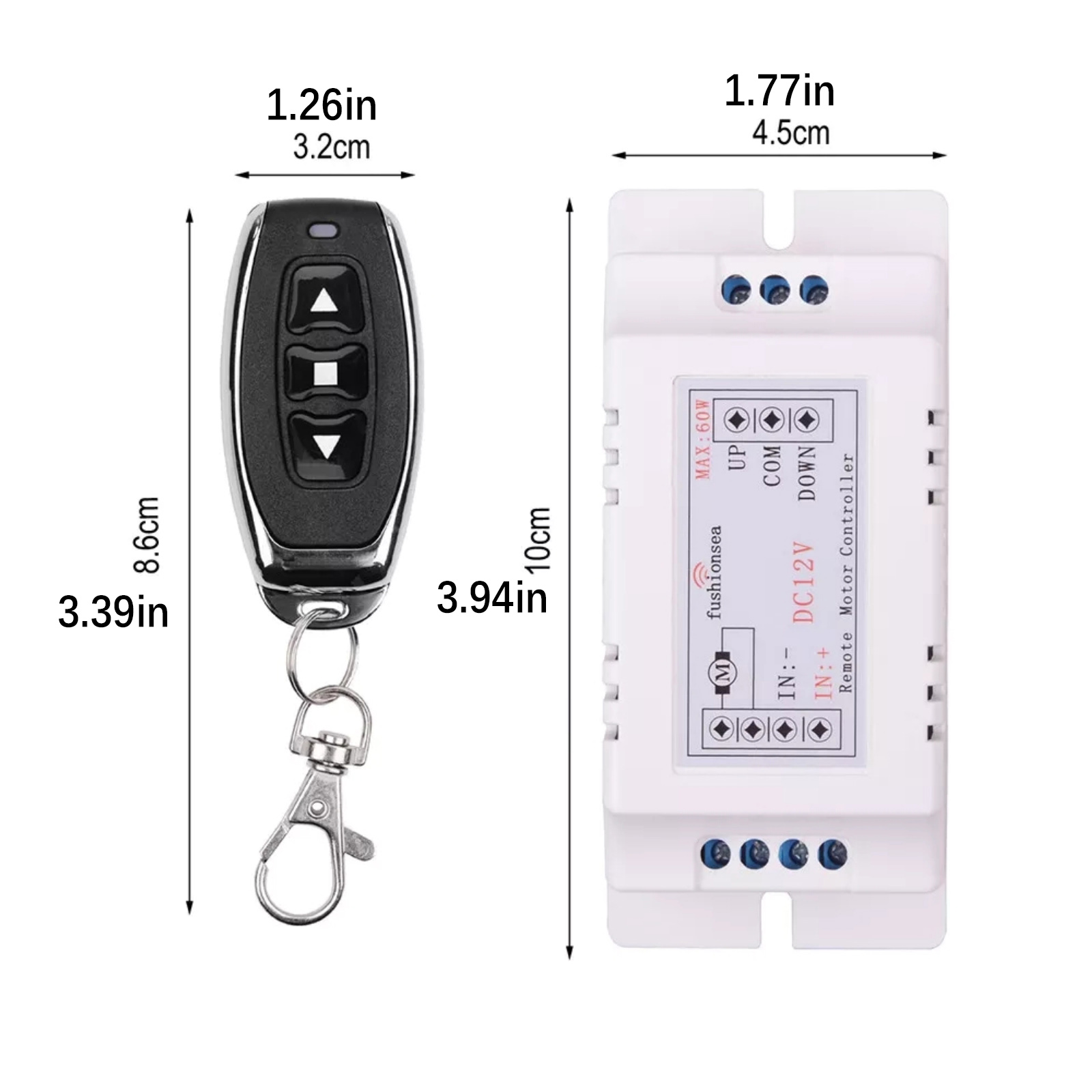

Size: 3.96in* 1.77in* 1.14in
Receiver Sensitivity: -105dbm
Learn Code:
Control Mode: Jog Control, Interlock Control, Adjustable
Interlocking Control Mode:
Click The Up Button On The Remote Control Once To Control Forward Rotation,
Click The Stop Button On The Remote Control Once To Pause The Control
Click The Down Button On The Remote Control Once To Control The Reversal
Jogging Control Method:
Press And Hold The Up Key On The Remote Control To Control Forward Rotation,
Press And Hold The Down Button On The Remote Control To Reverse The Control,
Press And Hold For How Long, Turn For How Long, Release The Button To Turn Off
1. Press The Learning Button On The Receiver For 1 Time, The Learning Indicator On, Then Press The Transmitter Button Up For 1 Time (First Button Default For Forward), The Learning Indicator Flash 2 Times And On, It Mean The First Button Learning Successful.
2. Then Press The Transmitter Button Down For 1 Time (Second Button Default For Reverse), The Learning Indicator Flash 2 Times And On, It Mean The Second Button Learning Success Fully
3. Then Press The Transmitter Button Stop For 1 Time (Third Button Default For Stop), The Learning Indicator Flash 2 Times And On, It Mean The Third Button Learning Successfully.
4. Then Press The Transmitter Button Stop For 1 Time Again, The Learning Indicator Will Flash 2 Times And Off, It Mean All Button Learning Successful.
5. Press The Learning Button On The Receiver For 5s, The Learning Indicator Will Flash 3 Times And Off, It Mean All The Transmitter Code In The Receiver Have Been Deleted.
Function: Limit & External Manual Button:

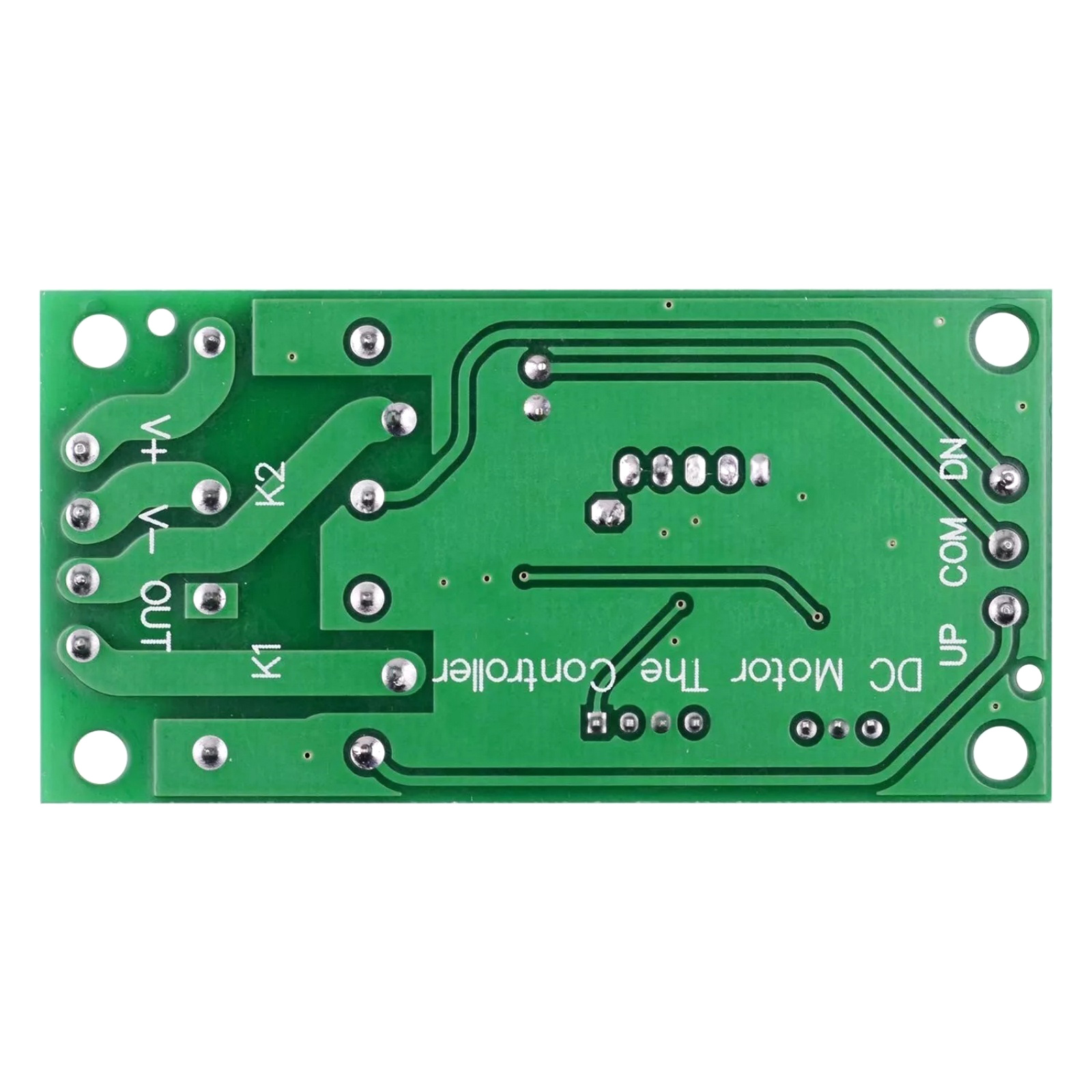

How To Wire To Your External Manual Button (If You Need)Forward ---------R & Com
Reverse ----------L&Com
Stop---------------Stop &Com
Initial State Off, (Suddenly The Power Was Cut Off, Then Comes Back, The State Isstill Off, You Need To Manually Turn It On)

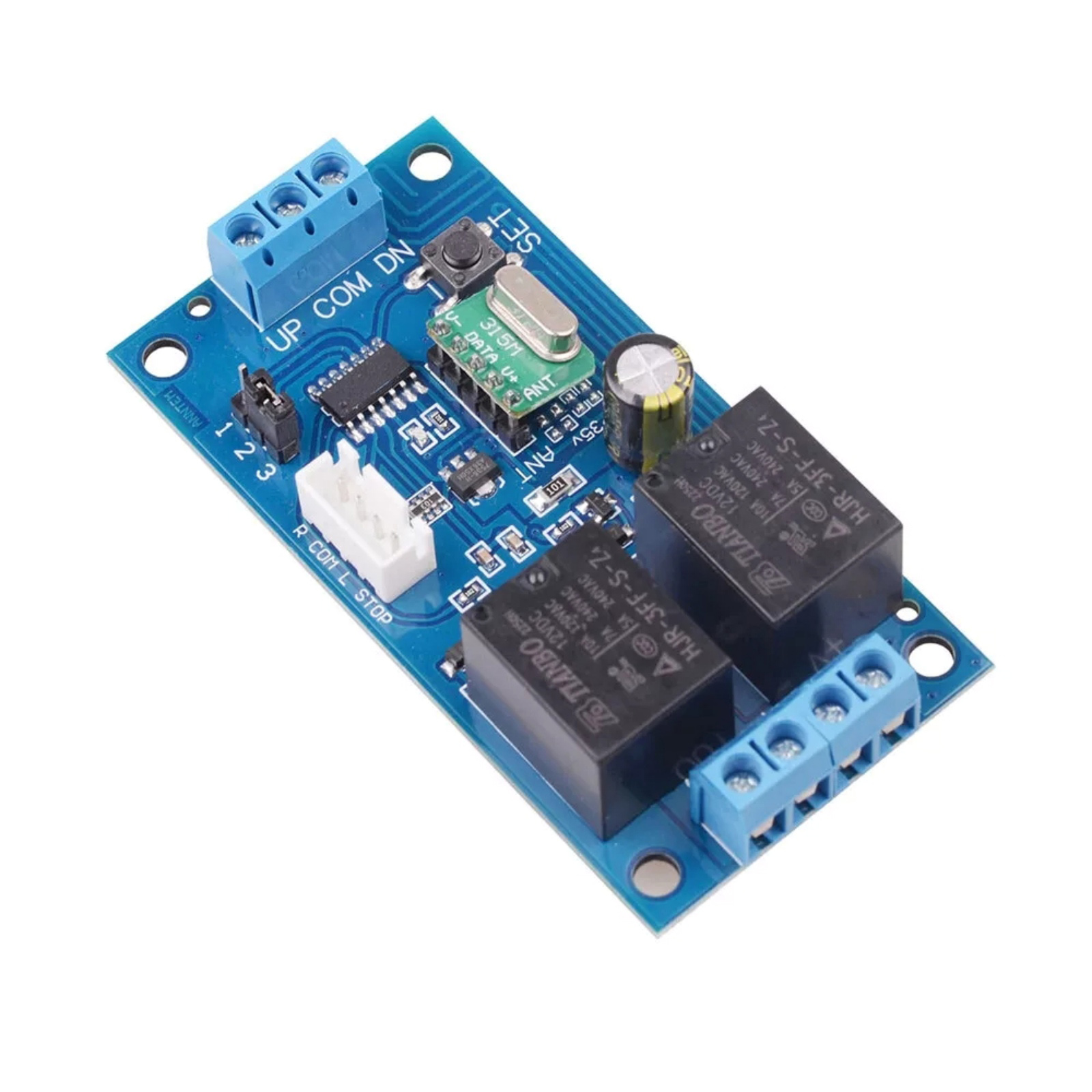

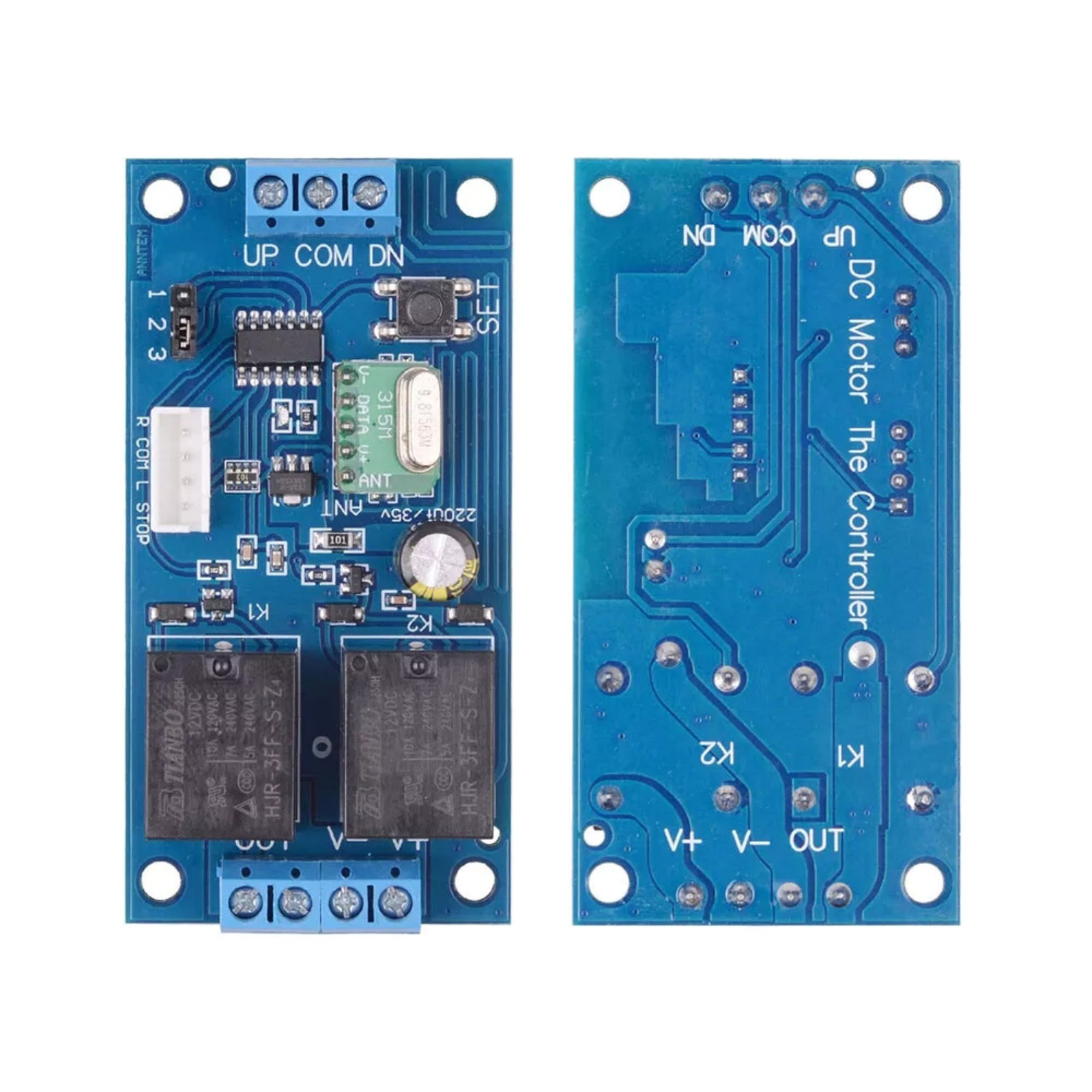

Out State: Momentary Latched Adjusted By The Jumper On The Receiver, (We Ship Default As Latched, If You Need To Use Momentary To Change The Jumperon The Receiver)
Momentary----------Jumper On "1&2" Pin
Latched----------- Jumper On "2&3" Pin
Momentary ------------Press "Up" Button, The Motor Forward, Release Is Stop. Press "Down" Button, The Motor Reverse, Release Is Stop.
Latched----------------
Press Button "Up" , The Motor Forward, Press Button "Stop" Is Stop.
Press Button "Down" , The Motor Reverse, Press Button "Stop" Is Stop.
When The Receiver Output State Is "Latched" , We Have Set It 0.5s Time Delay Forforward And Reverse, It Is The Protection Function.
We Have Made Transmitter And Receiver Work Together And Test It Beforeshipping, When You Get It, You Don' T Need To Do Anything, Just Install It.

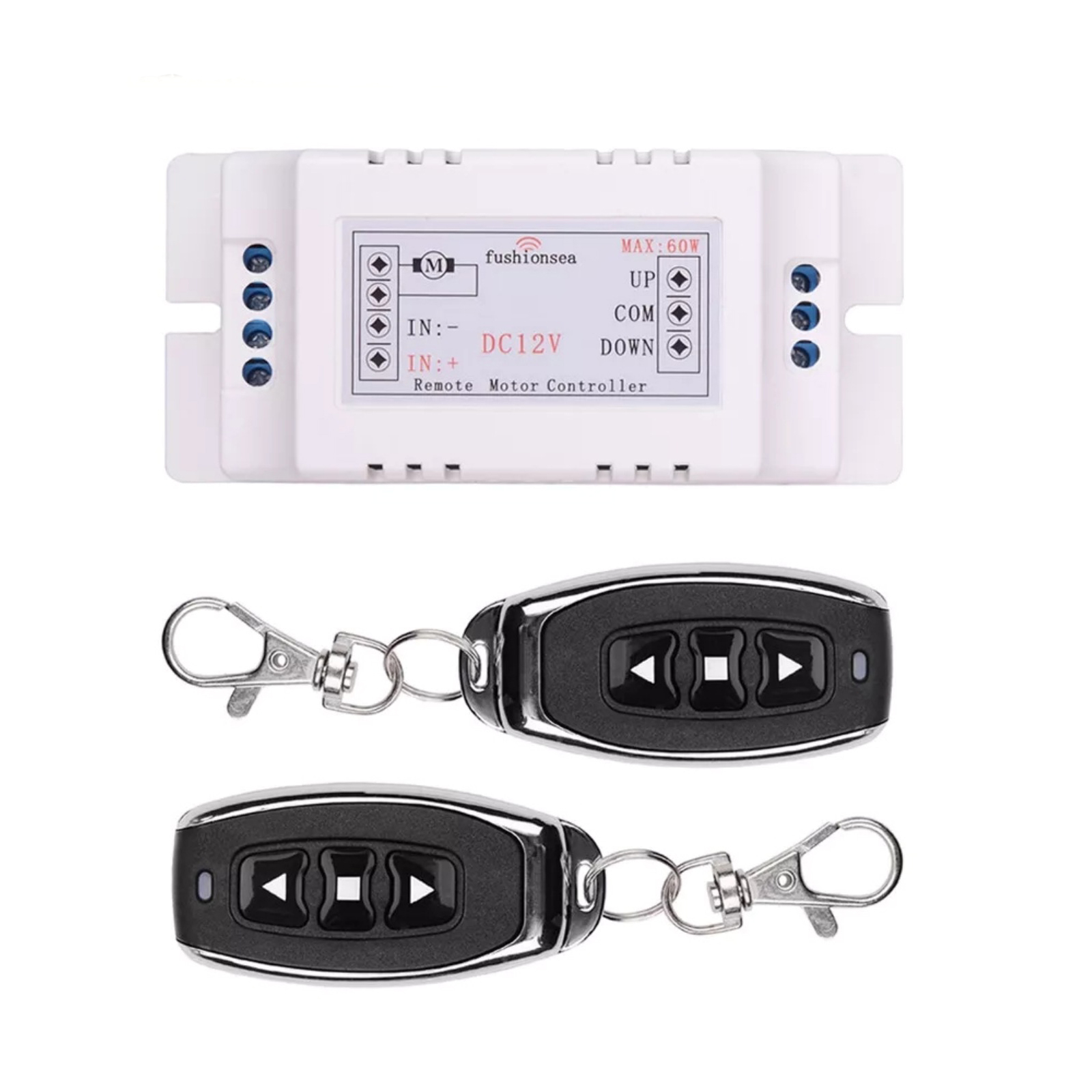

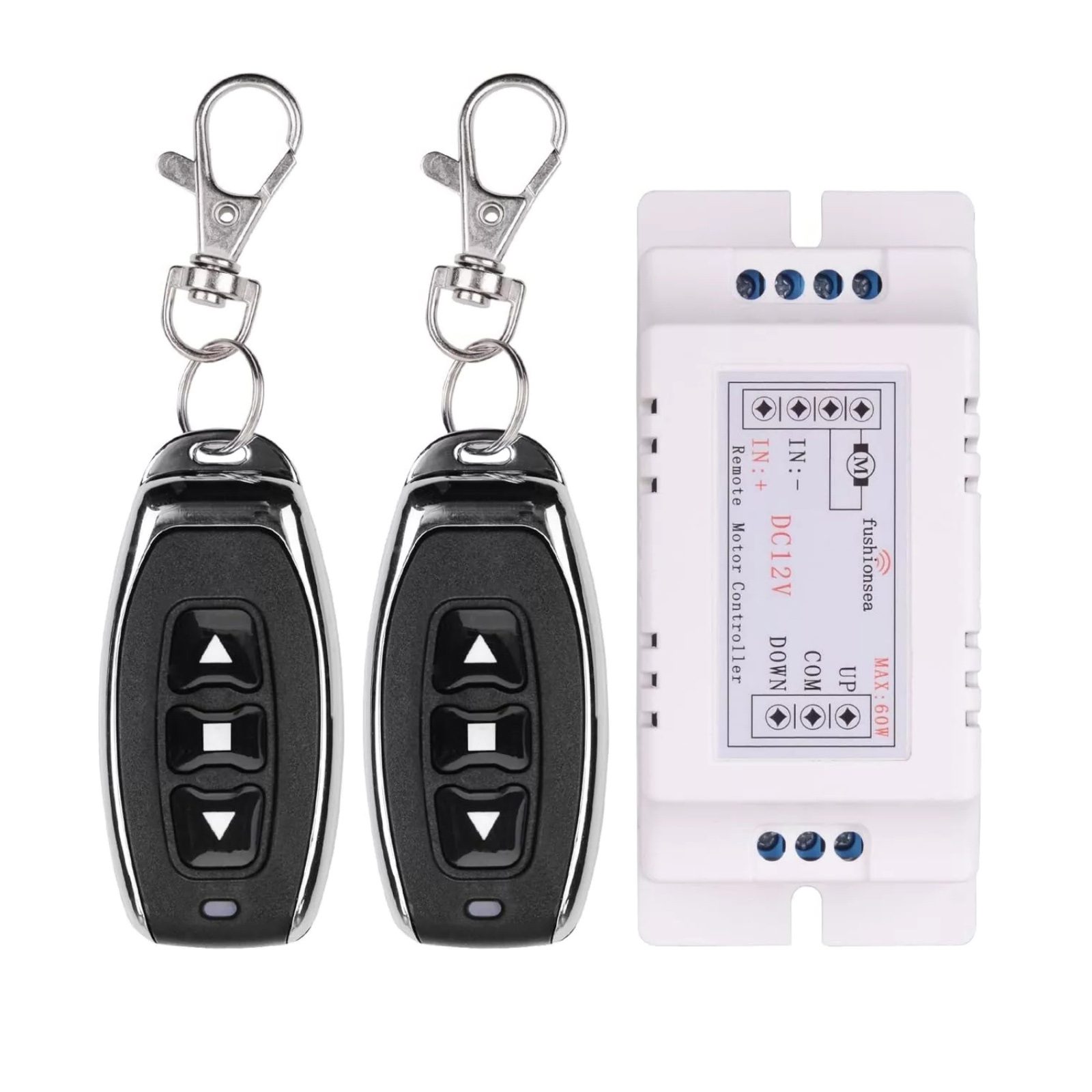

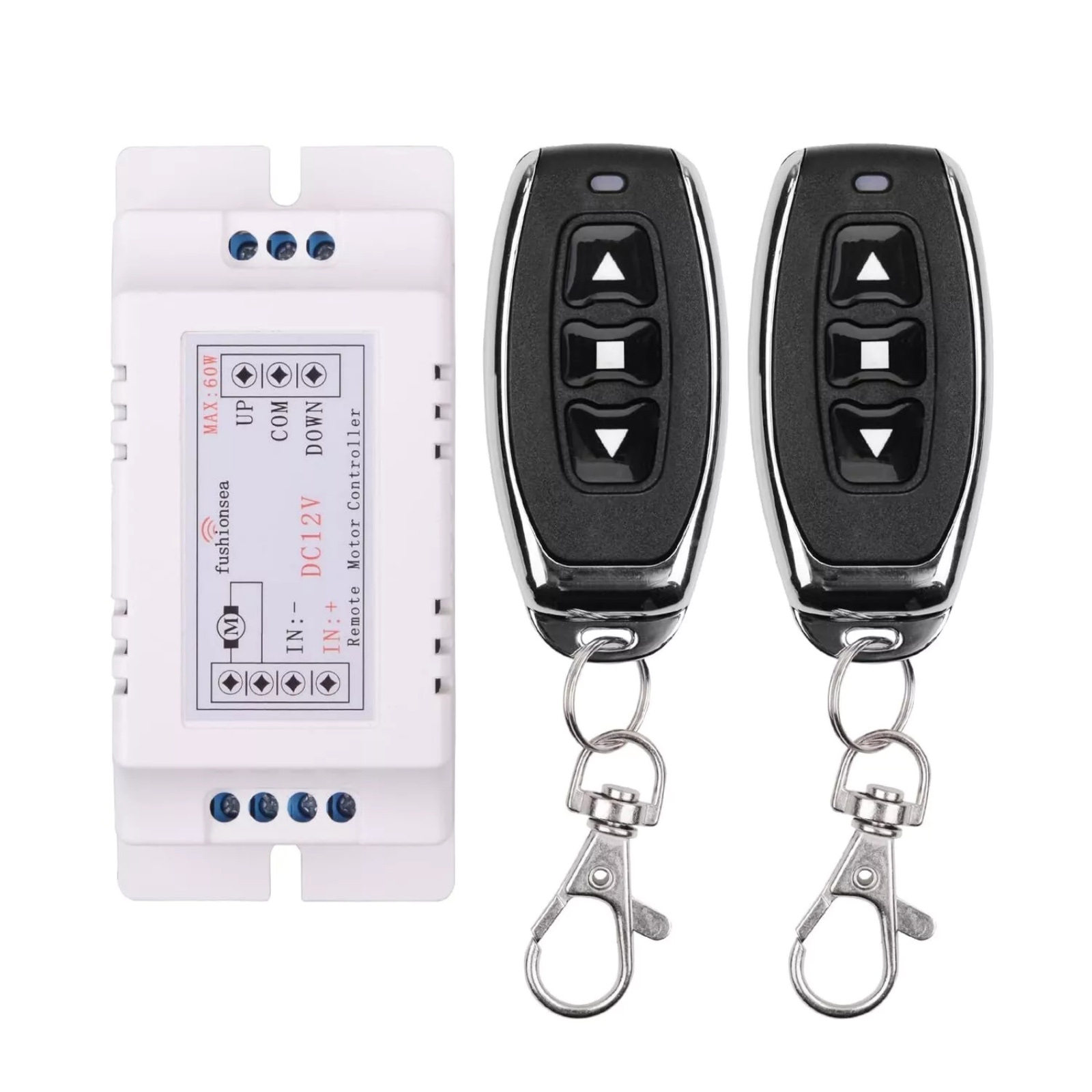

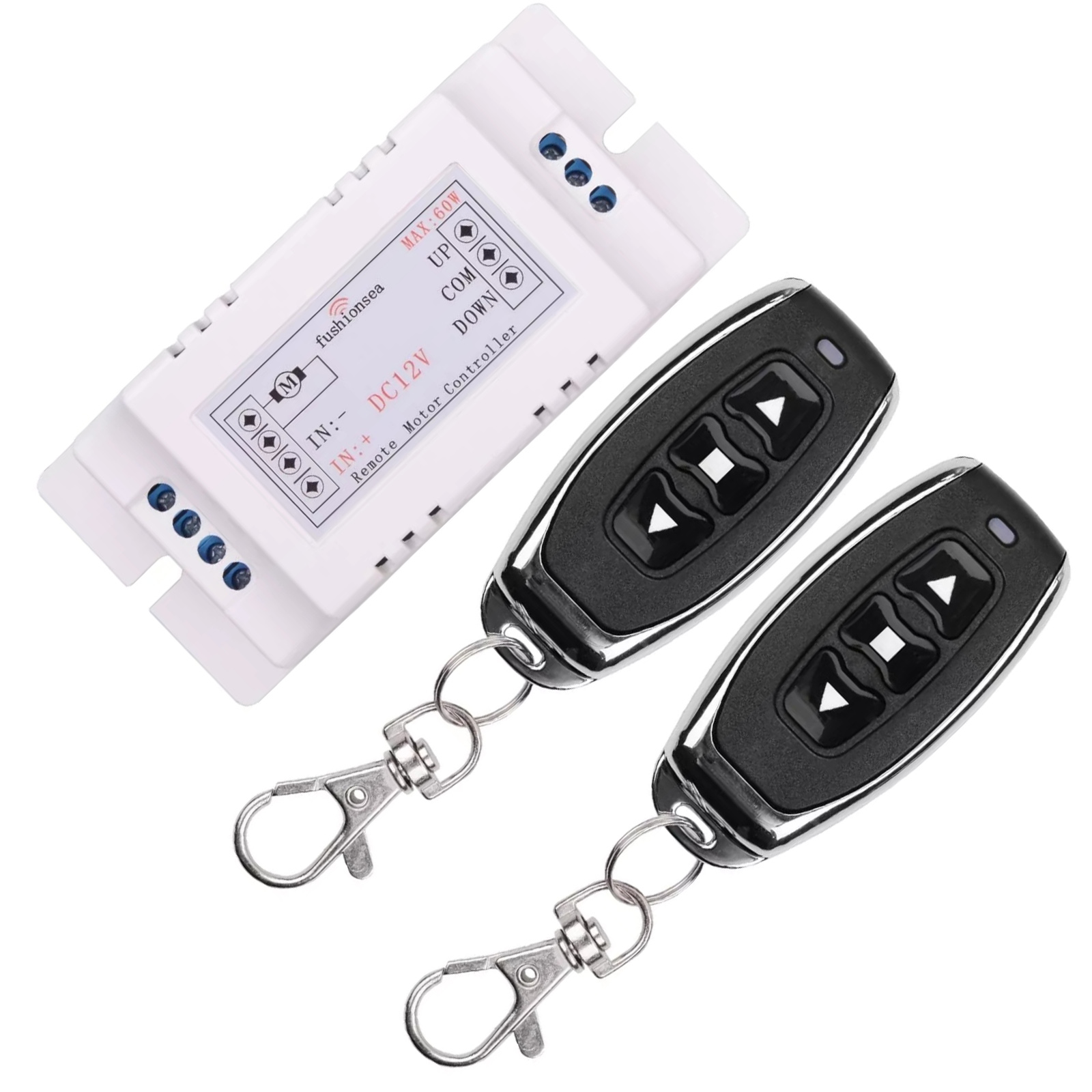

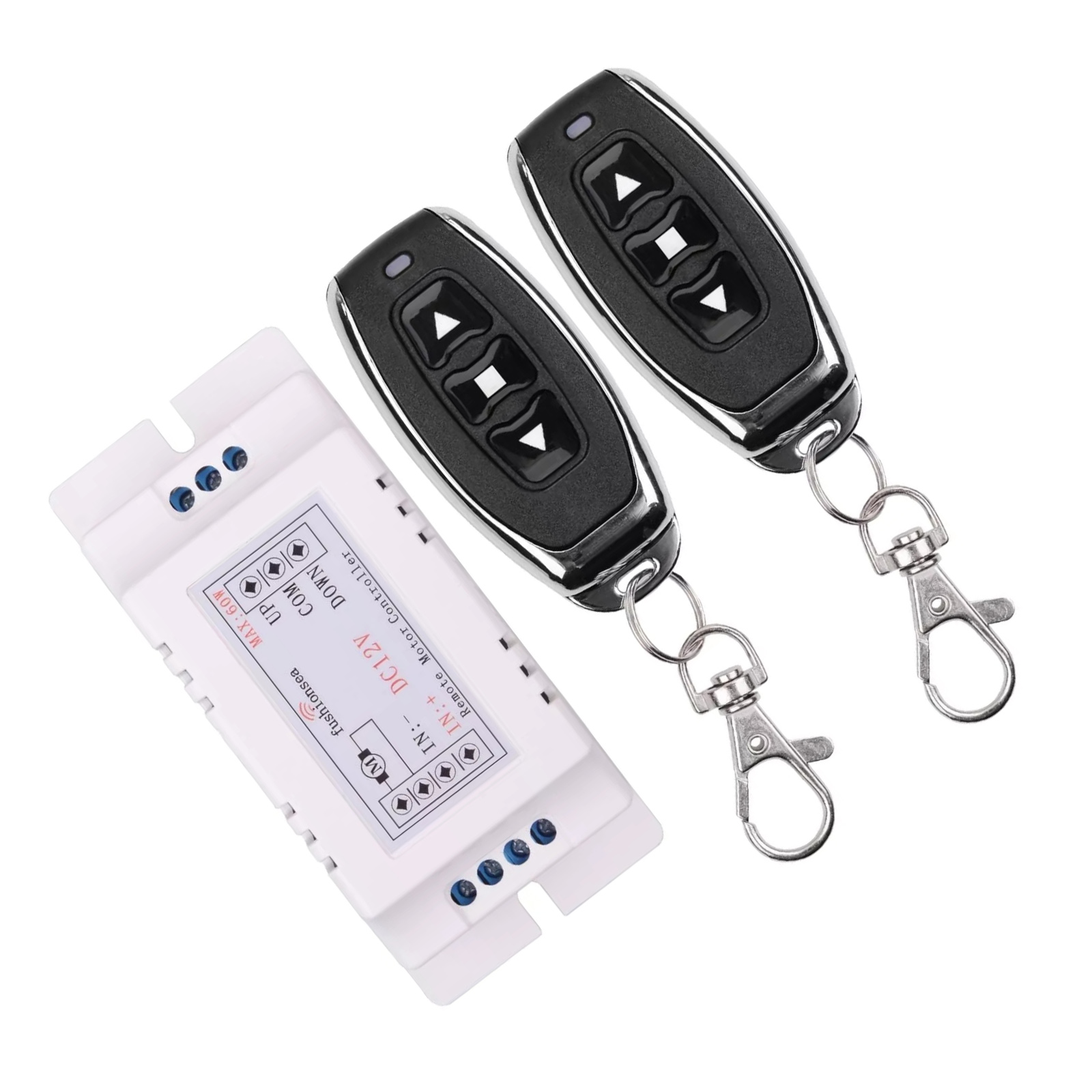

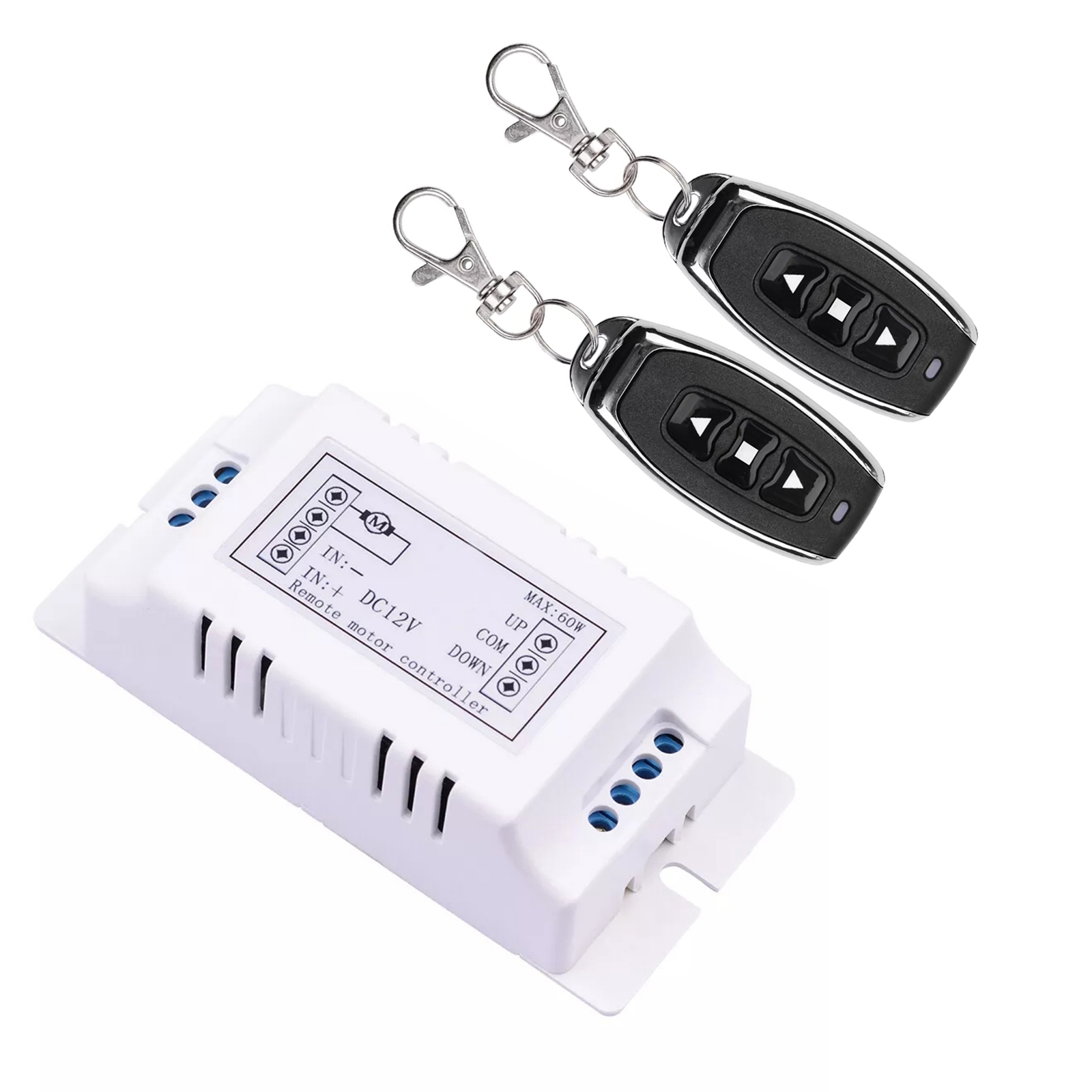

Package Included:
1* Receiver
2* Transmitters
