Features:
1. Convenient: The Main Engine Of The Car Anti-Theft System Is Smaller And The Remote Control Is Lighter, Which Is More Convenient For You.
2. Security: The Anti-Theft Enjoys New Micro Electric Technology Which Brings You More Security.
3. Excellent Performance: The Remote Control Of Auto Safety System Alarm Has Automatic Induction Function.
4. Easy Care: This Anti-Theft Device Is Durable And Wearable, So You Do Not Need To Spend Much Time And Energy To Keep It.
5. Long Service Life: This Anti-Theft Is Durable And Reusable, So You Can Use It For A Long Time.
Specifications:
Material: Plastic
Unit Working Voltage: 12V±3V
Unit Quiescent Current: ≤12mA
Unit Control Current: ≤30A
Remote Control Operating Current: ≤3~8mA
Remote Control Standby Current: ≤1uA
Remote Control Battery Specification: 2* CR2032 Battery(Battery Included)
Remote Control Frequency: 433.92mhz
Notice:
1. Circuit Hidden Lock Mode (No Short-Circuit Ring Is Inserted In The Unit Inside) Factory Default Mode
1. If The Car Does Not Receive The Signal From The Remote Control Within 16 Seconds After Starting The Car, The Engine Will Turn Off. The Car Can Start Normally If It Receives The Signal From The Remote Control Within 16 Seconds Of Starting. Even If It No Longer Receives The Signal From The Remote Control, It Will Not Turn Off.
2. Remote Control Operation:
(1) Manual Mode: Press The Remote Control Every Time Or Immediately After Start-Up.
(2) Automatic Mode: Just Bring The Remote Control.
3. LED Indication Function: When Receiving A Remote Control Signal, The Led Flashes Once, Indicating That The Signal Is Normal, And No Signal Will Not Flash.

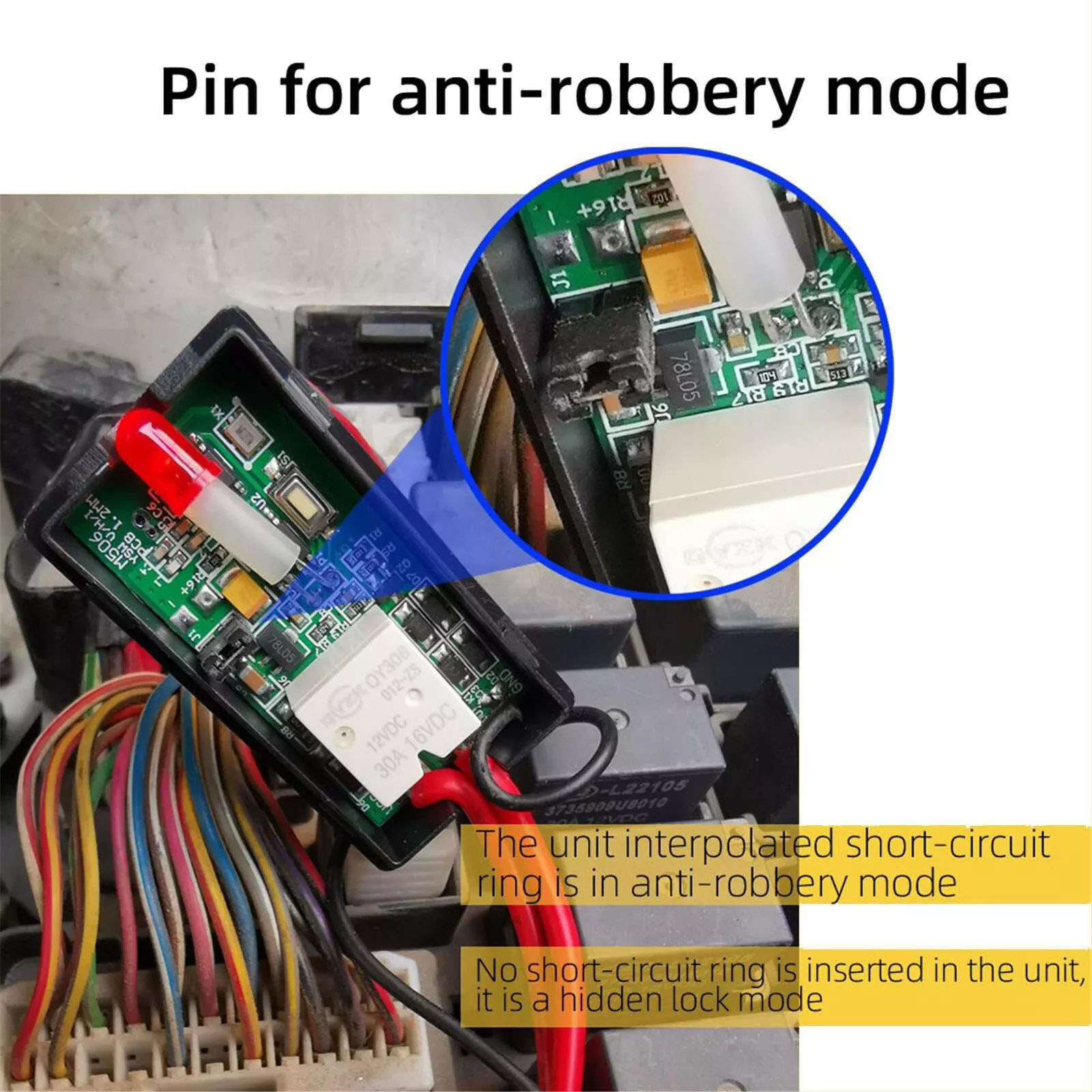

2. Anti-Robbery Mode: (The Host Inserts A Short-Circuit Ring)
1. When The Host Receives The Signal From The Remote Control, The Car Can Start Normally, And It Needs To Continue To Receive The Signal From The Remote Control In The Middle, Otherwise It Will Turn Off After 30 Seconds If The Signal Is Not Received.
2. LED Indication: When The Signal From The Remote Control Is Received, It Flashes Once For 1 Second, When The Signal Is Not Received, It Flashes 2 Times Per Second For 11 To 20 Seconds; When The Signal Is Not Received For 21 To 30 Seconds, The LED Flashes 4 Times Per Second. (After 30 Seconds Have Not Received The Signal LED Does Not Light)
3. The Remote Control In Anti-Robbery Mode Must Turn On The Automatic Mode, Otherwise It Will Turn Off Halfway Due To No Signal Received.
3. How To Use The Remote Control:
Please Keep The Remote Control Alone, Do Not Mix With The Car Keys To Increase The Difficulty Of Grabbing.
Coding Learning: Press The Host Computer Learning Code Switch To Let Go, Immediately Press The Remote Control Button, The Relay In The Host Will Beep 3 Times To Indicate That The Code Learning Is Successful, And The Method For Learning The Second Remote Control Is The Same As Above. Up To 2 Remotes Can Be Learned. The Code Has Been Learned Well When Leaving The Factory, And There Is No Need To Repeat The Operation.
4. How To Install:

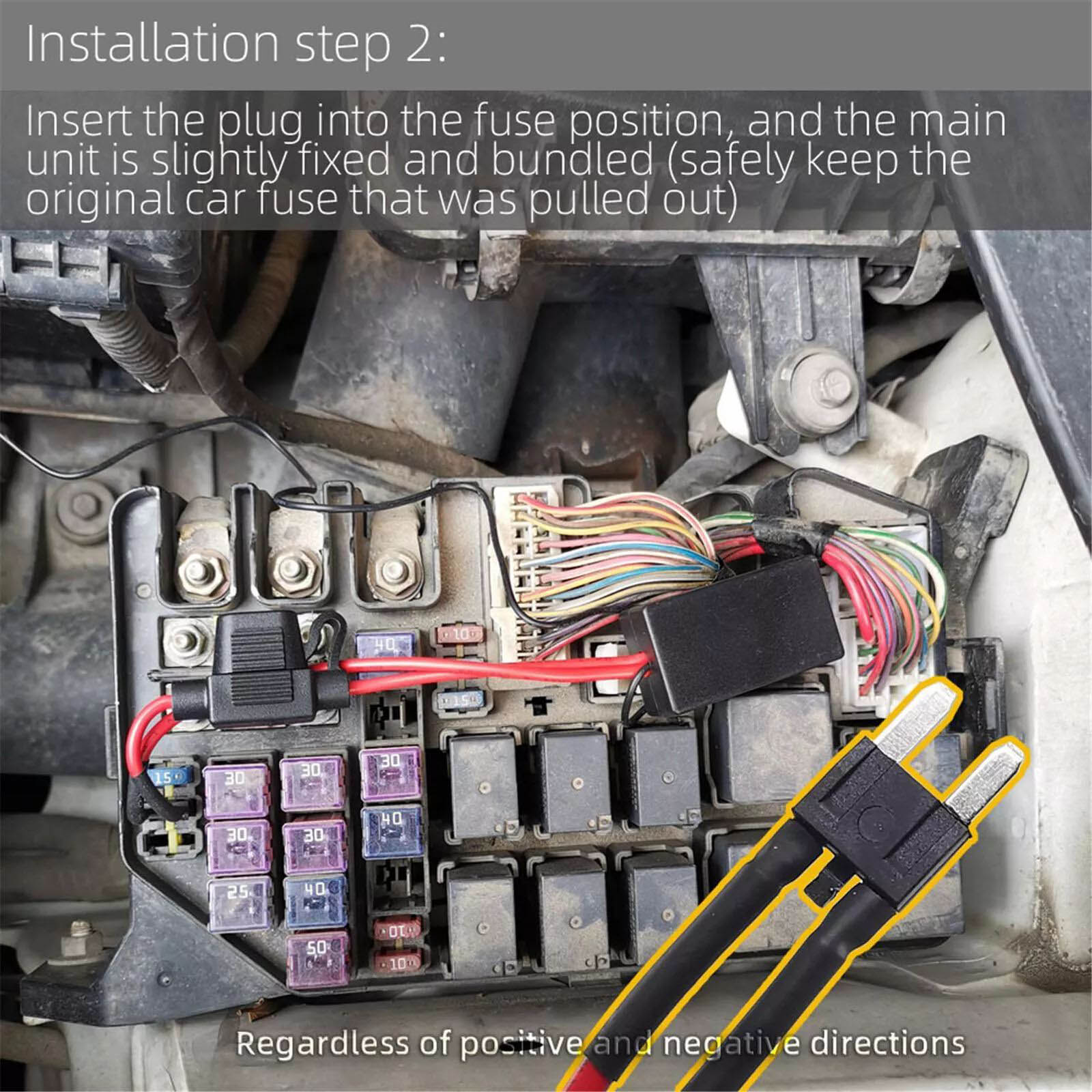

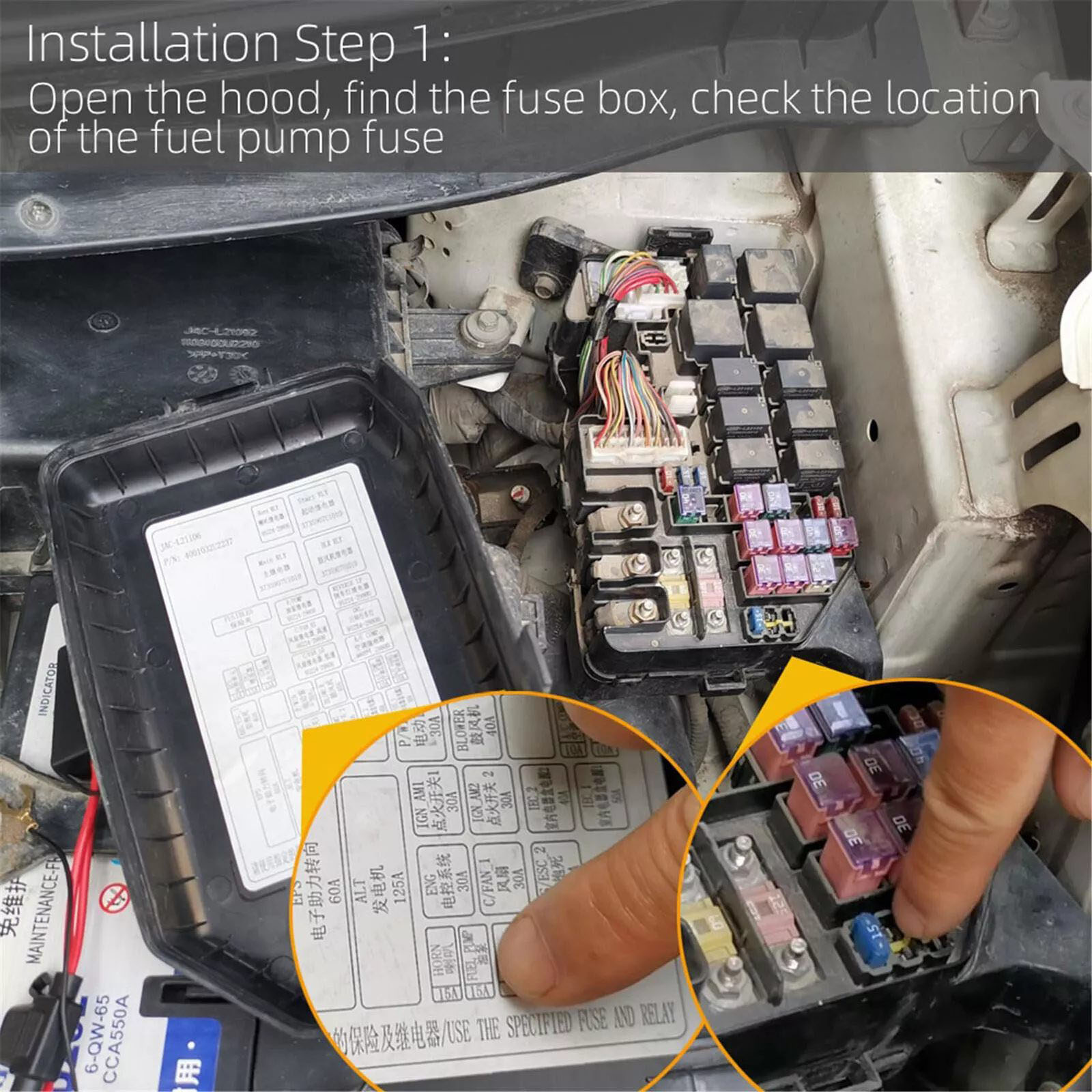

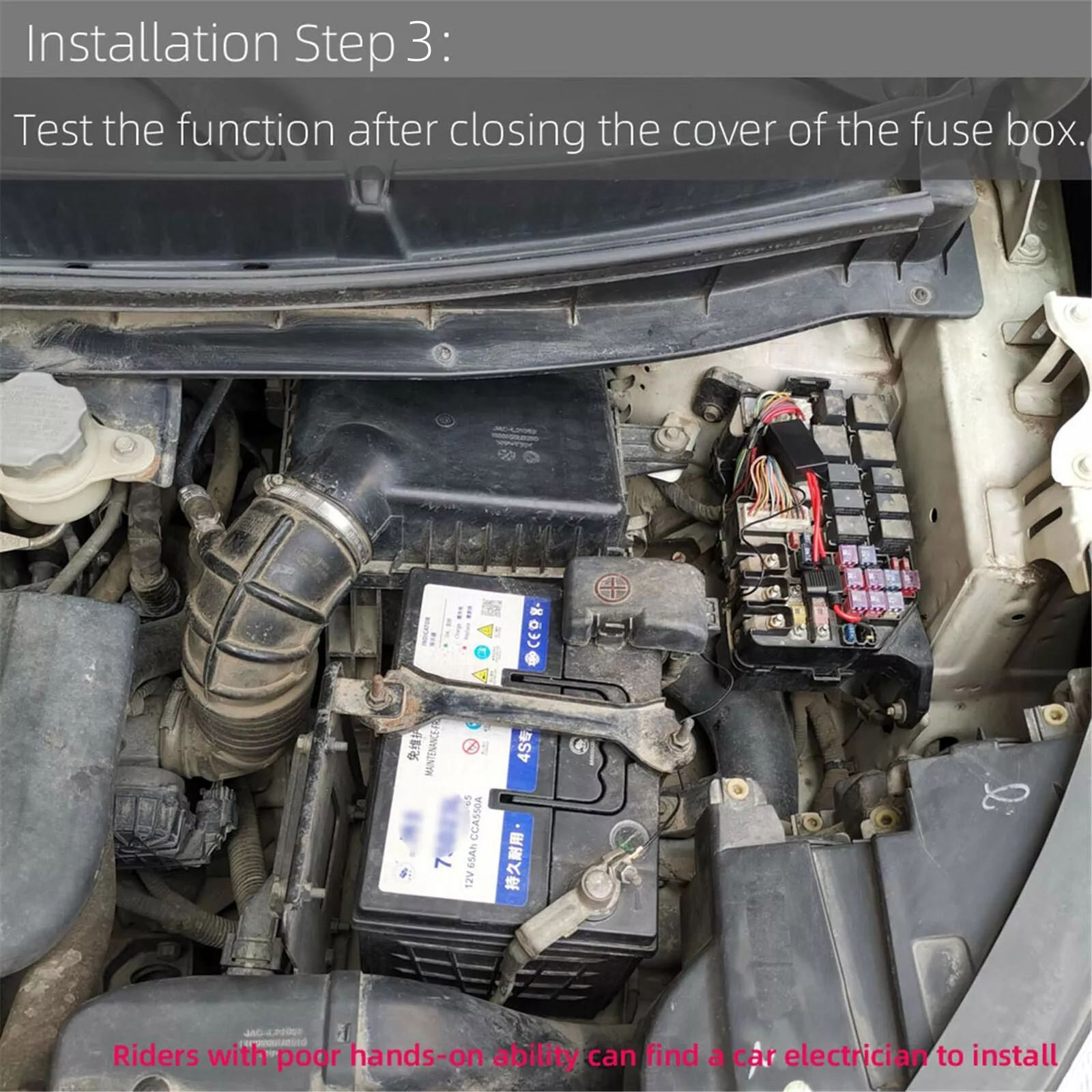

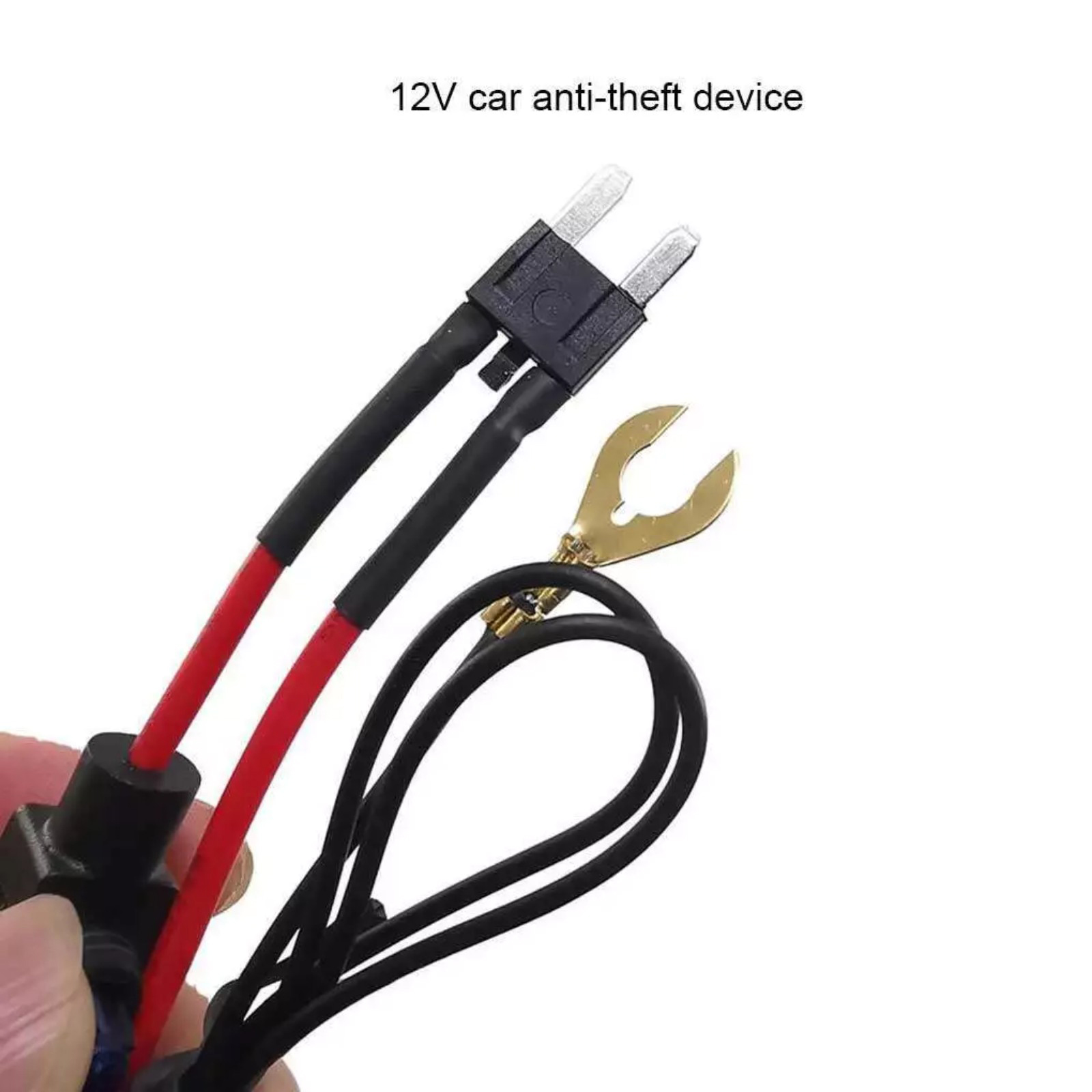

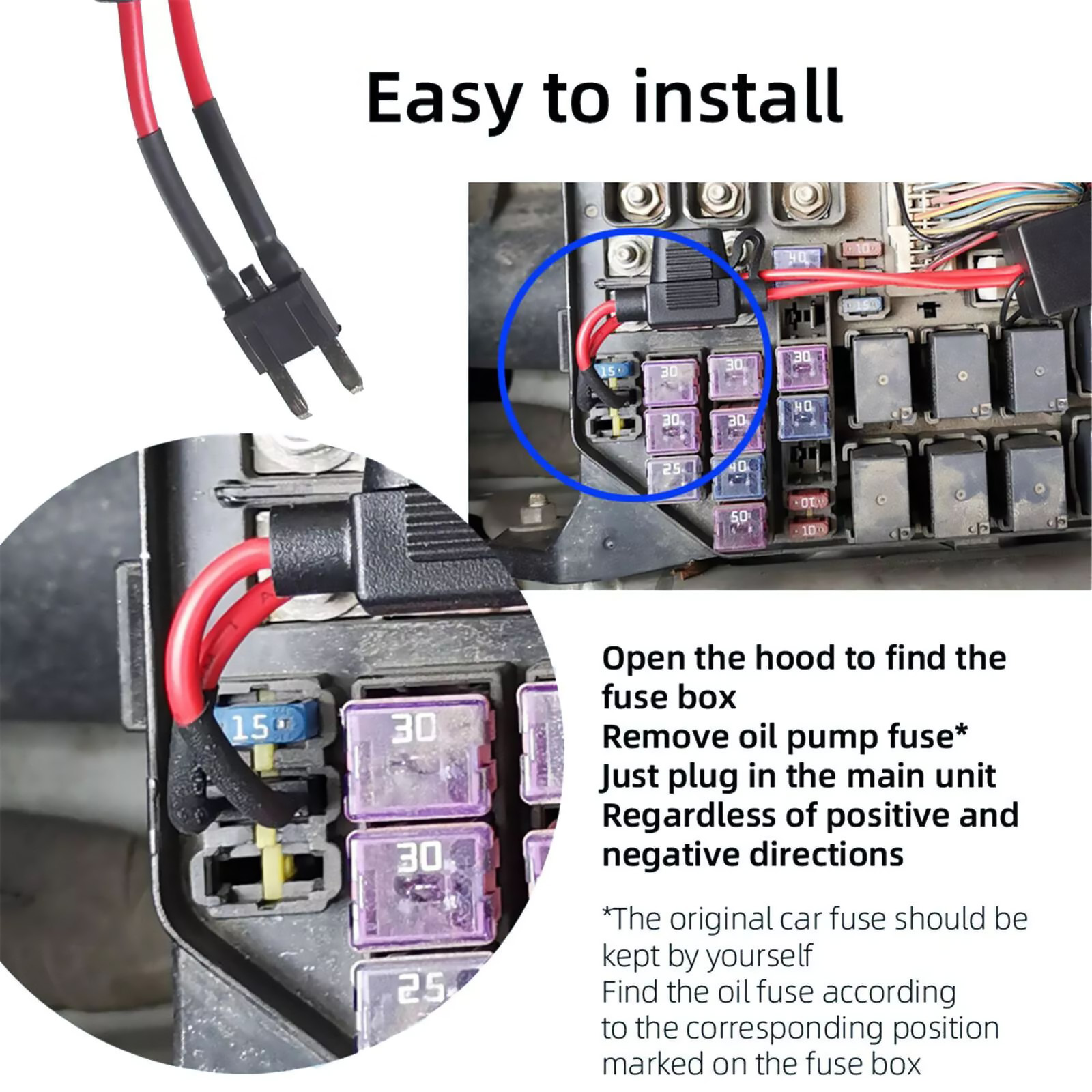

First Open The Fuse Box, Find The Oil Pump Fuse And Pull It Out, Then Replace It With The Red Wire Plug, Keep Theoriginal Fuse In A Safe Place, Fix The Main Unit With A Tie And Cover The Fuse Box.
5. When Not Using The System ,Turn The Remote Off For Extends Battery Life, This Product Is Not Waterproof Design.

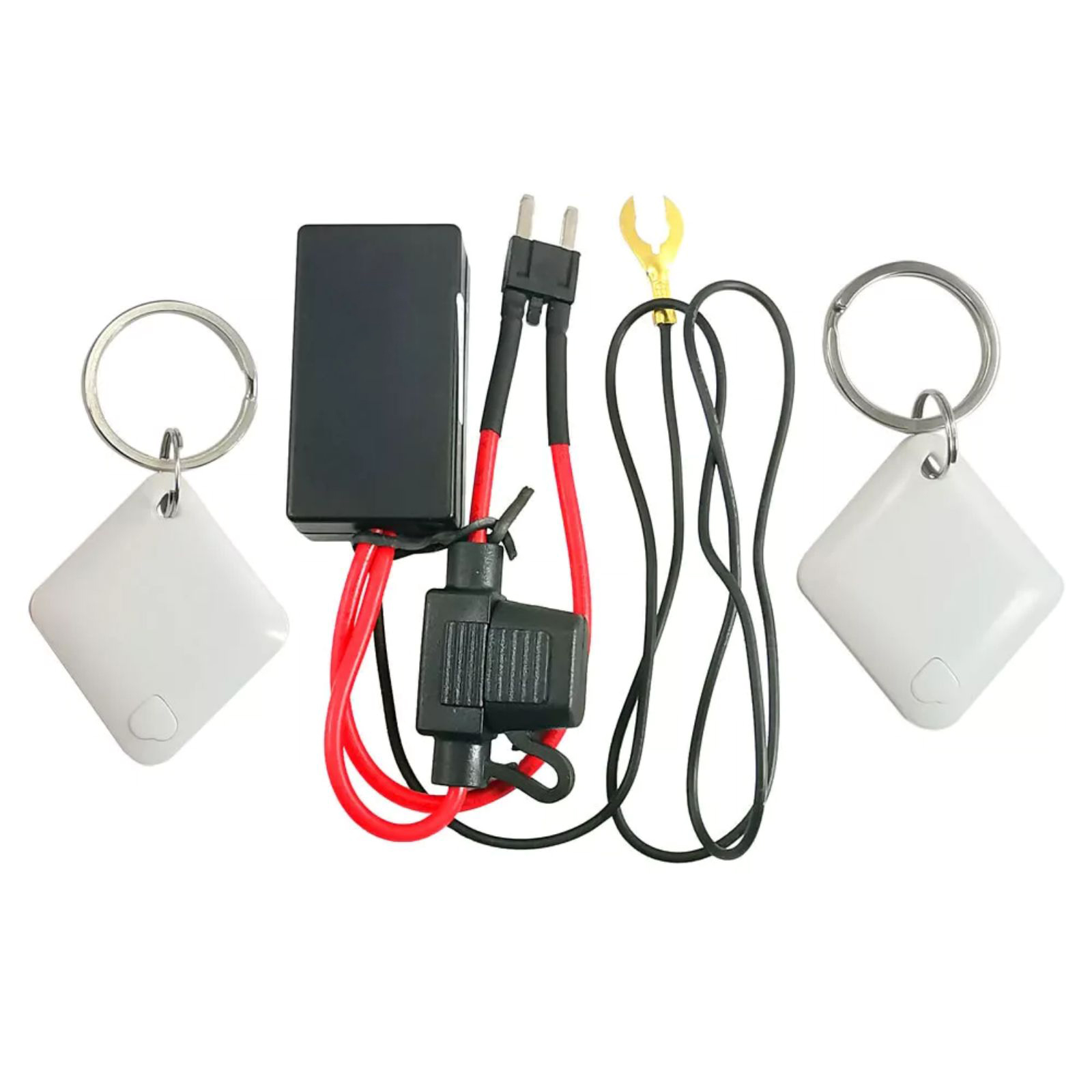

Package Includes:

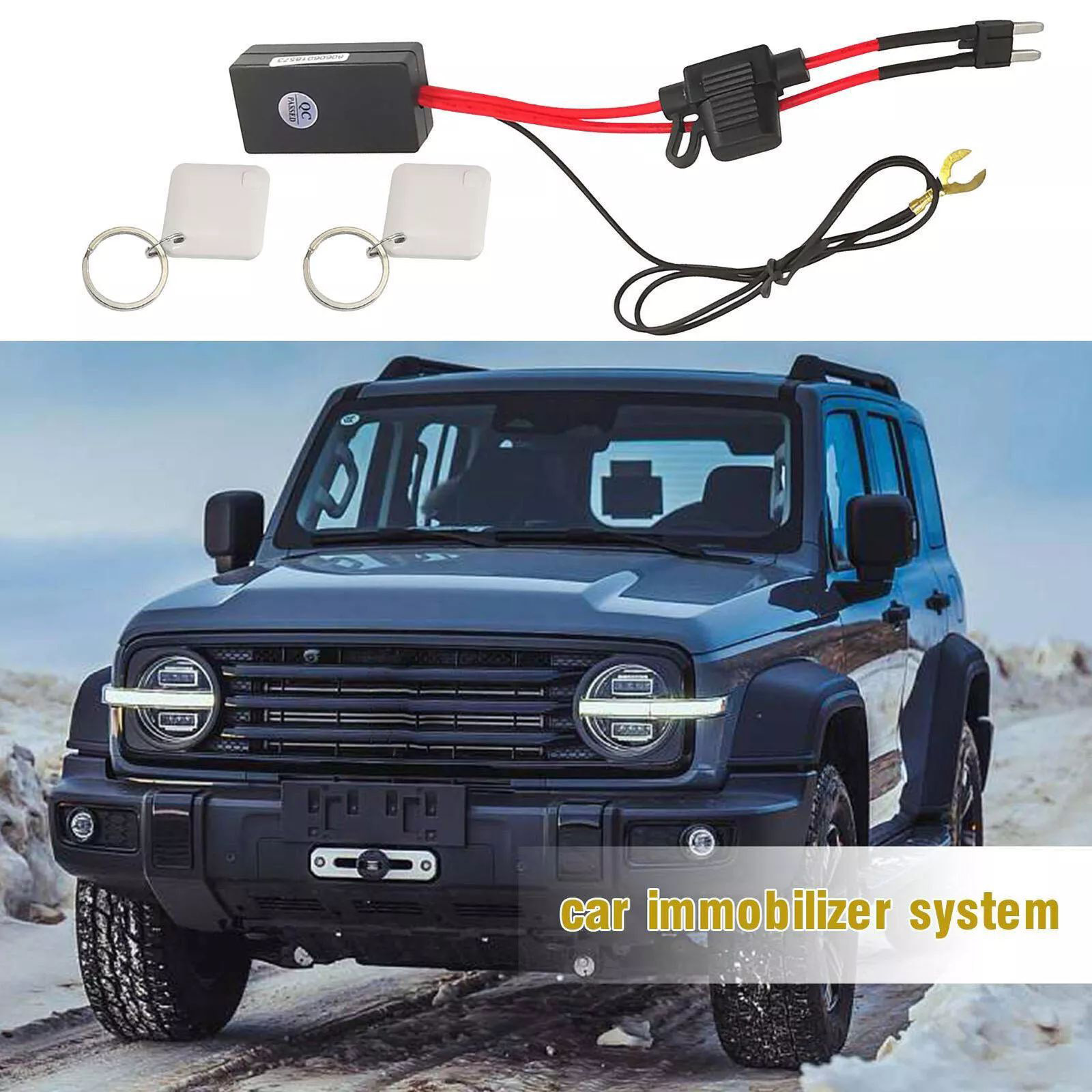

1* Anti-Theft Device
2* Remote Control
1* User Manual In English
