Features:
1. 300-500 Meters Of Remote Control Distance, Easy To Work In Garden Square Farms And Even Factories.

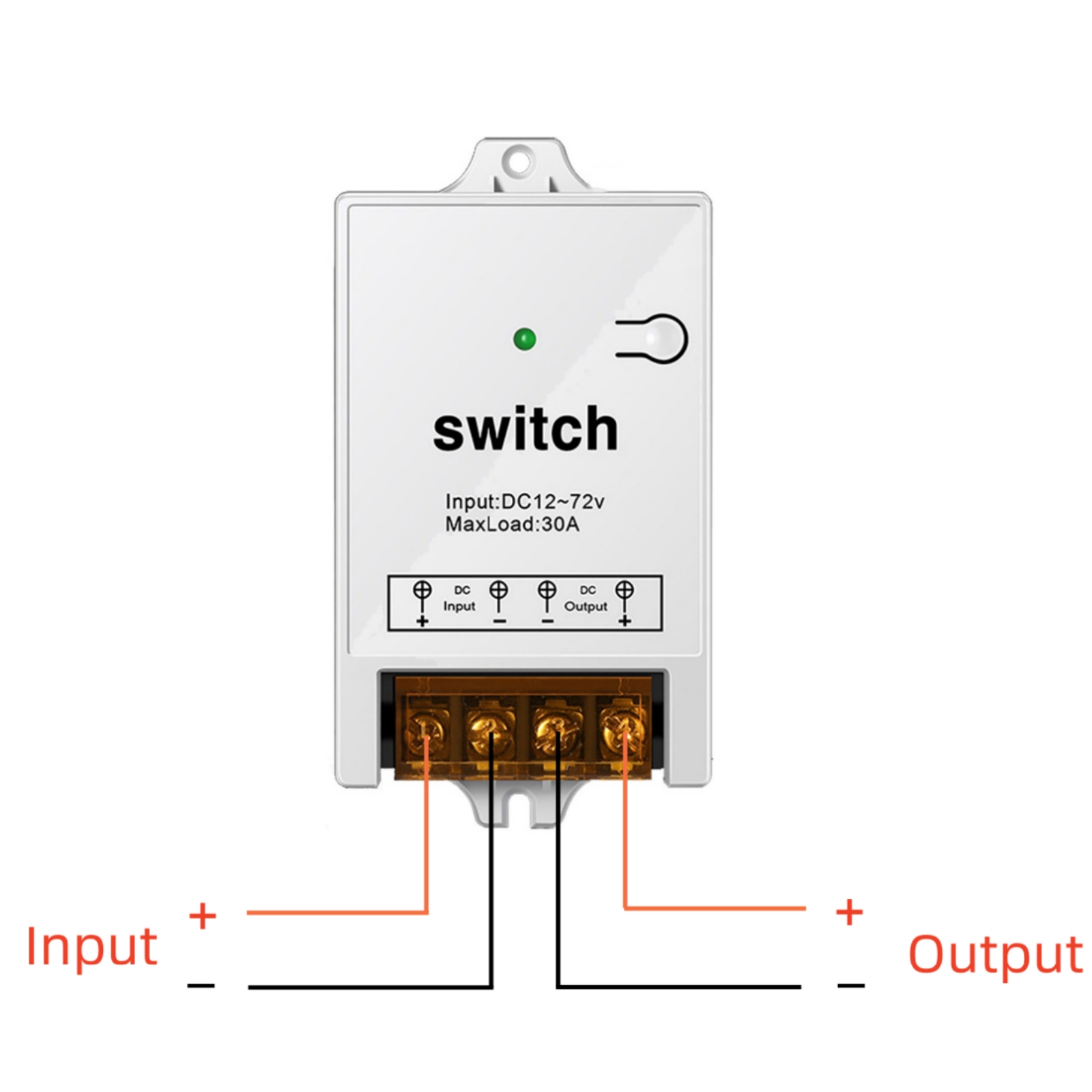

2. It Only Needs To Be Connected To The Circuit, Without Complicated Settings. Ordinary People Can Complete It.
3. Compact Design, You Don' T Need To Take Up A Lot Of Space.
4. Wide Application: This Long Distance Remote Control Switch Is Used In Mud Pumps, Motors, Lamps, Fans, Dust Collect, Insecticide Machines, Sprayers, Car Washers, Bells, Etc. Various Types Of Electrical Equipment.

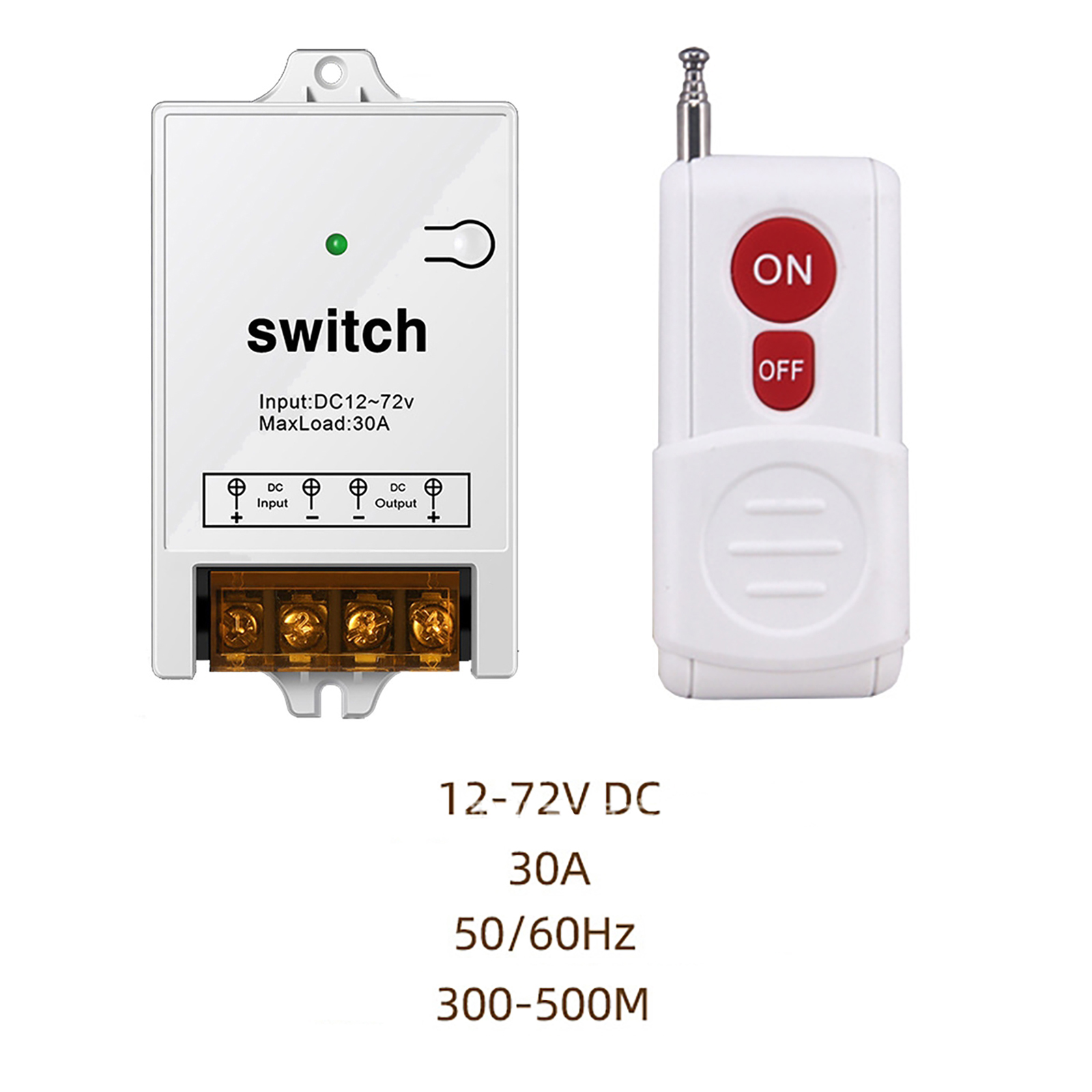

Specifications:
Voltage: DC12-72V
Load Power: 30A
Working Distance: 300-500m
Shell Material: PC+ABS
Color: White
Frequency: 433mhz

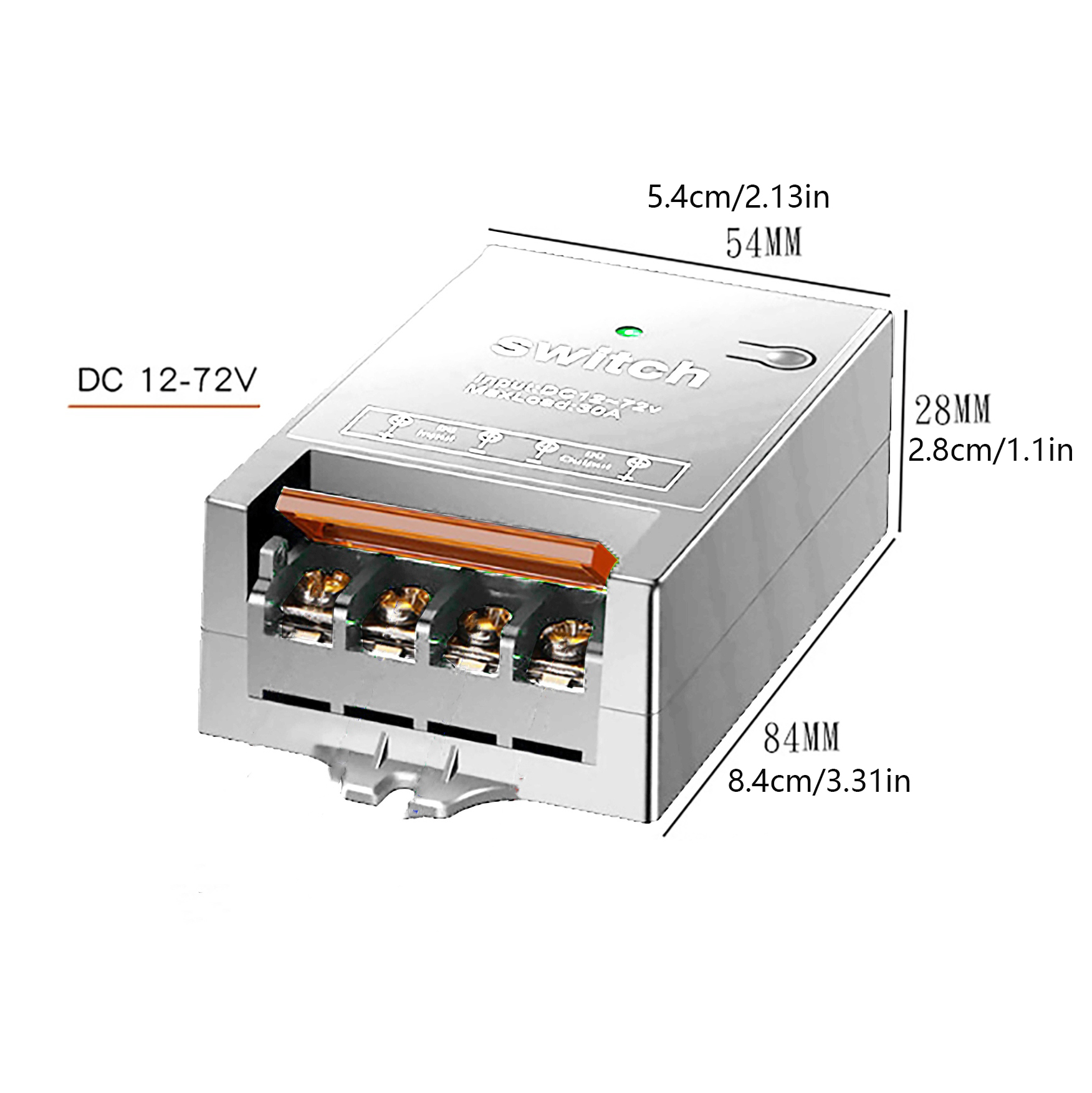

Receiver Size: 54 * 84 * 28mm (Without Fastener)

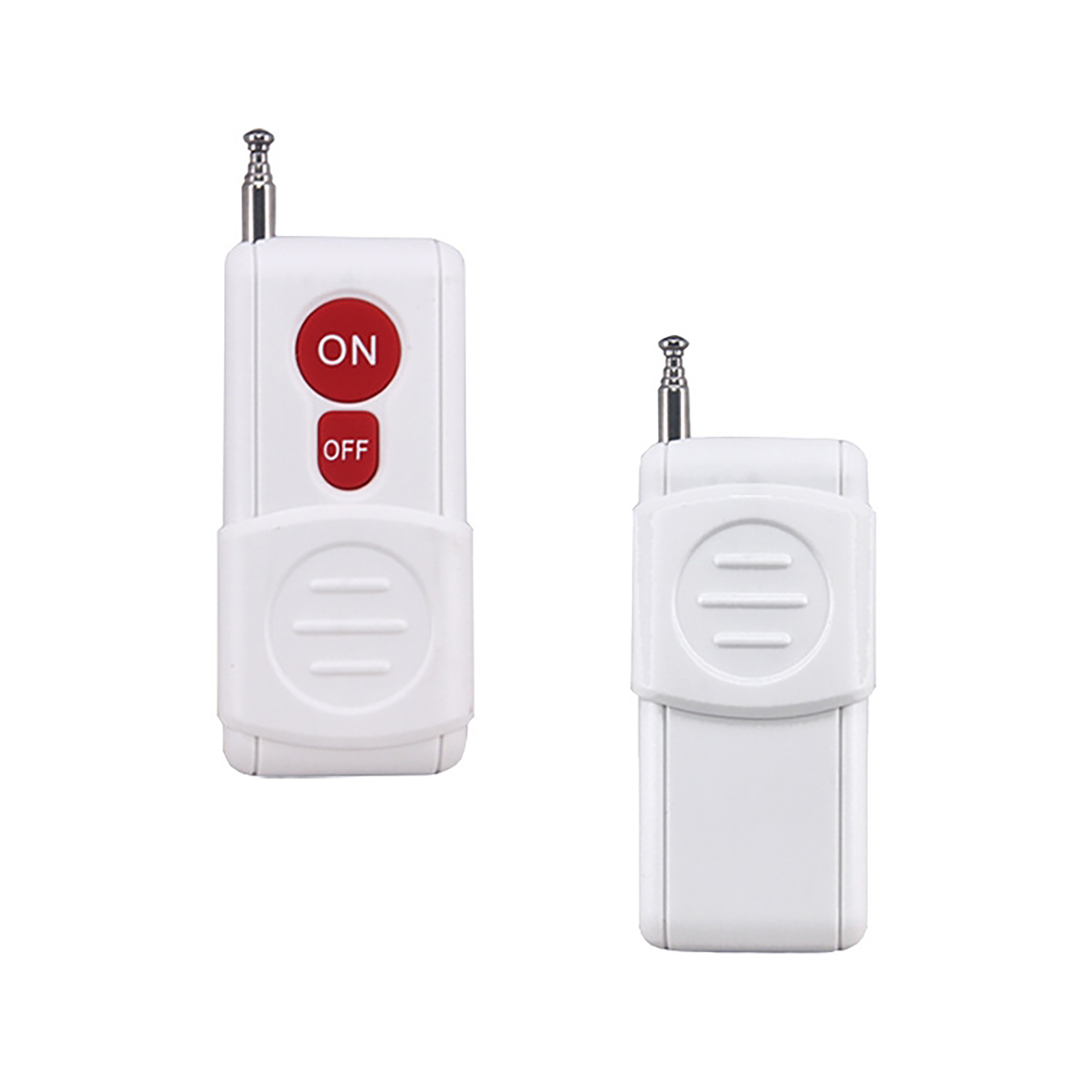

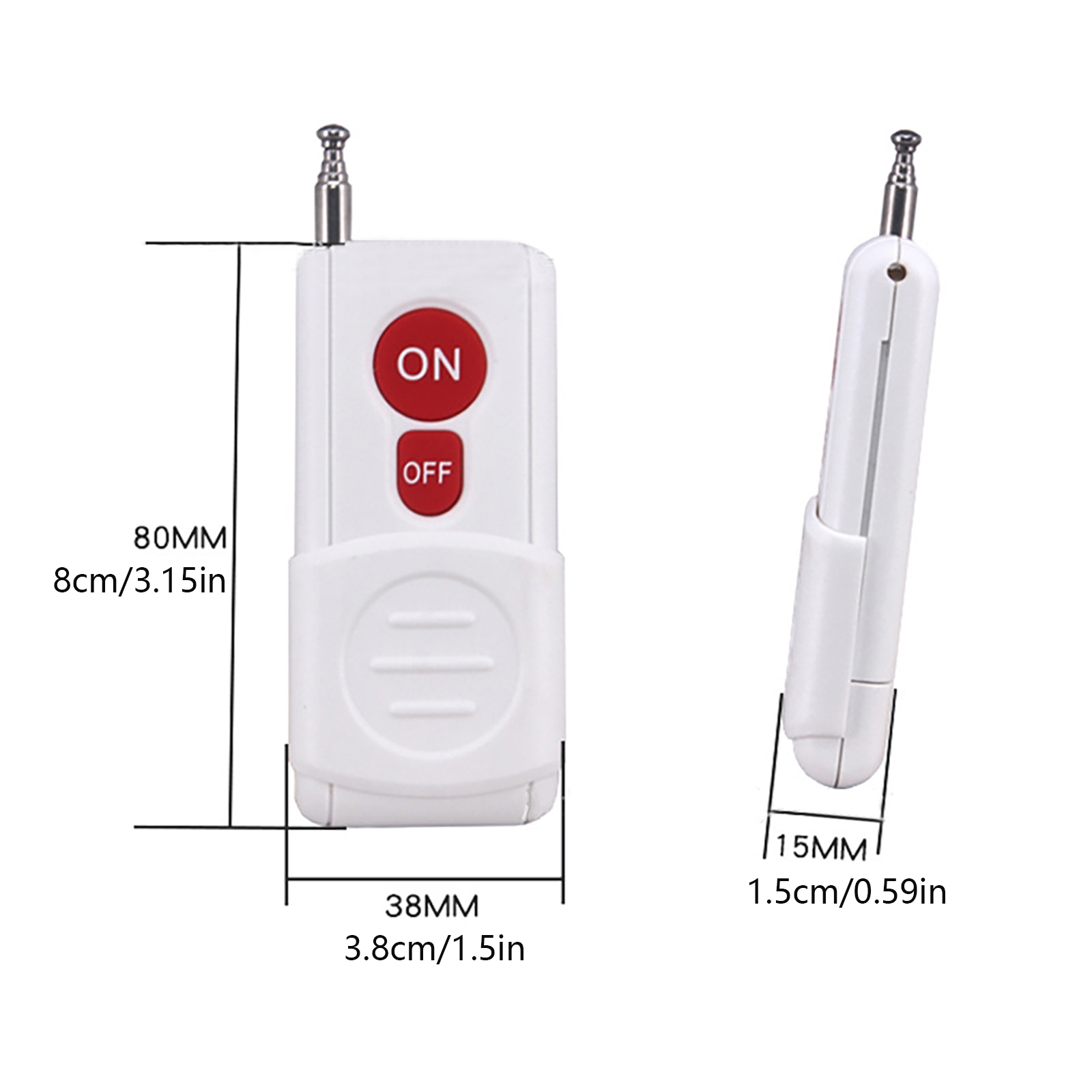

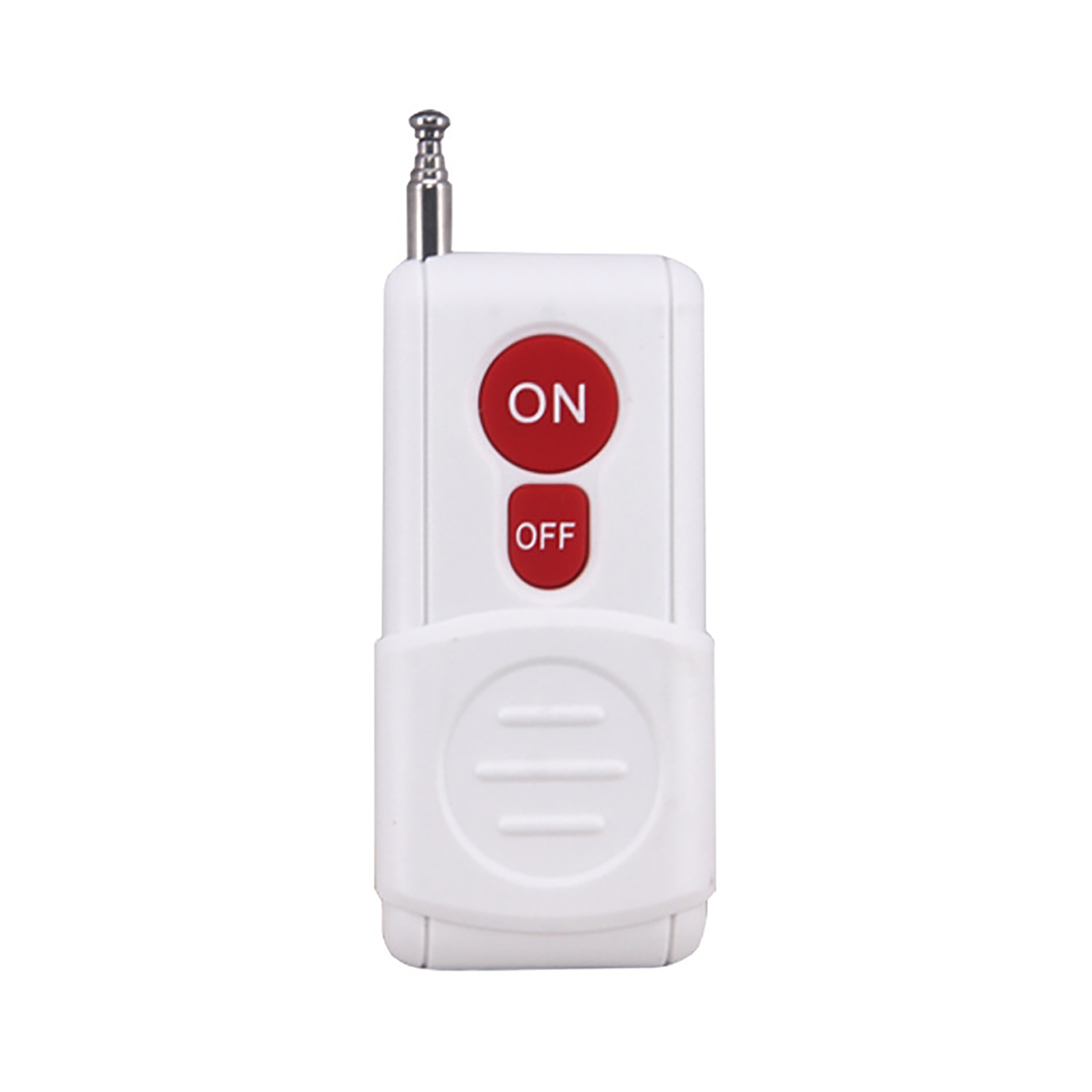

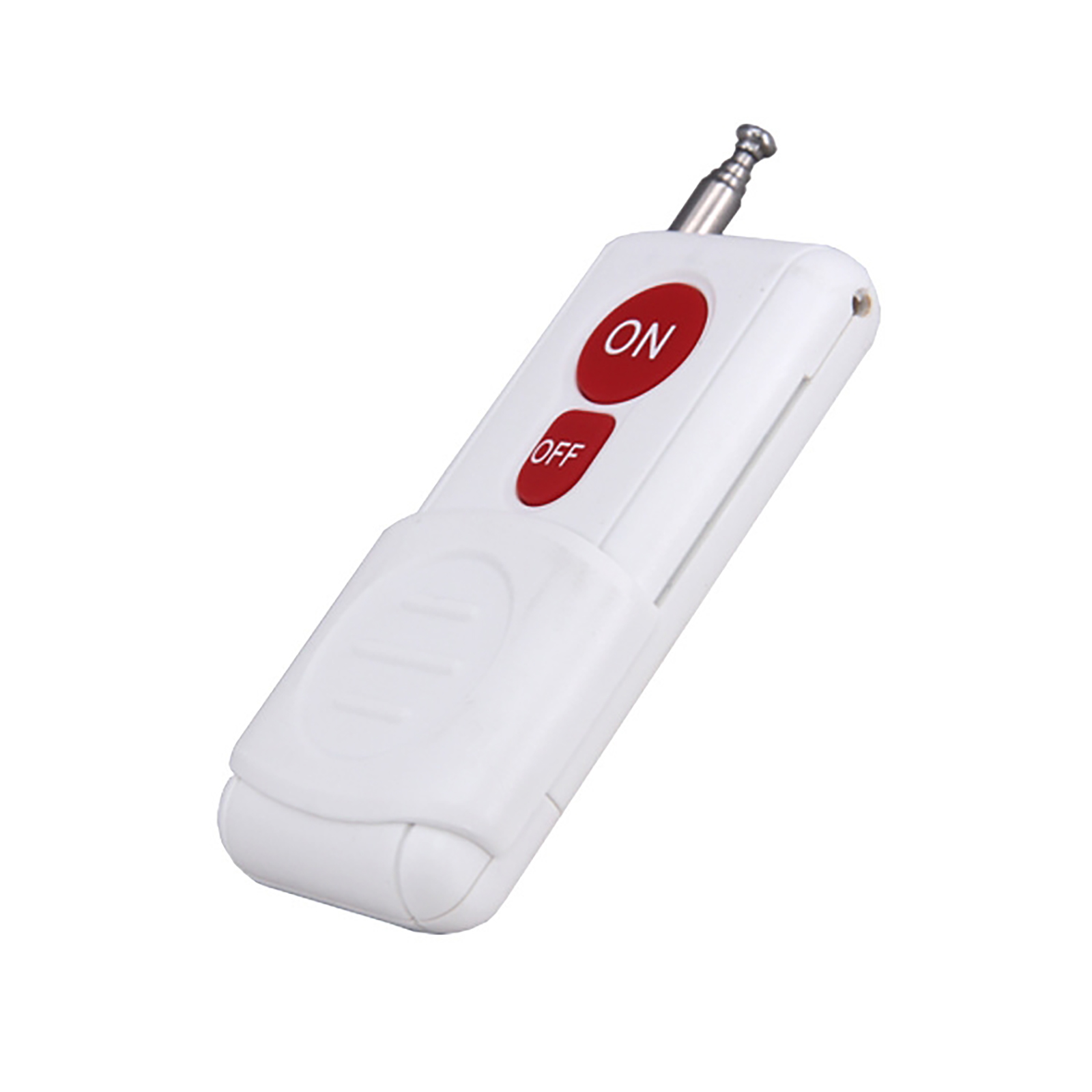

Remote Control Size: 38 * 80 * 15mm (Without Antenna)

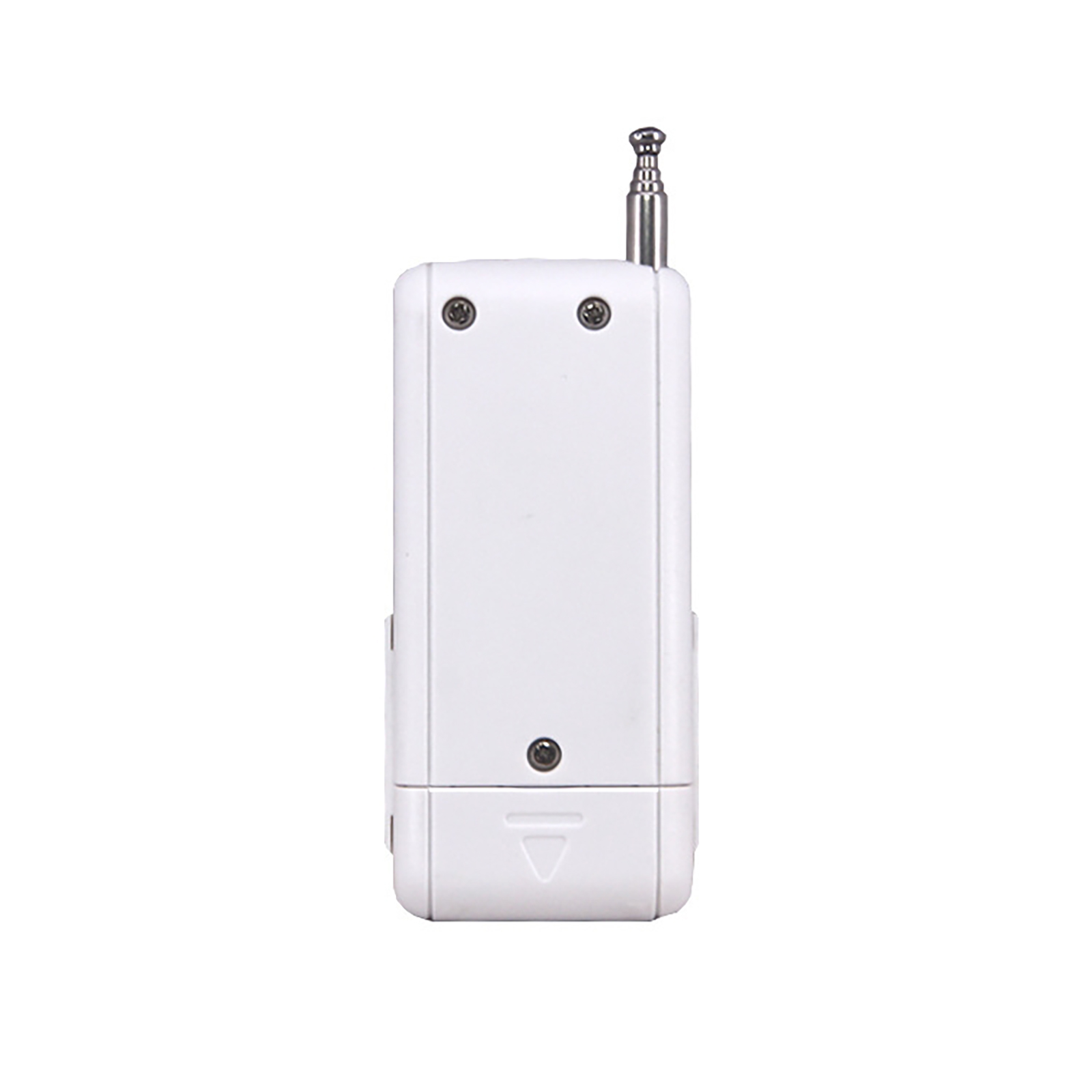

Remote Control Battery: 1* 23A12V Battery(Battery Included)
Matching Methods:
Self Locking Mode: When The Controller Is Powered On, Hold Down The Learning Button And Wait For 3 Seconds. The Indicator Light Will Flash Once. Release Your Hand And Press The Button On The Remote Control. The Indicator Light Will Flash 3 Times, Indicating Successful Pairing
Interlock Mode: When The Controller Is Powered On, Hold Down The Learning Button And Wait For 5 Seconds. The Indicator Light Flashes Twice In A Row. Release Your Hand, Press The Power Button On The Remote Control, And The Indicator Light Flashes Three Times Before Turning On. Then Press The Key On The Remote Control, And The Indicator Light Flashes Twice, Indicating Successful Code Pairing
Code Clearing: Connect The Controller To The Power Supply, Hold Down The Learning Button And Wait For 8 Seconds. The Indicator Light Flashes Continuously 4 Times, Indicating Successful Code Clearing
Manual Switch: The Learning Button On The Controller Can Control The Output To Turn On And Off. Press It Once To Turn It On, And Press It Again To Turn It Off

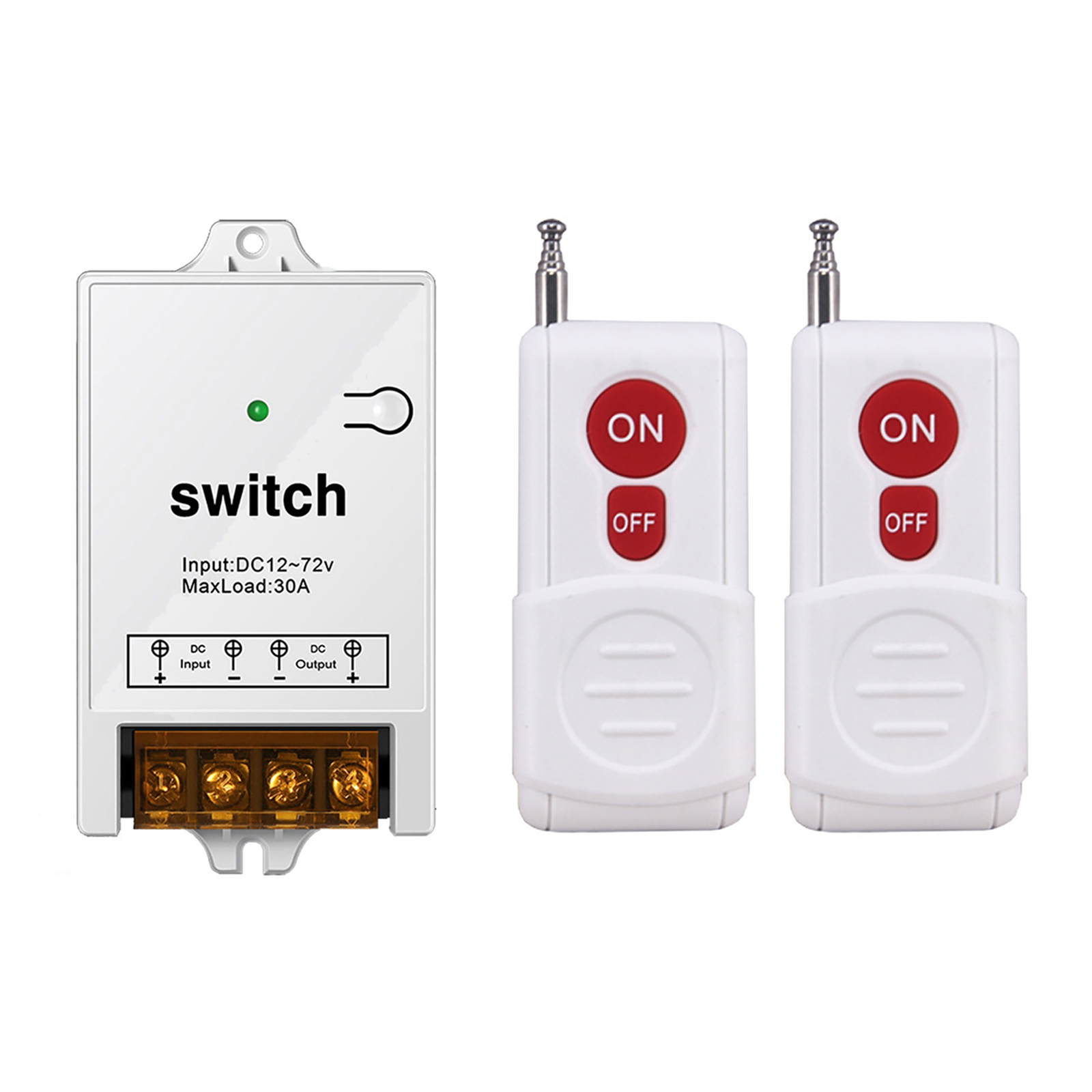

Package Includes:
2 X Remote Controls
1 X Receiver
