Features:

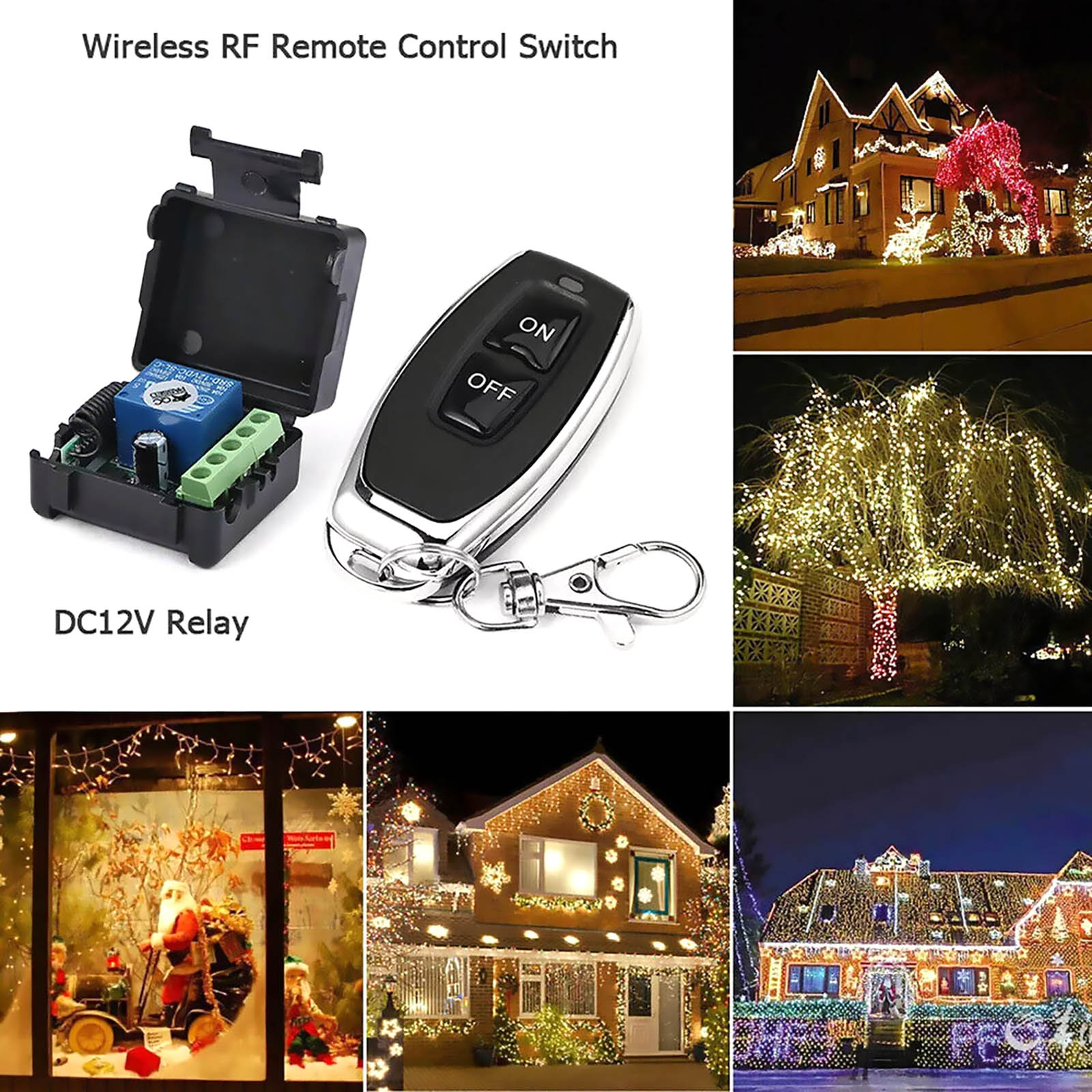

1. The application is wide. This product is controlled by intelligent microprocessor. It can be applied to garage door control, lighting control, remote control curtain, access control system and various motor control systems.
2. Easy installation. Small size, easy to install, safe and reliable to use and so on.

Learning Methods:
1. Self Locking Learning Method: After Powering On, Press And Hold The Learning Button On The Receiving Board, And The LED Will Flash Once. Release It For 6 Seconds. Press And Hold The Remote Control Button That Needs To Be Learned, And The LED On The Receiving Board Will Flash Twice To Prove Successful Learning
2. Jogging Learning Method: After Powering On, Press And Hold The Learning Button On The Receiving Board, And The LED Will Flash Twice. Release It For 6 Seconds. Press And Hold The Remote Control Button That Needs To Be Learned, And If The LED On The Receiving Board Flashes Twice, It Proves That The Button Has Been Successfully Learned
3. Interlocking Learning Method: After Powering On, Press And Hold The Learning Button On The Receiving Board, And The LED Will Flash 3 Times. Release It For 6 Seconds. Press And Hold The Remote Control Button That Needs To Be Learned, And If The LED On The Receiving Board Flashes 2 Times, It Proves That The Button Has Been Successfully Learned

Switching Method:
Self Locking: When Powered On, Press And Hold The Learning Button, And The LED Will Flash Once. Release It (Press A To Turn On, Then Press A To Turn Off, And So On)
Jogging: When Powered On, Hold Down The Learning Button And The LED Will Flash Twice. Release It (Press A To Turn On, Release A To Turn Off, And So On)
Interlock: When Powered On, Hold Down The Learning Button And The Led Will Flash 3 Times. Release (Press A To Turn On, B To Turn Off, B To Turn On, A To Turn Off)

Clearing Method:
Clear Code: Press And Hold The Learning Button Without Letting The LED Flash 4 Times, Then Flash It 2 Times And Release It To Complete The Clear Operation. The Following Is A Single Key Full On And Full Off Learning Method For Controlling Multiple Receivers With A Multi Key Remote Control. The Total On And Off Should Be Operated In A Self-Locking State. The Total On Learning Method: Press And Hold The Receiver Learning Button Twice In Standby Mode, Press And Hold The Corresponding Button On The Remote Control Within 6 Seconds, And The Led On The Receiver Board Will Flash 2 Times. The Learning Is Successful
General Learning Method: Press The Receiver Learning Button Three Times In Standby Mode, Hold Down The Corresponding Button On The Remote Control For 6 Seconds, And The LED On The Receiver Board Will Flash Twice To Successfully Learn

Specifications:
Working Voltage: DC12V
Working Temperature: - 20~80℃
Working Frequency: 433MHz
Output Mode: Click/Self-Lock/Interlock
Remote Control Distance: 50m
Product Material: ABS

Package Includes:

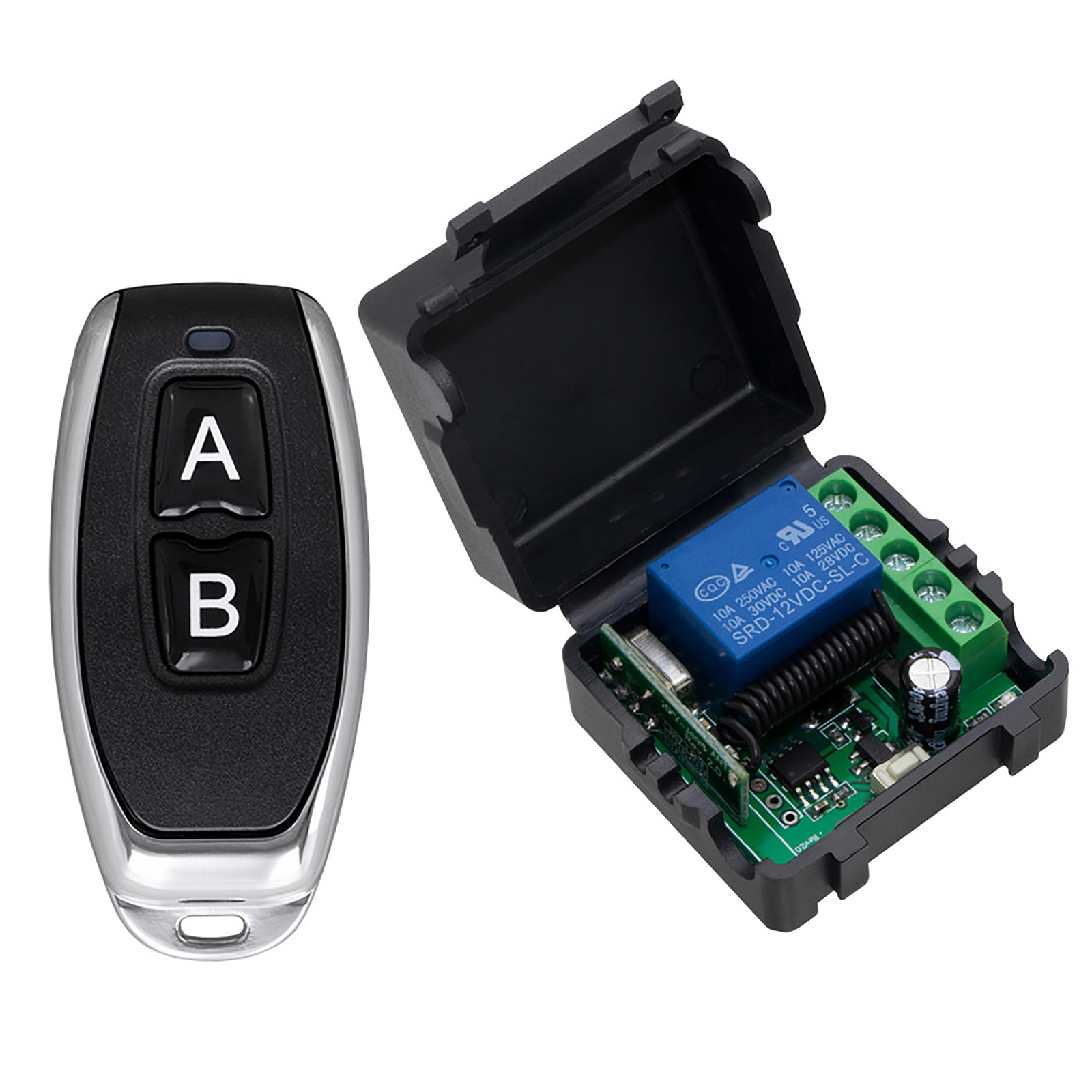

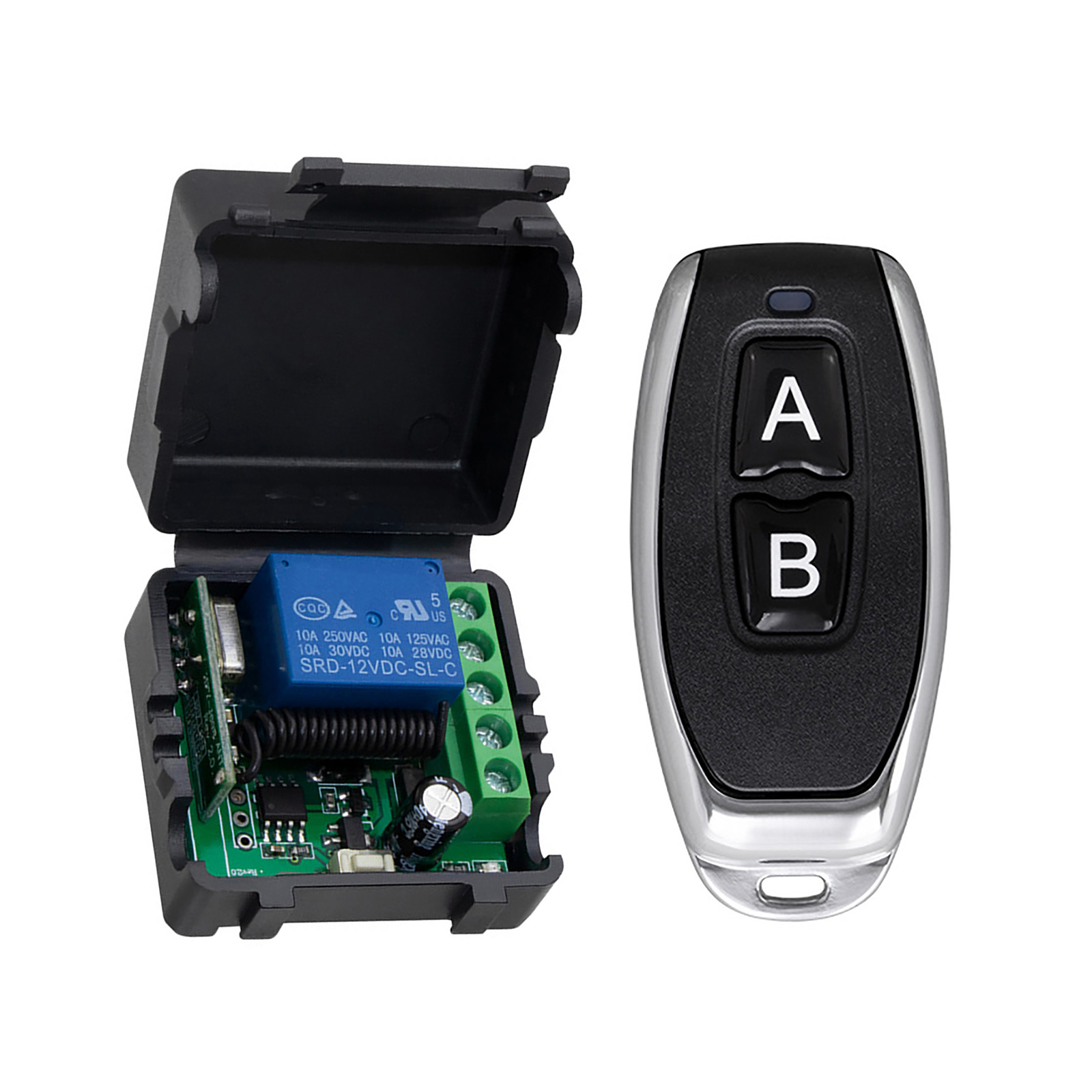

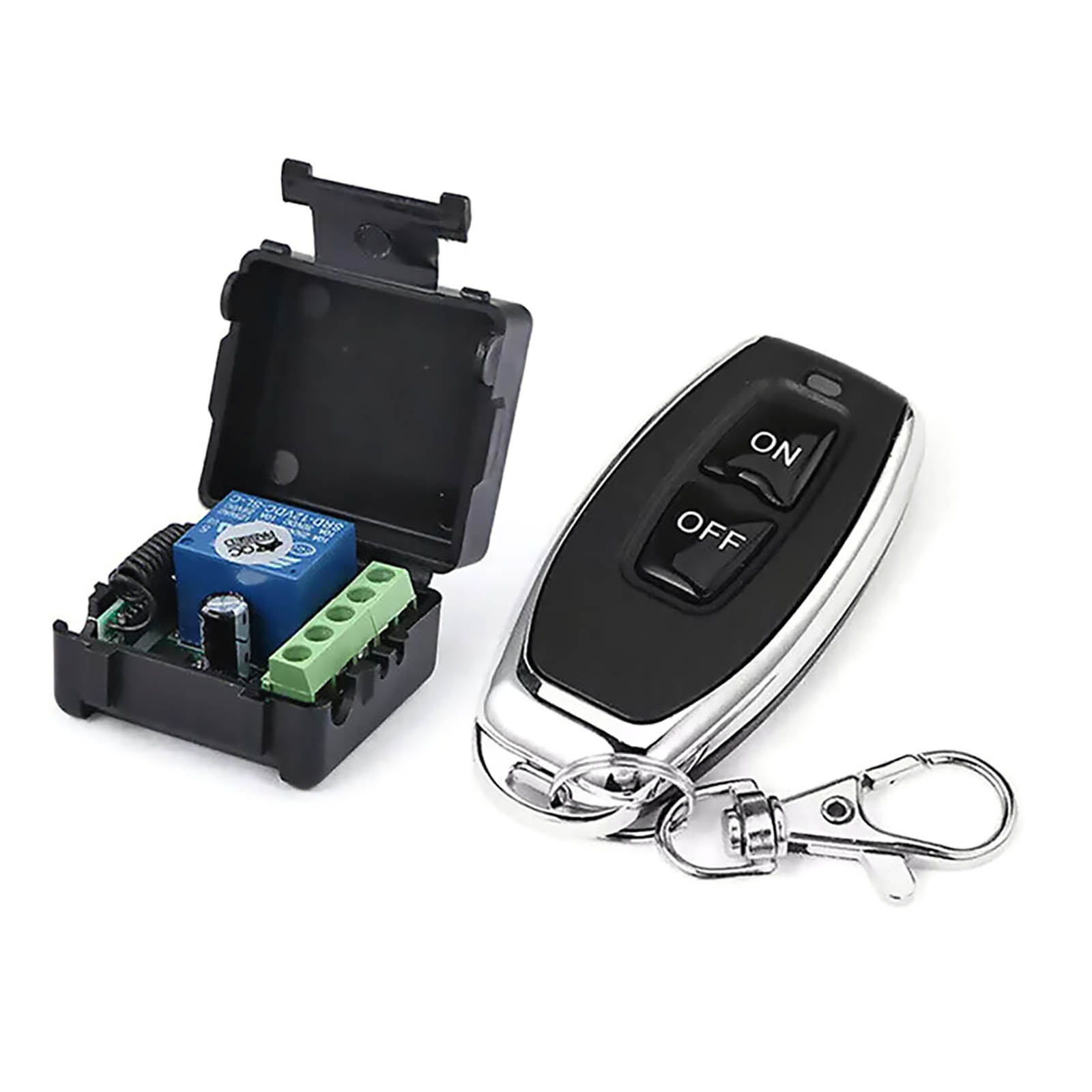

1PCS Remote Control
1PCS Receiver
