Features:

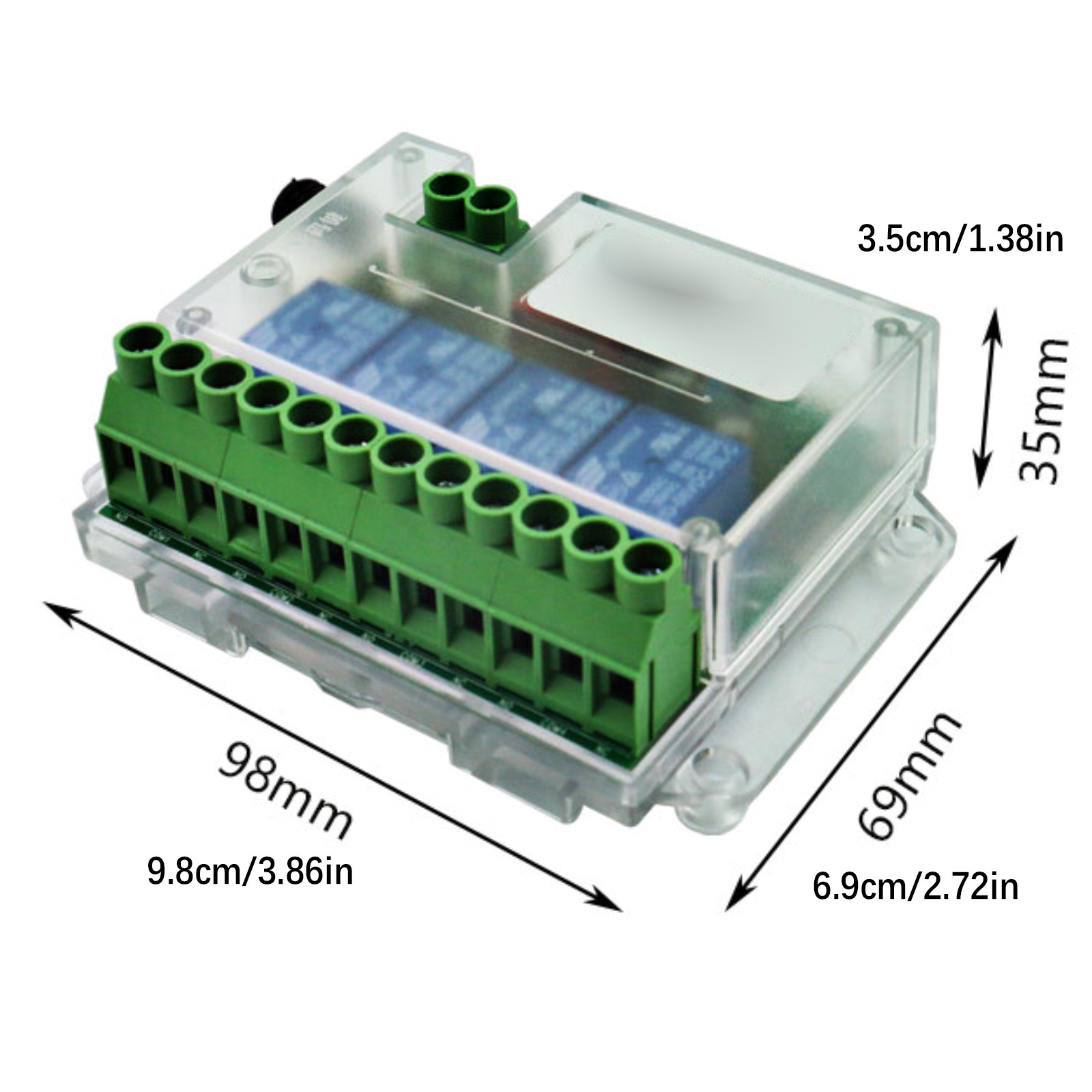

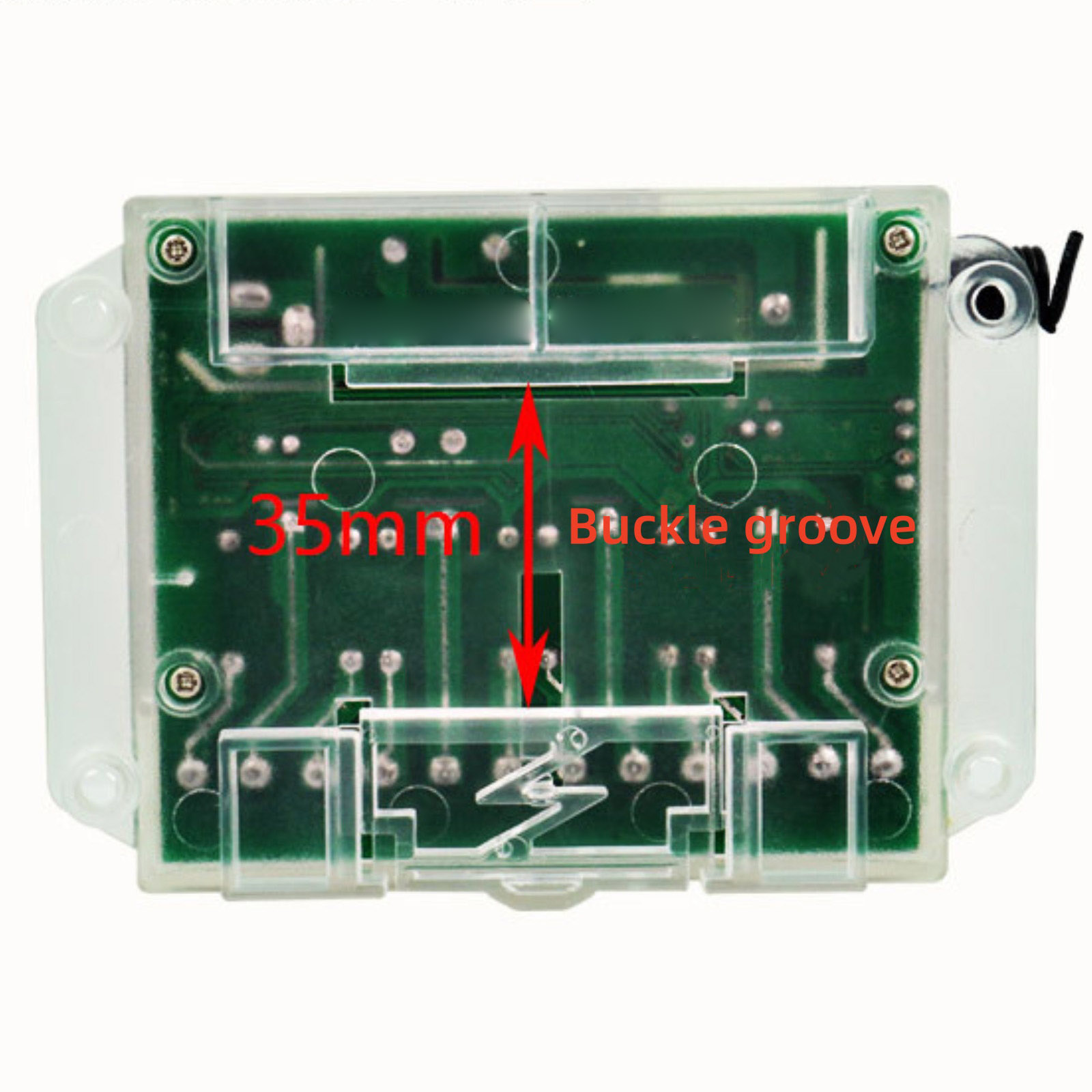

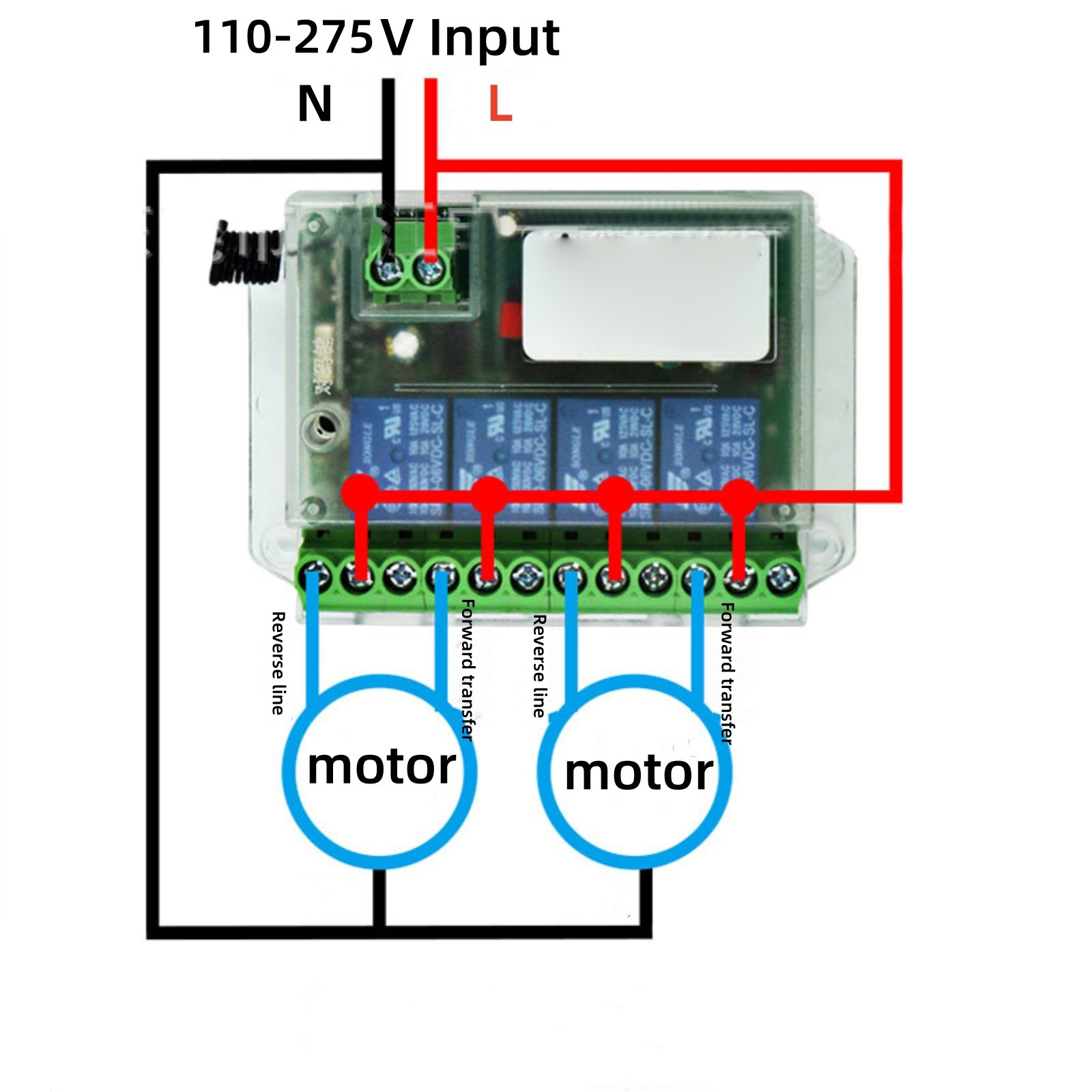

The 110-275V AC Four-Way Wireless Multifunctional Receiving Controller Outputs Switch Signals For Four Relays And Has Working Indicator Lights. It Can Enable The Controlled Equipment To Achieve The Requirements Of Motor Forward And Reverse Rotation Or Switch On And Off Conversion, As Well As Various Special Control Programs. It Is Mainly Used In The Fields Of Electric Doors, Windows, Lifting Equipment, Gates, Elevators, Industrial Control And Security Industries. The Wiring Does Not Need To Open The Shell Directly, And The Bottom Shell Is Designed With A Card Groove, Which Can Be Directly Connected On The Industrial Control Guide Rail. The Operation Is Very Convenient, And The Professional Switch Power Supply Circuit Provides Wide Voltage Power Supply, Which Is Safe And Reliable.

Specifications:

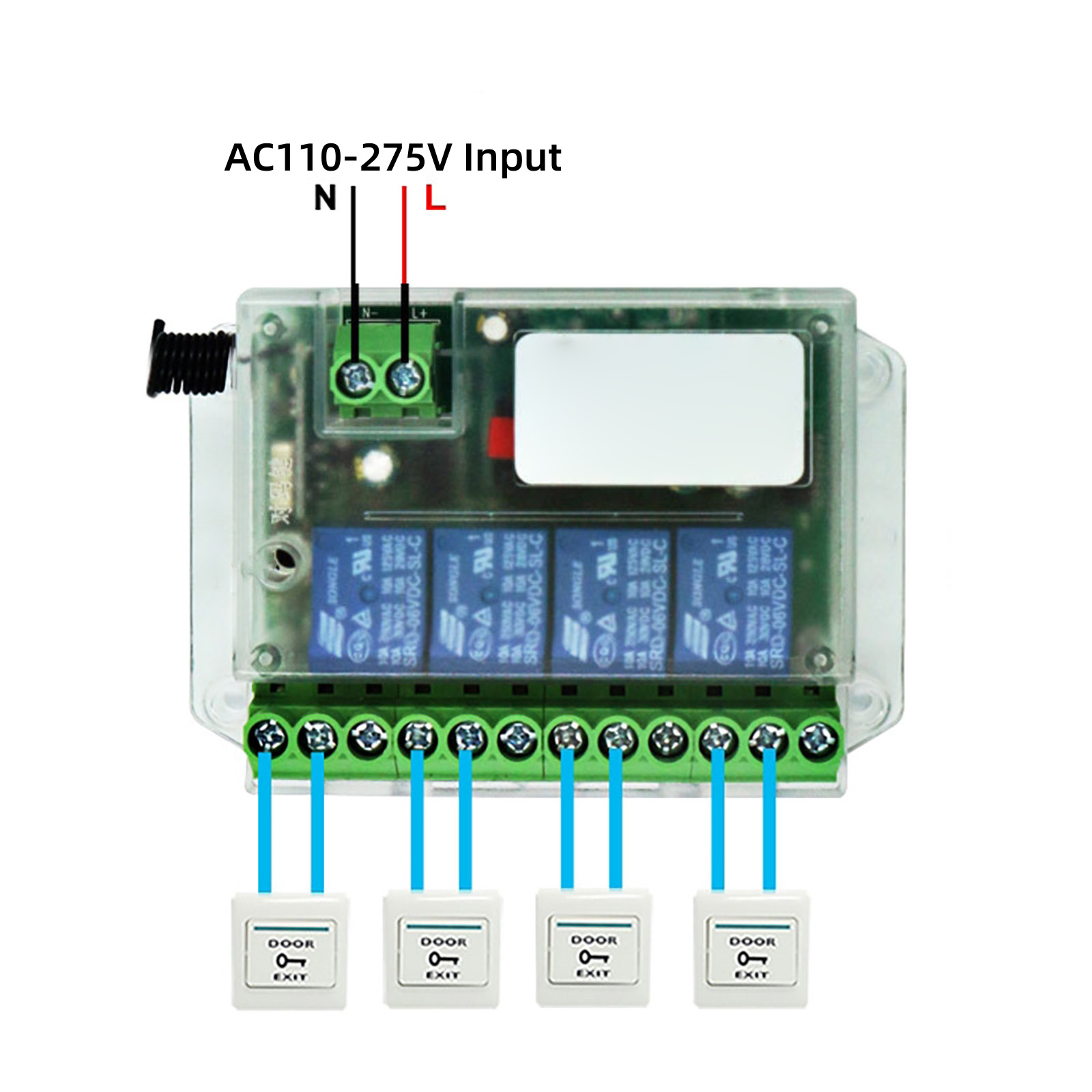

Operating Voltage: AC110-275V
Operating Frequency: 433mhz
Frequency Distance: 100-200m
Working Temperature : -10℃-+70℃
Static Current: 8mA

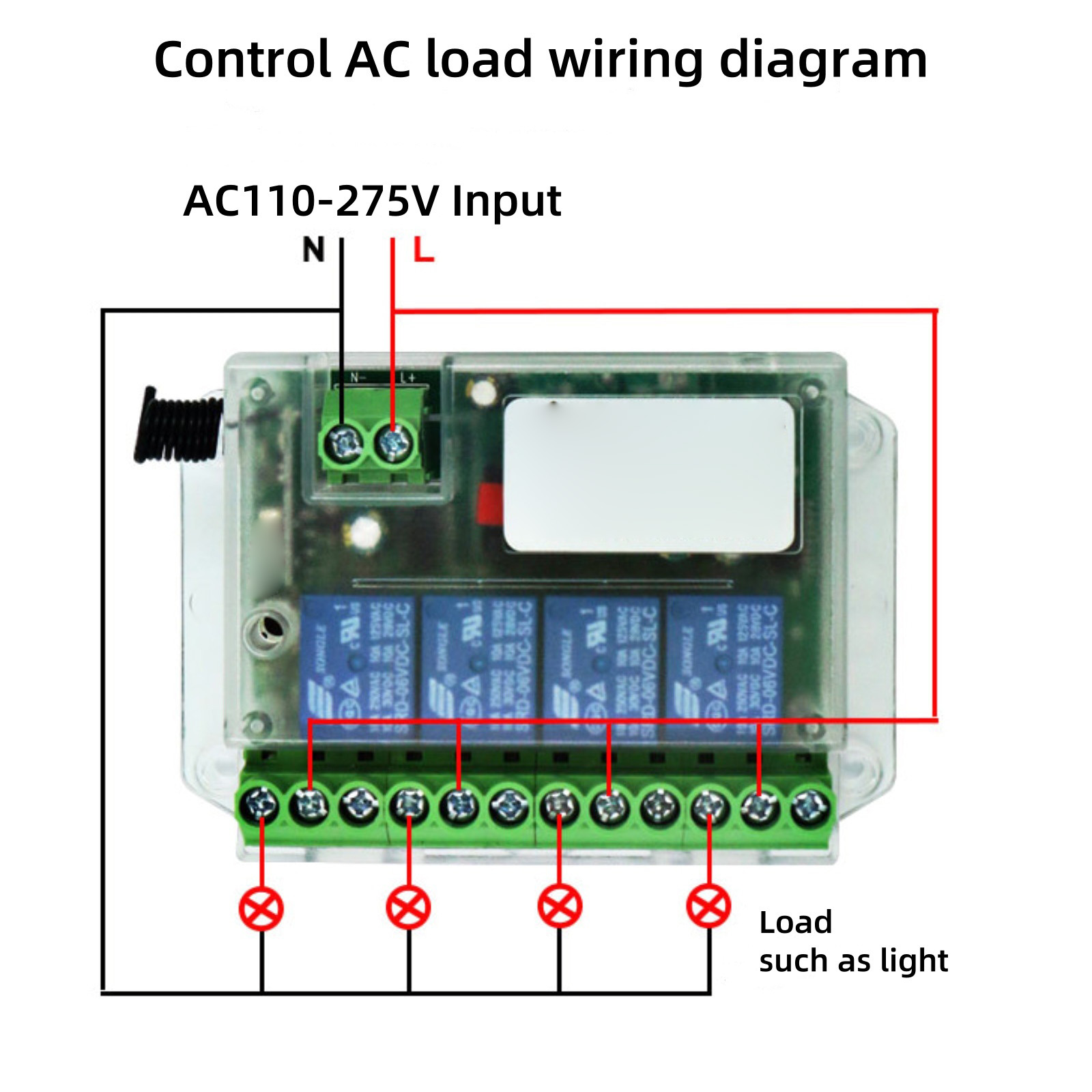

Load Power: 1000W
Decode: Learning Code

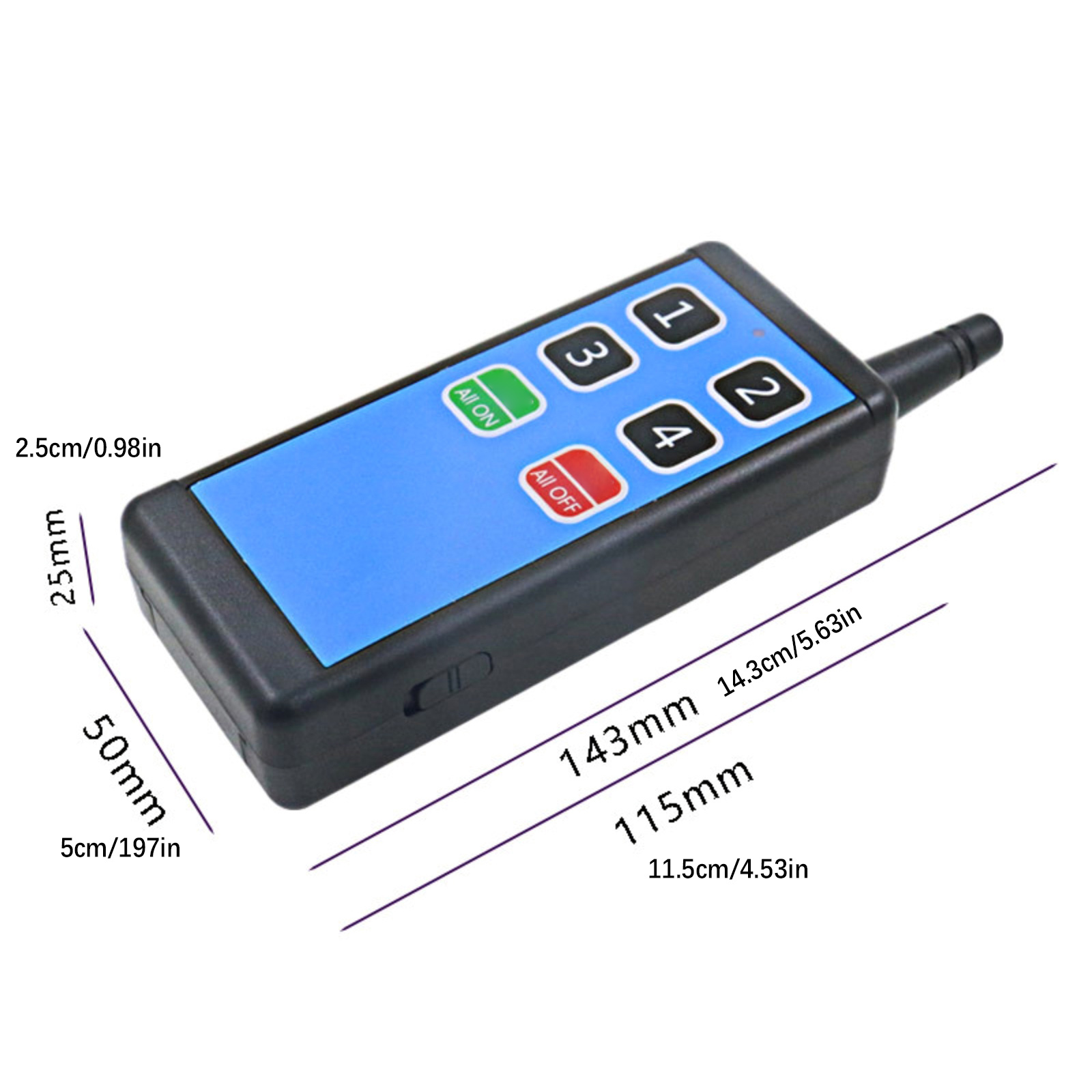

Remote Control Transmitter Battery: 2* AAA Batteries(Batteries Included)

Working Mode:
Mode 1: Jogging
Mode 2: Self Locking
Mode 3: Interlocking
Mode 4: 1.2. Road Self-Locking 3.4 Road Inching
Mode 5: 1.2-Channel Interlock 3.4-Channel Jog
Mode 6: 1.2 Interlocking, 3.4 Self-Locking
Mode 7: 1.2-Channel Interlock 3.4-Channel Interlock

Explanation Of Mode Output Methods:

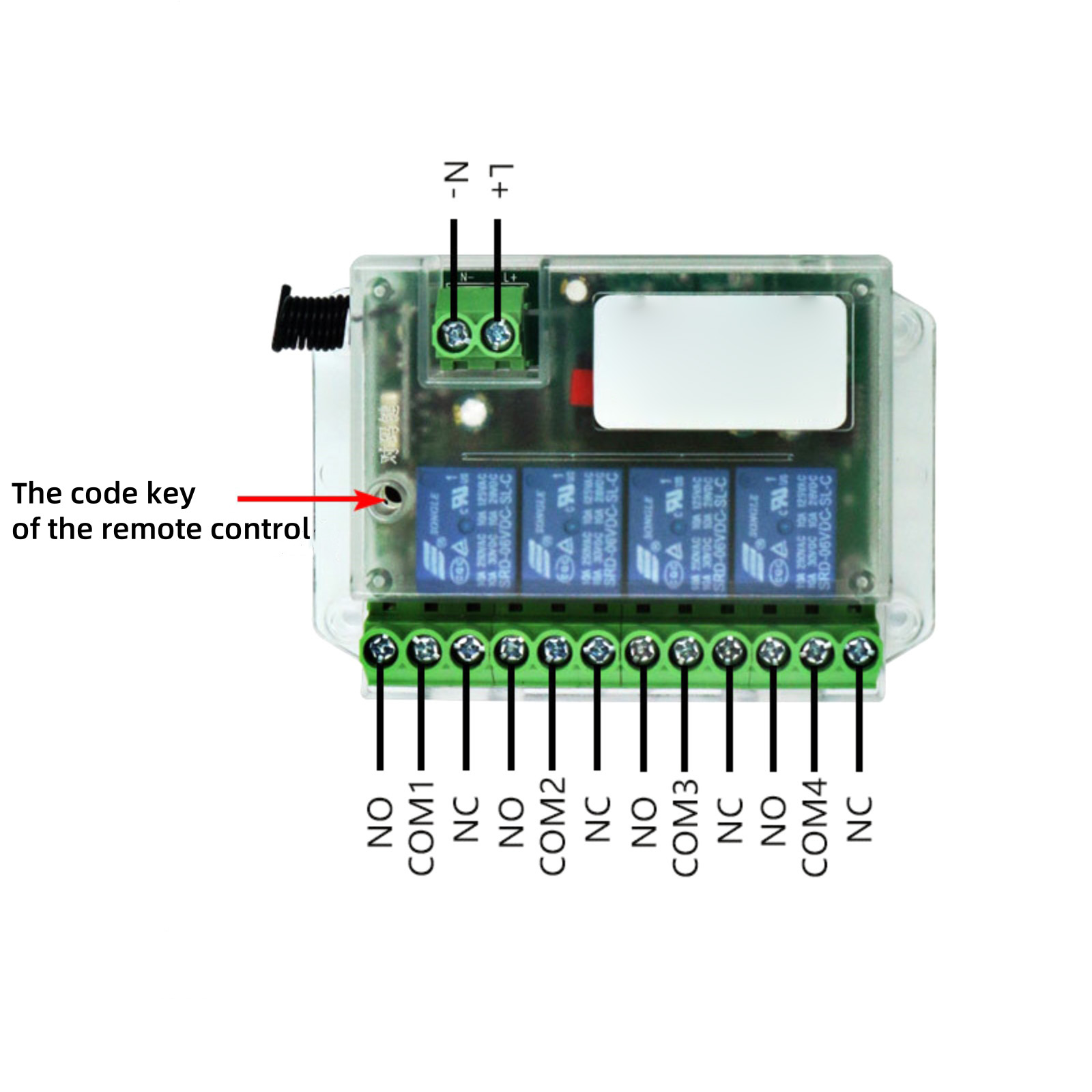

Mode 1 (Jog) Learning Method: Press The Code Matching Button On The Control Board Once, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Requires Code Matching. The Led Indicator Light On The Control Board Will Flash Continuously For 3 Times To Successfully Match The Code. (Equipped With A 6-Key Remote Control: Jog+ALL ON)
Mode 2 (Self-Locking) Learning Method: Press The Code Matching Button On The Control Board Twice In A Row, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Requires Code Matching. The Led Indicator Light On The Control Board Will Flash Three Times In A Row To Successfully Match The Code. (Equipped With A 6-Key Remote Control: Self-Locking+ALL ON/ALL OFF)
Mode 3 (Interlock) Learning Method: Press The Code Matching Button On The Control Board Three Times In A Row, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Requires Code Matching. The Controller Led Indicator Light Will Flash Three Times And Then Turn Off, Indicating Successful Code Matching. (Equipped With A 6-Key Remote Control: Interlock+Off)
Mode 4 (1.2-Channel Self-Locking+3.4-Channel Jog) Learning Method: Press The Code Matching Button On The Control Board Four Times In A Row, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Needs To Be Matched. The Led Indicator Light On The Control Board Will Flash Three Times In A Row To Successfully Match The Code.
Mode 5 (1.2-Channel Interlock+3.4-Channel Jog) Learning Method: Press The Code Matching Button On The Control Board Continuously For 5 Times, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Needs To Be Matched. The Led Indicator Light On The Control Board Will Flash Continuously For 3 Times To Successfully Match The Code.
Mode 6 (1.2-Channel Interlock+3.4-Channel Self-Locking): Press The Code Matching Button On The Control Board 6 Times In A Row, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Requires Code Matching. The Led Indicator Light On The Control Board Will Flash Continuously For 3 Times To Successfully Match The Code.
Mode 7 (1.2-Channel Interlock+3.4-Channel Interlock) Learning Method: Press The Code Matching Button On The Control Board Continuously For 7 Times, Wait For The Led Indicator Light To Turn On, And Then Press Any Button On The Remote Control That Needs To Be Matched. The Led Indicator Light On The Control Board Will Flash Continuously For 3 Times, And The Code Matching Is Successful

Clear Data:
After Pressing The Learning Button On The Control Panel For 13 Consecutive Times, All Remote Controls For Learning Codes Will Be Automatically Cleared. After Clearing, The Remote Control That Was Previously Learned To Code Will No Longer Be Controlled.

Package Included:

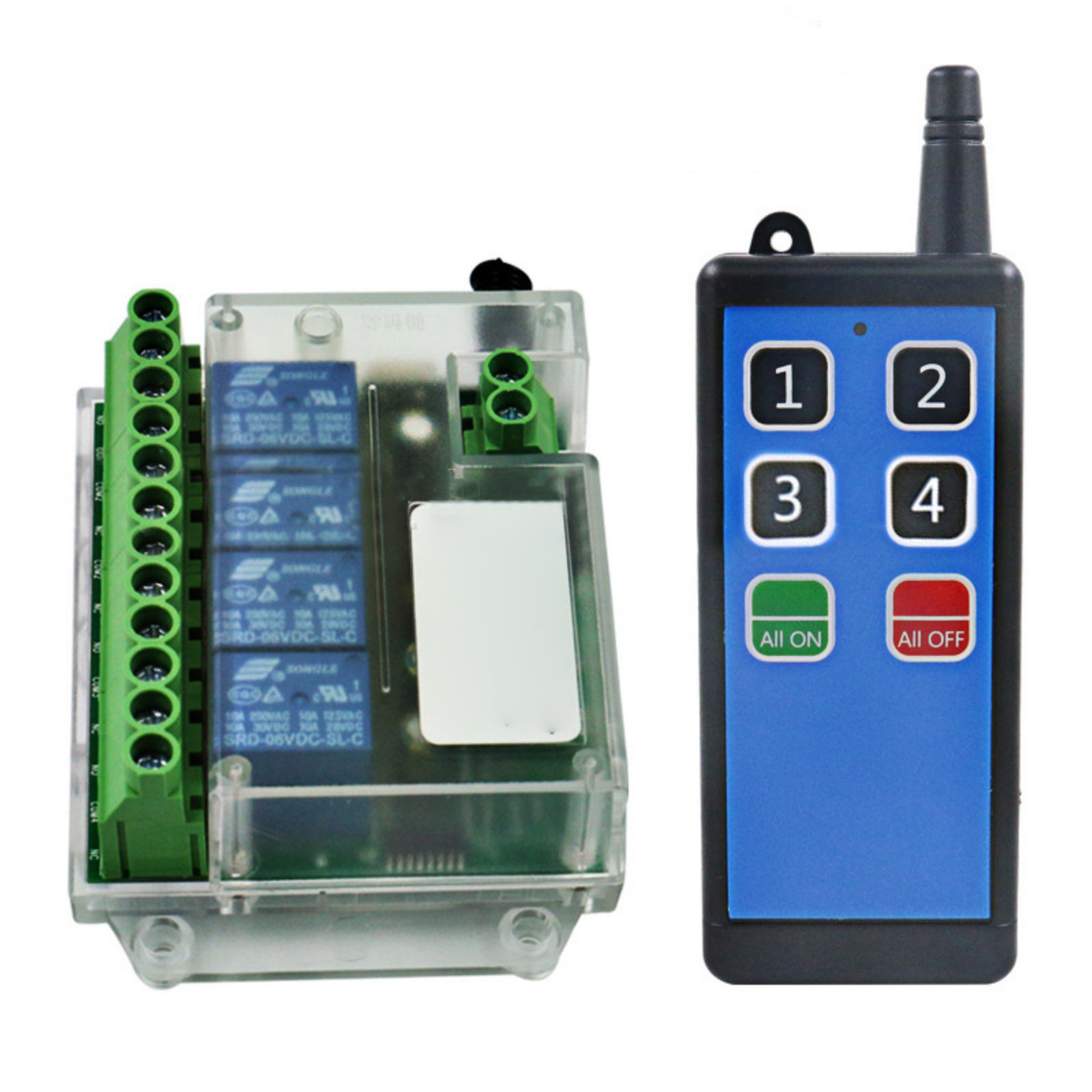

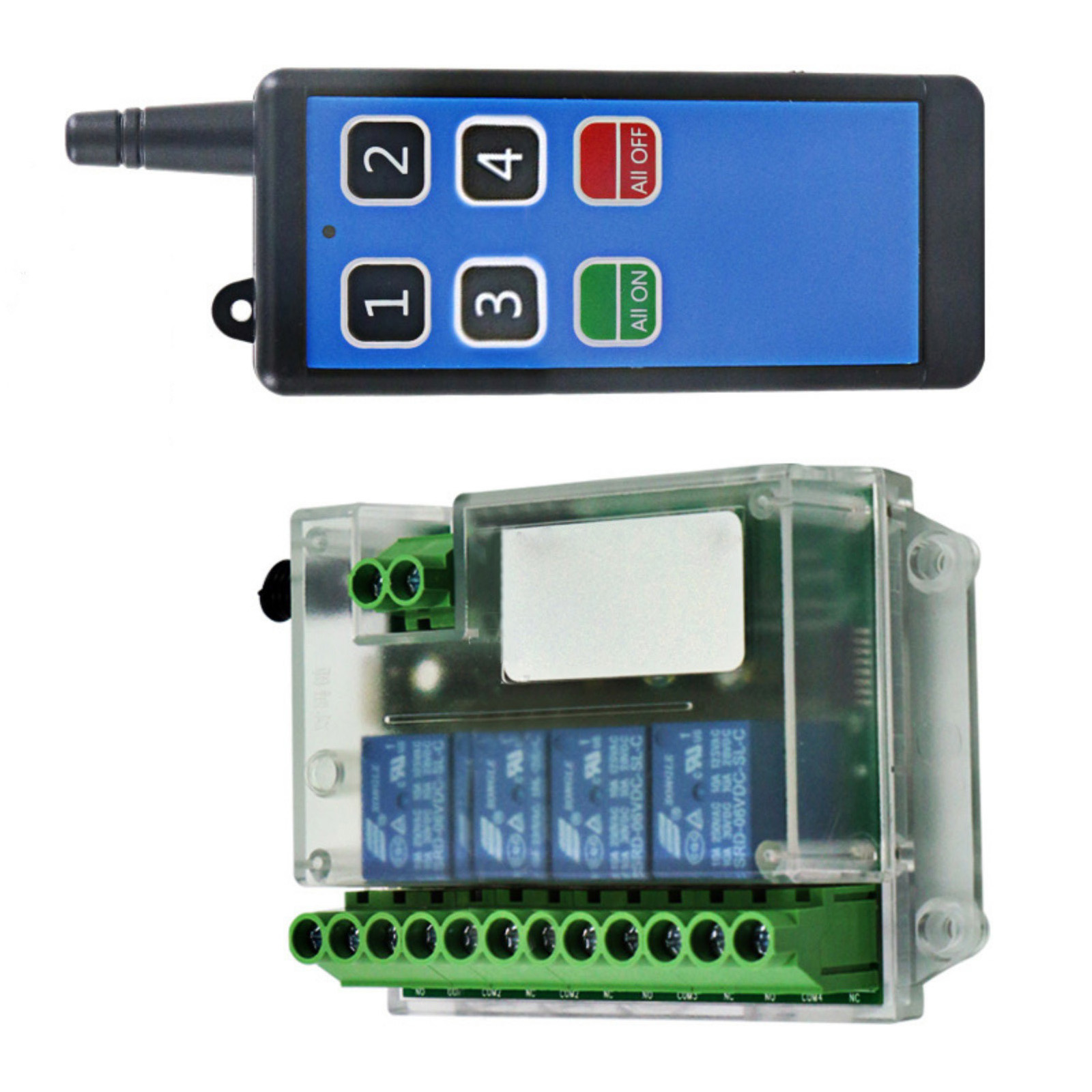

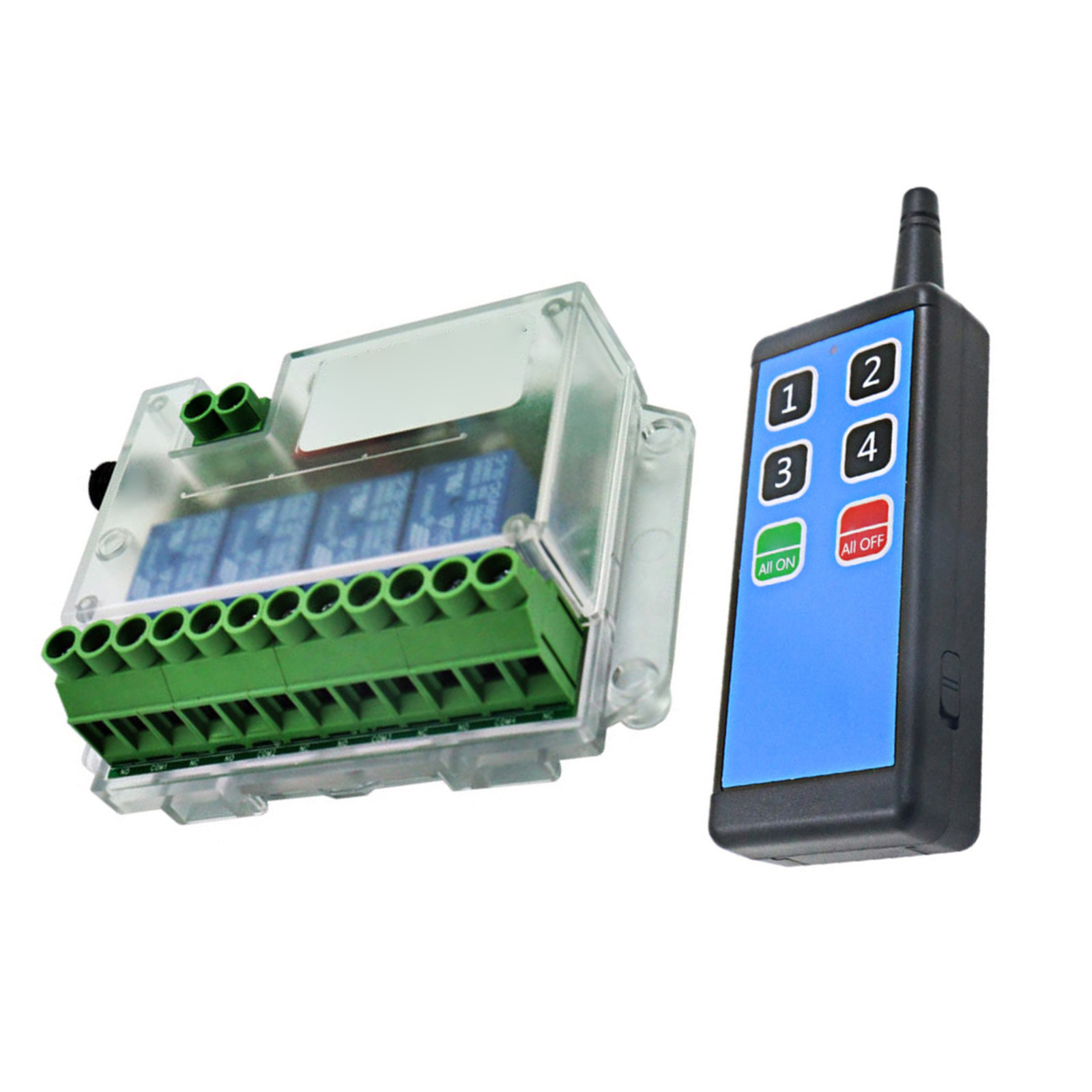

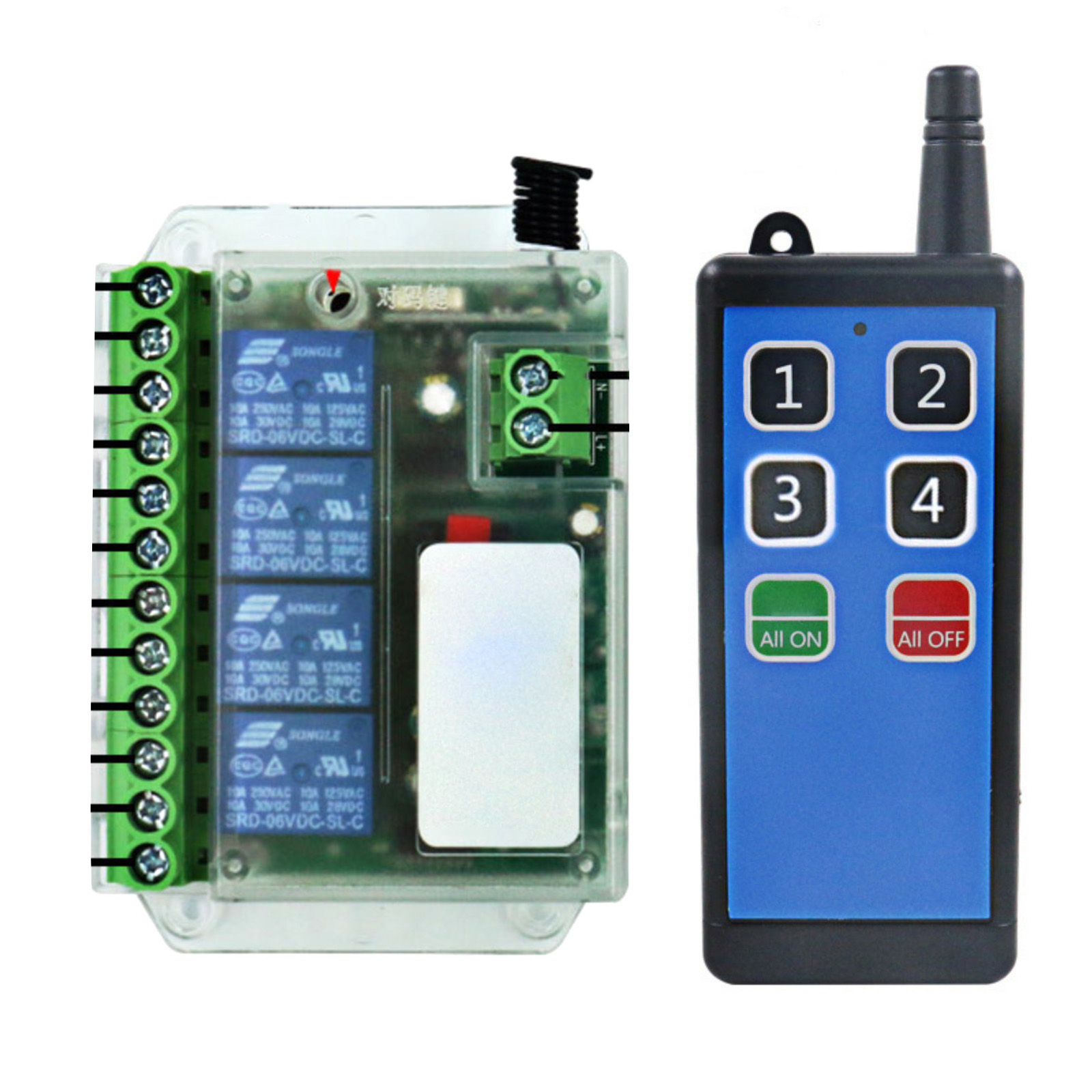

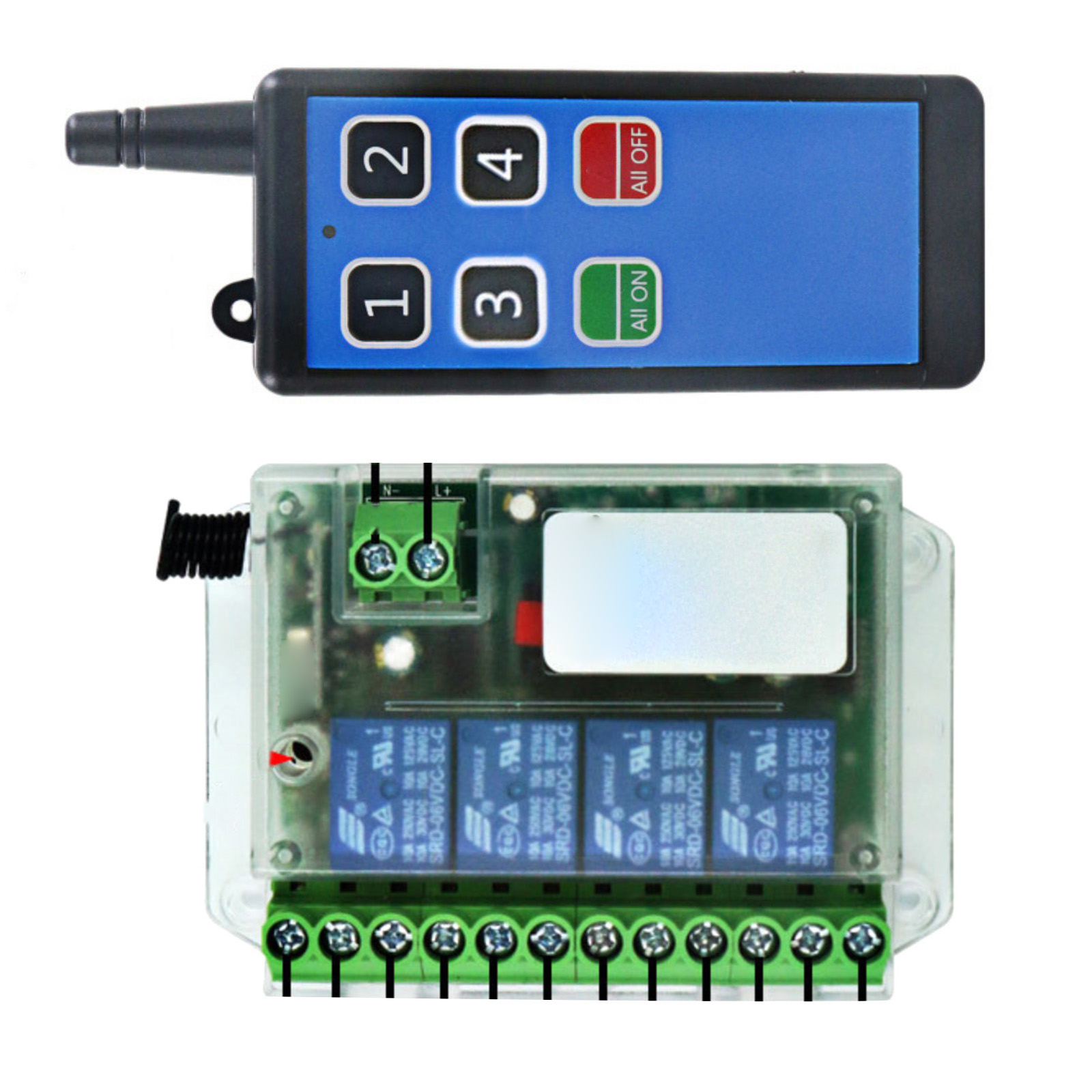

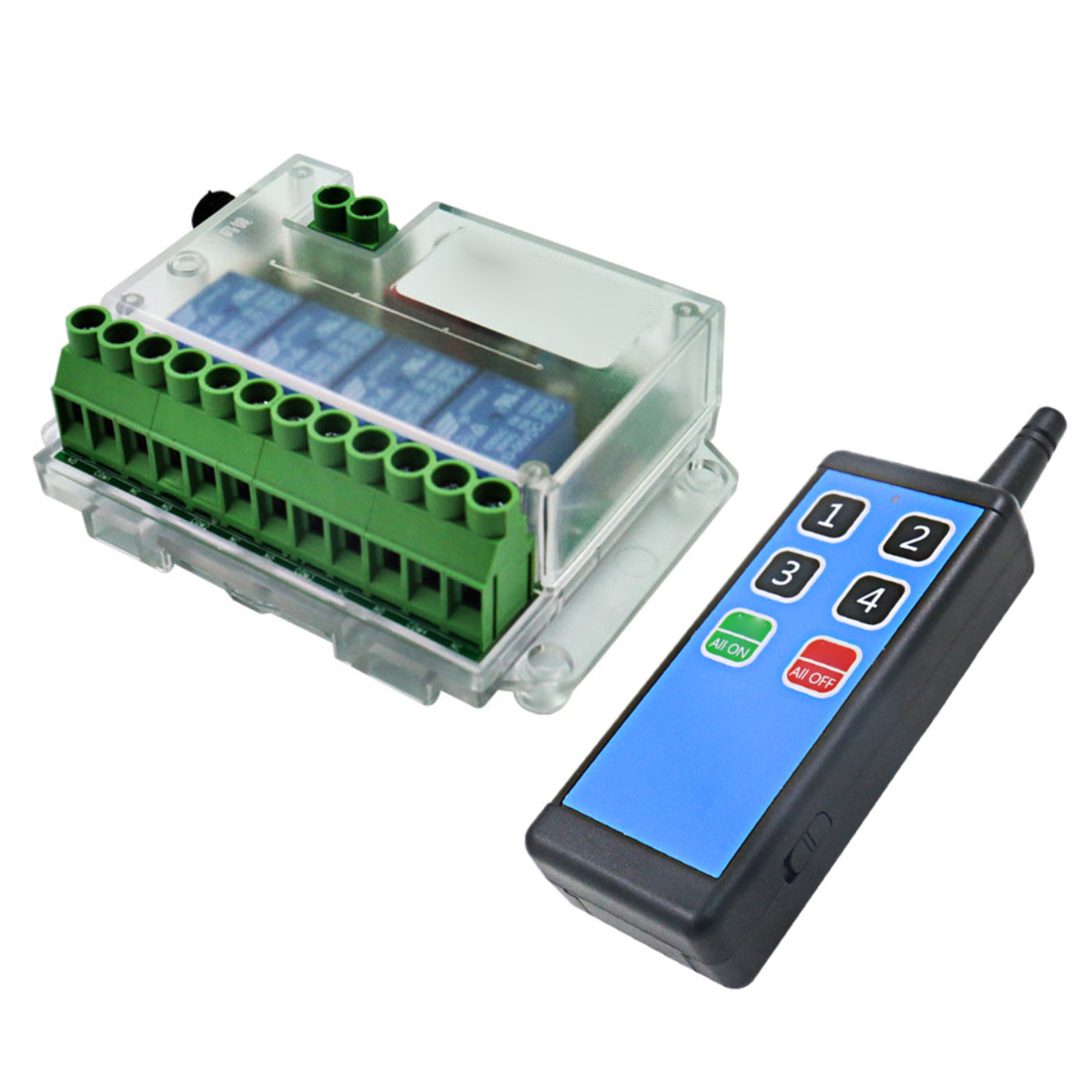

1 X Receiver
1 X Remote Control Transmitter
