Features:
1. Noncontact Detection, Moving Object Detecting
2. Transmitting Frequency: 24GHz, Can Be Widely Applied In Business, Industries, Word Controlling Etc
3. Provide Various Frequency Range Standards: -UK, -F. Advanced Low Consumption Phemt Oscillator
4. Independent Transmitting And Receiving Route, Can Get The Biggest Gain, Single Channel Operation
5. High Sensibility, High Flexibility, Low Cost, Operating Distance: 10-12 Meters Or More
6. Not Influenced By Temperature, Humidity, Noise, Air Flow, Dust, Ray Etc, Adaptive To Terrible Environment
7. Strong Radio Frequency Interference Resistance, Stable Performance, Swift Response, High ensibility
8. Out Put Power Is 5mw, Does No Harm To Human Bodies
9. Small Volume, Easy To Install
10. Radar Wave Can Penetrate Through Non Metallic Object, Such As Board, Glass, Plastics, Fabric Textile Etc, Unless There Are Concrete Wall Or Metal Board To Obstruct
11. Human Beings Or Objects Facing The Sensor To Move Wil Receive The Best Detection Result
Specifications:
1.Transmitting Frequrency: Min: 24GHz Typ: 24.125GHz Max: 24.25GHz
2.Output Power: 16dbm (Tpy)
3.Operating Temperature: -20℃--60℃
4.Operating Current: Tpy: 30mA, Max: 40mA
5.Operating Voltage: Tpy: 5.5V
6.Pulse Width: Tpy: 10us
Notice:
1.Don' T Operate During The Power On In Case Of Maloperation, Wrong Circuit Or Electric Shock
2.Avoid Installing The Product In Exposed Place To Prevent Damage Or Affecting Using Longevity
3.Install The Product Far Away From Magnetic Field In Case Of Maloperation
4.Install The Product Far Waay From Moving Conductors In Case Of Maloperation
Package Includes:

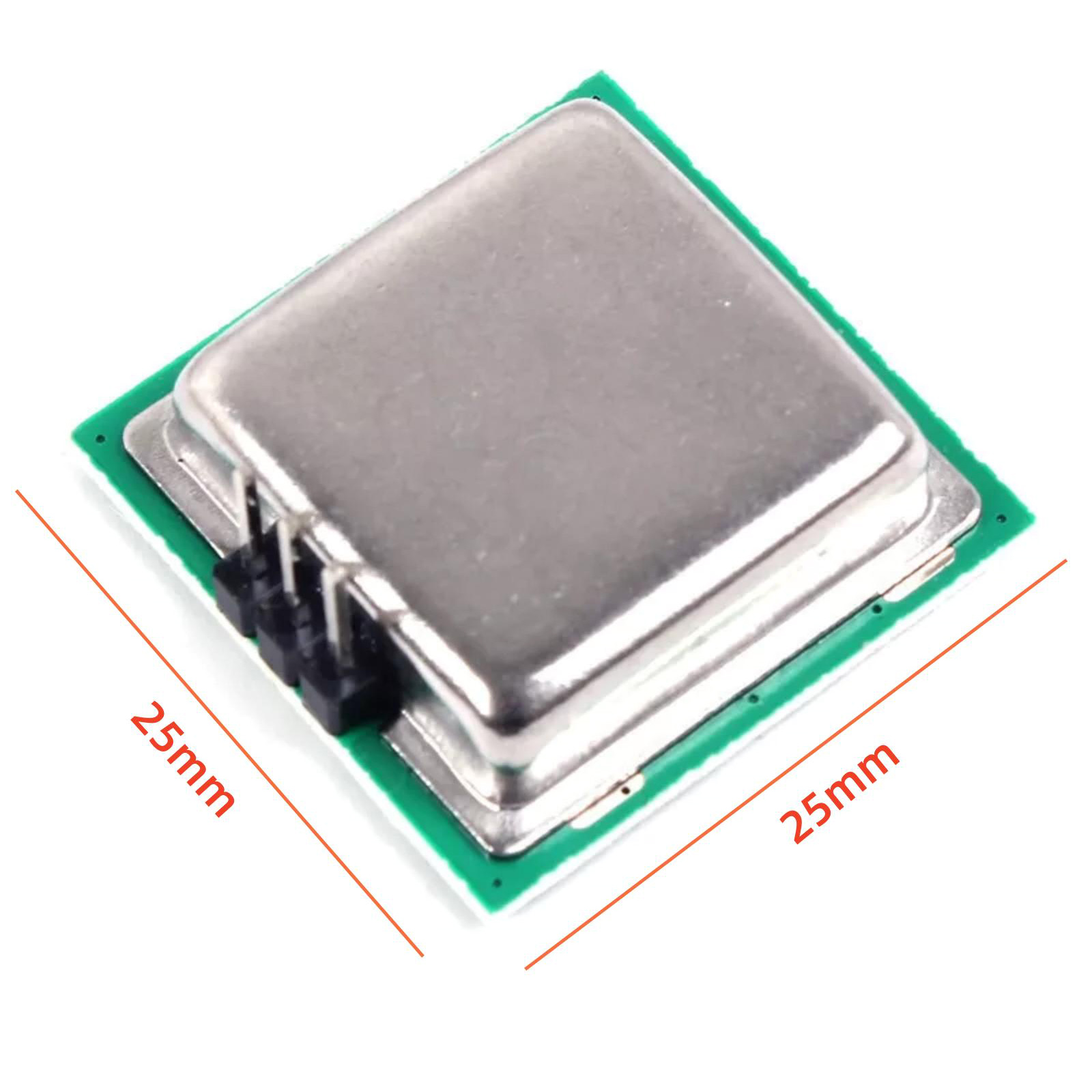

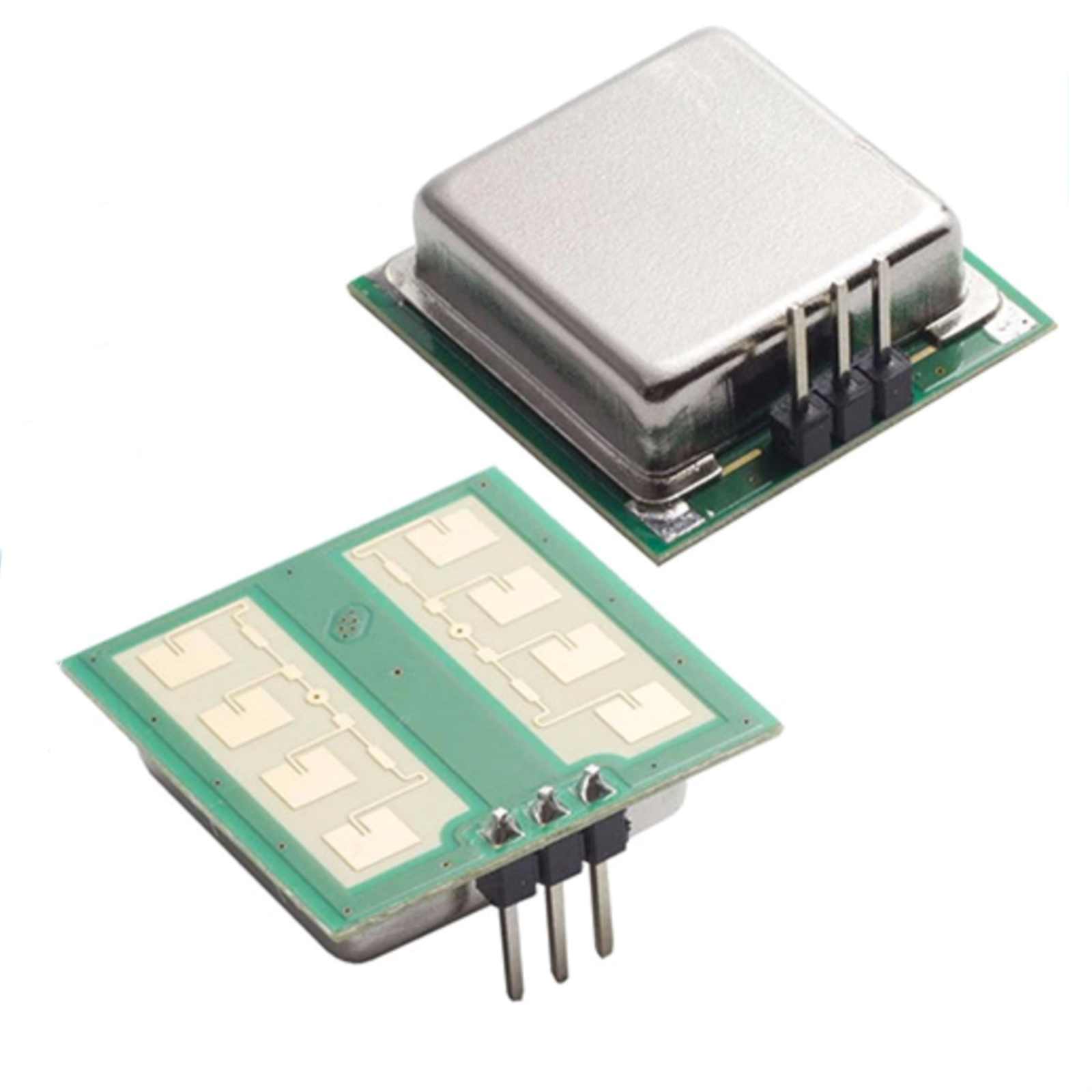

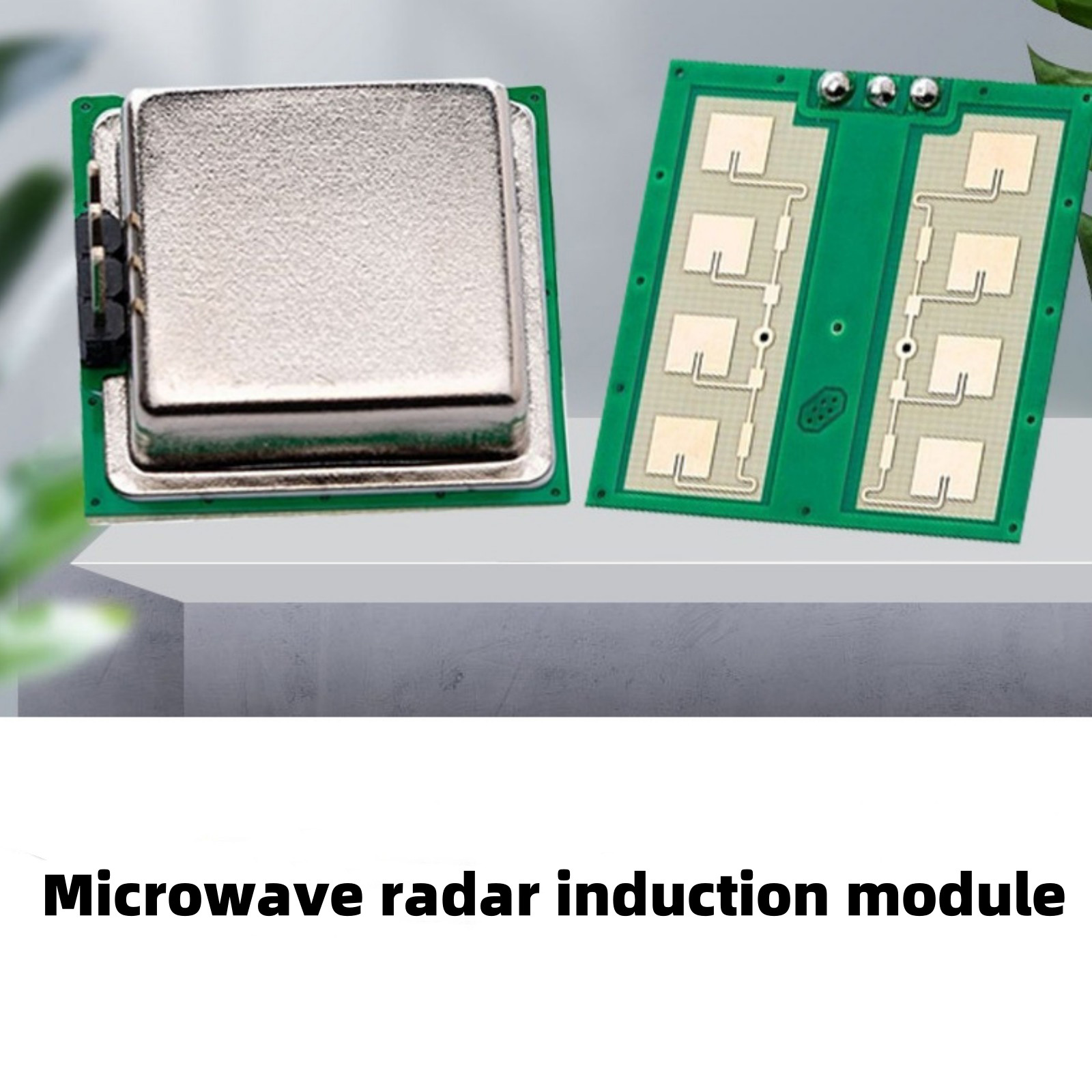

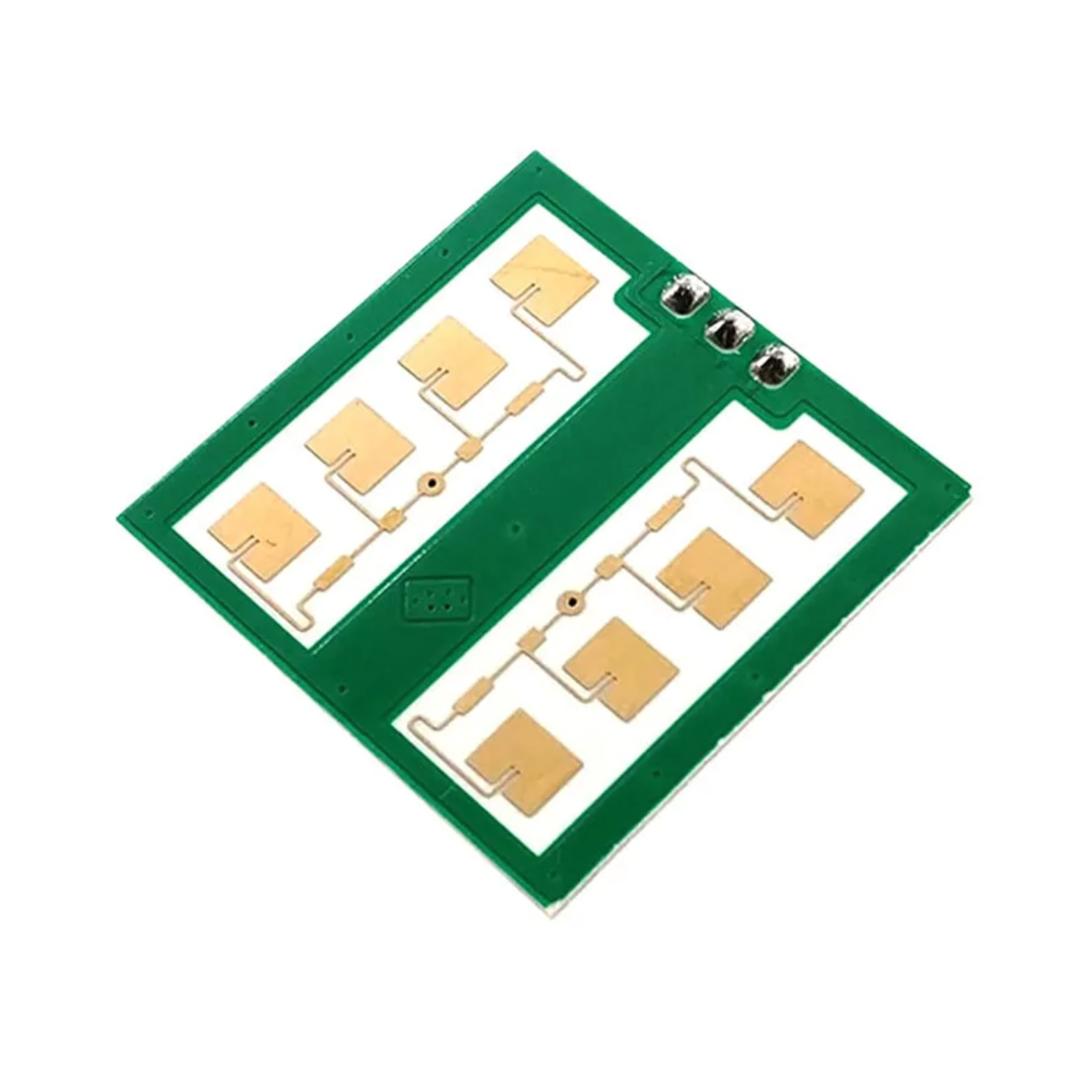

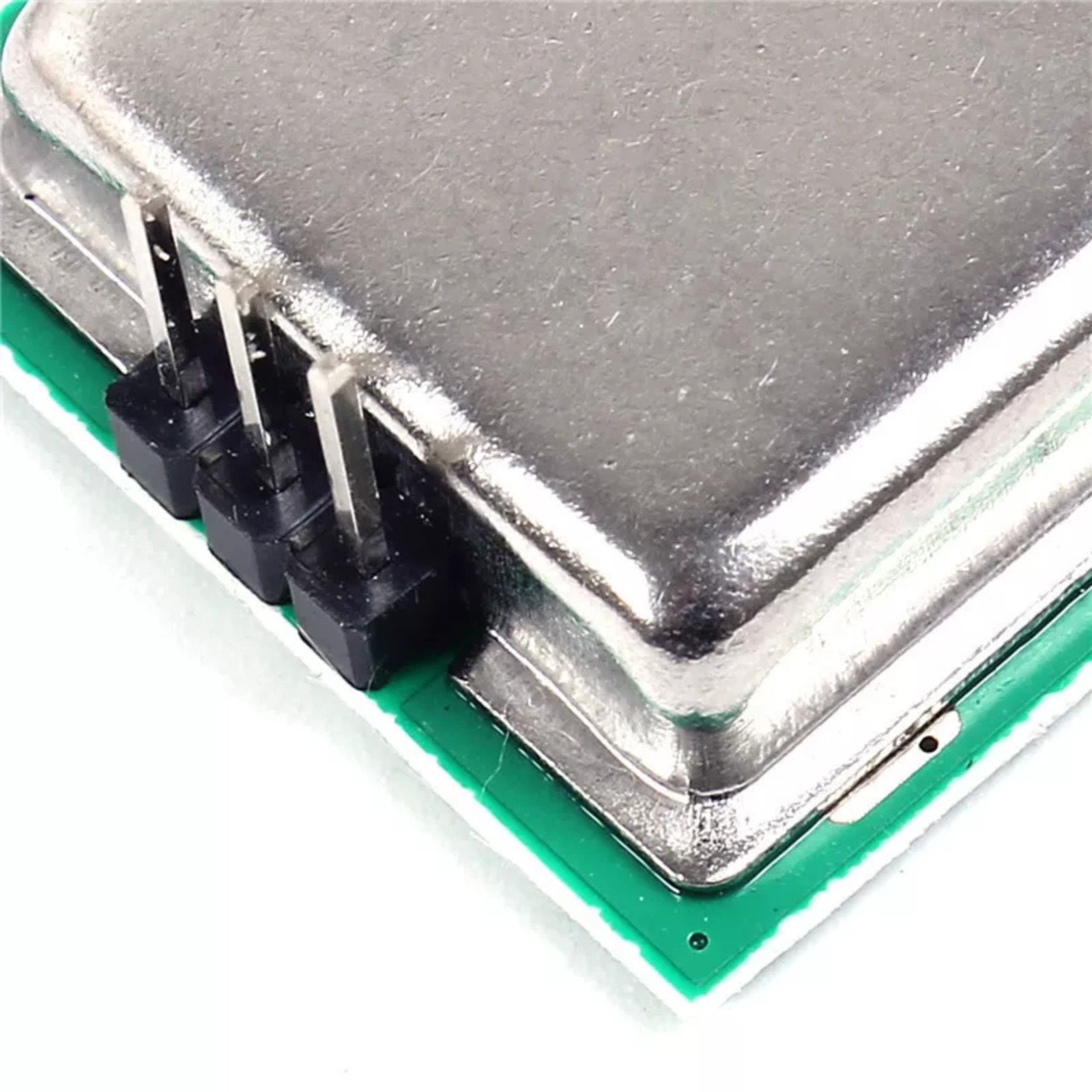

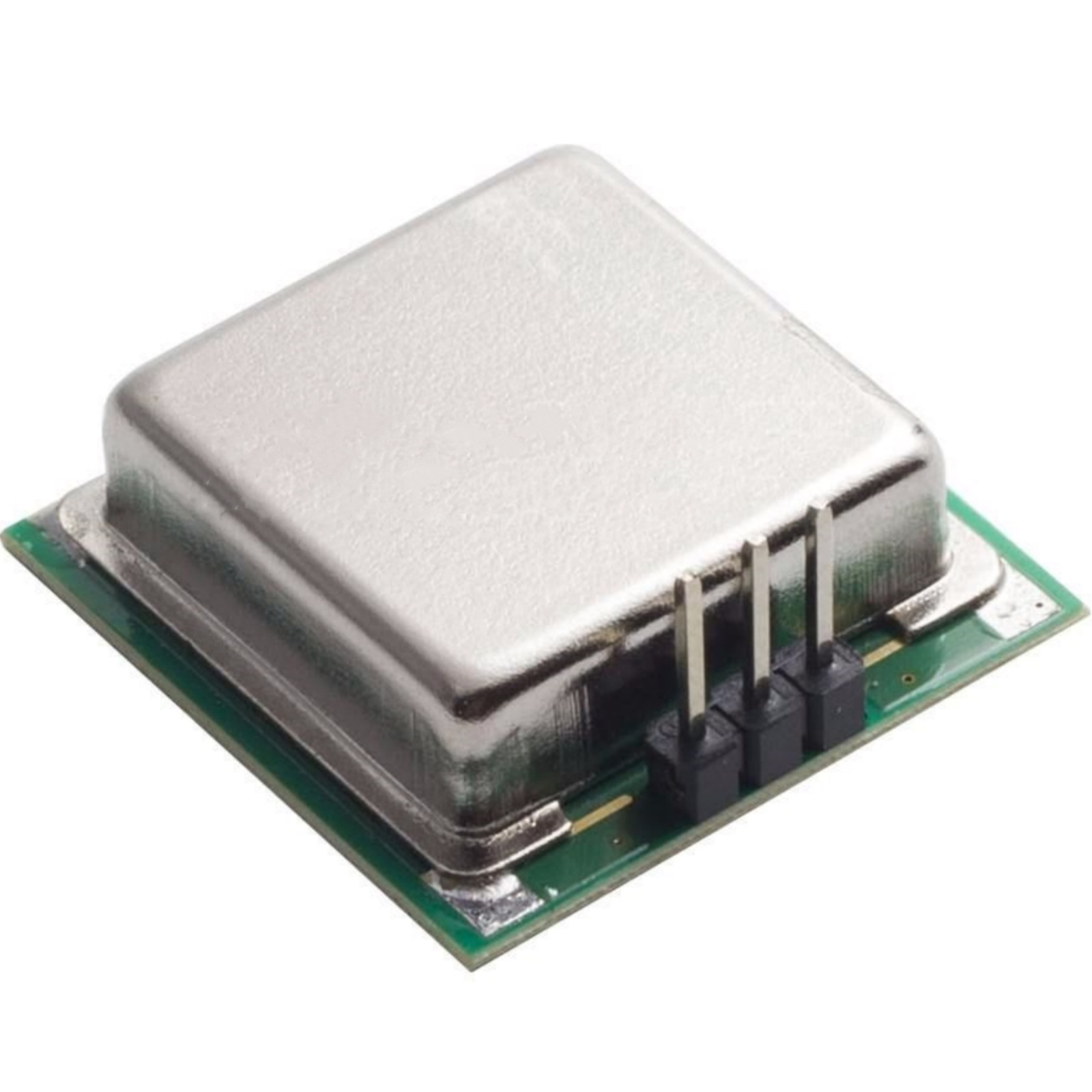

1pcs Microwave Body Induction Module 24GHz CDM324 Radar Induction Switch Sensor
