Features:

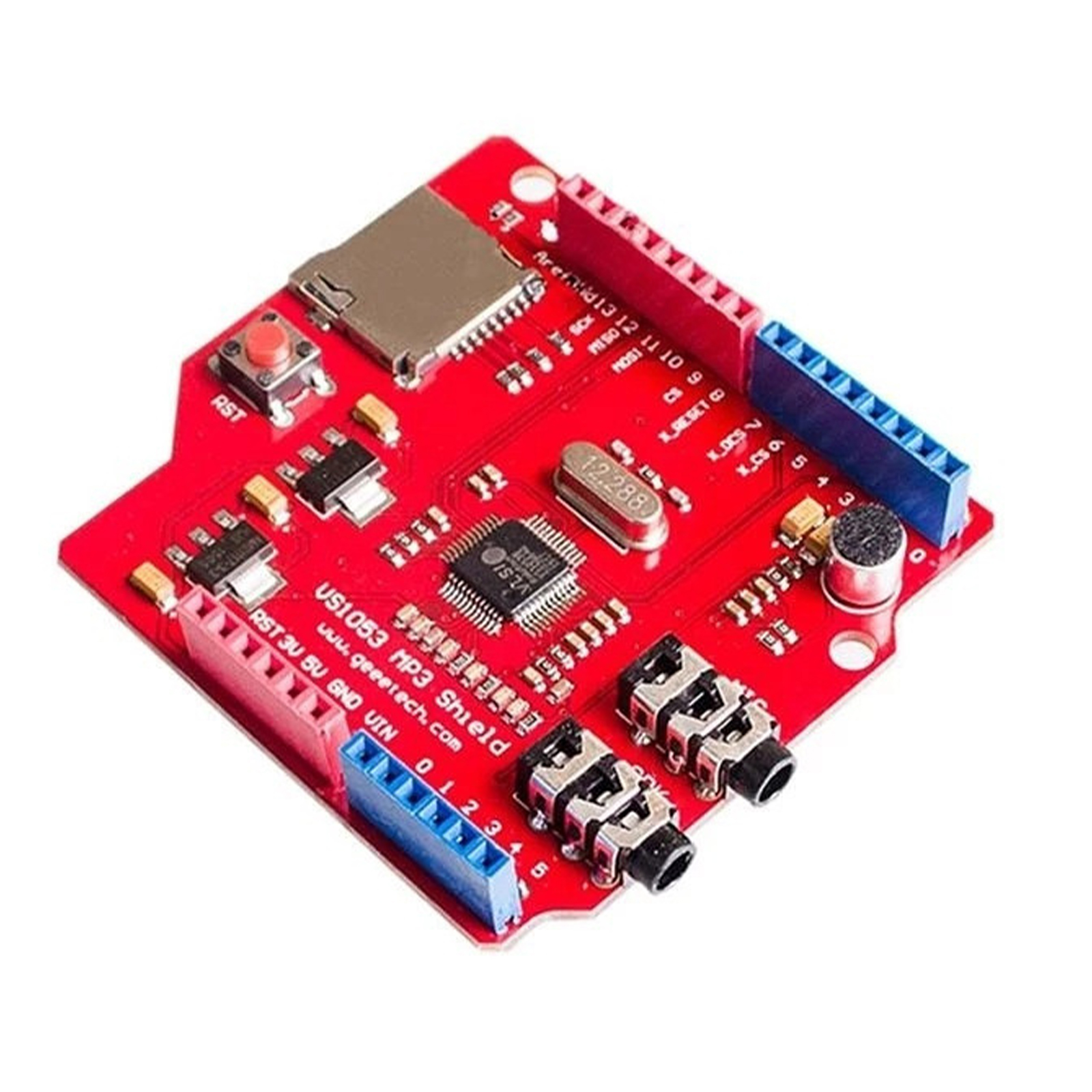

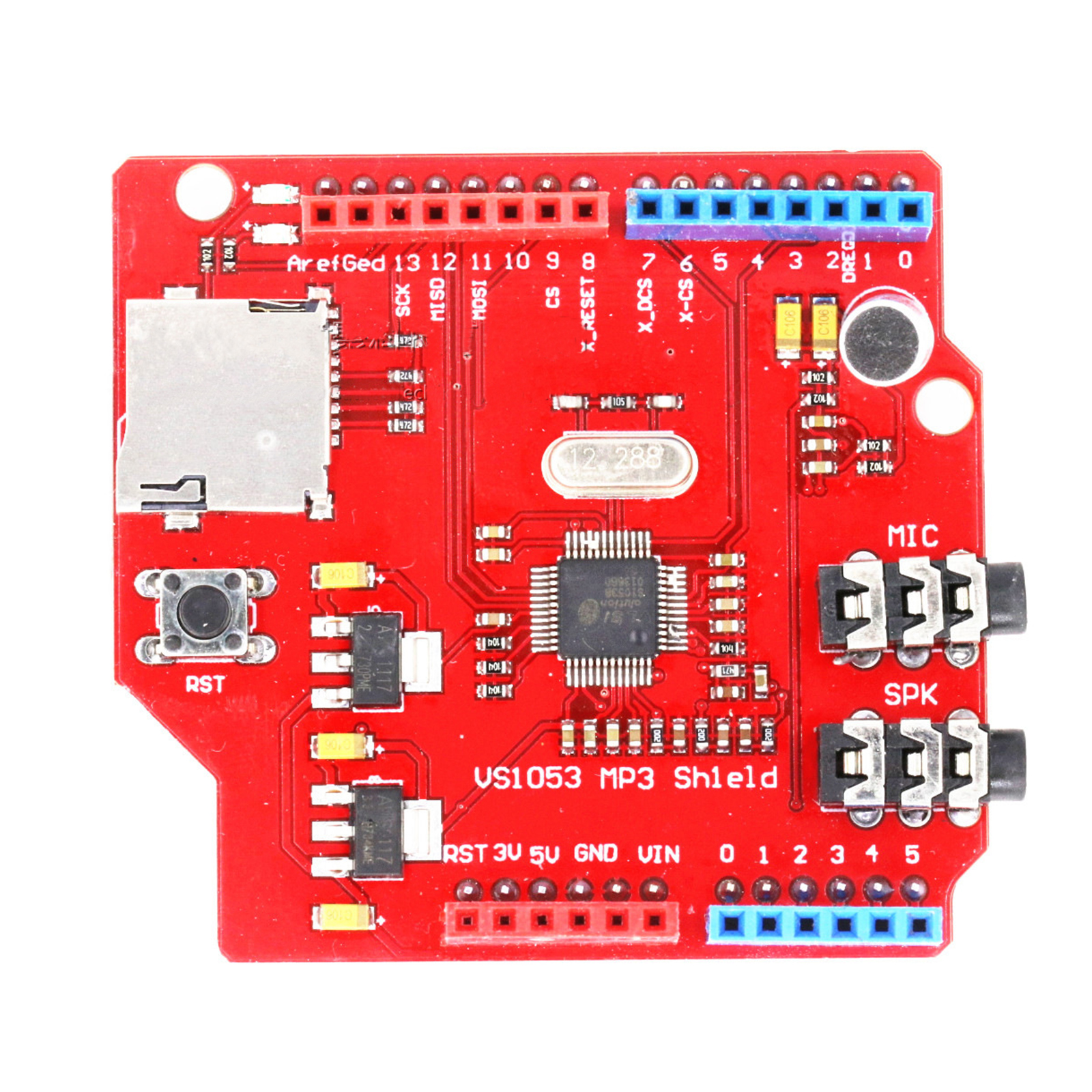

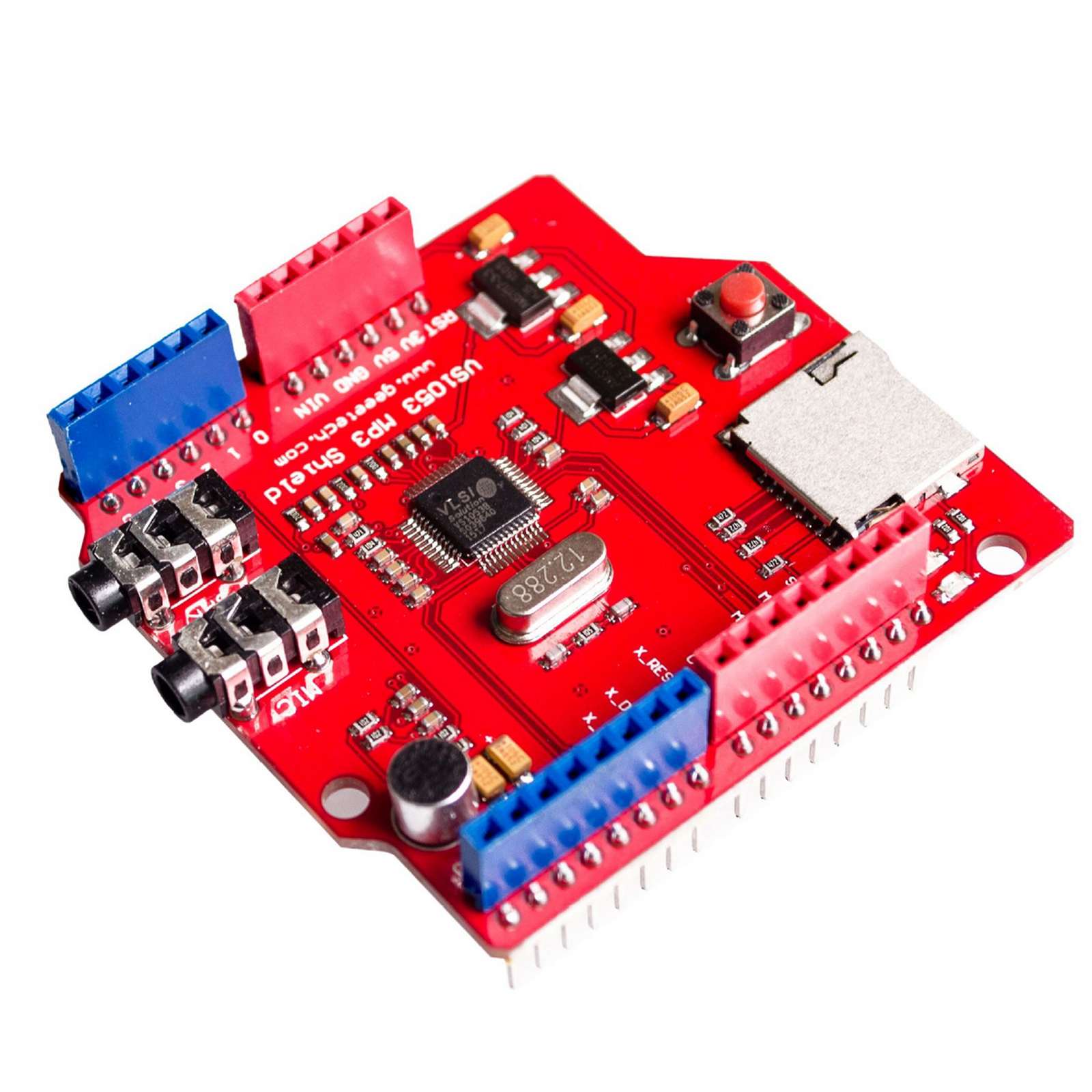

This MP3 shield board is designed according to vs1053b from vlsi.
You can directly plug it for ARDUINO /MEGA shown as pic using this post,
No need to get stuck with jumpers, Playing music becomes easier compared to the tiny mp3 cutting board.
VS1053 is a versatile MP3 codec processor capable of decoding various music formats.
Including Ogg Vorbis/MP3/AAC/AAC/WMA/MIDI audio.
For the best headphone listening experience, VS1053 includes EarSpeaker spatial processing
It accurately simulates how a room with stereo speakers would sound.
As well as being able to decode all major formats,

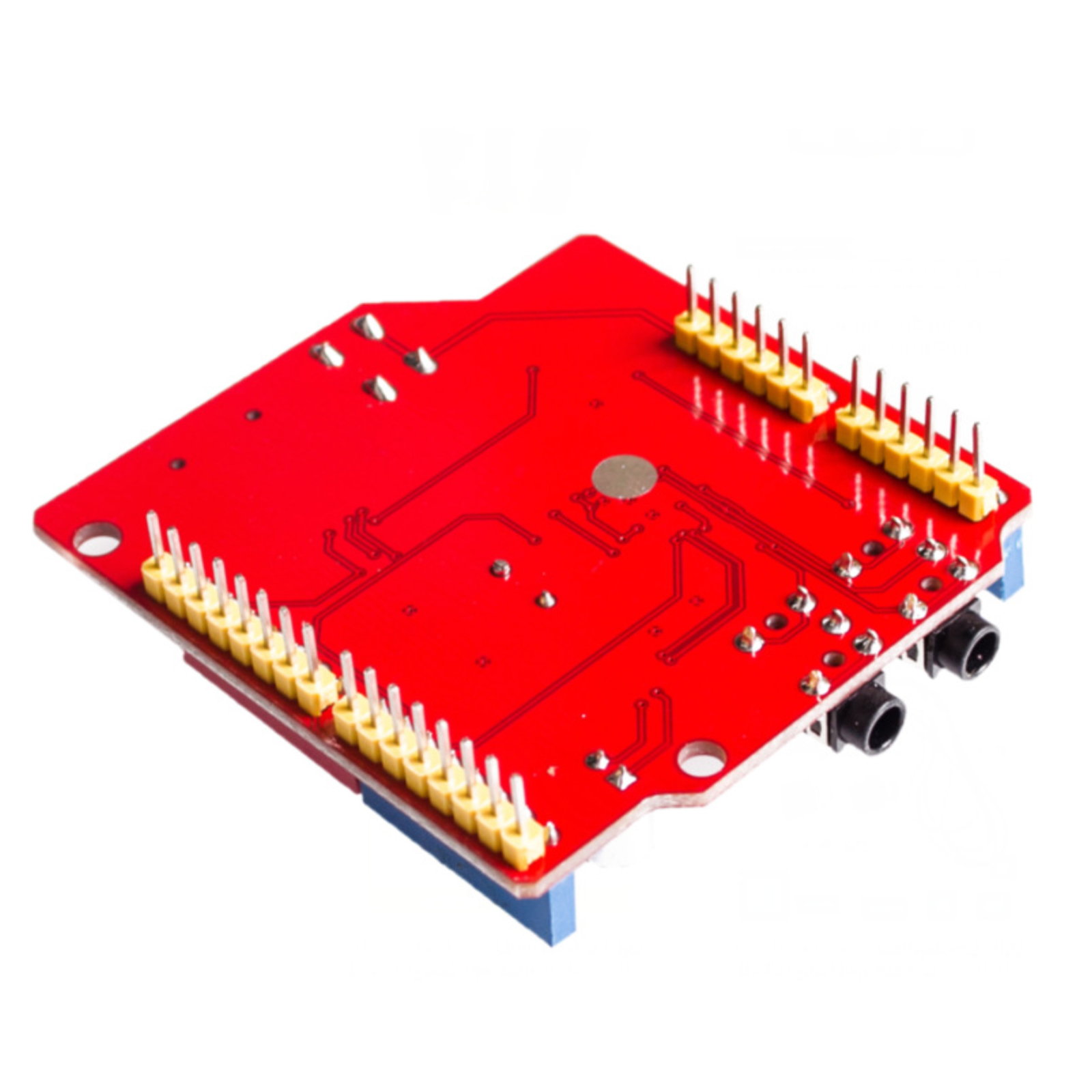

The VS1053 can record in Ogg Vobis. With a TF card slot on the other side of the board,
Using this breakout you can play mp3 files from TF card.
It is easy to drop this into your project or make an mp3 player using your microcontroller.
Features can play various music formats, Support for OGG encoding real-time recording SPI interface,
Control signal lines led to a headphone and stereo output A microphone for recording the line_in input interface
Power indicator 3.3V and 2.8V LDO chip AMS-1117 on board, Provides 800mA current
Single power supply: +5 VDC 12.288 Mhz crystal TF cart slot.
Specifications:
Can play various music formats, support OGG encoding real-time recording
SPI interface, led out control signal lines
One headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
On board 3.3V and 2.8V LDO chip AMS-1117, provides up to 800mA current
Single power supply: +5 VDC
12.288 Mhz crystal
TF card slot
Packing:
1 x VS1053 module
