Features:

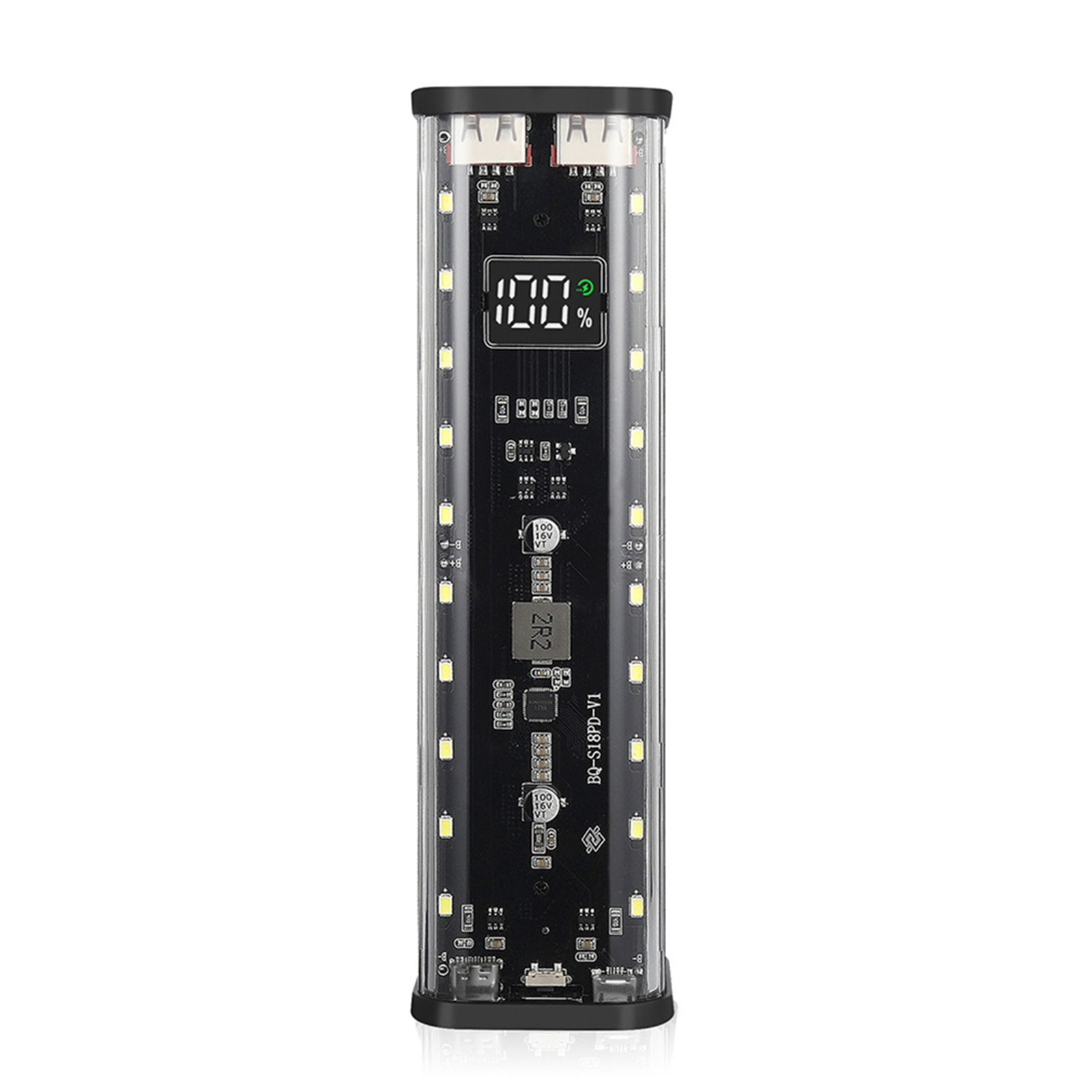

Adopt high quality LED screen, you can view the remaining power status in real time, visible sense of security
22.5W high power output, PD/QC/AFC/SCP multi-protocol fast charging

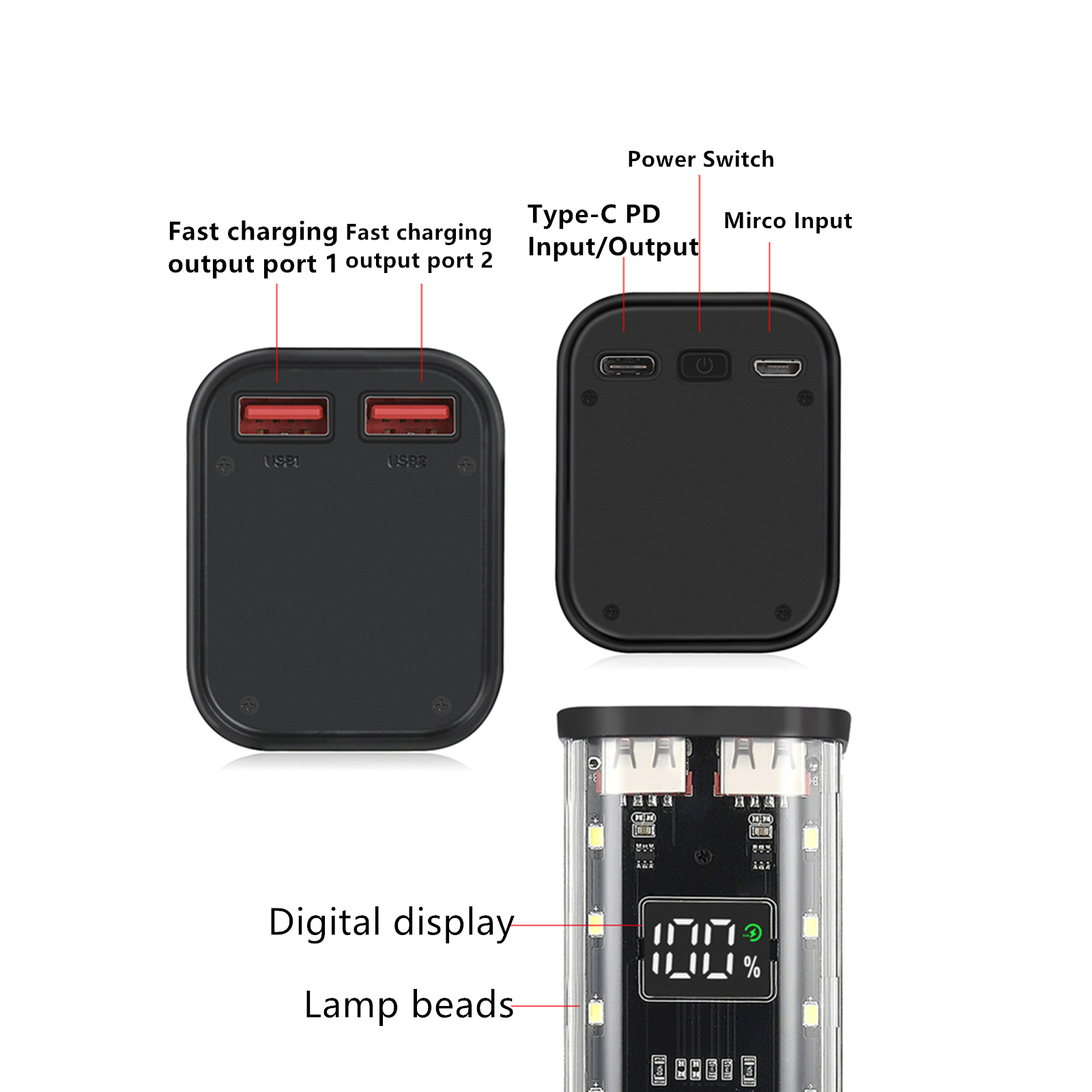

Stable performance, dual USB+PD ports charging 3 devices at the same time
Comply with aviation carrying standards, can be carried directly on board the plane to take him around the world.
Specifications:
Input Voltage:
Micro input: 5V/3A, 9V/2A, 12V/1.5A
Type-C input: 5V/3A, 9V/2A, 12V/1.5A
Output Voltage:
OUT1 output: 5V/3.1A, 9V/2.5A, 12V/1.87A (supports 5V charging and discharging);
OUT2 output: 5V/4.5A (VOOC), 9V/2.5A, 12V/1.87A (multiple ports output only 5V at the same time);
Type-C output: 5V/3.7A, 9V/2.22A, 12V/1.67A (output is available only when PD protocol is supported);

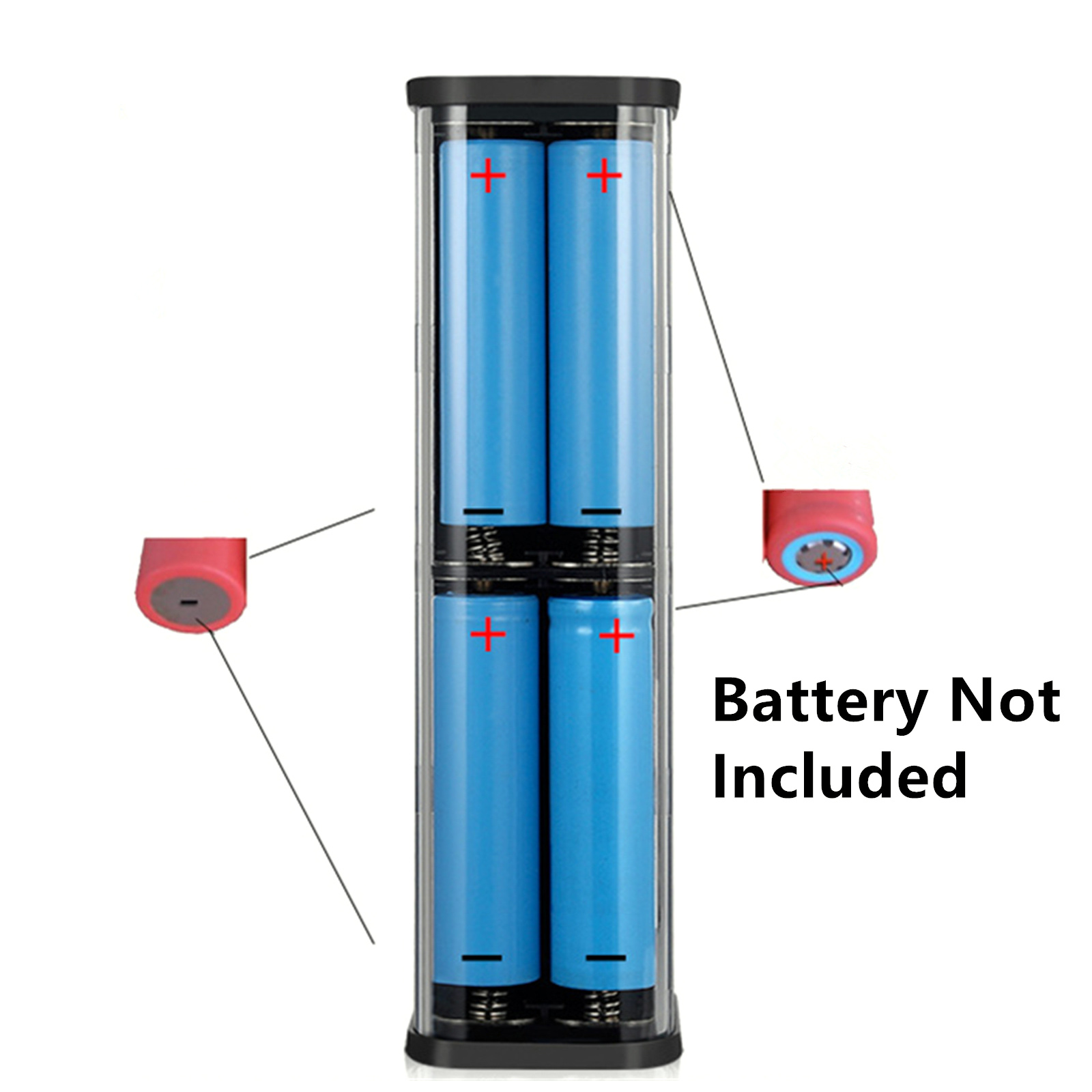

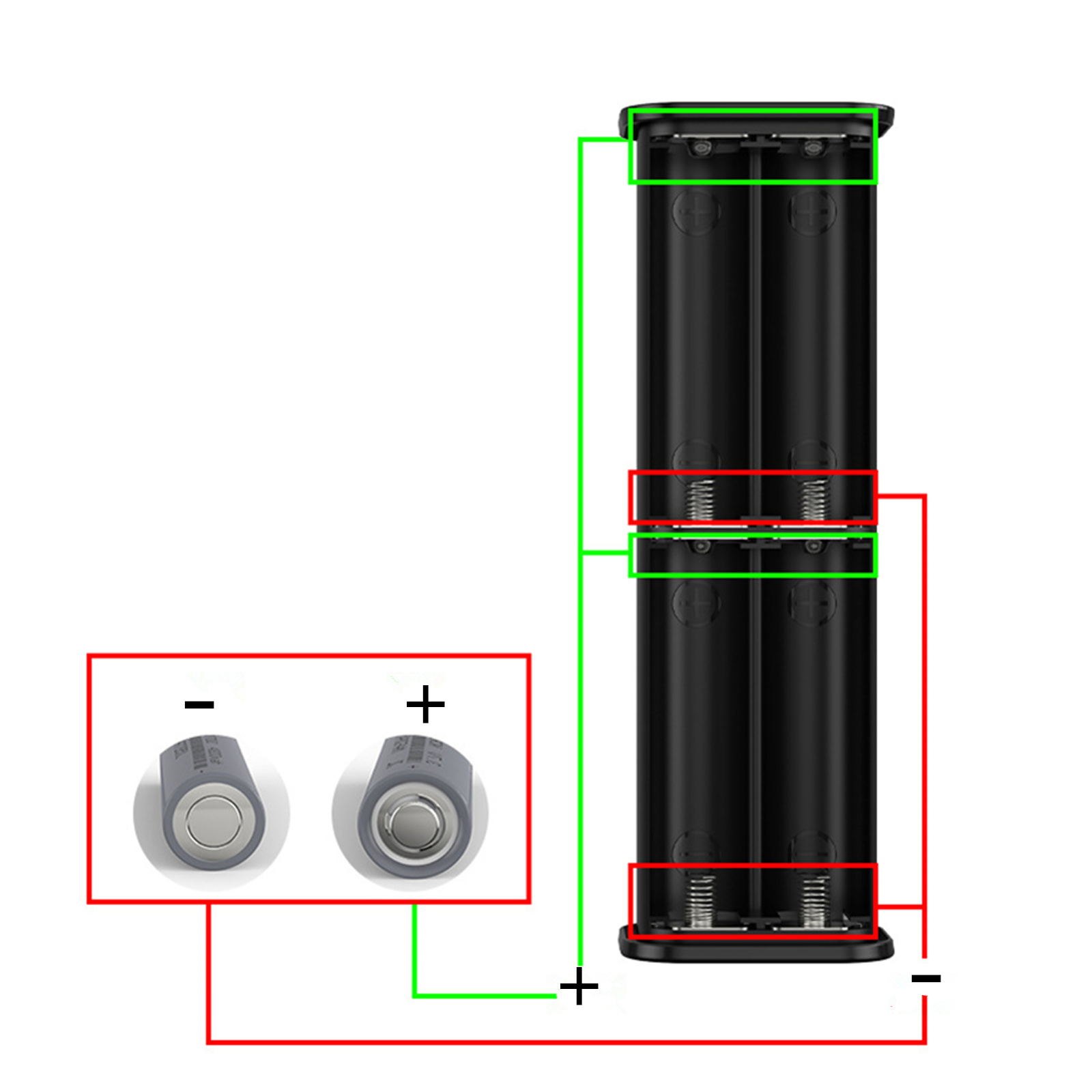

Battery: Flat head without protection board 18650 battery (65MM long), internal resistance within 50 milliohms, discharge above 1C
Battery test:
Press the button to see if the screen responds. If there is no response when pressing the button, it means that the battery cannot be used and please remove it.
If there is a response, use the charger to charge the power bank and check the value displayed. If the displayed power is less than 50, please use the battery box to charge it to more than 50% power;
If the displayed power is higher than 50, it means that the battery voltage is normal and you can take it out and replace it with another battery for testing. All batteries must be tested separately.
Notes:
1. After assembly, use a charger to activate the power bank.
2. After activation, the power bank must be completely discharged first, and then charged for about 20 hours to allow the battery to be completely balanced.
Package include:
1PCS DIY 18650 Battery Case(Soldering Free)
