UNI-T Laser Distance Meter 120M 200M Telemetre Laser Measure Digital Electronic Ruler Rangefinder Camera Aided
UNI-T LM Series is upgraded multi-purpose laser distancemeter with high precision. It can measure distance, area, and even obtainvolume data by using the Pythagorean Theorem.
It is portable, reliable,operationally simple and fast. And it is a perfect substitute of traditionalmeasuring tool (tape, steel rule) which can be widely used in construction,decoration, property management, transportation, fire controlling, gardening,city planning, city appearance management, water conservancy testing, and electricpower maintenance industries.
Features
1. 2.4-inch color screen 2. 12 measurement modes
3. Electronic leveling
4. 3 selectable measurement references
5. USB 3.0 supply power

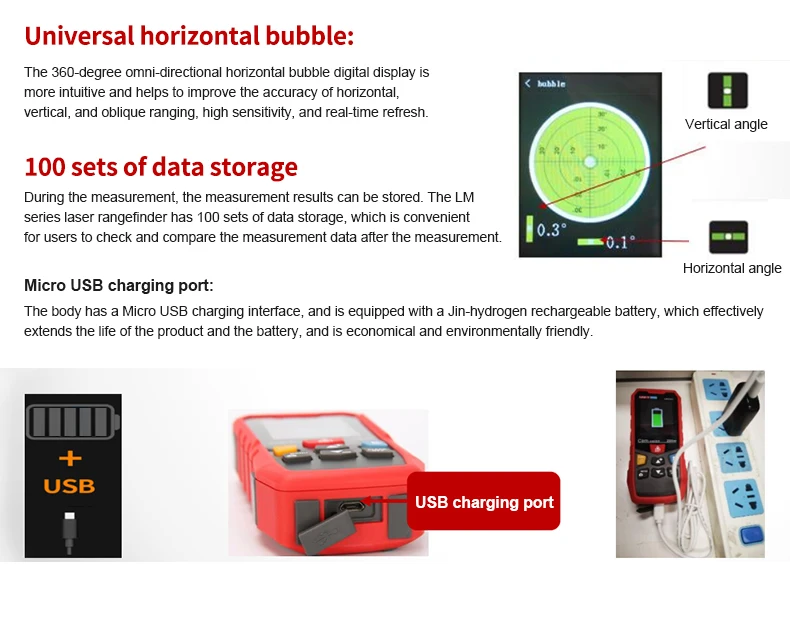

6. 100 groups of data storage

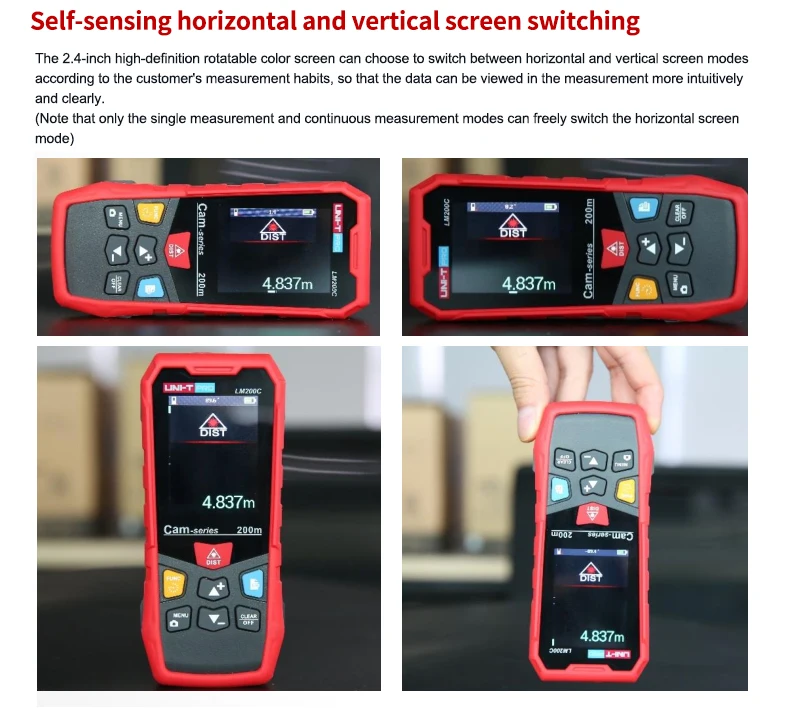

7. Rotatable screen

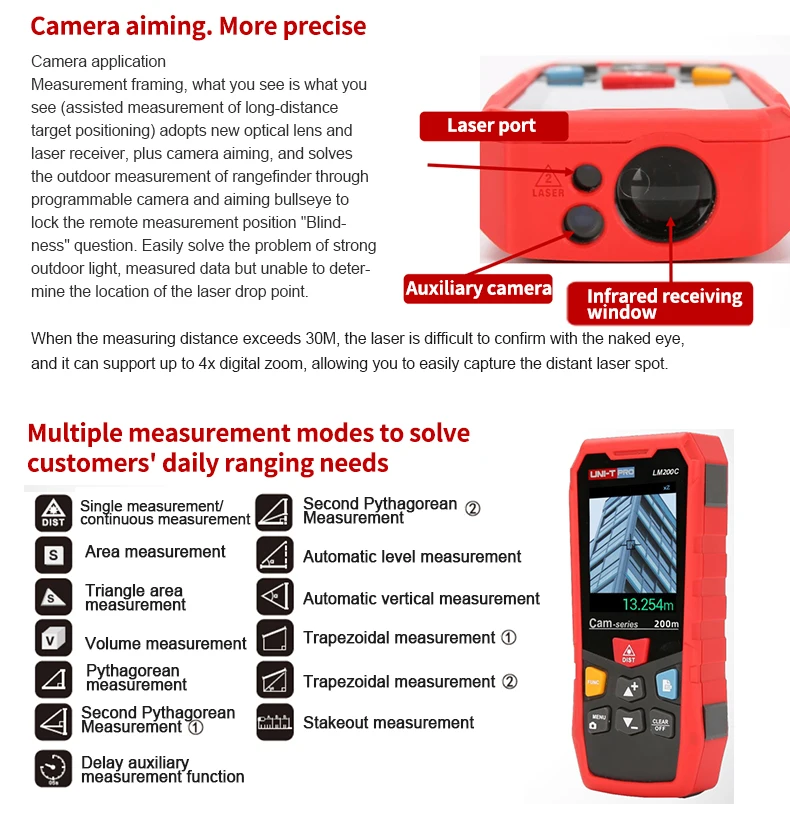

8. Camera-aided measurement
9. 2m drop test
10. IP65 dust and water proof
Parameter
|
Specifications |
LM80C |
LM120C |
LM200C |
|

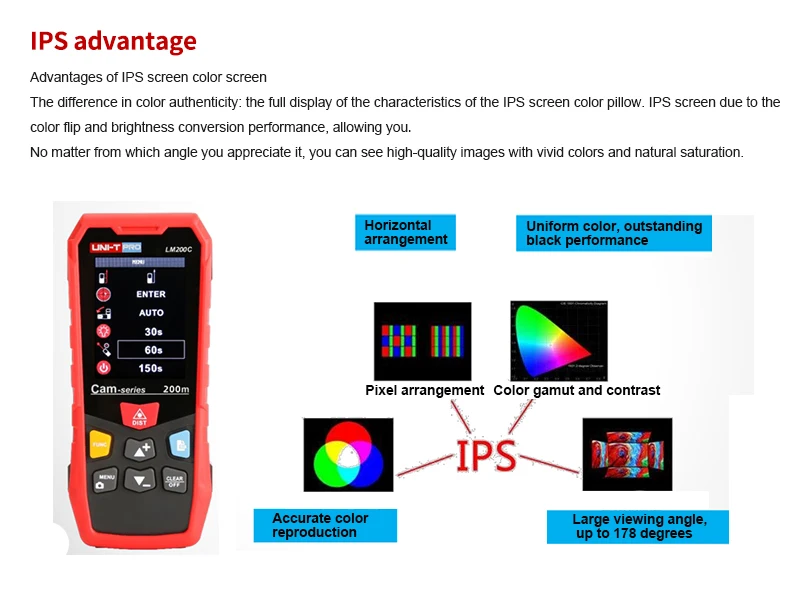

Display type |
IPS |
||
|
Display size |
2.4-inches |
||
|
Range |
80m |
120m |
200m |
|
Min. display unit |
0.001m |
||
|

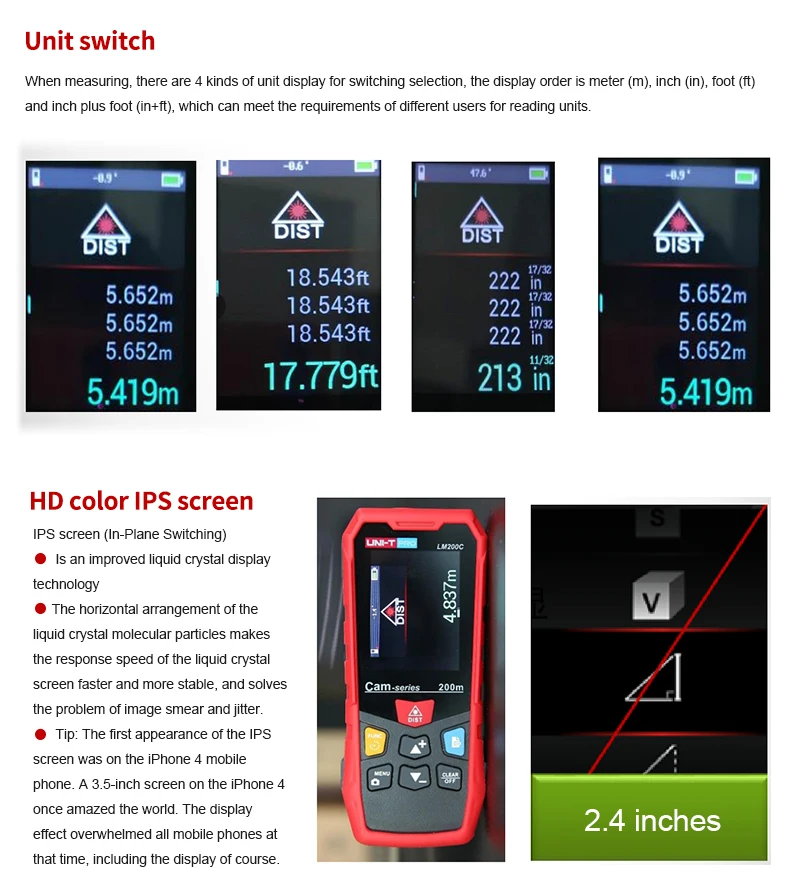

Measurement units |
m/ft/in/ft+in |
||
|
Measurement basis |
Front/middle/rear |
||
|
Accuracy |
±2mm |
||
|
Laser class |
2 |
||
|
Laser type |
630~670nm,﹤1mW |
||
|
Features |
|||
|
Single measurement |
√ |
||
|
Continuous measurement |
√ |
||
|
Max/Min/Area |
√ |
||
|
Volume/Pythagoras |
√ |
||
|
Add/Subtract/Triangle area |
√ |
||
|
Camera mode |
√ |
||
|
Rotatable screen |
√ |
||
|
Auto leveling horizontal/vertical |
√ |
||
|
Electronic leveler |
√ |
||
|
Data storage |
100 groups |
||
|
Auto laser off |
30s without operation |
||
|
Auto power off |
√ |
||
|
Auto backlight off |
√ |
||
|
Battery status display |
√ |
||
|
USB charging |
√ |
||
|

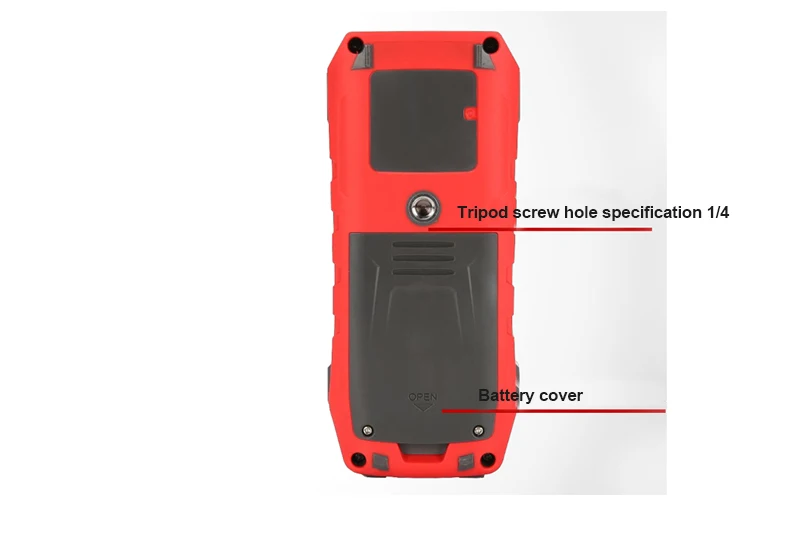

Tripod mounting hole |
√ |
||
|
General Characterisitics |
|||
|
Power |
1.2V AAA recharge battery x 3 |
||
|
Product color |
Red and grey |
||
|
Product net weight |
170g |
||
|
Product size |
59mm x 28mm x 137mm |
||
