Features:
IR Remote: IR Controller adopts the advanced micro control unit, it is used for controlling a cariety of lamp whose source of light is LED
- Adjust Brightness: You can adjust the brightness of light through the remote control
- Attention: The infrared transmitter of the remote control should be aimed at the signal receiving light and confirm that the signal light is on
- Fully Functional: There are 44 keys on the led light remote control, according to the actual need of you, it can carry out jumpy changing, gradual changing.stroboflash and other effects of change

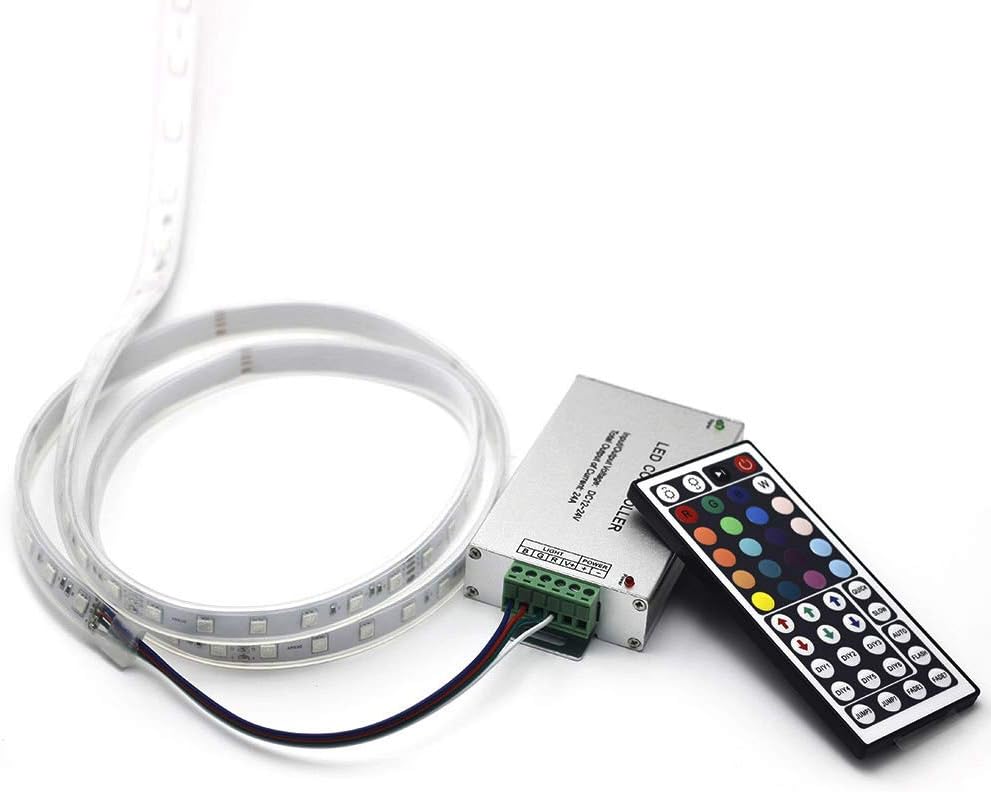

- Application: It is perfect for rgb storefront light,flexble light strip ,wall washer lamp,glass curtain wall light and so on
Specifics:
Supply voltage: DC12-24V; Max Output current: 24A
Output: Three CMOS drain-open output
Send frequency: 433MHZ Remote ,
Distance: 20m
Working temperature: -20-60℃
Control mode: IR
Connect mode: Common anode
Remote powered by: CR 2025(NOT Included)
Shell material: Aluminum
Caution:
The input voltage and current for the IR control should follow the specification, overload input may damage the IR control or LED strips.

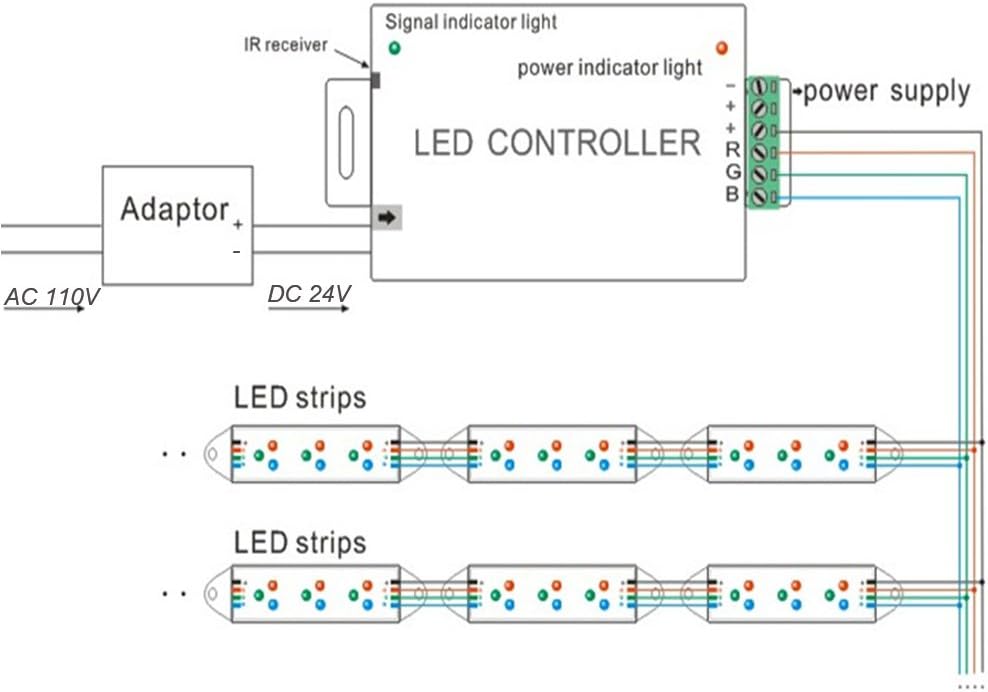

Do Not shortage the wires, incorrect connection of the output wires to LED strip may cause different trun of color modes.
When you press keys (except ON/OFF) on the control box or IR remote, the LED strip light output may shortly off, then it will shift to new mode / brightness / speed.
Package include:

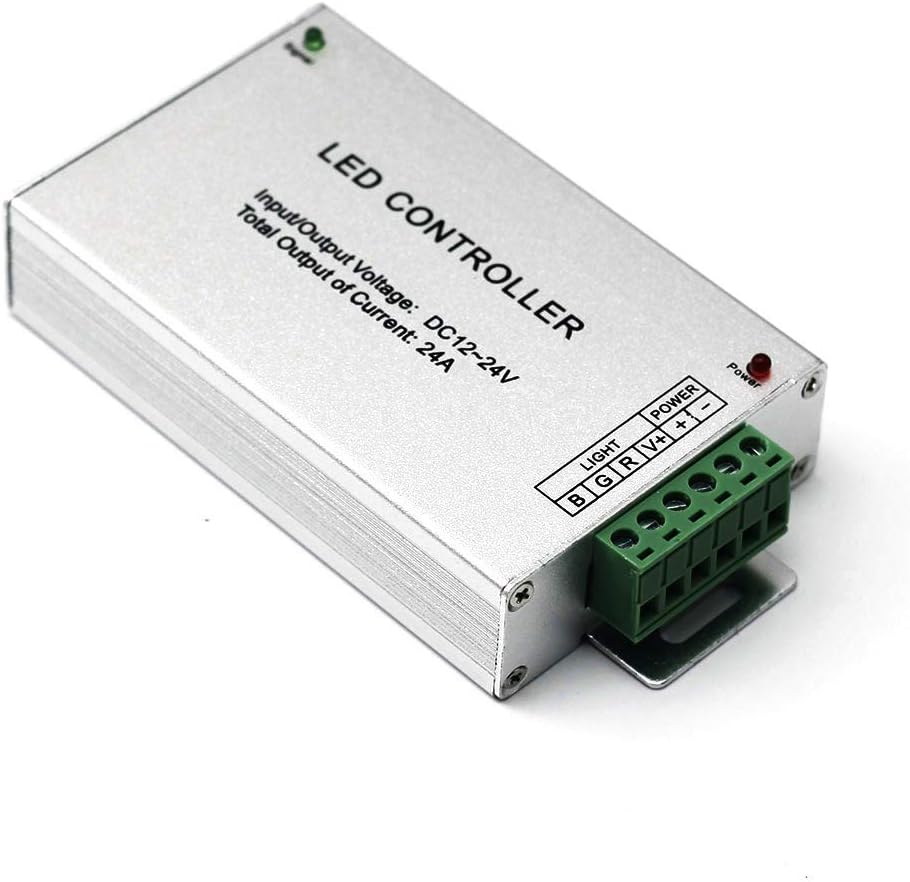

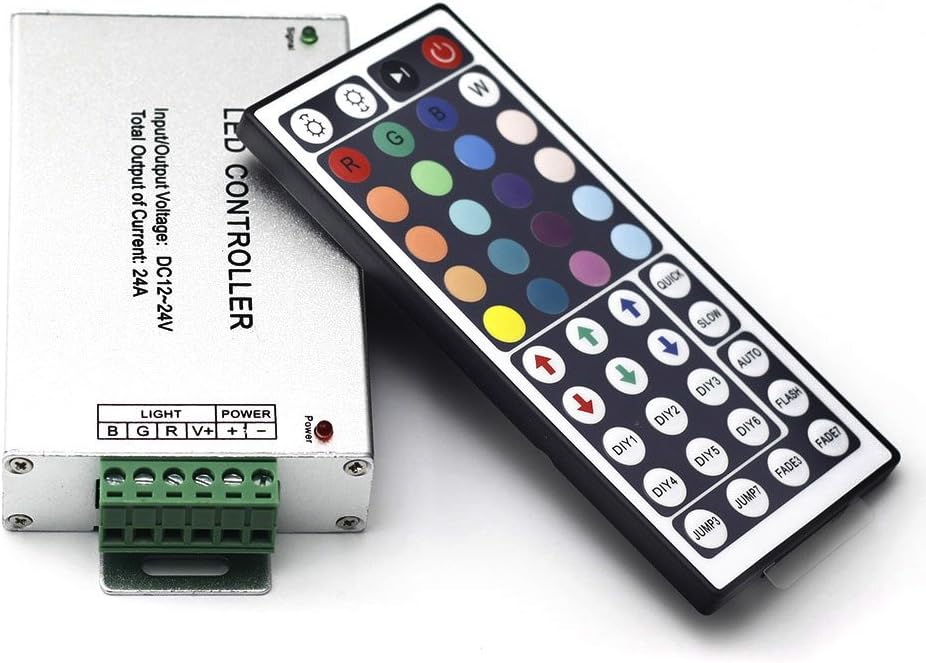

1 x Aluminum Alloy Controller

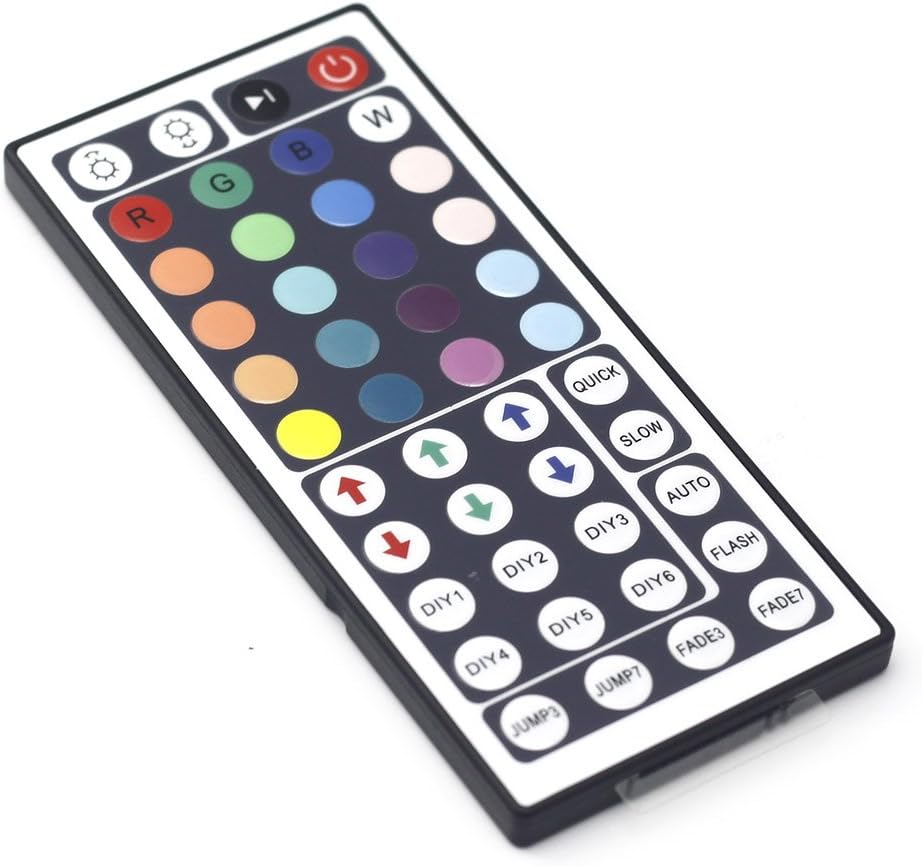

1 x 44 key Remote
