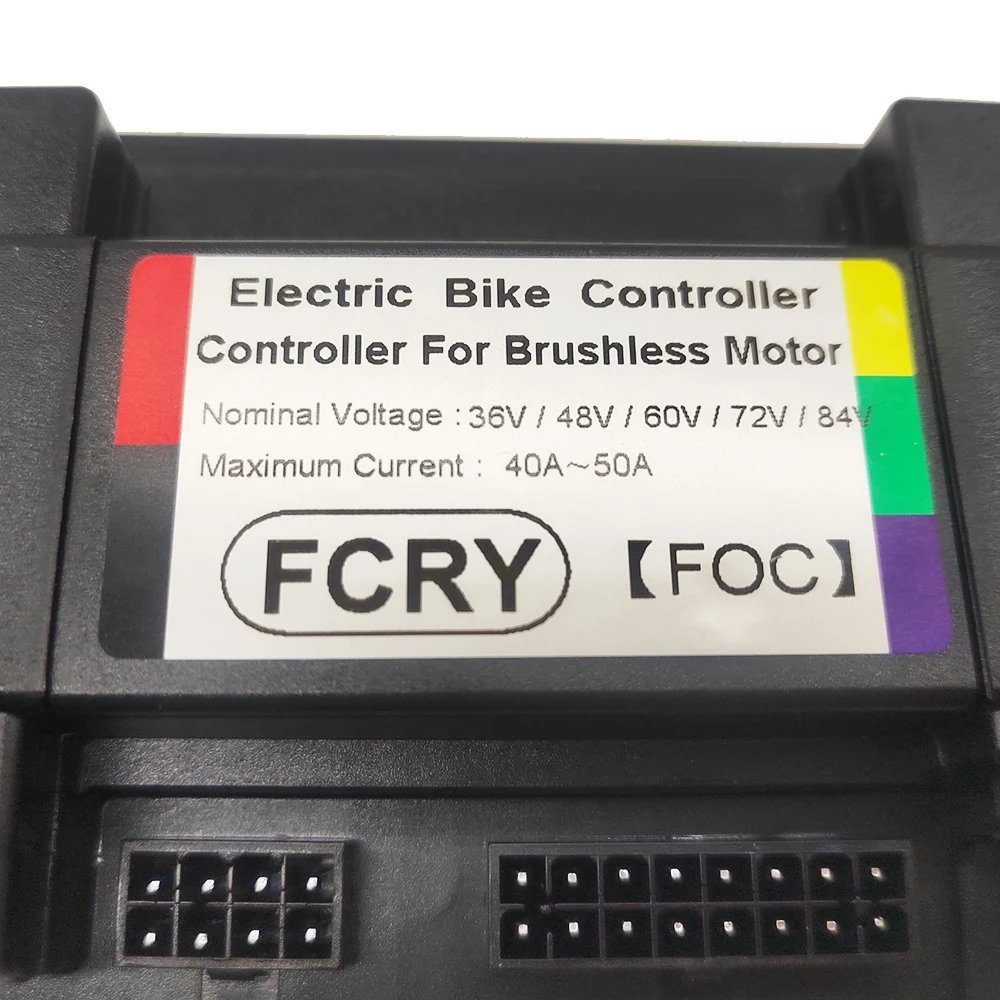

Product parameters:

Condition: 100% brand new

Item type: Brushless Motor Controller

Material: Aluminium alloy and plastic

Voltage: 36V-84V

Power: 100W-1500W

Max Current limit: 50A

12-tube sinusoid controller,Normal Instrument line, a Sine wave model only can work with brushless DC motor .

If motor doesn't have hall sesnor or hall sensor is damage .it is square wave controller .

1. 36V 48V 60V 72V 84V universal

2. One-line instrumentation adds more adaptability, about 80%.

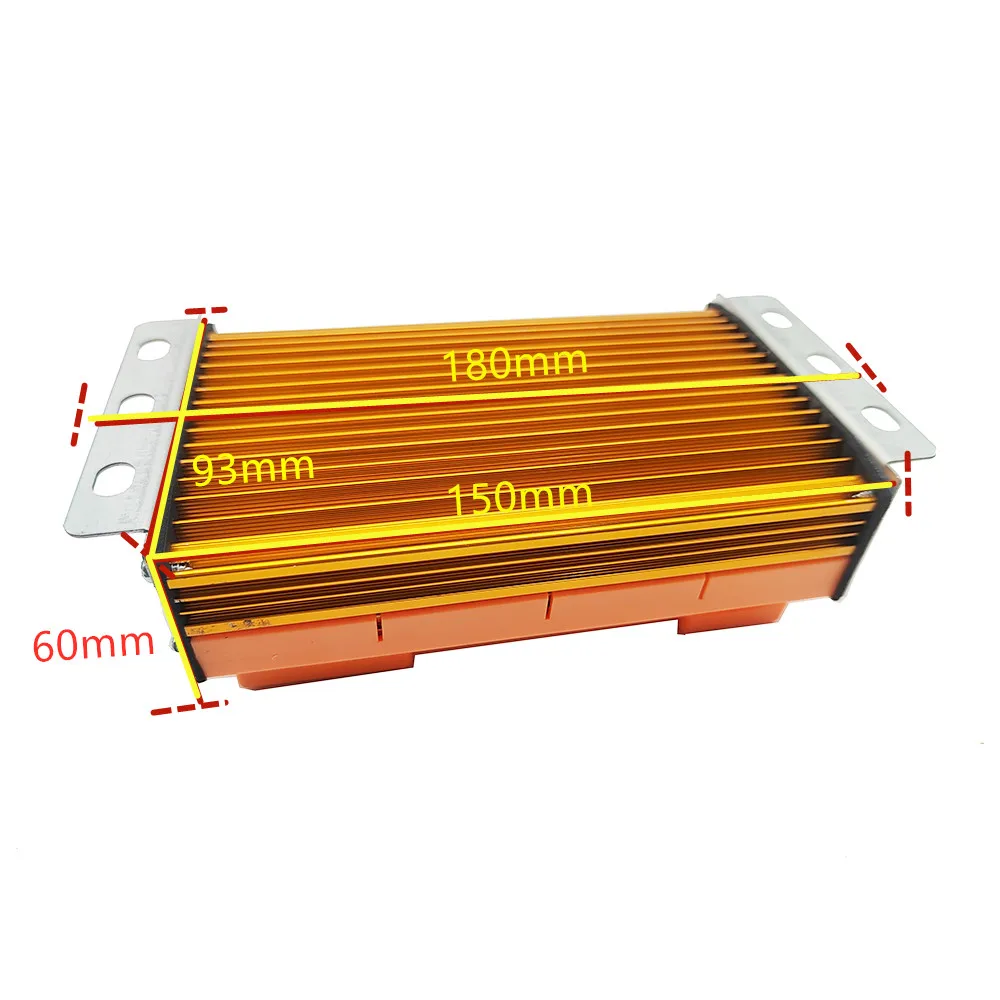

3. In terms of hardware: thicker aluminum shell, better heat dissipation. The motherboard solution is better. Power tubes, capacitors, copper bars, etc. are better.

4.Suitable Motor Phrase Angle: 60°/120° Phase Angle Universal

5.Suitable for: electric bicycle, scooter,Small tricycle,Two-wheeler etc

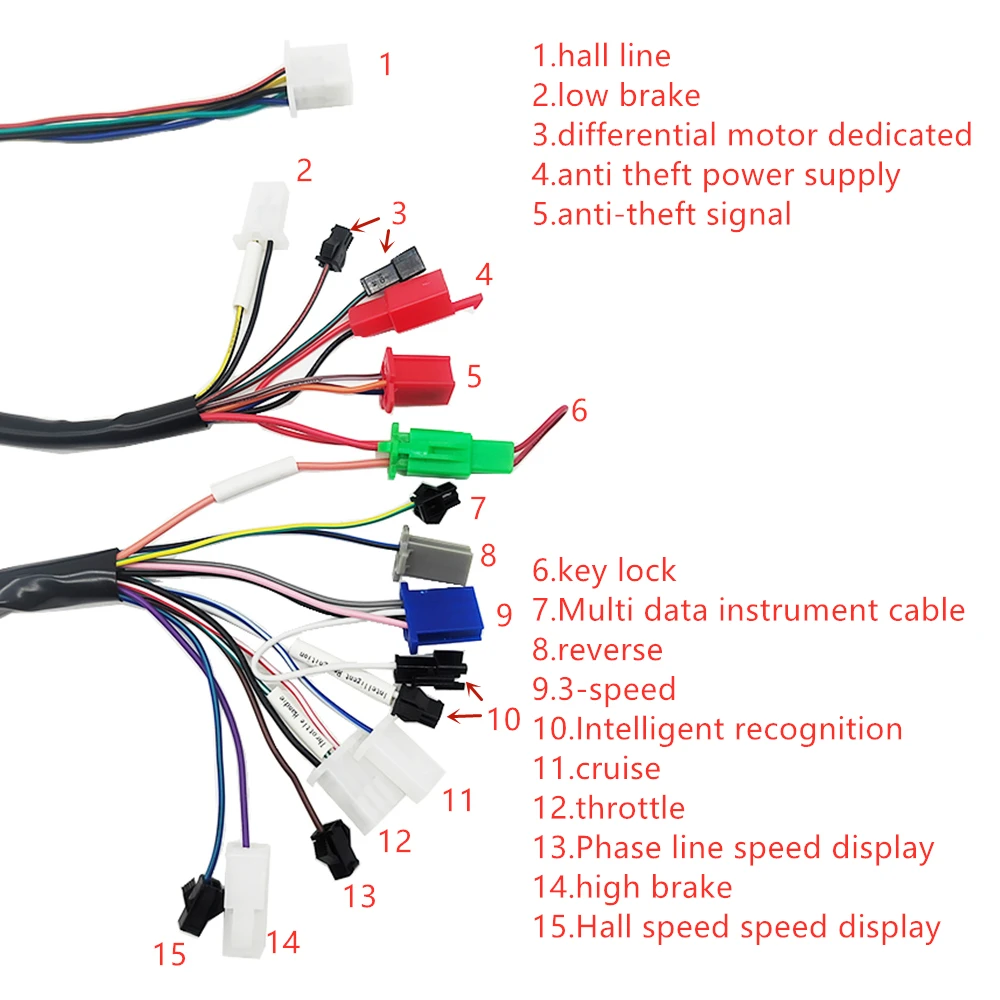

36V-84V 800W-2000W sine wave brushless controller function:

1.hall line

2.low brake

3.differential motor dedicated

4.anti theft power supply

5.anti-theft signal

6.key lock

7.Multi data instrument cable

8.reverse

9.3-speed

10.Intelligent recognition（self-learning line）

11.cruise

12.throttle

13.Phase line speed display

14.high brake

15.Hall speed speed display

how to connect ？

1. connect the battery

2. connect the controller throttle line（color to color），connect electric lock

（if your throttle not have key lock，controller key lock can be shorted）

3. connect the hall line(if motor without hall line, don't need connect)

4.docking the two intelligent recognition lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Docking the intelligent recognition line again，

if wheel forward ,Separate the self-learning line.)

5.other functions can be connected as needed.
