New Awning Lift Handle Part 830644 Replacement fit for Dometic RV Trailer Camper A & E A&E
    • Condition: 100% new
    • Color: Light Gray & Black
    • Material: Aluminum, Alloy Steel, Rubber
    • Size: As picture shows
    • Manufacturer Part Number: 830644

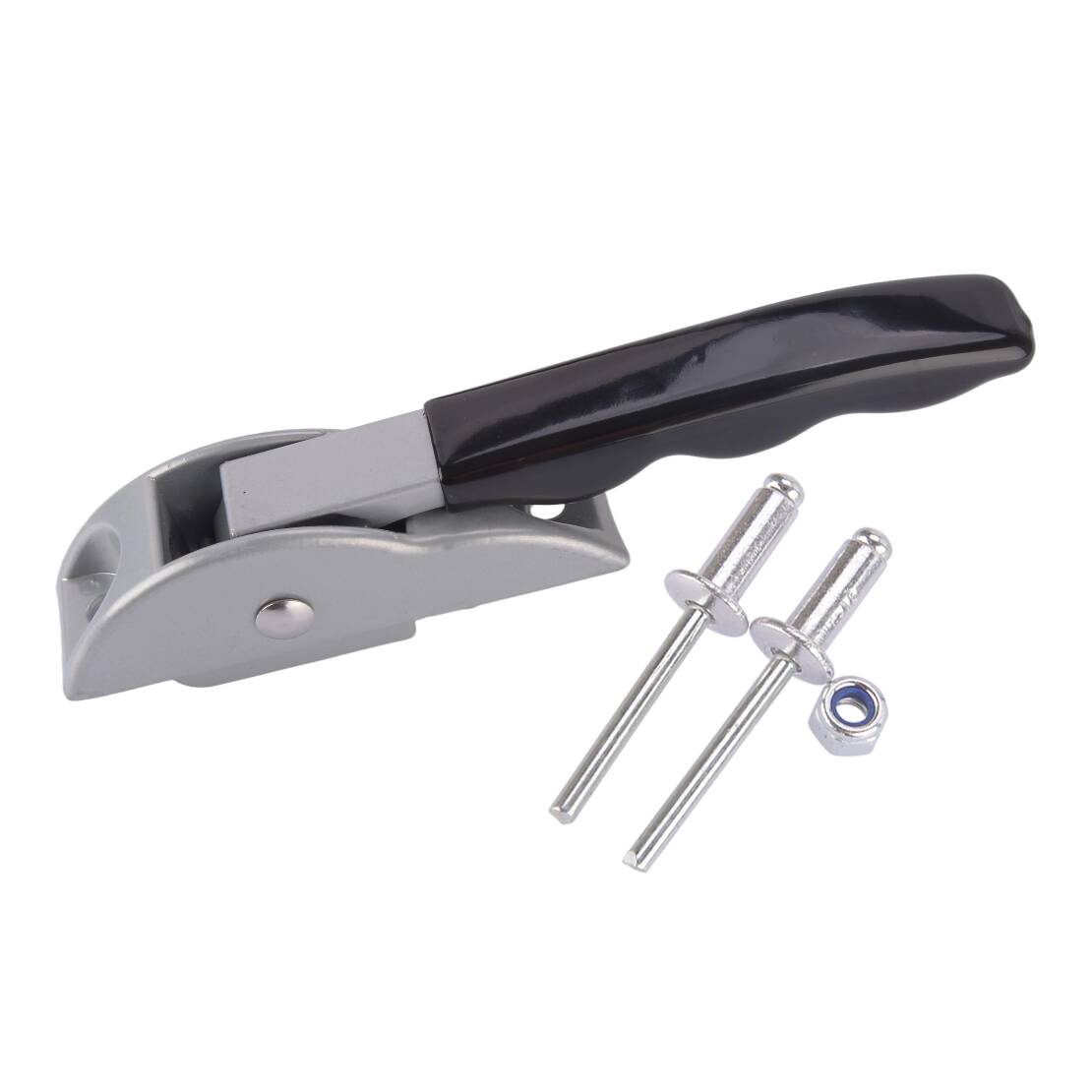

    • Item included:

      1 x Lift Handle

      2 x 3/16" Pop Rivets

      1 x Hex Nut

    • Compatible With: fit for Dometic A & E Models 8500 & 9000

    • This Is Aftermarket Replacement Item But Not Genuine

    • Note:

      1) All dimensions are measured by hand, there may be small deviations.

      2) Color may vary slightly due to the color setting of each individual monitor.

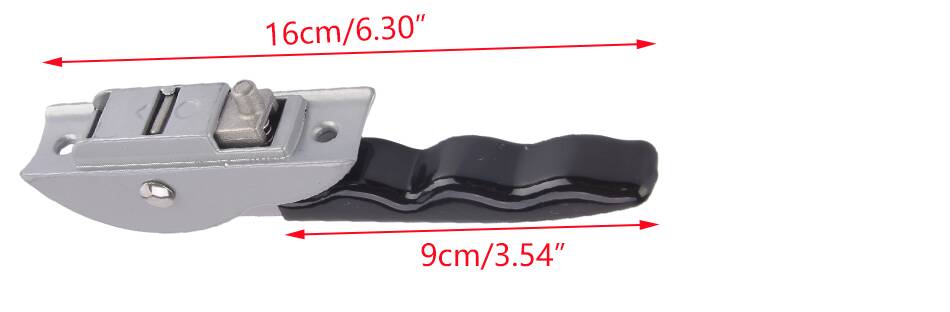

Product Dimension:

Feature:

1) Prevent rust and corrosion, maintain strength without rusting. The thick steel mandrel can fit through of the materials you are connecting.

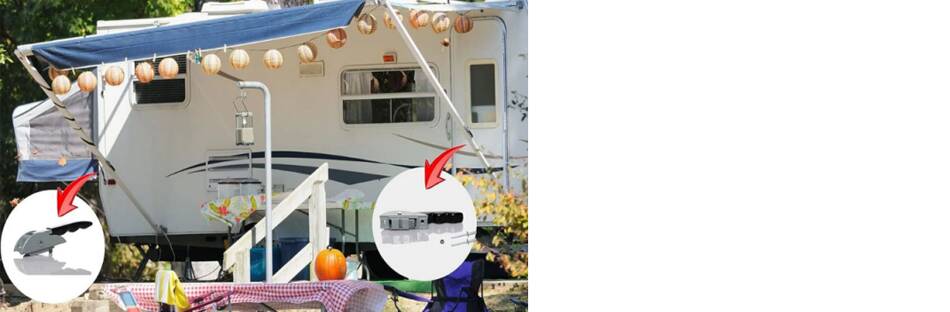

2) Used to lift and lock the adjustable awning arms.

3) The size between the rivet mounting holes is 2-3 / 4 "center to center.

4) Keep the handle smooth and no slipping, conforms to the fingers.

Installation:

1) Drill out rivets of existing handle using a 3/16" bit or remove screws.

2) Place new lift handle in punched slot of main arm and align rivet holes.

3) Insert rivet through hole in main arm.

4) Place hex nut over rivet shaft and tight against riven shoulder. If nut is not used, rivet will not seat properly for securing.

5) Secure handle by pulling rivet tight with pop rivet gun.

6) Repeat steps 3-5 on second rivet.
